100M Fibre to Copper Media Converter With PoE

Fiberroad POE230 Series commercial-grade PoE fibre media provides an option for single or dual PoE ports with 100Mbps or Gigabit Ethernet, which communicates across optical fibre via SFP port or 1×9 optical transceiver.

The PoE feature complied with IEEE802.3 af/at standard, including a PSE controller, which offers PD signature sensing and PoE negotiation features. Other intelligent features include over-current protection, LFP function, etc.



Product Features

  • Ideal for confined spaces, and provides highly cost-effective solutions
  • Auto-Negotiation – automatically determines the best connection speed
  • Wall mountable using the integrated mounting holes
  • Single or Dual IEEE 802.3at 30W PoE+ port
  • Fast or Gigabit ethernet, SFP or 1X9 transceiver supports single-mode and multimode, single or dual fiber options up to 120km
  • Supports Jumbo Frames up to 9.6K bytes
  • Intelligent features(DIP Switch/Media Converter) supported including link fault pass-through, automatic laser shutdown, SFP reset and SFP speed selection

Video Gallery

Quality Certifications
Guarantee
Share This Product

PoE Fiber Media Converters Extend Your PoE Network

If you’re looking for a way to extend your Ethernet network beyond the reach of traditional cabling, a fiber to power over Ethernet media converter is an ideal solution. By converting Ethernet signals to optical signals, these converters can extend your network over long distances without any degradation in performance. And because they use power over Ethernet (PoE) technology, they can also provide power to devices such as IP cameras or VoIP phones, making them a versatile and convenient solution for any application.

The Miniaturized Design is Good For Confined Spaces

The PoE Fiber Media Converter is a miniaturized media converter that is ideal for use in confined spaces. This media converter converts Ethernet signals to optical fiber signals, and vice versa. It supports both 10/100Base-TX and 100Base-FX standards, making it compatible with a wide range of devices. The PoE Fiber Media Converter also features an integrated Power over Ethernet (PoE) injector, which provides power to PoE-powered devices through the Ethernet cable. This media converter is perfect for applications where space is limited, such as surveillance cameras and access control systems.

Product Attributes

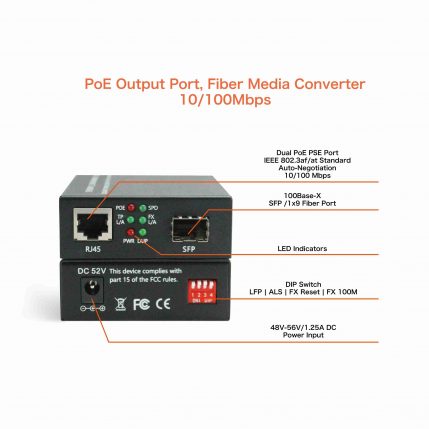

Ports 1×10/100Base-Tx RJ45
1x100Base-x SFP/1×9 Port
Port Mode(Tx) Auto Negotiation
Full/Half Duplex
Auto MDI/MDIX
PoE Power Capacity IEEE 802.3 af: 15.4W
IEEE 802.3 at: 30W
Frame Size 9K
DIP Switch LFP/ALS/FX Reset/FX100M Input Power 48-56VDC/1.25A
Installation Mode Desktop or Wall Mount Power Consumption af mode:20W
at mode:35W
Housing Metal IP Rating IP30
Operating Temperature 0 to 50℃ (32 to 122℉) MTBF 100,819 Hours

A PoE media converter with link fault pass-through features can be a great addition to your network. It can also help you extend the reach of your PoE network by connecting two devices that are far apart. The link fault pass-through feature allows you to keep your network running even if one of the devices is disconnected. This can be a great advantage if you have a large or complex network.

Fiber Media Converter with PoE FAQs

What is a Fiber Media Converter with PoE and how does it improve network performance?

The Fiber Media Converter with PoE is a powerful device designed to enhance the performance of your network. It converts Ethernet signals to optical fiber signals and vice versa, eliminating the need for bulky cabling. The integrated Power over Ethernet (PoE) injector allows you to power devices remotely, reducing clutter and improving network performance. Additionally, the converter is compatible with 10/100Base-TX and 100Base-FX standards, meaning it can be used with an array of different devices. This versatility enables you to optimize your network performance without additional cabling requirements.

Can your Fiber Media Converter with PoE be used for both copper and fiber networks?

Yes, our PoE Fiber Media Converter can be used for both copper and fiber networks. It is specifically designed to convert Ethernet signals to optical fiber signals, and vice versa. It also supports both 10/100Base-TX and 100Base-FX standards, making it compatible with a wide range of devices. Additionally, the integrated Power over Ethernet (PoE) injector ensures that your network is fully powered up.

Is the installation process of your Fiber Media Converter with PoE user-friendly for non-technical personnel?

Definitely. Our Fiber Media Converter with PoE has a simple Plug-and-Play setup, allowing even non-technical personnel to set it up with minimal effort and time. Furthermore, the Power over Ethernet injector gives you the convenience of being able to provide power to your device directly from the Ethernet cable.

How much power can your Fiber Media Converter with PoE provide to connected devices, such as IP cameras or wireless access points?

Our Fiber Media Converter with PoE is capable of providing 30 Watts of power to connected devices, making it an ideal solution for powering devices such as IP cameras or wireless access points. With its integrated PoE injector, you won’t have to worry about extra cabling or having a separate power source for your device. This media converter is also designed to be energy efficient, so you can rest assured that it will help save both time and money in the long run.

Physical Port

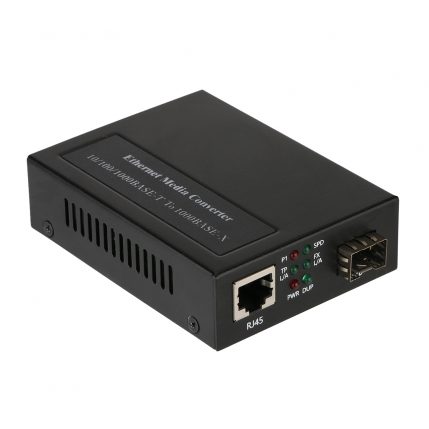

Model FR-POE231 FR-POE232 FR-POE233
Copper Port 1x 10/100Base-TX RJ45 1x 10/100/1000Base-TX RJ45 2x 10/100/1000Base-TX RJ45
SFP Slot 1x 100Base-X (SFP or 1×9 Transceiver SC,ST,FC connector) 1x 1000Base-X (SFP or 1×9 Transceiver SC,ST,FC connector) 1x 1000Base-X (SFP or 1×9 Transceiver SC,ST,FC connector)
LED Indicators Power

SFP/1×9 Link/Activity

RJ45 Link/Activity

RJ45 Speed

RJ45 Duplex

PoE

Power

SFP/1×9 Link/Activity

RJ45 Link/Activity

RJ45 Speed

RJ45 Duplex

PoE1

PoE2

Cables
UTP UTP Cables: CAT5 or above

UTP Cable Limitations: Max. length up to 330 ft. (100 m)

Fiber Optic 1000BASE-SX: 50/125, 62.5/125, or 100/140-µm Multimode 550m 1000BASE-LX: 8.3/125, 8.7/125, 9/125, or 10/125-µm Single-mode 10km
Ethernet Standards
Standards IEEE802.3i 10Base-T

IEEE802.3u 100Base-TX & 100Base-FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE802.3x Flow Control

IEEE802.3af 15W PoE

IEEE802.3at 30W PoE+

Switching Capacity 200Mbps(FR-POE231) 2 Gbps(FR-POE232) 6Gbps(FR-POE233)
Jumbo Frames 9K
Power
Power Input 1
Operating Voltage 48-56VDC
PoE Power Capacity IEEE802.3 af : 15.4W (x2 FR-POE233)

IEEE802.3 at : 30W (x2 FR-POE233)

Power Consumption af mode: 20W (x2 FR-POE233)

at mode: 35W (x2 FR-POE233)

Protection Over Currency
Mechanical
Housing Metal
Dimensions 94mm×71mm×26mm(W x D x H) 3.70 x 2.80 x 1.02in
IP Rating IP30
Weight 0.2kg/0.44lb(Bare Hardware)
Installation Desktop or Wall Mount
Environmental
Temperature Operating: 0 to 50℃ (32 to 122℉)

Storage: -20 to +70℃ (-4 to +158℉)

Humidity 5 to 95% noncondensing
Altitude <3000m(<10000 ft.)
MTBF 100,819 Hours
MTBF Standard Telcordia SR-332 GB 25℃
Heat Dissipation 113 BTU/h (With 30W PoE)
Cooling Passive Cooling
Noise Level 0 dBA
