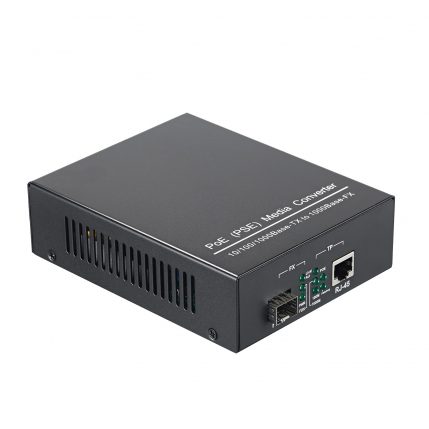

PoE Media Converter – PoE Fiber Conversion

Gigabit PoE Media Converter enables power over ethernet to network devices in the existing network connection. This Ethernet to Fiber PoE Media Converter provides an economical path to extend the distance of an existing PoE network with fibre cable.

Internal PoE Power Adapter

Furthermore, with Fiberroad’s original internal PoE power adapter design, Gigabit PoE Media Converter provides users with easy-to-install and troubleshooting PoE Media Conversion.

Product Attributes

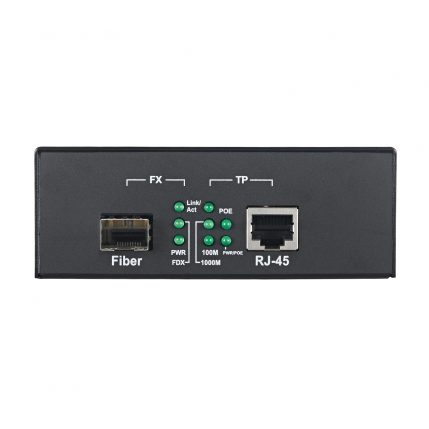

Ports	1×10/100/1000Base-Tx RJ45 1x 100/1000Base-X SFP/1×9 Port	Port Mode(Tx)	Auto Negotiation Full/Half Duplex Auto MDI/MDIX
PoE Power Capacity	IEEE802.3 af:15.4W IEEE802.3 at: 30W	Frame Size	9K
DIP Switch	FX Reset / FX100M / POE Shutdown / LFP / ALS / AI POE
Input Power	AC 100~240V, 47 to 63Hz or DC9-56V	Power Consumption	af mode: 20W / at mode: 35W
Housing	Metal	Installation Mode	Desktop or Wall Mount
Operating Temperature	Operating: 0 to 50℃ （32 to 122℉）	Storage Temperature	Storage: -20 to +70℃ （-4 to +158℉）

Standard IEEE802.3 af/at- PoE Negotiation

The Gigabit PoE Media Converter built-in a PSE controller, which simultaneously offers PD(Power Device) PoE sensing and PoE negotiation features.

Without damaging not-PoE devices

Gigabit PoE Media Converter is specifically to satisfy the growing demand for poe power network equipment, such as network cameras, VoIP telephones, wireless access points, and other PoE network devices that need Standard IEEE802.3af/at PoE power to function normally.

PoE Media Conversion With AI Operation

The Gigabit PoE Media Converter embedded a DIP switch to enable the Link Fault Pass-Through, AI PoE Function, etc as well as AI operations for PoE network, certainly enhance the application ability.

How the Link Fault Pass-Through can improve PoE Network efficiency?

When the LFP (link fault pass-through) is enabled, The system administrators are able to notice the link failure within a short period of time, significantly minimizing the signal losses.

Simple and Quick Operation with SFP Gigabit PoE Media Converter

Above all, PoE Media Converter, not only implement both Fiber Media Conversion and PoE power supply, but also to allow for more efficient troubleshooting, less on-site maintenance, and prevent increased physical damage.

PoE Media Converter – Ideal for IoT

The Gigabit PoE Media Converter is ideal for various of multiple IoT application, For example, IP Video surveillance system and Smart Hotel and Campus,etc.

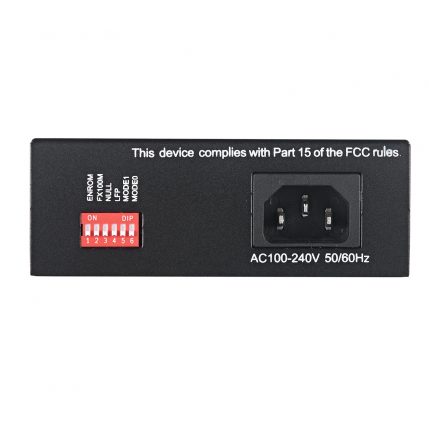

No.	Name	Status	Function
SW1	ENROM	OFF	FX Reset Disable
		ON	FX Reset Enable
SW2	FX100M	OFF	FX 1000M(Default)
		ON	FX 100M
SW3	POE Shutdown	OFF	POE Shutdown Disable
		ON	POE Shutdown Enable
SW4	LFP	OFF	LFP Disable
		ON	LFP Enable
SW5	ALS	OFF	ALS Disable
		ON	ALS Enable
SW6	AI POE	OFF	AI POE Disable
		ON	AI POE Enable
