10-Port Gigabit Managed Industrial Network Switch

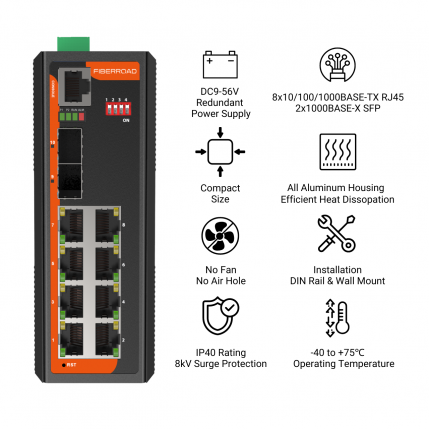

FR-7S3208 is an L2+ Managed Industrial Network switch with 8-Port 10/100/1000Base-TX and 2 Gigabit uplink ports that provide stable and reliable industrial network transmission. With a high-standard industrial grade design, such as IP40 housing, Fanless, -40℃ to +75℃ operating temperature. The Industrial Network switches are perfect for harsh environments, for instance, intelligent transportation systems (ITS). They are also suitable for many militaries and utility market applications where environmental conditions exceed commercial product specifications.
Managed Industrial Network Switch with Layer 2+ Features
Fiberroad FR-7S3208 is a managed industrial network switch , designed for the industrial network. It provides user-friendly advanced IPv6/IPv4 management interfaces, comprehensive layer 2 switching functions and Layer 3 static routing capability within such a rugged enclosure. The industrial Ethernet switch can operate stably under the temperature range from -40 to 75 degrees and allows either DIN-rail or wall mounting for efficient use of cabinet space. With 2x Gigabit SFP fibre slots, it can be flexibly applied to extend the connection distance.
High-Performance Network Management
- Web-based CloudMQTT to monitor the Industrial Network anytime, anywhere.
- Command-line interface(CLI) and Firo WebGUI management for configuring major managed functions.
- SNMPv1/v2C/v3 for different levels of network management.
Complete Security Mechanisms
- AAA&RADIUS, IEEE 802.1X, SNMPv3, HTTPs/SSLv3,SSH2.0 to enhance network security.
- Support user hierarchical management, ACL control list
- Port isolation within the same VLAN, DHCP-Snooping
- DDOS, port-based MAC filtering/binding, MAC black holes, IP source protection, ARP message speed limit
Advanced Layer 2+ Features
- Build a redundant network with STP/RSTP/MSTP/ERPSv2.
- IPv4/IPv6 Management and Static Route.
- ACL Based on MAC, IP address.
- Retagging and complicated flow classification based on VLAN, MAC/IP.
- Flexible bandwidth control policies.
Industrial Network Switch for Harsh Environment
With IP40 Durable Aluminum housing and fanless design also provide efficient heat dissipation. The Industrial Network Switch provides a high level of immunity against electromagnetic interference and heavy electrical surges, usually found on plant floors or curb-side traffic control cabinets. It also possesses an integrated power supply source with a wide range of voltages (9 to 56V DC) for worldwide high availability applications requiring dual or backup power inputs. Indeed, The design of the switch ensures operates in Harsh Environment.
Build Up Secure Network with L2+ Industrial Switch
FR-7S3208 provides robust Layer 2+ Gigabit networks connectivity, including but not limited to Static route, LAN network security, ACL/QoS policy… Moreover, By configuring ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power system in industrial automation networks to enhance system reliability and uptime in harsh environments. As can be seen, the Managed Industrial Switch is easy to manage and maintain.
Comprehensive Security and Authentication Strategy
Both SSH2.0 and HTTPS/TLS protocols are utilized to provide powerful protection against network threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, ARP Inspection Protection, 802.1x port-based and MAC-based network access control, user hierarchical management, and SNMPv3 authentication, and so on to complement it as an all-security solution. The Industrial Network Switch administrator can now construct highly-secure corporate networks with considerably less time and effort than before.
Manage the Industrial Network Anytime, Anywhere
Managed Industrial Ethernet Switch allows various network management methods, such as the WebGUI, CLI and NMS. The notion of easy to use, particularly with no additional hardware investment and installation. Industrial Network Switch can deploy centralised management, Layer 2 to Layer 4 QoS, Bandwidth allocation, real-time monitoring, etc.
Industrial and factory automation systems.
Outdoor electrical application.
Rail and intelligent transportation system(ITS).
Oil and gas platforms.
Clean Energy System
Industrial Ethernet switches have a wide operating voltage range, while regular switches require higher voltages. Regular switches are basically single power supply, while industrial switch power supplies are generally dual power supply backup. Industrial Ethernet switches can be installed in DIN rails and racks.
2x1000Base-FX (SFP Slots)
4x1000Base-FX (SFP Slots)
|Port Mode(Tx)||Auto-Negotiation Speed
Full/Half Duplex Mode
Auto MDI/MDI-X Connection
|Standards||IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP
|Console||1x RJ45-to-RS232 Serial Port(115200)|
|Packet Buffer Size||2Mbits|
|Maximum Packet Length||Up to 9K|
|MAC Address Table||4K|
|Transmission Mode||Store and Forward (full/half duplex mode)|
|Exchange Property||Delay time: < 7μs
Backplane bandwidth: 20Gbps
|Max. No. of VLAN||64|
|VLAN ID Range||VID 1 to 4094|
|Power Consumption||10 Watts Max|
|Input Voltage||9-56VDC, Redundant dual inputs|
|Connector||One removable 6-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm
|Protection||Overload Current Protection, Reverse Polarity Protection|
|Redundancy Protocols||Support STP/RSTP/MSTP/ERPSv2, Link Aggregation|
|Multicast Support||Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q|
|VLAN||Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,|
Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)
|ACL||Port-based Issuing ACL
ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc
|Diagnostic Maintenance||Support port mirroring, Syslog, Ping|
|Management Function||Support CLI、WEB、SNMPv1/v2/v3,Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT|
|Alarm Management||Support 1 way relay alarm output, RMON, TRAP|
|Security||Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0
Support DHCP Snooping, Option 82，802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS，port-based MAC filtering /binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit
|Advanced Layer 2+ Features||IPv4/IPv6 Management
