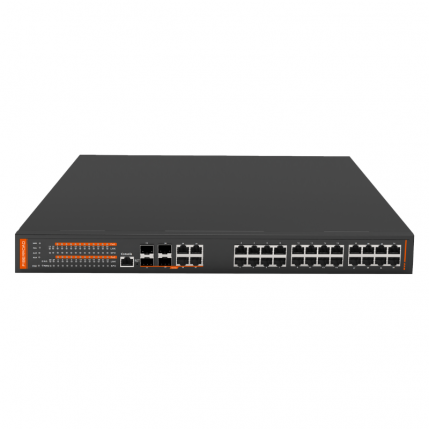

24 Port Smart Gigabit PoE Network Switch
FR-5M3416P/FR-5M3424P is a new generation Power over Ethernet switch with 16/24-Port 10/100/1000Base-TX and 4 Gigabit uplink ports that provide stable and reliable Ethernet transmission. With high-quality design and reliability. It can supply power to PD terminal equipment such as wireless AP, webcam, VoIP, and visual intelligent building intercom through network cable and meet the network environment that needs a high-density PoE/PoE+/PoE++ power supply. It is suitable for hotels, campuses, factory dormitories and small and medium-sized enterprises.
24-Port PoE Switch Provide reliable Power over Gigabit Ethernet
The Managed PoE++ ( IEEE802.3bt ) Network switch with 24-Port 10/100/1000Base-TX and 4 Gigabit uplink ports provide stable and reliable Gigabit Ethernet transmission. The PoE switch can supply power to PoE compatible devices, such as wireless APs, IP cameras, VoIP phones, and visual intercoms. These PoE network switches can meet the network that needs a high-density IEEE802.3(PoE++) power supply.
Smart PoE Features
- Support IEEE802.3af/at/bt standard automatically identifies PoE devices for power supply without damaging non-PoE devices.
- Support up to 90W per port.
- Priority mechanism for PoE++ Switch port will supply power to the high priority level port first when the power budget is insufficient.
- PoE output power allocation, Scheduling of PoE operation.
Advance Layer2+ Features
- Build up a redundant PoE network with STP/RSTRP/MSTP/ERPSv2.
- IPv4/IPv6 Management and Static Route
- ACL Based on MAC, IP address.
- Priority retagging and complicated flow classification based on VLAN, MAC/IP.
- Flexible bandwidth control policies.
High-Performance Network Management
- Web-based CloudMQTT standard to monitor the PoE Network anytime, anywhere.
- Command-line interface(CLI) and Firo WebGUI management for quickly configuring major managed functions.
- SNMPv1/v2C/v3 for different levels of network management.
- FIRO Web-based NMS can automatically discover and diagrams PoE++ Switch network topology.
Complete Security Mechanisms
- AAA&RADIUS, IEEE 802.1X, SNMPv3, HTTPs/SSLv3,SSH2.0 to enhance network security.
- Support user hierarchical management, ACL control list
- Support port isolation within the same VLAN, DHCP-Snooping
- Support DDOS, port-based MAC filtering/binding, MAC black holes, IP source protection, ARP message speed limit
Commercial Grade PoE Network Switch With Customer Friendly
Port 1-24 of Ethernet Switch are compatible with IEEE802.3bt(PoE++) standard. Single-port maximum output power is 90W. A PoE power supply device can automatically detect and recognise the power receiving equipment that meets the standard and supplies power through the network cable.
Make PoE Switches Manageable and Redundant
With 4x100M/1000M SFP and 4×10/100/1000M RJ45 Combo uplink, the 24 PoE Network Switch can handle extremely large amounts of data in a secure topology linking to a network backbone or high-capacity servers. The FR-5M3424P is capable of providing non-blocking switch fabric and wire-speed throughput.
The 24-Port Managed PoE Switch series allows the administrator to conveniently boost network efficiency by manually configuring Layer 3 IPv4/IPv6 VLAN static routing. FR-5M3424BT supports redundant ring technology and features a strong, rapid self-recovery capability to prevent interruptions and external intrusions. In addition to using advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching), Spanning Tree Protocol, and redundant power input systems, it enhances system reliability and uptime in harsh factory environments
Take a look at your PoE switches anytime and anywhere
Another critical feature of the 24-Port PoE Network Switch is that it will automatically detect and recognize power devices that meet the standard and supply power through the network cable. Being the PoE management for CCTV surveillance, wireless and VoIP Networks, FR-5M3424P features the following special PoE management functions: PoE PD-alive check, Schedule power rebooting, PoE operation schedule, PoE usage monitoring, PoE port power feeding priority…
4×Uplink Combo Gigabit SFP/RJ45+
16×10/100/1000M Base-TX RJ45
4×Uplink Combo Gigabit SFP/RJ45+
24×10/100/1000M Base-TX RJ45
Full/Half Duplex Mode
Auto MDI/MDI-X Connection
|SFP Port Transmission||Multi-mode: 850nm/0-500M, Single-mode:1310nm/0-40km, 1550nm/up to 120km|
|RJ45 Port Transmission||100m（using standard CAT5/CAT5e cable ）|
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP
|Packet Buffer Size||4Mbits|
|Maximum Packet Length||Up to 10K|
|MAC Address Table||8K|
|Transmission Mode||Store and Forward (full/half-duplex mode)|
Delay time: < 7μs
Backplane bandwidth: 56Gbps; Packet Forwarding Rate:47.616Mpps
|Max. No. of VLAN||256|
|VLAN ID Range||VID 1 to 4094|
|PoE & Power Supply|
|PoE Ports||Port 1 to 16 IEEE802.3af/at/bt @PoE||Port 1 to 24 IEEE802.3af/at/bt @PoE|
|Power Supply Pin||Default: 1/2(+), 3/6(-), 4/5(+), 7/8(-)|
|Max Power Per Port||90W; IEEE802.3af/at/bt|
|Total PWR /Input Voltage||350W(AC100-240V)||400W(AC100-240)|
|Power Consumption||＜18W(220/50 Hz, no PD connected)||＜22W(220/50 Hz, no PD connected)|
|Power Supply||Internal power adapter with AC100 – 240V 50-60Hz input|
|Protection||Overload Current Protection|
|Ethernet Software Features|
|Redundancy Protocols||Support STP/RSTP/MSTP/ERPSv2, Link Aggregation|
|Multicast Support||Support IGMP Snooping V1/V2/V3， support GMRP, GVMP,802.1Q|
|VLAN||Support IEEE 802.1Q 4K VLAN， support QINQ, Double VLAN,|
Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)
|ACL||Port-based Issuing ACL
ACL based on port and VLAN
L2 to L4 packet filtering, matching the first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, VLAN, etc
|POE Management||Total power limit of PoE power supply
PoE output power allocation
PoE output priority configuration
PoE working status
Scheduling of PoE operation
|Diagnostic Maintenance||Support port mirroring, Syslog, Ping|
|Industrial Protocol||Modbus TCP(ASCII and RTU, Server and Client)|
|Management Function||Support CLI、WEB、SNMPv1/v2/v3， Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT|
|Alarm Management||Support 1-way relay alarm output, RMON, TRAP|
|Security||Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0
Support DHCP Snooping, Option 82，802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS，port-based MAC filtering/binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit
|Advance Layer 2+ Features||IPv4/IPv6 Management
