L3 24G+4*10G SFP+ Managed Industrial PoE Switch
FR-9T4424P is a multi-port, Layer 3 Industrial Managed PoE Switch, independently developed by Fiberroad for industrial ethernet network applications. This product is equipped with 24*Gigabit Ethernet ports and 4*10Gigabit Ethernet Ports, supports Layer 3 routing functionality to facilitate the deployment of applications across networks, adopts industry-leading technical standards and can provide stable and reliable Ethernet transmission with high-quality design and reliability.
Quality Certifications
Guarantee
Share This Product:
The Robust Design of the Layer 3 10G Industrial Managed PoE Switch

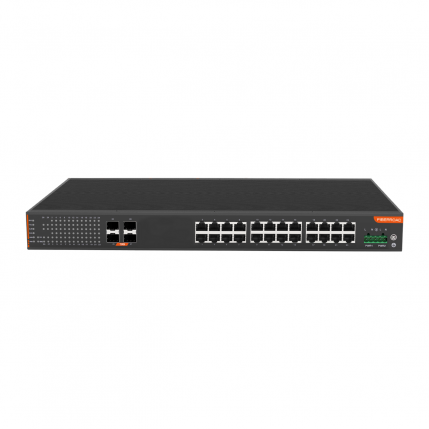

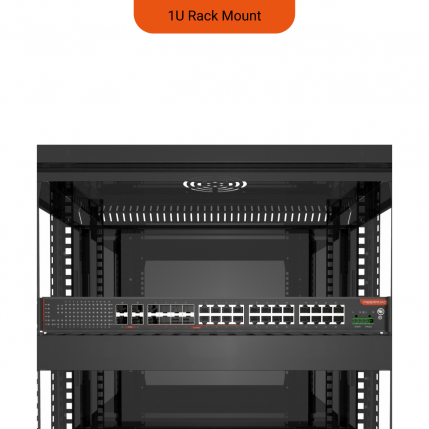

The L3 Managed Industrial PoE Switch is a rack-mounted device that supports Gigabit Ethernet as well as 10Gbe transmission. It has 24Gigabit RJ-45 ports, 4x10G SFP+ ports and 8xGigabit SFP Combo ports. Besides, it also includes Layer 3 functionality, which makes it easier for you to provide power to your devices such as wireless APs, webcams and VoIP devices through network cables.
Advance Network Configuration
- Support OSPFv2,RIPv2,ERPSv2
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease planning
- Class of Service(Port-based, 802.1p…), Trusted QoS, Rate Limitation
- Support LLDP, LLDP-MED
- BPDU Filtering, Self Loop Detection
Secure and Simplified Access
- CLI(Console/Telnet(RFC854)), WebUI(HTTPS), SNMPv3
- HTTPS/SSLv2v3,TLSv1 RADIUS, TACACS+,AAA SSHv1/v2
- Support DHCP Snooping, Option 43/82, 802.1X security access
- Support user hierarchical management
- Support DOS, port-based MAC filtering/binding, MAC whitelist
Smart PoE Features
- IEEE802.3af/at/bt standard automatically identifies power devices without damaging non-PoE devices.
- PoE++ Switch port will supply power to the high-priority level port when the power budget is insufficient.
- PoE output power allocation, Scheduling of PoE operation.
High Reliable and Multi-Service Support
- Support the Spanning Tree Protocols (STP, RSTP, MSTP)
- Support the IPv4 and IPv6 multicast functionsVoice VLAN, Surveillance VLAN
- Support traffic classification of each field of L2/L3/L4 protocol headers
- Support IGMP v1/v2/v3, IGMP snooping, MLD
L3 Managed Industrial PoE Switch for Harsh Environments
This Ethernet switch can provide non-blocking communications and wire-speed throughput in temperatures ranging from -40 to 75 degrees Celsius. It features a polycarbonate exterior casing and is designed for outdoor use, so it’s durable and its fanless design provides efficient heat dissipation. It’s equally capable of withstanding electromagnetic interference.
Simplified and Secure Industrial Ethernet Networks
The L3 10G Rack Mount Managed PoE Switch supports both routing protocols: RIP and OSPF. When RIP is enabled, it uses hop count as a metric for routes. As a result, this prevents routing loops by limiting the number of hops in any path from source to destination. The other one, OSPF (Open Shortest Path First), is a link-state dynamic routing protocol that’s different from RIP’s (strict distance-vector) method of calculating routes. When enabled, this means that when networks send link state updates to peers, each layer 3 switch will collect information about its network links and build a Link State Database. As a result, the Shortest Path First algorithm can then calculate the fastest route available based on that database.
Optimize IIoT Networks with 10G Managed Industrial PoE Switches
IoT and IIoT networks often require a voice VLAN. VoIP devices with an IPcam interface are able to use Voice VLANs and Surveillance, which is a new type of VLAN. They use this feature to create either a voice-only or Surveillance VLAN that’s exclusive to digital devices. This offers the possibility for disruption in industrial networks by providing an alternate voice solution for digital controllers that are connected to analogue devices.
With LLDP-MED, that enhances the automation/management of certain types of network devices like IP Phones, etc. In LLDP-MED, the capabilities of a connected device are determined and whether those capabilities are enabled. It will then keep sending out LLDP-MED packets until the remote device to which it is connected ceases to be LLDP-MED capable.
The Industrial PoE Switch can be Easily Managed at Any Time.
The L3 Managed Industrial PoE Switch comes equipped with console, web, and SNMP management to allow for easy-to-use, platform-independent management. Web-based management allows for a simple, customizable configuration of the FR-9T4424P PoE switch. The L3 Industrial Ethernet Switch also provides a complete suite of SNMP capabilities and can be centrally managed with any standard management software. With the built-in Cisco-like command line via Telnet or console, product learning time is reduced while improving remote management capabilities through SSH connections.
