Gigabit PoE Media Converter With LFP
Fiberroad POE230 Series commercial-grade PoE fibre media converter provides an option for single or dual PoE ports with 100Mbps or Gigabit Ethernet, which communicates across optical fibre via SFP port or 1×9 optical transceiver.
The PoE feature complied with IEEE802.3 af/at standard, including a PSE controller, which offers PD signature sensing and PoE negotiation features. Other intelligent features include over-current protection, LFP function, etc.
Fiber to Power over Ethernet Media Converter
If you’re looking for a way to extend your Ethernet network beyond the reach of traditional cabling, a fiber to power over Ethernet media converter is an ideal solution. By converting Ethernet signals to optical signals, these converters can extend your network over long distances without any degradation in performance. And because they use power over Ethernet (PoE) technology, they can also provide power to devices such as IP cameras or VoIP phones, making them a versatile and convenient solution for any application.
Ideal for Confined Spaces

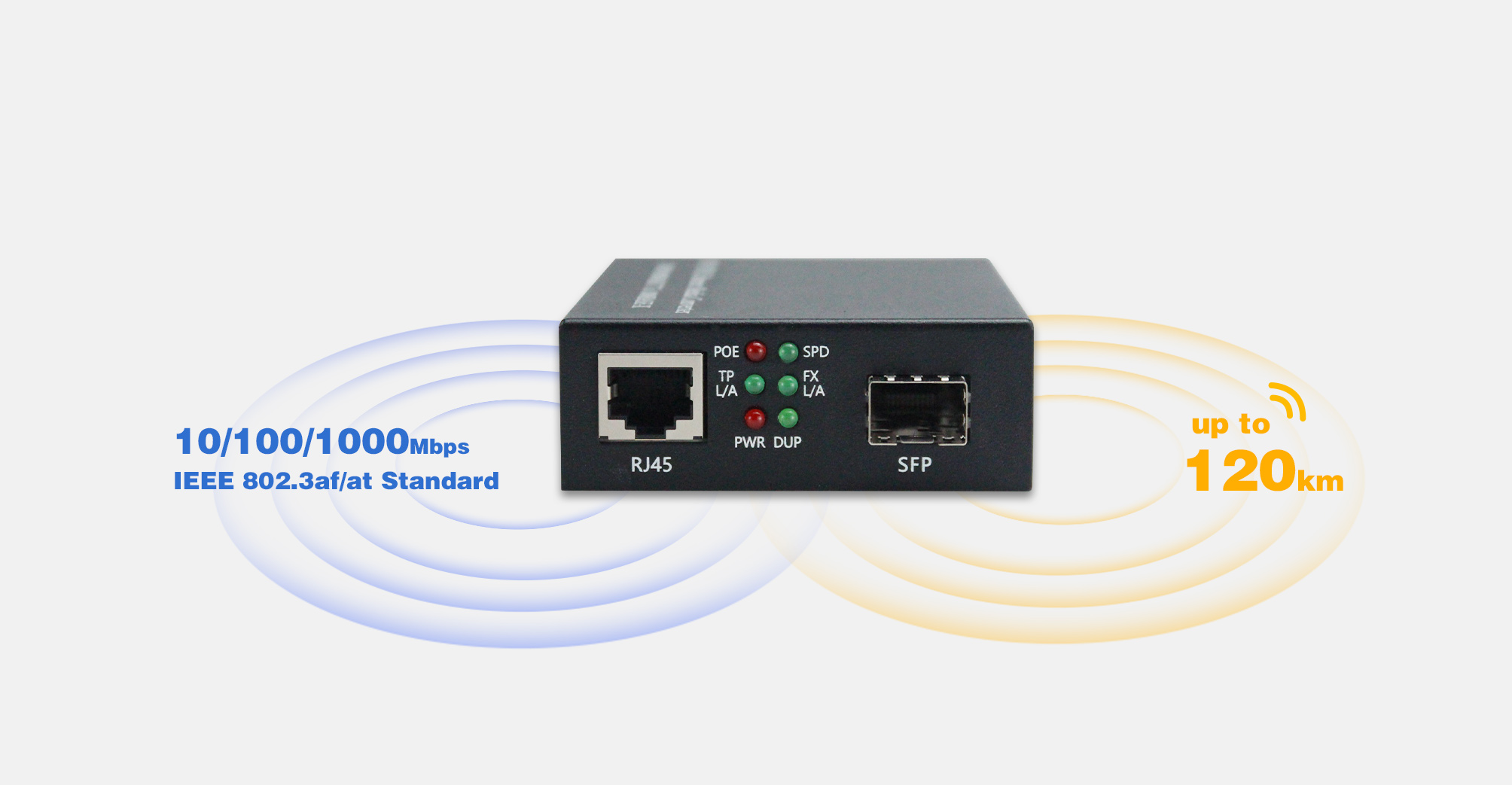

The PoE Fiber Media Converter is a miniaturized media converter that is ideal for use in confined spaces. This media converter converts Ethernet signals to optical fiber signals, and vice versa. It supports both 10/100/1000Base-TX and 1000Base-FX standards, making it compatible with a wide range of devices. The PoE Fiber Media Converter also features an integrated Power over Ethernet (PoE) injector, which provides power to PoE-powered devices through the Ethernet cable. This media converter is perfect for applications where space is limited, such as surveillance cameras and access control systems.
1x1000Base-x SFP/1×9 Port
|Port Mode(Tx)||Auto Negotiation
|PoE Power Capacity||IEEE 802.3 af: 15.4W
IEEE 802.3 at: 30W
|DIP Switch||LFP/ALS/FX Reset/FX 100M||Input Power||48-56VDC/1.25A|
|Installation Mode||Desktop or Wall Mount||Power Consumption||af mode:20W
|Operating Temperature||0 to 50℃ （32 to 122℉）||MTBF||100,819 Hours|

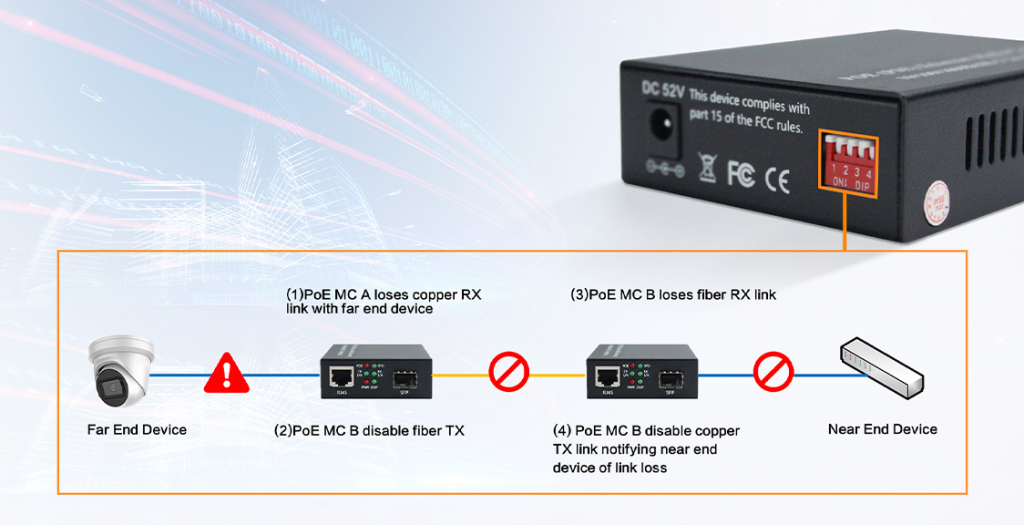

PoE Media Converter With Link Fault Pass-Through
A PoE media converter with link fault pass-through features can be a great addition to your network. It can also help you extend the reach of your PoE network by connecting two devices that are far apart. The link fault pass-through feature allows you to keep your network running even if one of the devices is disconnected. This can be a great advantage if you have a large or complex network.
|Copper Port||1x 10/100Base-TX RJ45||1x 10/100/1000Base-TX RJ45||2x 10/100/1000Base-TX RJ45|
|SFP Slot||1x 100Base-X (SFP or 1×9 Transceiver SC,ST,FC connector）||1x 1000Base-X (SFP or 1×9 Transceiver SC,ST,FC connector）||1x 1000Base-X (SFP or 1×9 Transceiver SC,ST,FC connector）|
|UTP||UTP Cables: CAT5 or above
UTP Cable Limitations: Max. length up to 330 ft. (100 m)
|Fiber Optic||1000BASE-SX: 50/125, 62.5/125, or 100/140-µm Multimode 550m 1000BASE-LX: 8.3/125, 8.7/125, 9/125, or 10/125-µm Single-mode 10km|
IEEE802.3u 100Base-TX & 100Base-FX
IEEE802.3x Flow Control
IEEE802.3af 15W PoE
IEEE802.3at 30W PoE+
|Switching Capacity||200Mbps(FR-POE231) 2 Gbps(FR-POE232) 6Gbps(FR-POE233)|
|PoE Power Capacity||IEEE802.3 af : 15.4W (x2 FR-POE233)
IEEE802.3 at : 30W (x2 FR-POE233)
|Power Consumption||af mode: 20W (x2 FR-POE233)
at mode: 35W (x2 FR-POE233)
|Dimensions||94mm×71mm×26mm(W x D x H) 3.70 x 2.80 x 1.02in|
|Installation||Desktop or Wall Mount|
|Temperature||Operating: 0 to 50℃ （32 to 122℉）
Storage: -20 to +70℃ （-4 to +158℉）
|Humidity||5 to 95% noncondensing|
|MTBF Standard||Telcordia SR-332 GB 25℃|
|Heat Dissipation||113 BTU/h （With 30W PoE）|
|Noise Level||0 dBA|
