Unmanaged Industrial Fiber Switch With PoE++
The Unmanaged Industrial PoE++ Switch is designed for small industrial network applications. It provides an easy way to make the access point to Fast or Gigabit Ethernet. With a robust design, this switch is ideal for industrial or outdoor surveillance, withstanding the harshest conditions. The Industrial switch is Plug-and-Play, allowing for easy and quick deployment. It can supply power to PD terminal equipment such as wireless AP, webcam, VoIP, and visual intelligent building intercom through network cable and meet the network environment that needs a high-density PoE/PoE+/PoE++ power supply.
Quality Certifications
Guarantee
Share This Product:
High Industrial Standard PoE++ Switch
To protect the Unmanaged Industrial PoE++ Switch from the harsh environment, the enclosure plays the core role in fitting the industrial grade standard. Compared to the most used material, iron, aluminium, another widely used metal material, has several advantages for shell material choice.

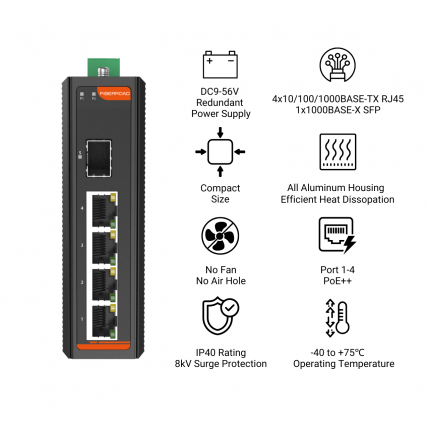

| Product Specifications | |||
|---|---|---|---|
| Ports | 4×10/100/1000Base TX RJ45 1x1000Base-X SFP/1×9 |
Port Mode(Tx) | Auto Negotiation Full/Half Duplex Auto MDI/MDIX |
| Frame Size | 10K | PoE Ports | Port 1-4 |
| Input Power | 9-56V DC | Max Power Per Port | 90W |
| Housing | Aluminium Case | IP Rating | IP40 |
| Operating Temperature | -40℃ to +75℃ | Dimensions | 120x90x35mm |
| Installation Mode | DIN Rail and Wall Mount | Weight | 350g |
Ensure Industrial PoE++ Switch Runs In Harsh Environments
The industrial PoE++ switch is designed for reliability and ease of maintenance. It features such as a fanless design and low power consumption. The Industrial PoE Network Switch can operate at low and high temperatures thanks to mature technology and open network standards. It is also resistant to electric interference, salt fog, vibration, and shocks. The system also features redundant dual power supplies, allowing for additional reliability for applications that require always-on connections.
Power PoE Devices with Industrial PoE++ Switch
In compliance with the 802.3af/at/bt PoE++ standard, each port allows for up to 90W. Gigabit Ethernet port permits faster and more reliable connections for all devices. It is all you need to do to start the Ethernet-enabled device, and no more software setups or configurations are needed.
Plug and Play Meets Various Application Needs
An IP surveillance camera is now ubiquitous PoE supported with only one LAN cable, enabling fast deployment and easy repositioning for business, office, and residential environments.
A digital signage can quickly transmit information in schools, hospitals, department stores, stations, airports, and subways, where content can be updated quickly to enhance users’ real-time information.
Other PoE-enabled devices, such as POS systems, Information Kiosks, RFID readers, access controls, thin clients, alarms or sensors, are easy and cost-saving, even when they are away from
