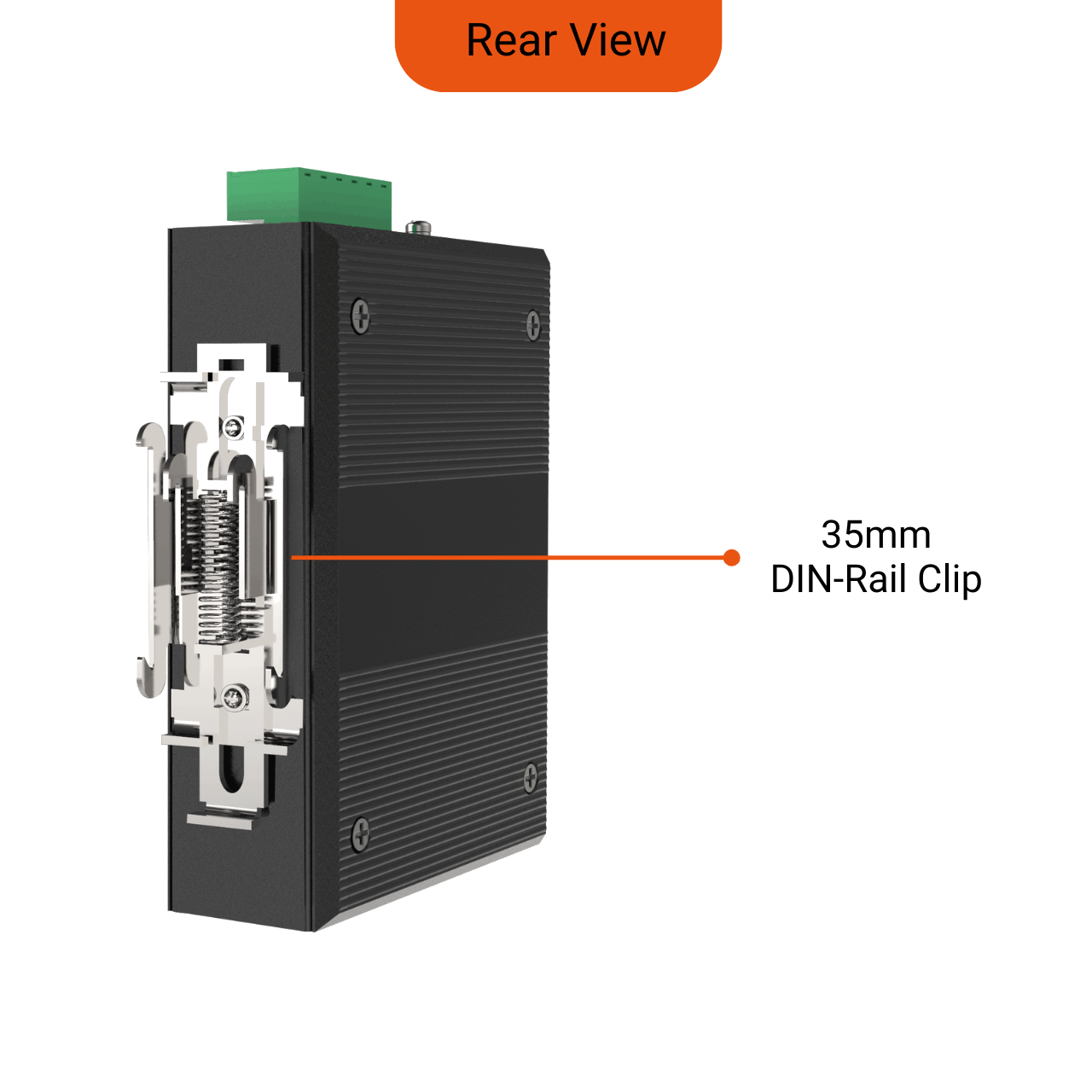

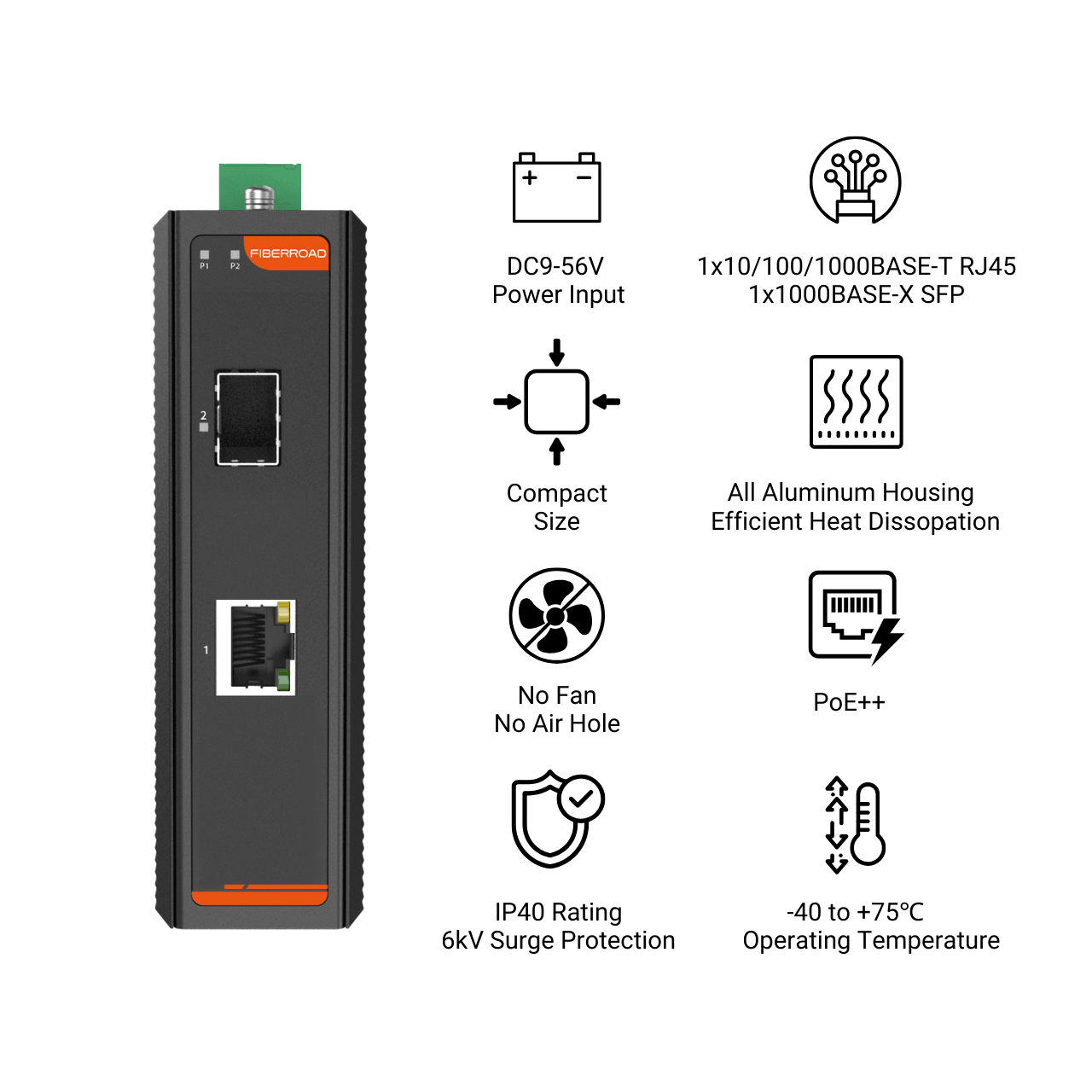

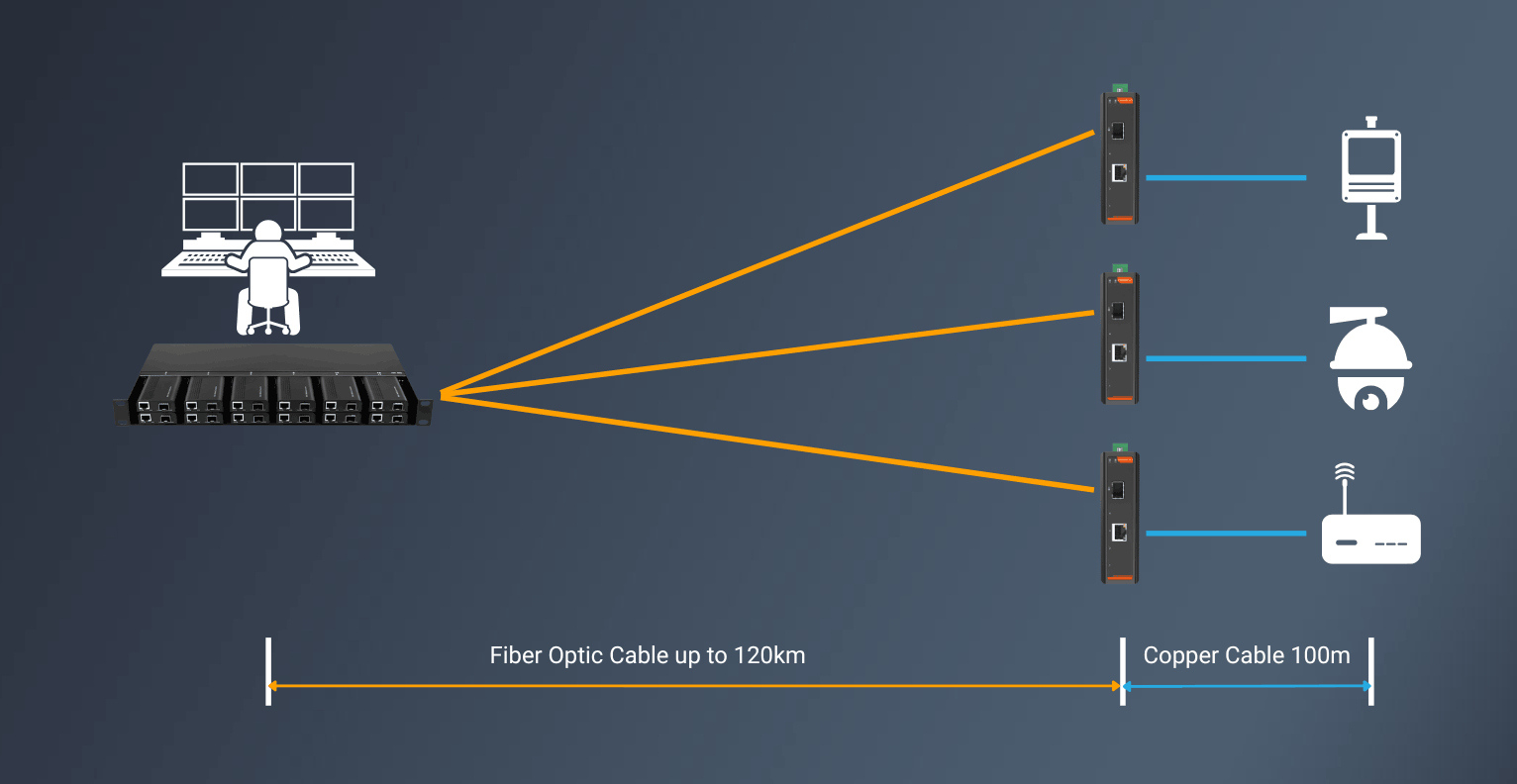

Switch Architecture
Store-and-Forward
Switch Fabric
14Gbps/non-blocking
Forward Filter Rate
14,880pps (10Mbps); 148,800pps (100Mbps); 1,488,000pps (1000Mbps)
Packet Buffer Size
512 Kbits
Max. Packet Length
9K bytes
MAC Address Table
2K entries, automatic source address learning and aging
Power Connector

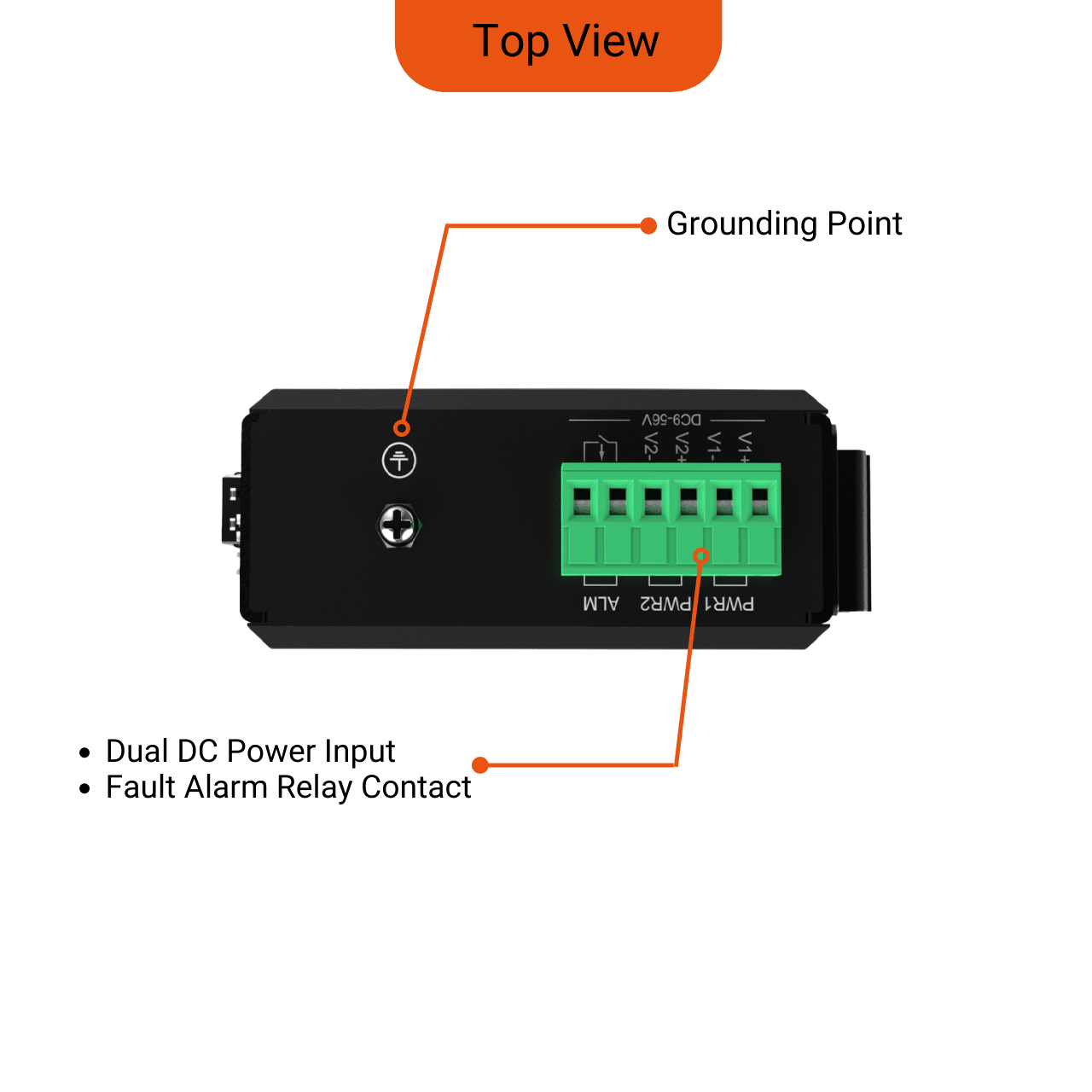

1 removable 6-contact terminal block; Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm (as required)
Operating Voltage
DC52-56V
Power Consumption
4 Watts Max (without PoE load)
Protection
Reverse Polarity, Overload Current
PoE Ports

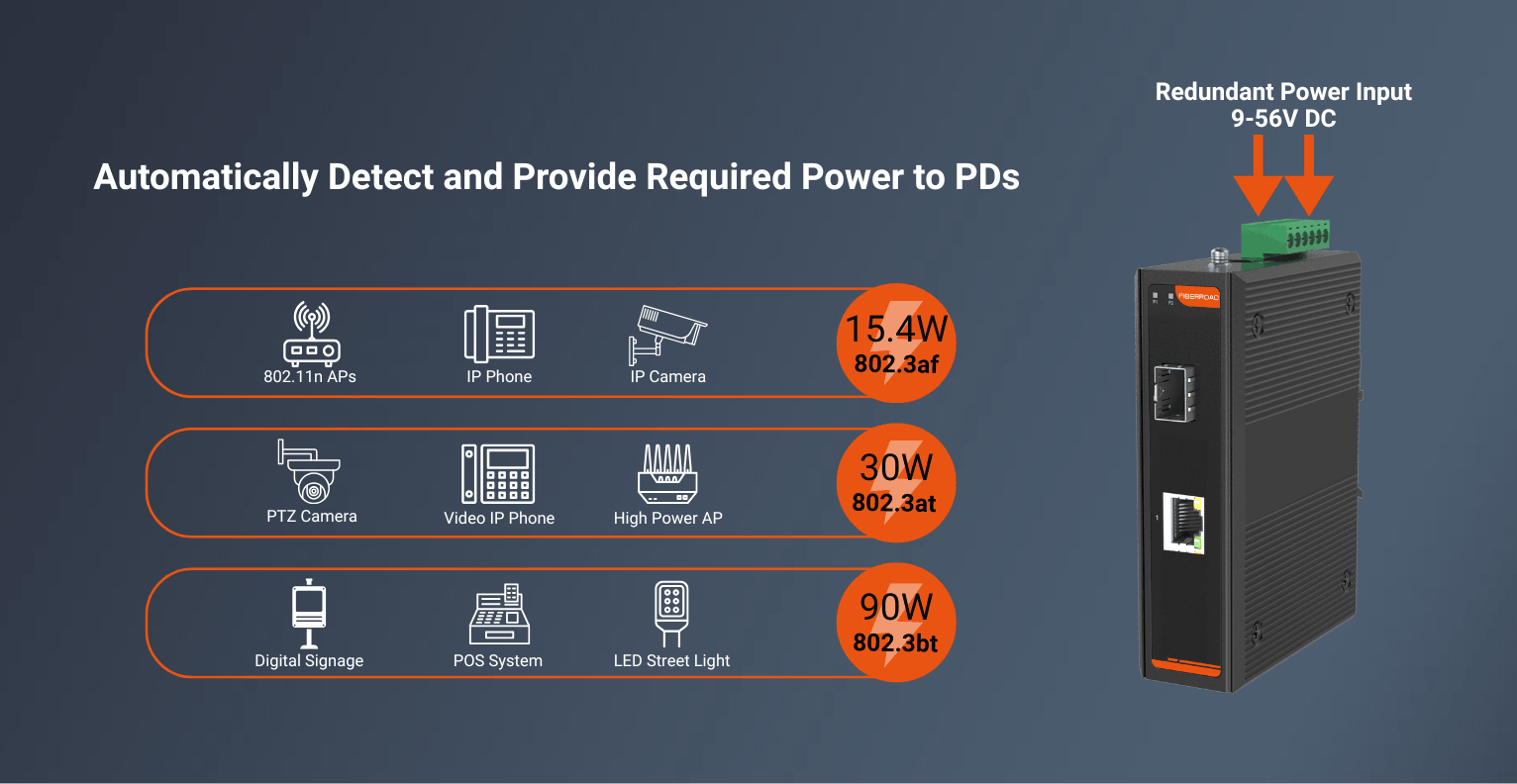

Port 1 IEEE802.3 af/at/bt
PoE Power Supply Type
End-span
Power Supply Pin
1/2(+), 3/6(-) or 4/5(+), 7/8(-)

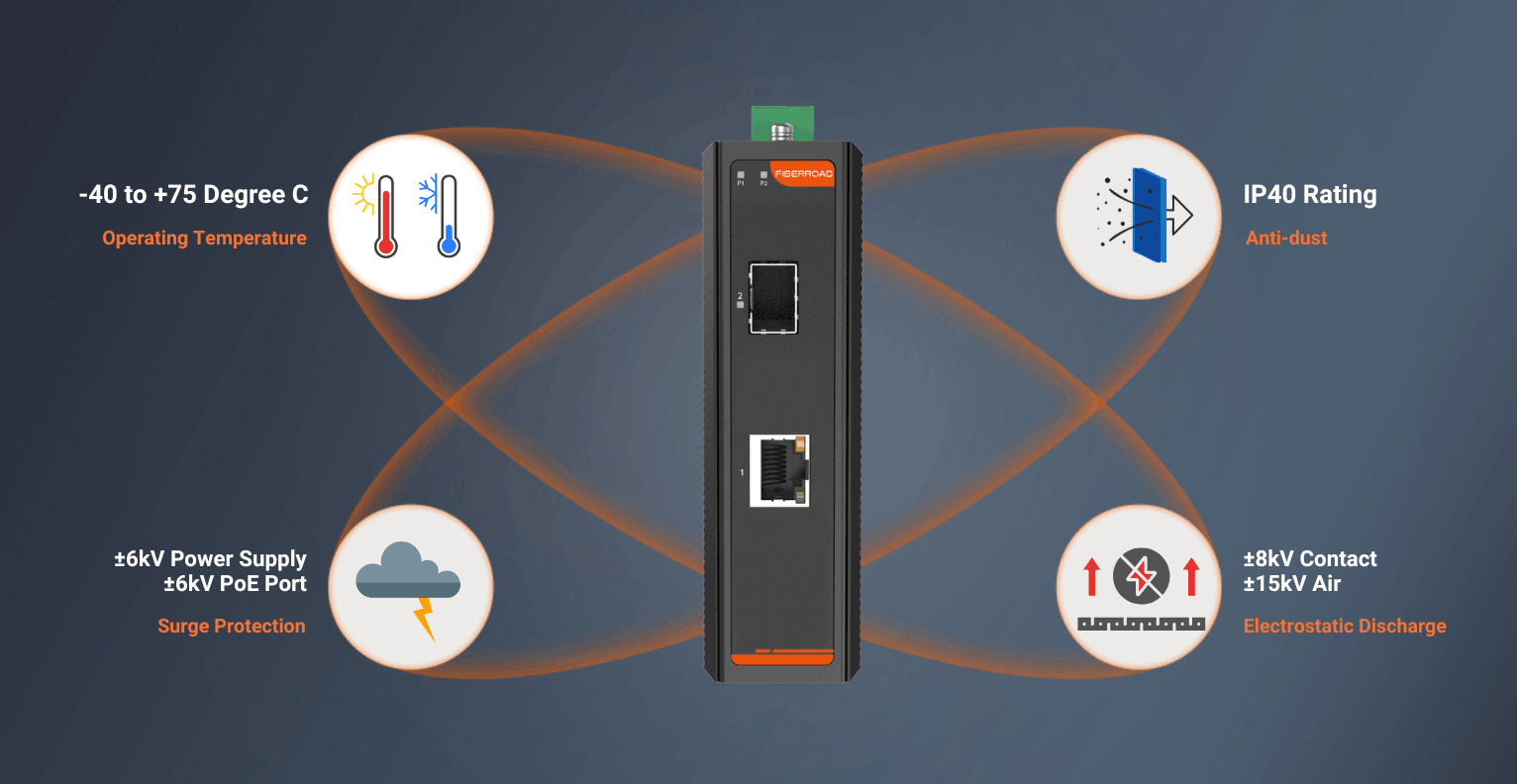

Operating Temperature
-40℃ to +75℃ (-40 to 167 ℉)
Storage Temperature
-40℃ to +85℃ (-40 to 185 ℉)
Operating Humidity
5%~95% (non-condensing)
Heat Dissipation
7 BTU/h (non-PoE); 314 BTU/h (with 90W PoE load)
MTBF
>500,000 hours @MIL-HDBK-217F GF 25℃
P1 & P2
ON: Power is being supplied, OFF: Power is not being supplied
Fiber Port
ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active
RJ45 Port Amber LED
ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active
RJ45 Port Green LED
ON: Port is operating at 1000 Mb/s, OFF: Port is operating at 10/100 Mb/s
