FR-5M3208

L2+ Managed 8-port 10/100/1000Base-TX + 2-port 100/1000Base-SFP Ethernet Switch with AC Power Input, 1U Rack-mount

This model is also available in other configurations:

PoE+ (802.3at): FR-5M3208P
PoE++ (802.3bt): FR-5M3208BT

Protected by hardware warranty

Advance replacement. Global coverage.

Protected by hardware warranty

Advance replacement. Global coverage.

  • Layer 2+ Features:

    • Jumbo frame support
    • 802.1Q / Q in Q / GVRP / Private VLAN (4K groups)
    • STP/RSTP/MSTP for loop prevention
    • LACP link aggregation
  • Software Management:

    • IPv4 static routing
    • QoS with 8 priority queues + rate limiting
    • CLI / WebGUI / SNMP v1/v2c/v3, LLDP, syslog
  • Security:

    • 802.1X / RADIUS authentication
    • IP/MAC based ACL
    • DHCP Snooping + Port Security + SSHv2
  • Hardware:

    • 0°C~50°C operation
    • AC power input
    • NDAA & RoHS
Interface
RJ45 Ports
8×10/100/1000BASE-T
SFP Ports
2×100/1000BASE-X
Console
1x RJ45-to-RS232 Serial Port (115200)
Electrical and Mechanical
Input Voltage
AC 100-240V, 50/60Hz 0.15A
Power Consumption
12 Watts Max
Surge Protection
±6kV DC, ±4kV RJ45
Enclosure
IP30 Metal
Dimension
208mmx140mmx45mm, 0.86kg
Standards
IEEE 802.3
10BaseT
IEEE 802.3u
100BaseT(X) and 100BaseFX
IEEE 802.3ab
1000BaseT(X)
IEEE 802.3x
Flow Control
IEEE 802.1p
Class of Service
IEEE 802.1Q
VLAN Tagging
IEEE 802.1x
Authentication
IEEE 802.3ad
Port Trunk with LACP
IEEE 802.1D
Spanning Tree Protocol
IEEE 802.1w
Rapid Spanning Tree Protocol
IEEE 802.1s
Multiple Spanning Tree Protocol
IEEE 802.1ad
Q-in-Q tunneling
IEEE 802.3az
Energy Efficient Ethernet
Switching
Switch Architecture
Store-and-Forward
Switch Fabric
36Gbps/non-blocking
Forwarding Rate
11.9Mpps (64-byte packet size)
Packet Buffer Size
4 Mbits
Maximum Packet Length
10K bytes
MAC Address Table
8K entries, automatic source address learning and aging
Flow Control
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Software Features
Port Configuration
Port(Admin Status) disable/enable
Copper Port: Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Fiber Port: 100M/1000M speed selection
Flow Control disable/enable
Power saving(EEE) disable/enable
Each port description
Port Status
Display each ports’ speed duplex mode, link status, flow control status, auto negotiation status, Fiber Port Information, Port Traffic
Port Mirroring
Source Ingress/ Egress Port/ Both, Many-to-1 monitor
VLAN
Up to 4K VLAN groups, out of 4094 VLAN IDs
IEEE 802.1Q tag-based VLAN
IEEE 802.1AD Q-in-Q tunneling(Double VLAN)
GVRP(Generic VLAN Registration Protocol)
Link Aggregation
IEEE 802.3ad LACP/Static trunk
Supports 6 trunk groups with 4 ports per trunk
Spanning Tree Protocol
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
Multicast
Dynamic/Static Multicast groups
IGMP Snooping v1,2,3
Port-based IGMP Snooping Fast Leave
GMP Querier
Rate Limitation
Per Port Rate Limitation
Ingress: 16-1000000 kbps/Egress: 16-1000000 kbps
Ring
ITU-T G.8032 ERPS, Recovery time<20ms
QoS
Traffic classification based, strict priority and WRR
8-level priority for switching
-Port number
-802.1p priority
-802.1Q VLAN tag
-DSCP/TOS field in IP Packet
ACL
IP-based ACL/MAC-based ACL
ACL based on:
-MAC Address
-IP Address
-Ethertype
-Protocol Type
-VLAN ID
-DSCP
-802.1p Priority
Security
Port Security
Static MAC address
IEEE 802.1x port-based network access control
RADIUS authentication
DHCP Snooping, DHCP option 82
Layer 3 Functions
IP Interfaces
Max. 8 VLAN interfaces
Routing Table
Max.32 routing entries
Routing
IPv4 software static routing
Management
Basic Management Interface
Console; Telnet; Web browser; SNMPv1/v2c
Secure Management Interface
SSHv2, TLSv1.2, SNMPv3
System Management
Firmware Upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote syslog, System log
LLDP protocol, SNTP
PREVIEW NMS
Alarm(Relay, Led, Temperature, Trap, Power)
Environmental
Operating Temperature
0 ℃ to 50 ℃
Storage Temperature
-20℃ to 70℃
Operating Humidity
5%~95% (non-condensing)
MTBF
147,595 hours @MIL-HDBK-217F GB
Cooling
Passive Cooling, Fanless Design
Noise Level
0 dBA
Regulatory
ISO
ISO-9001
Safety
IEC62368-1:2020+A11:2020
EMI
FCC Part 15B Class A, IEC 61000-3-2
EMS
IEC61000-4-2 ESD: Contact:±8kV, Air:±15kV
IEC61000-4-5 Surge: Power: ±6kV; RJ45:±4kV/±6kV(PoE)
Environmental
RoHS 2011/65/EU Annex II(EU)

AVAILABLE MODELS

Model Number Description Input Voltage Op. Temp.
5M3208 L2+ Managed 8-port 10/100/1000Base-TX + 2-port 100/1000Base-SFP Ethernet Switch with AC Power Input, 1U Rack-mount 110-240VAC 0 to +50°C
TypeVersionRelease Date
Datasheet
FR-5M3208_P_BT Series Datasheet
Datasheet
3.1
16/06/2026
Manual
WebGUI Network Management User Manual
Manual

Dimensions (W×D×H)

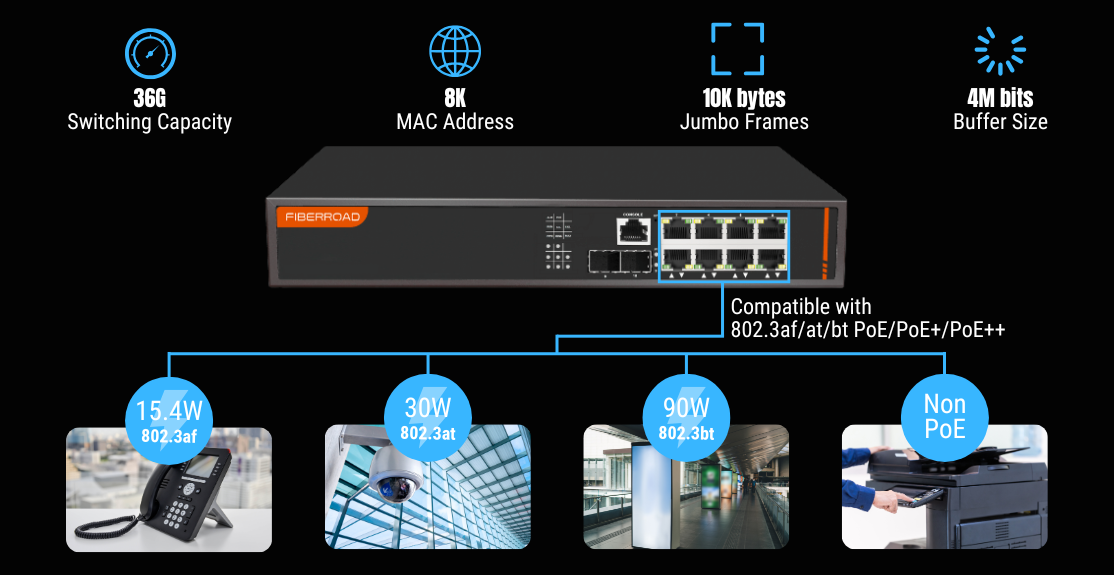

PoE switch with switching-capacity, address-table and application feature callouts
Fiberroad Ethernet switch connectivity, management and network-security feature overview

Send Enquiry

Our team typically responds within 1 business day.

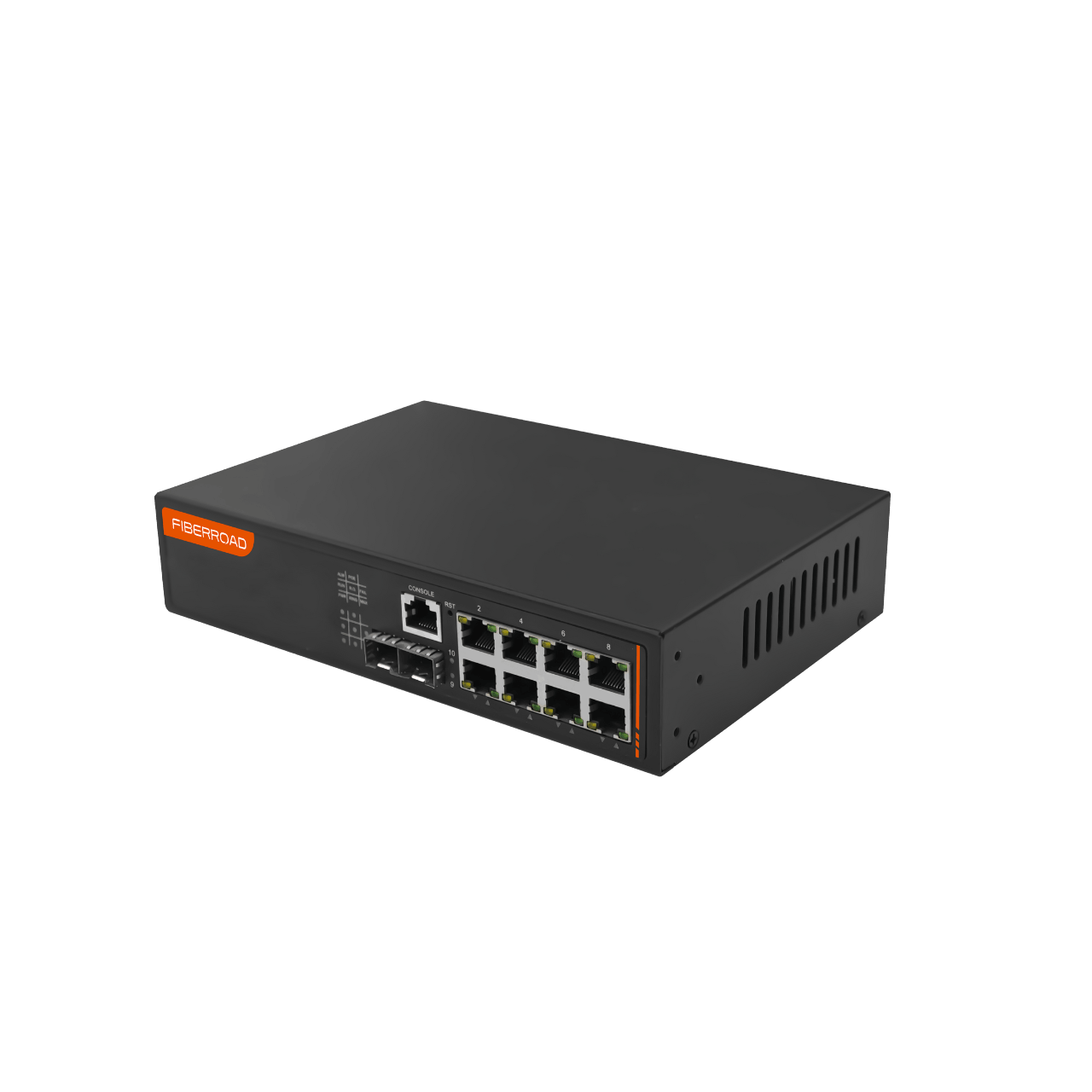

Fiberroad Ethernet switch viewed from the front, showing the connection panel and overall product enclosure
