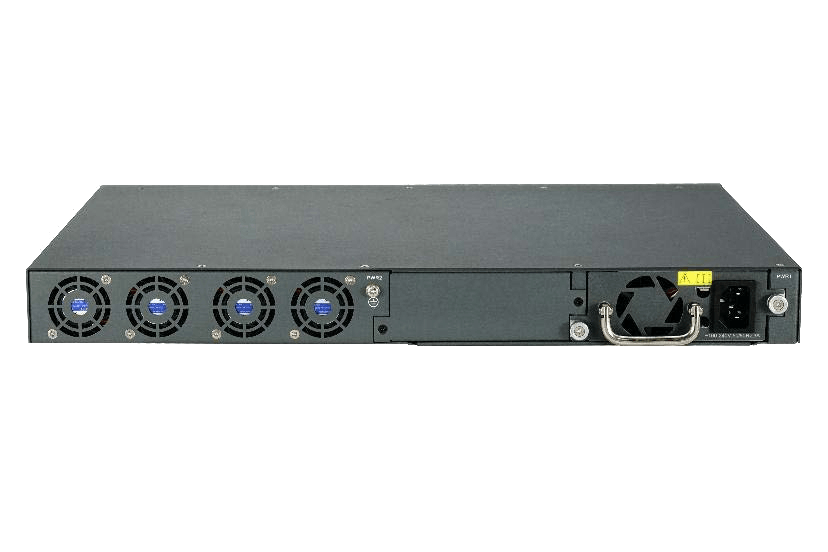

FR-5T6224

1 x 10/100/1000Base-T management port;
1 x console port

24 x GE/10G SFP+ slots
2 x 40G/100G QSFP28 slots

AC 100-240V, 50/60Hz; 2 power inputs

70W max (full load)

IP30 Metal case

440 x 300 x 44 mm, 1U rack-mount

10GBaseSR/LR/ER/ZR

40GBaseSR4/LR4 and 100GBaseCR4/LR4

40GBaseER4 and 100GBaseSR4

VLAN tagging

Flow Control

Q-in-Q VLAN stacking / tunneling

Spanning Tree Protocol

Rapid Spanning Tree Protocol

Multiple Spanning Tree Protocol

Class of Service

Authentication

LACP / static trunk

Store-and-forward

880Gbps, non-blocking

2048 MB

4096 MB

660Mpps

4.5MB (shared data buffer)

9K bytes

128K entries, automatic source address learning and aging

Flow control enable/disable per port

Port enable/disable, speed, flow control, per-port bandwidth control, loopback detect

Link/activity LEDs (10G and 100G ports)

Supported

IEEE 802.1Q, 802.1ad QinQ, GVRP, private VLAN, protocol-based, MAC-based, voice VLAN, MVR, up to 4K VLAN groups

IEEE 802.3ad LACP / static trunk; max 32 trunk groups, up to 8 ports per group

STP (802.1D), RSTP (802.1w), MSTP (802.1s), BPDU

IPv4 IGMP v1/v2/v3 snooping, fast leave, querier, filtering and throttling, proxy reporting; IPv6 MLD v1/v2 snooping; PIM-DM/SM/SSM

Ingress and egress bandwidth control (minimum 64Kbps stream)

ITU-T G.8032 ERPS, EAPS

8 priority queues on all ports; SP, WRR, SP+WRR; Classification by 802.1p CoS, DSCP, DiffServ, Precedence, TOS, VLAN ID, IP/MAC/port ACL; Traffic supervision and shaping; Policy-based ingress/egress QoS

Standard and extended, IP/MAC/port-based and time-based ACL; up to 1K entries

802.1X; TACACS+ and IPv4/Ipv6 RADIUS (AAA); port isolation; port security with IP+MAC+port binding; L2/L3/L4 ACL filtering; DoS/TCP attack defense; broadcast/multicast/unknown-unicast suppression; DHCP Snooping and Option 82; user-level command authority; dynamic ARP inspection

IPv4 / IPv6 dual stack; routing table 16K (IPv4) / 8K (IPv6); ARP table 16K / 8K; 1K SVI

ICMPv6, DHCPv6, ACLv6, IPv6 Telnet, IPv6 neighbor discovery, Path MTU discovery; DRAM 2048MB, Flash 4096MB

RIP v1/v2, OSPF, BGP, static routing; PIM-DM/SM/SSM; VRRP, policy-based routing, ECMP load balancing, BFD for OSPF/BGP; IPv6: RIPng, OSPFv3, BGP4+, manual/ISATAP/6-to-4 tunnels

Console, Telnet, Web browser, SNMPv1/v2c; CLI

SSHv2, SSLv3, SNMPv3; max 8 SSH/Telnet sessions; IPv4/IPv6 SNMP IP security inspection

TFTP/FTP; RMON groups 1/2/3/9; MIB and TRAP; Syslog Server (IPv4/IPv6); RADIUS shell management; Stacking management up to 10 members (2 software-defined stacking ports)

0°C to +50°C

-40°C to 80°C

10% to 85% (non-condensing)

Fan cooling (4 fans)

57 dBA @ 25°C

ISO-9001

EN60950-1, UL60950-1, CSA C22.2 No.60950-1, UL508

FCC Part 15 Class A, CE-EMC/LVD

EN61000-4-2 (ESD): Level 4
IEC61000-4-4 (EFT): Level 4
IEC61000-4-5 (Surge): Level 4
IEC61000-4-6 (CS): Level 3
IEC61000-4-8 (PFMF): Level 5
EN61000-4-3 (RS): Level 4

RoHS; shock IEC60068-2-27; vibration IEC60068-2-6; free fall IEC60068-2-31
