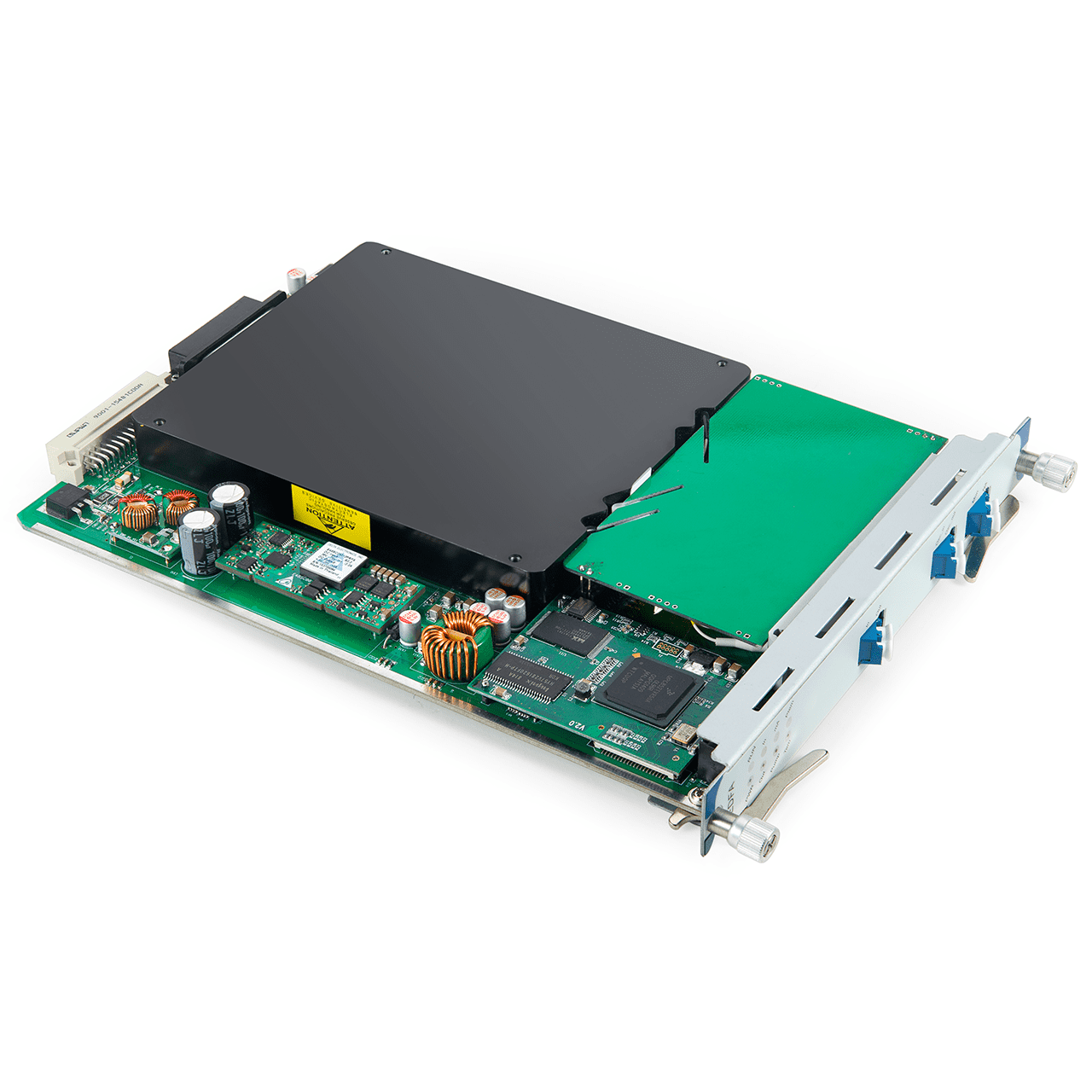

EDFA Amplifiers is part of the FR-8000 series optical multi-service transmission platform solution. Many model options serve all the traditional amplifier applications in an extended optical link: booster, in-line, and pre-amplifier.
A Booster amplifier operates at the transmission side of the link. It features high input power, high output power, and medium optical Gain. Boosters are designed to amplify aggregated optical input power for reach extension.
An In-Line amplifier operates in the middle of an optical link. It features medium to low input power, high output power, high optical Gain, and a low noise figure. In-line amplifiers are designed for optical amplification between two network nodes on the main optical link.
A Pre-Amplifier operates at the receiving end of an optical link. It features medium to low input power, medium output power, and medium Gain. Pre-amplifiers are designed for optical amplification to compensate for losses in a demultiplexer located near the optical receiver.
Some EDFA Amplifiers models include an additional mid-stage port designed for insertion of a Dispersion Compensation module (DCM) unit without its inherent insertion loss. The design of these models maximizes the DCM benefits to increase deployment flexibility. New placement options require fewer amplifiers in the link, and they can open the door to applications that were not possible with older technology.Some EDFA models include a Red and blue port designed for Single fiber DWDM Solution. The design of these models is used for single-fiber DWDM transmission systems.
EDFA Amplifiers Application
OTN Systems chassis compatibility
| Part No. | FR-8010 | FR-8015 | FR-8025 | FR-8060 |
| Picture |  |
 |
 |
 |
| Client Interface | 1U Access, 1-slot | 1.25U Access, 4-slots | 2.5U Access, 7-slots | 6U Access, 15-slots |
| Power Interface | 2-Slots in back panel for power supply modules | 4-Slots in back panel | ||
| Mgmt Interface | Built-in | 1-slot in back panel | 1-slot in front panel | |
| Unit LEDs | Power & In-Use LED’s for each power supply(with use of optional LED module) | |||
| Dimensions(mm) | 430(D)x315(W)x45(H) | 430(D)x365(W)x55(H) | 430(D)x350(W)x114(H) | 430(D)x355(W)x265(H) |
| Power |
Two open bays for Chassis power modules, supporting Universal Input 100-240V VAC, or -48V VDC The dual power supplies can function in instant Fail-Ocer Mode or Load Share Mode |
|||
| Environment | 0~50CHumidity: 5%~95% non-condensing;0-10,000 ft.altitude | |||
| Net Weight | 4.2kg | 4.6kg | 5.2kg | 15.0kg |
 |
Parameter | Min | Typ | Max | Unit | |
|---|---|---|---|---|---|---|
| Operating Wavelength | 1528 | 1565 | nm | |||
| Output Power | 22 | dBm | ||||
| Gain | 8 | 33 | dB | |||
| Input Power | BA | -10 | Max.Output -Gain | dBm | ||
| PA/LA | （Max.input-25） | Max.Output -Gain | ||||
| Noise Figure | 5.0 | dB | ||||
| Gain Flatness | 1.0 | dB | ||||
| Input threshold | -34 | Can be adjusted | dBm | |||
| Polarization dependence loss | 0.3 | dB | ||||
| Polarization dependence Gain | 0.4 | dB | ||||
| Polarization mode dispersion | 0.5 | ps | ||||
| Pump power leakage | -30 | dBm | ||||
| Return Loss | 45 | dB | ||||
| Power Consumption | ≤30， | W | ||||
| size | EDFA model | 26.5（W）× 195（H）× 252（D） | mm | |||
| Operating temperature | -5~60 | ˚C | ||||
| Storage temperature | -40~85 | ˚C | ||||
| Relative Humidity | 5~95 | RH% | ||||
