Network Management Software

POE SOLUTIONS

PoE Media Converters

FR-POE332

10/100/1000Base-TX (PoE+) to 1000Base-SFP Ethernet Media Converter with AC Power Input

Protected by hardware warranty

Advance replacement. Global coverage.

Protected by hardware warranty

Advance replacement. Global coverage.

  • 802.3af/at PoE 30W
  • IEEE 802.3x flow control for full-duplex and half-duplex backpressure
  • MAC auto-learning/aging and 802.1Q VLAN transparency
  • Supports 100Base or 1000Base-SFP
  • DIP switches for quick settings: Enrom, PD Auto Reboot, PoE shutdown, LFP, ALS
  • Operating temperature 0°C to +50°C
  • 100-240V AC input
  • High-level surge protection and fault alarm relay
  • Fanless design
Hardware Specifications
RJ45 Ports
1x10/100/1000BASE-T RJ45, Auto-negotiation, Auto MDI/MDI-X with PoE injector function
Fiber Ports
1x 1000BASE-SFP
Dip Switch
Enrom; PD Auto Reboot; PoE shutdown; LFP, ALS
Electrical and Mechanical
Input Voltage
100-220VAC
Power Consumption
3 Watts Max (Without PoE load)
PoE Ports
IEEE802.3 af/at
PoE Power Supply Type
Mid-span
Power Supply Pin
1/2(+), 3/6(-)
Max Power Per Port
30W
Enclosure
IP40 aluminum case
Dimension
140x110x40mm, 0.75kg
Standards
IEEE 802.3
10BaseT
IEEE 802.3u
100BaseT(X) and 100BaseFX
IEEE 802.3ab
1000BaseT(X)
IEEE 802.3z
1000BaseSX/LX/LHX/ZX
IEEE 802.3x
Flow Control
Environmental
Operating Temperature
0 to +50℃(32 to +122℉)
Storage Temperature
-20 to +70℃(-4 to +158℉)
Operating Humidity
5% to 90% (non-condensing)
MTBF
>100,000 Hours @Telcordia SR-332 GB 25℃
Cooling
Passive Cooling
Noise Level
0 dBA
Regulatory
ISO
Manufactured in ISO-9001facility
Safety
IEC62368-1:2020+A11:2020
EMI
FCC Part 15B Class A, CE
Environmental
RoHS

AVAILABLE MODELS

Model Number Description Input Voltage Op. Temp.
FR-POE332 10/100/1000Base-TX (PoE+) to 1000Base-SFP Ethernet Media Converter with AC Power Input 220VAC 0 to +50℃
TypeVersionRelease Date
Datasheet
FR-POE331&FR-POE332 Datasheet
Datasheet
3.0
03/07/2026

Dimensions (W×D×H)

PoE media converter installation illustration showing the device and its compact power connection arrangement

Send Enquiry

Our team typically responds within 1 business day.

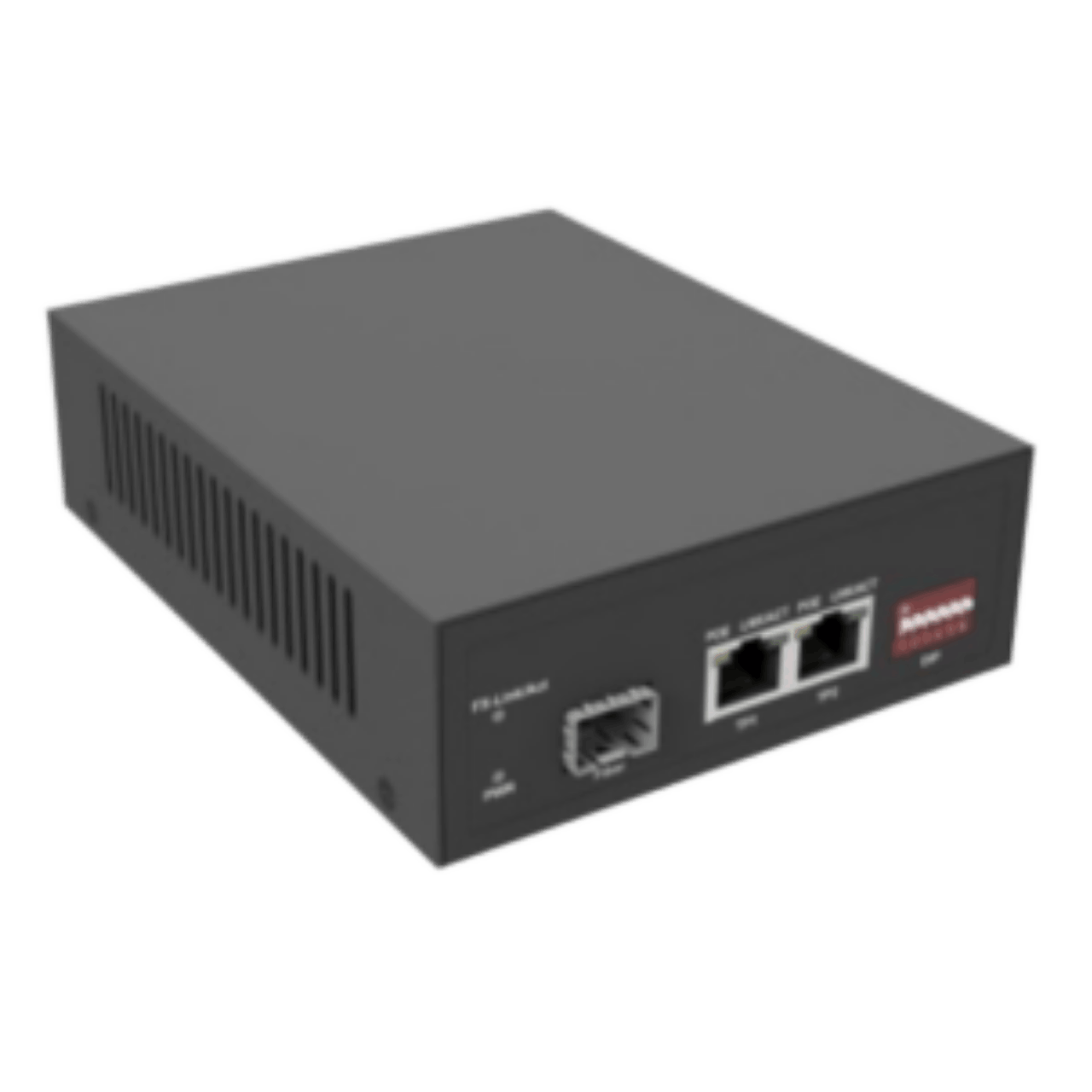

Angled view of Fiberroad media converter, showing the front and side panels of the unit
