DIN Rail Power Supply

NDR-75-12

75 Watt Industrial Single Output DIN Rail Power Supply – 12 VDC / 6.3 Amps

Protected by hardware warranty

Advance replacement. Global coverage.

Protected by hardware warranty

Advance replacement. Global coverage.

  • Universal AC Input / Full range
  • Built-in active PFC function
  • Protections: Short circuit / Overload / Overvoltage / Over temperature
  • Cooling by free air convection
  • Can be installed on DIN rail TS-25/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • 100% full load burn-in test
Output
DC Voltage
12V
Rated Current
6.3A
Current Range
0 - 6.3A
Rated Power
75.6W
Ripple & Noise (max.)
80mVp-p
Voltage Adj. Range
12-14V
Voltage Tolerance
±2.0%
Line Regulation
±0.5%
Load Regulation
±1.0%
Setup, Rise Time
1200ms, 60ms/230VAC | 2000ms, 60ms/115VAC at full load
Hold Up Time (Typ.)
60ms/230VAC | 12ms/115VAC at full load
Input
Voltage Range
90 ~ 264VAC | 127 ~ 370VDC (DC input operation possible by connecting AC/L(+), AC/N(-))
Frequency Range
47 ~ 63Hz
Efficiency (Typ.)
85.5%
AC Current (Typ.)
1.45A/115VAC | 0.9A/230VAC
Inrush Current (Typ.)
20A/115VAC | 35A/230VAC
Protection
Overload
105 ~ 130% rated output power | Constant current limiting, recovers automatically after fault condition is removed
Over Voltage
14 - 17V | Shut down o/p voltage, re-power on to recover
Over Temperature
Shut down o/p voltage, re-power on to recover
Environment
Working Temperature
-20 ~ +70℃ (Refer to Derating Curve)
Working Humidity
20 ~ 95% RH non-condensing
Storage Temperature, Humidity
-40 ~ +85℃, 10 ~ 95% RH
Temp. Coefficient
±0.03%/℃ (0 ~ 50℃)
Vibration
Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | Mounting: Compliance to IEC60068-2-6
Safety & EMC
Safety Standards
UL508, TUV BS EN/EN62368-1, EAC TP TC 004 approved (meet BS EN/EN60204-1)
Withstand Voltage
I/P-O/P: 3KVAC | I/P-FG: 2KVAC | O/P-FG: 0.5KVAC
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG: >100M Ohms / 500VDC / 25℃ / 70% RH
EMC Emission
Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC Immunity
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55035, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, EAC TP TC 020
Others
MTBF
2757.3K hrs min. Telcordia SR-332 (Bellcore); 486.2K hrs min. MIL-HDBK-217F (25℃)
Dimension
32 x 125.2 x 102mm (W x H x D)
Packing
0.51Kg; 28pcs/15.3Kg/1.23CUFT

AVAILABLE MODELS

Model Number Description Op. Temp.
NDR-75-12 75 Watt Industrial Single Output DIN Rail Power Supply – 12 VDC / 6.3 Amps -20~+70°C
TypeVersionRelease Date
Datasheet
NDR-75-SPEC
Datasheet
Manual
NDR Installation Manual
Manual

Dimensions (W×D×H)

Send Enquiry

Our team typically responds within 1 business day.

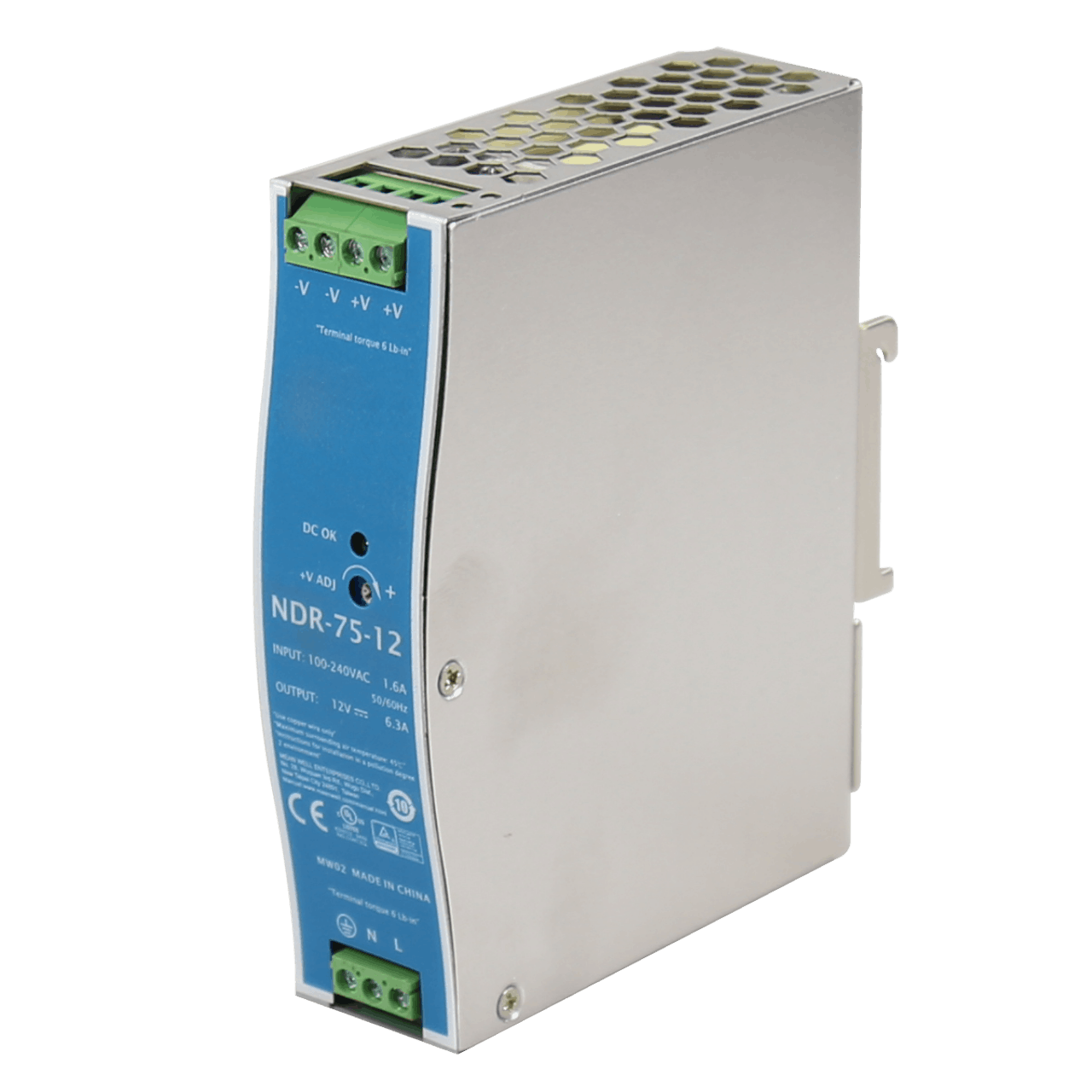

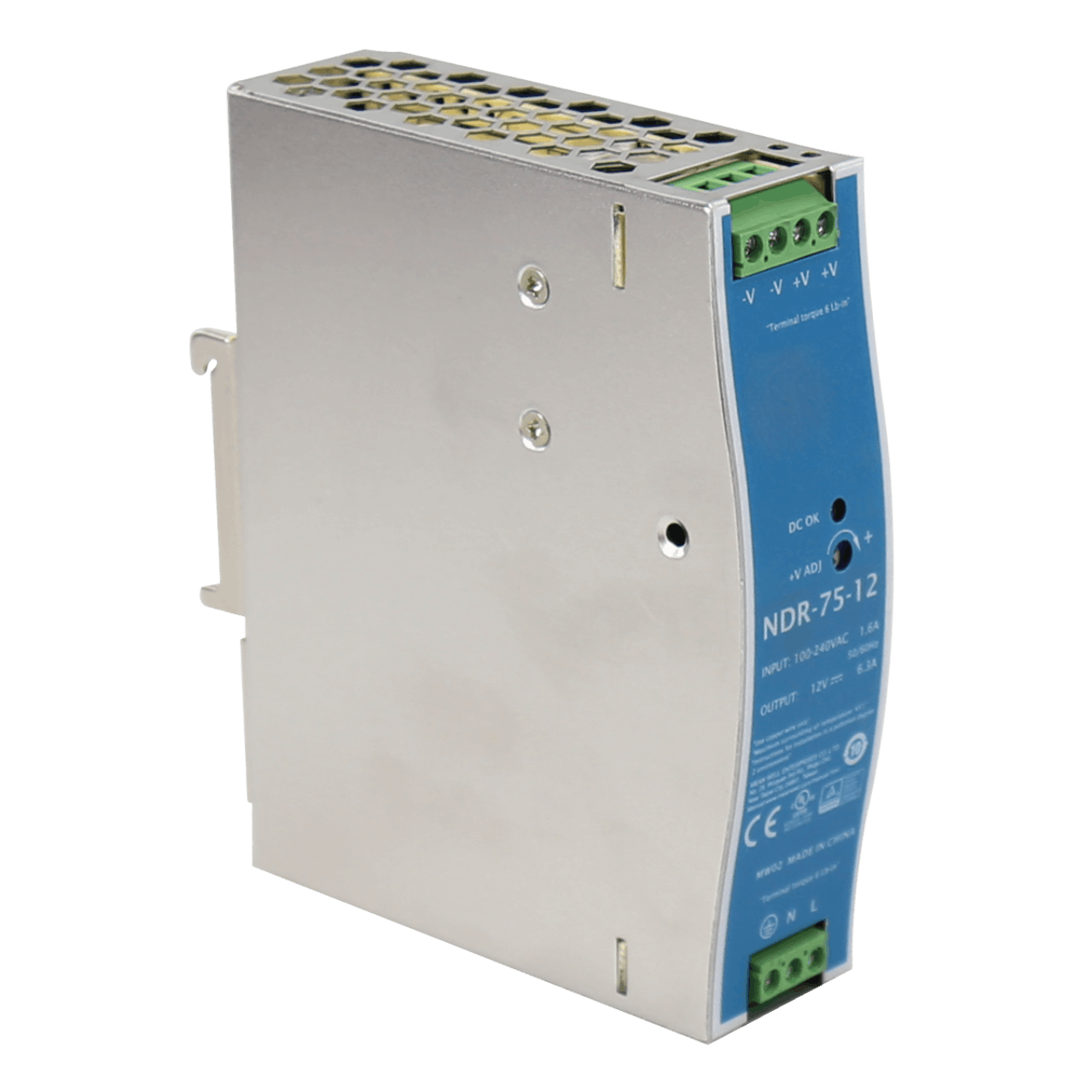

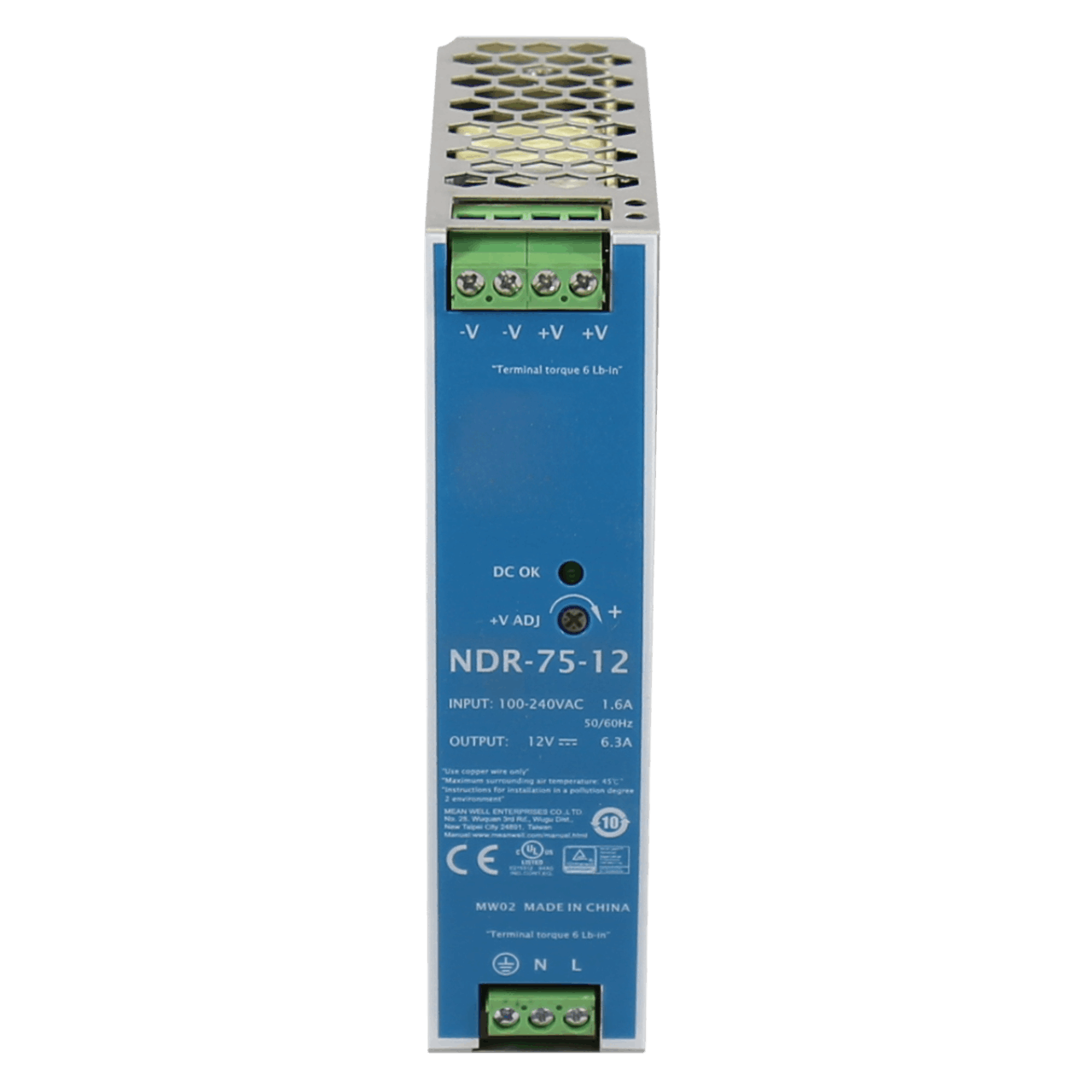

NDR-75-12 DIN rail power supply viewed from the front, showing the connection panel and overall product enclosure
