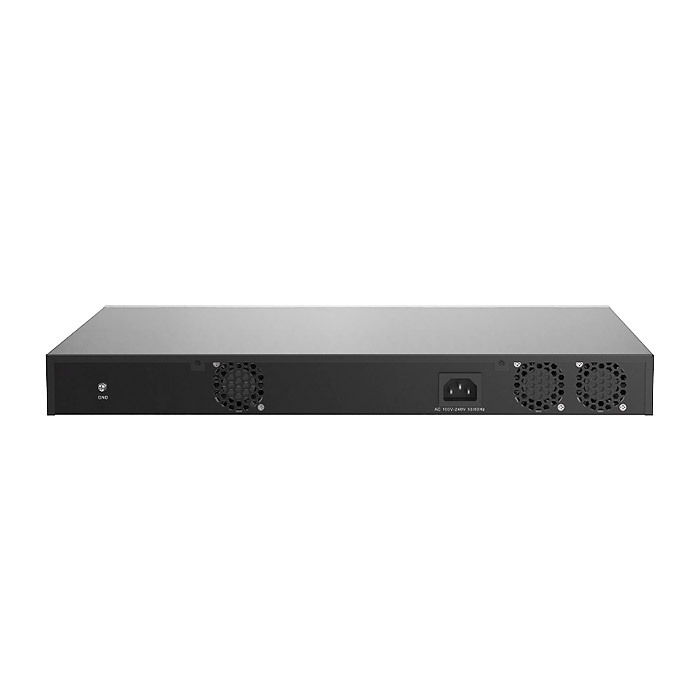

FR-5A3216

Unmanaged 16-port 10/100/1000BASE-TX + 2-port 1000BASE-SFP, with AC220V Power Input

This model is also available in other configurations:

PoE+ (802.3at): FR-5A3216P



Protected by hardware warranty

Advance replacement. Global coverage.

Protected by hardware warranty

Advance replacement. Global coverage.

  • Plug-and-play, non-blocking store-and-forward architecture
  • Auto-negotiation and Auto-MDI/MDIX on Gigabit RJ45 ports
  • IEEE 802.3x flow control for full-duplex and half-duplex backpressure
  • MAC auto-learning/aging and 802.1Q VLAN transparency
  • 350W total power budget
  • Operating temperature 0°C to +50°C
  • Redundant DC power inputs, reverse polarity and overload protection
  • Fanless design
  • DIN-Rail and wall-mount installation
  • NDAA & RoHS compliant
Ethernet Interface
RJ45 Port
16×10/100/1000Base-TX
Optical Fiber Port
2×1000Base-X SFP
DIP Switch
AI VLAN; AI Extend; AI QoS; AI PoE
Electrical and Mechanical
Input Voltage
220VAC
Power Consumption
<15W (220/50 Hz, no PD connected)
Surge Protection
4kV
Enclosure
IP30 Metal
Dimension
400×300×45 mm, 3.8kg
Standards
IEEE 802.3
10BaseT
IEEE 802.3u
100BaseT(X) and 100BaseFX
IEEE 802.3ab
1000BaseT(X)
IEEE 802.3z
1000BaseSX/LX/LHX/ZX
IEEE 802.3x
Flow Control
IEEE 802.1p
Class of Service
IEEE 802.3az
Energy Efficient Ethernet
Switching
Switch Architecture
Store and Forward
Switch Fabric
52Gbps
Packet Buffer Size
4Mbits
MAX. Packet Length
Up to 10K
MAC Address Table
8K
Environmental
Operating Temperature
0°C to +50°C (32 to 122°F)
Storage Temperature
−20°C to +70°C (−4 to 158°F)
Operating Humidity
5%–90% (non-condensing)
MTBF
100,819 Hours
Cooling
Fanless, Passive Cooling
Noise Level
0 dBA
Regulatory
Safety
CE/LVD EN60950
EMI
CE mark, commercial; FCC Part 15 Class B
Environmental
RoHS

AVAILABLE MODELS

Model Number Description Input Voltage Op. Temp.
FR-5A3216 Unmanaged 16-port 10/100/1000BASE-TX + 2-port 1000BASE-SFP, with AC220V Power Input 220VAC 0°C to +50°C
TypeVersionRelease Date
Manual
Quick Start Guide-Unmanged PoE Switch
Manual

Dimensions (W×D×H)

PoE switch illustration showing the port layout used to connect a network for surveillance video transmission
24 Port PoE Switch
Fiberroad Ethernet switch connecting surveillance cameras and a monitoring system
PoE switch configuration diagram illustrating port isolation and the settings used to prioritize network traffic
PoE extension and watchdog functions connecting switches to surveillance cameras
