FR-7N1008

Industrial Unmanaged 8-port 10/100Base-TX Ethernet Switch with Redundant DC Power Inputs

This model is also available in other configurations:

PoE+ (802.3at): FR-7N1008P
PoE++ (802.3bt): FR-7N1008BT
PoE+ (802.3at) 24VDC Input: FR-7N1008P-24V
PoE++ (802.3bt) 24VDC Input: FR-7N1008BT-24V

Protected by hardware warranty

Advance replacement. Global coverage.

Protected by hardware warranty

Advance replacement. Global coverage.

  • Plug-and-play, non-blocking store-and-forward architecture
  • Auto-negotiation and Auto-MDI/MDIX on Gigabit RJ45 ports
  • IEEE 802.3x flow control for full-duplex and half-duplex backpressure
  • MAC auto-learning/aging and 802.1Q VLAN transparency
  • Operating temperature -40°C to +75°C
  • Redundant DC power inputs, reverse polarity and overload protection
  • High-level surge protection and fault alarm relay
  • Fanless design

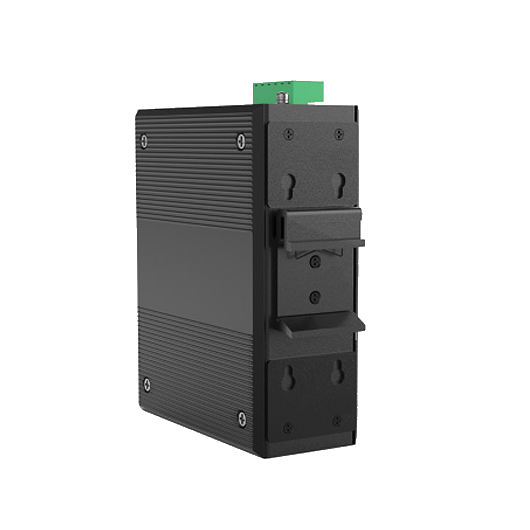

  • DIN-Rail and wall-mount installation
  • NDAA & RoHS compliant
Interface
RJ45 Ports
8x10/100BASE-TX Auto-MDI/MDI-X
Electrical and Mechanical
Input Voltage
Dual 9-56VDC
Max. Power Consumption
6 Watts
Surge Protection
±6kV DC, ±4kV RJ45
Enclosure
IP40 aluminum case
Dimensions
138 x 108 x 49mm
Standards
IEEE 802.3
10BaseT
IEEE 802.3u
100BaseT(X) and 100BaseFX
IEEE 802.3ab
1000BaseT(X)
IEEE 802.3x
1000BaseSX/LX/LHX/ZX
IEEE 802.3az
Energy Efficient Ethernet
Environmental
Operating Temperature
-40℃~75℃ (-40 to 167 ℉)
Operating Humidity
5%~95% (non-condensing)
Storage Temperature
-40℃~85℃ (-40 to 185 ℉)
Heat Dissipation
10 BTU/h
Cooling
Passive Cooling
Noise Level
0 dBA
Switching
Switch Architecture
Store-and-Forward
Switch Fabric
1.8Gbps/non-blocking
Forwarding Rate
1.19 Mpps(64-byte packet size)
Packet Buffer Size
1 Mbits
Maximum Packet Length
1536 bytes
MAC Address Table
2K entries, automatic source address learning and aging
Flow Control
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Environmental
Operating Temperature
-40°C to +75°C (-40 to 167 °F)
Storage Temperature
-40°C to +85°C (-40 to 185 °F)
Operating Humidity
5%~95% (non-condensing)
MTBF
>500,000 hours @MIL-HDBK-217F GF 25°C
Cooling
17 BTU/h (Non-PoE), 700 BTU/h (with 240W PoE load)
Noise Level
0dBA
Regulatory
ISO
Manufactured in ISO-9001 facility
Safety
IEC62368-1:2020+A11:2020
EMI
FCC Part 15B Class A, IEC 61000-3-2
EMS
IEC61000-4-2 ESD: Contact:±8kV, Air:±15kV
IEC61000-4-5 Surge: Power: ±6kV; RJ45:±4kV/±6kV(PoE)
Shock
IEC 60068-2-27
Free Fall
IEC 60068-2-32
Vibration
IEC 60068-2-6
Environmental
RoHS 2011/65/EU Annex II(EU)

AVAILABLE MODELS

Model Number Description Input Voltage Op. Temp.
FR-7N1008 Industrial Unmanaged 8-port 10/100Base-TX Ethernet Switch with Redundant DC Power Inputs Dual DC9-56V -40 to +75°C
TypeVersionRelease Date
Datasheet
FR-7N3005 Series Datasheet
Datasheet
30/06/2026
Manual
7 Series Quick Start Guide
Manual

Dimensions (W×D×H)

Fiberroad Ethernet switch PoE power allocation and connected-device power requirements
