INDUSTRIAL ETHERNET SWITCHES

Unmanaged Ethernet Switches

FR-7N3005

Industrial Unmanaged 5-port 10/100/1000Base-TX Ethernet Switch with Redundant DC Power Inputs

This model is also available in other configurations:

PoE+ (802.3at): FR-7N3005P
PoE++ (802.3bt): FR-7N1008BT

  • Unmanaged
  • Redundant DC
  • Din-Rail
  • -40°C to 75°C
Enquire Now
Download Datasheet

Protected by hardware warranty

Advance replacement. Global coverage.

View policy
Angled view of Fiberroad Ethernet switch, showing the front and side panels of the unit
Angled view of Fiberroad Ethernet switch, showing the front and side panels of the unit
Fiberroad Ethernet switch feature overview with labeled callouts explaining the product functions shown
Rear view of Fiberroad Ethernet switch, showing the clip used to attach the unit to a DIN rail
Fiberroad Ethernet switch top panel showing the power supply connections and the grounding connection point

Protected by hardware warranty

Advance replacement. Global coverage.

View policy
  • Plug-and-play, non-blocking store-and-forward architecture
  • Auto-negotiation and Auto-MDI/MDIX on Gigabit RJ45 ports
  • IEEE 802.3x flow control for full-duplex and half-duplex backpressure
  • MAC auto-learning/aging and 802.1Q VLAN transparency
  • Operating temperature -40°C to +75°C
  • Redundant DC power inputs, reverse polarity and overload protection
  • High-level surge protection and fault alarm relay
  • Fanless design
  • DIN-Rail and wall-mount installation
  • NDAA & RoHS compliant
Interface
RJ45 Ports
5x10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (Port 1-5)
Electrical and Mechanical
Input Voltage
DC9-56V
Power Consumption
6 Watts Max (without PoE load)
Surge Protection
±6kV DC, ±4kV RJ45
Enclosure
IP40 aluminum case
Dimension
120 x 90 x 35 mm
Standards
IEEE 802.3
10BaseT
IEEE 802.3u
100BaseT(X) and 100BaseFX
IEEE 802.3ab
1000BaseT(X)
IEEE 802.3x
1000BaseSX/LX/LHX/ZX
IEEE 802.3az
Energy Efficient Ethernet
IEEE 802.1Q
VLAN Tagging
Switching
Switch Architecture
Store-and-Forward
Switch Fabric
14Gbps/non-blocking
Forwarding Rate
7.44 Mpps(64-byte packet size)
Packet Buffer Size
512 Kbits
Maximum Packet Lengt
9K bytes
MAC Address Table
2K entries, automatic source address learning and aging
Flow Control
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Environmental
Operating Temperature
-40°C to +75°C (-40 to 167 °F)
Storage Temperature
-40°C to +85°C (-40 to 185 °F)
Operating Humidity
5%~95% (non-condensing)
MTBF
>500,000 hours @MIL-HDBK-217F GF 25°C
Cooling
Passive Cooling
Noise Level
0 dBA
Regulatory & Warranty
ISO
Manufactured in ISO-9001facility
Safety
IEC62368-1:2020+A11:2020
EMI
FCC Part 15B Class A, IEC 61000-3-2
EMS
IEC61000-4-2 ESD: Contact:±8kV, Air:±15kV
IEC61000-4-5 Surge: Power: ±6kV; RJ45:±4kV/±6kV(PoE)

Shock
IEC 60068-2-27
Free Fall
IEC 60068-2-32
Vibration
IEC 60068-2-6
Environmental
RoHS 2011/65/EU Annex II(EU)

AVAILABLE MODELS

Model Number Description Input Voltage Op. Temp.
FR-7N3005 Industrial Unmanaged 5-port 10/100/1000Base-TX Ethernet Switch with Redundant DC Power Inputs Dual DC9-56V -40 to +75°C
TypeVersionRelease Date
Datasheet
FR-7N3005 Series Datasheet
Datasheet
30/06/2026
Manual
7 Series Quick Start Guide
Manual

Dimensions (W×D×H)

Fiberroad Ethernet switch illustration showing the compact enclosure and the available installation options

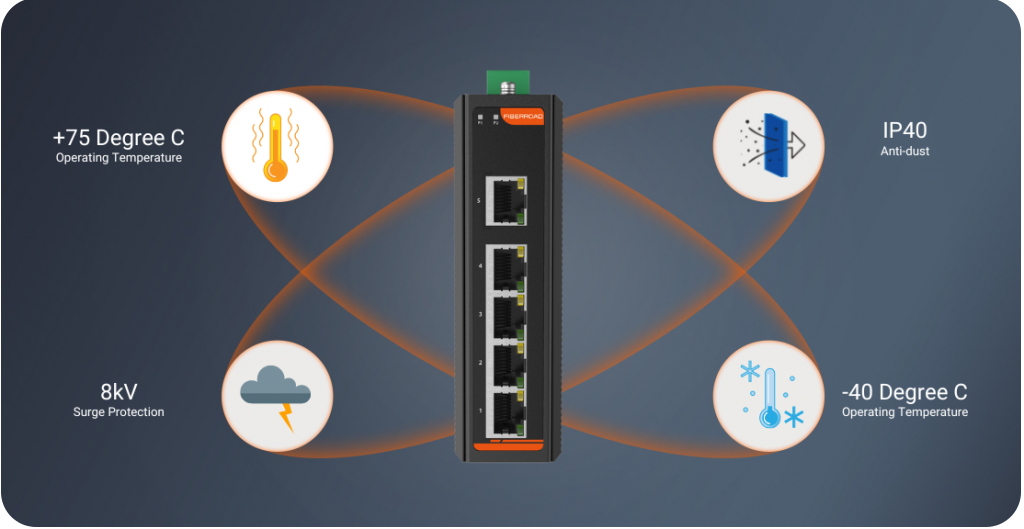

Fiberroad Ethernet switch operating-environment, enclosure and power-supply feature overview

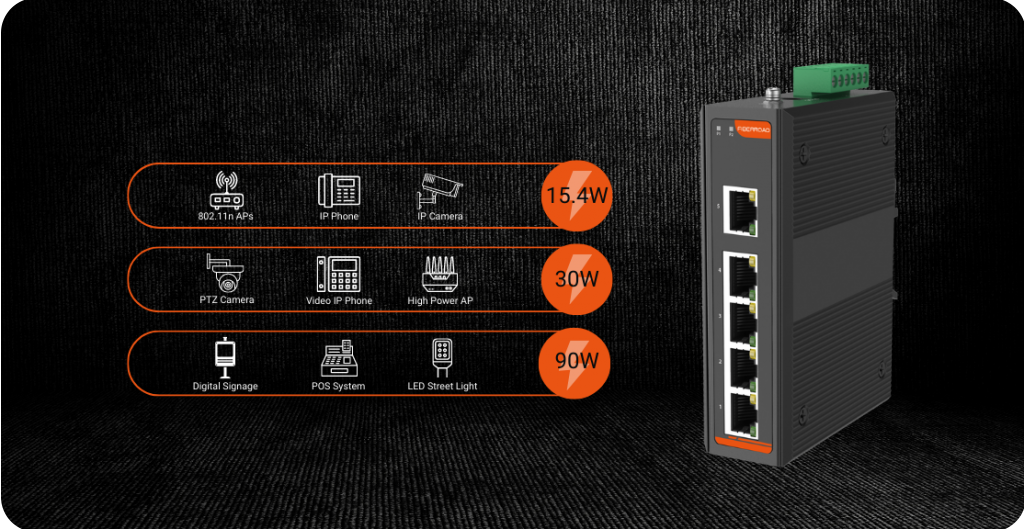

Fiberroad Ethernet switch PoE power allocation and connected-device power requirements

Send Enquiry

Our team typically responds within 1 business day.

Angled view of Fiberroad Ethernet switch, showing the front and side panels of the unit

FR-7N3005

Industrial Unmanaged 5-port 10/100/1000Base-TX Ethernet Switch with Redundant DC Power Inputs


Your data is handled in accordance with our Privacy Policy.

Related Products

Browse all Industrial Ethernet Switches
Angled view of FR-7M3208P Ethernet switch, showing the front and side panels of the unit

POE SOLUTIONS

FR-7M3208P

View Product
Angled view of Fiberroad Ethernet switch, showing the front and side panels of the unit

INDUSTRIAL ETHERNET SWITCHES

FR-7M3408

View Product

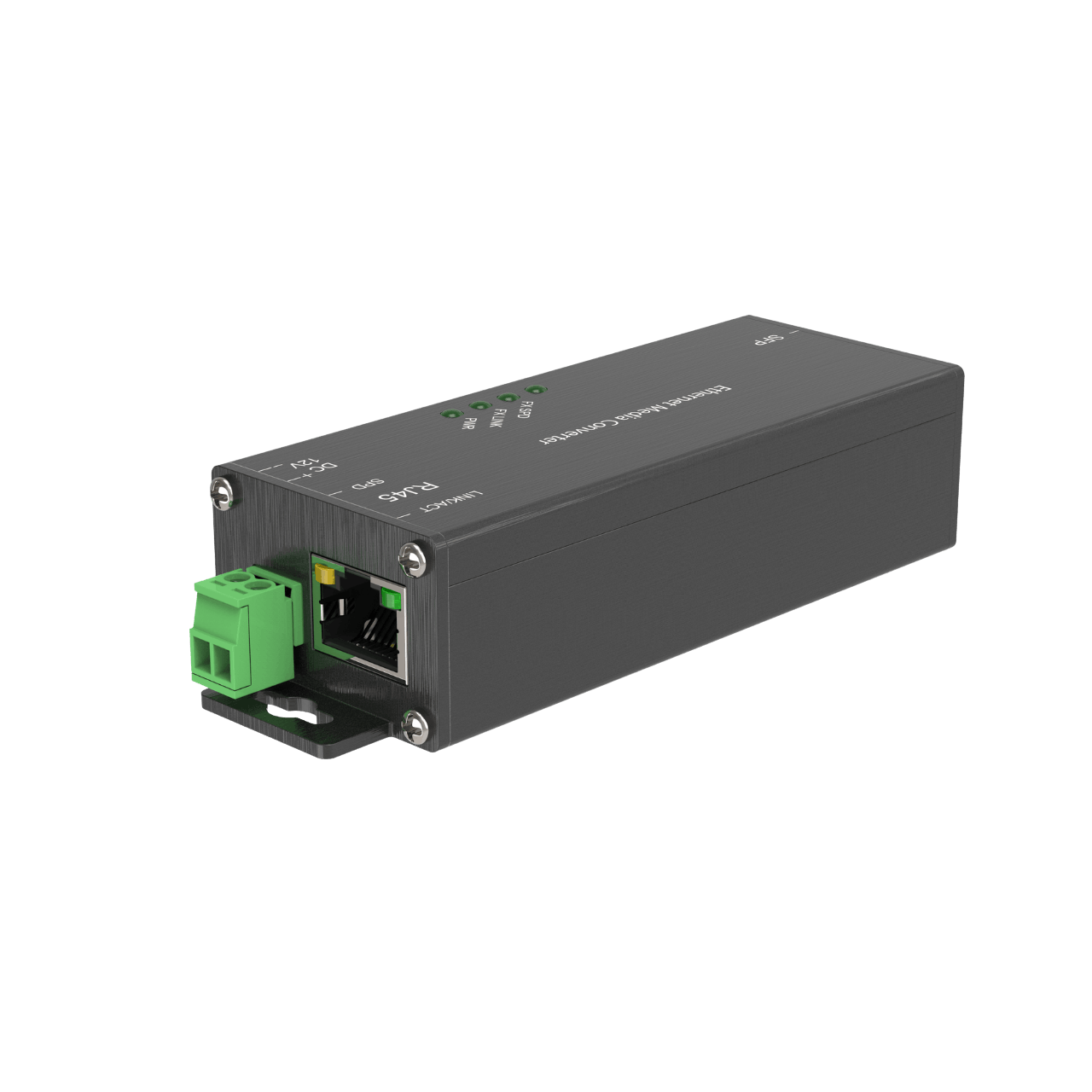

Angled view of FR-2703 media converter, showing the front and side panels of the unit
