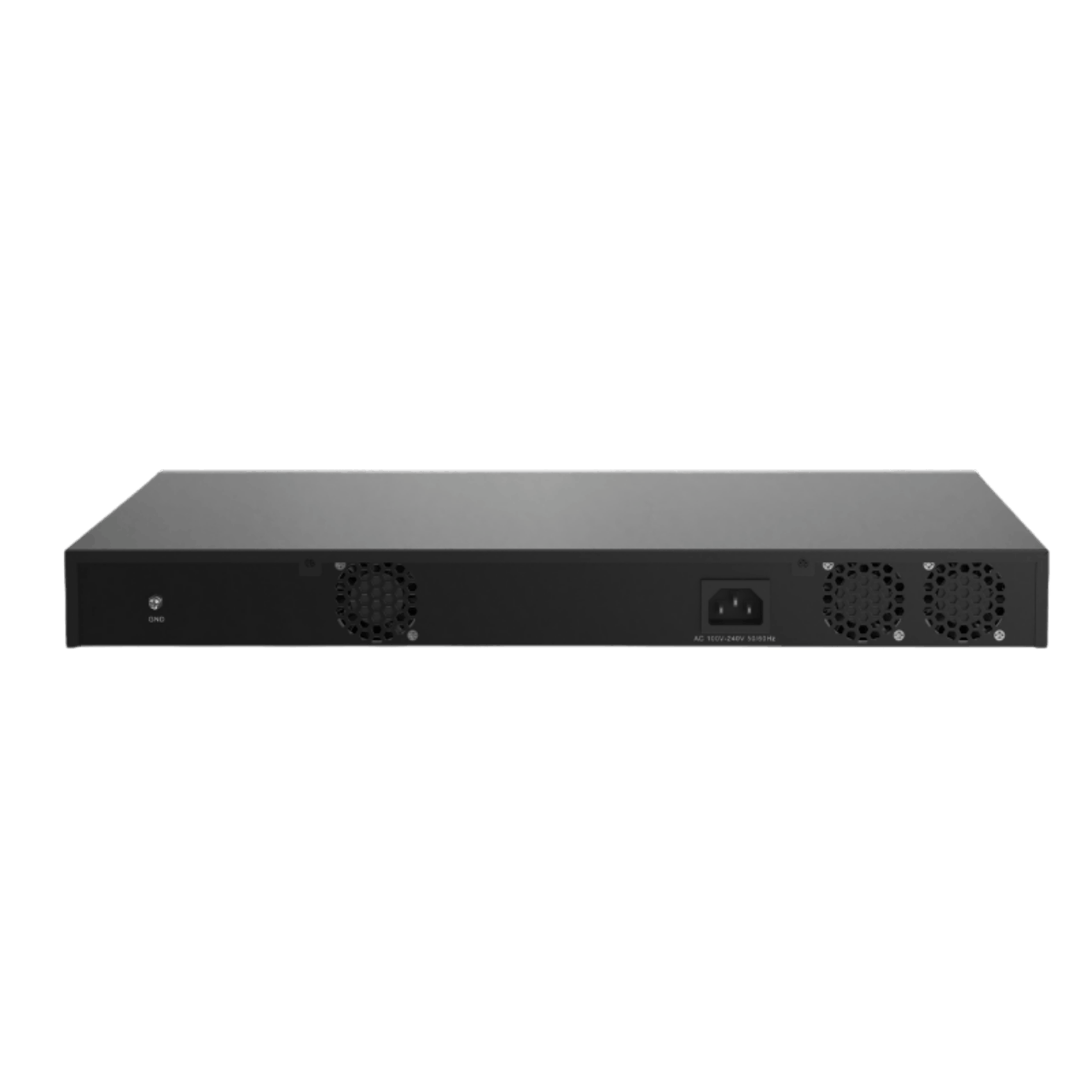

Input Voltage
100-240VAC, 50-60Hz, internal power adapter (1 input, 3-pin AC socket)
Surge Protection
Overload current protection, reverse polarity protection
Dimension
440 x 300 x 45 mm (1U rack-mount), 4kg
IEEE 802.3u
100Base-T(X) and 100Base-FX
IEEE 802.3ab
1000Base-T(X)
IEEE 802.3z
1000Base-SX/LX/LHX/ZX
IEEE 802.3ae
10GBaseSR/LR/ER/ZR
IEEE 802.3ad
Port trunk with LACP
IEEE 802.1D-2004
Spanning Tree Protocol
IEEE 802.1w
Rapid Spanning Tree Protocol
IEEE 802.1s
Multiple Spanning Tree Protocol
IEEE 802.1p
Class of Service
IEEE 802.1Q
Authentication
IEEE 802.1ad
Q-in-Q tunneling
IEEE 802.1ab
Link Layer Discovery Protocol (LLDP, LLDP-MED)
Port Configuration
Auto-negotiation, full/half duplex, auto MDI/MDI-X
Port Status
Link/ACT, port speed, DDM, UDLD
VLAN
IEEE 802.1Q 4K VLAN (up to 256 VLANs, VID 1-4094), GVRP, GMRP, QinQ, double VLAN, Voice VLAN, Surveillance VLAN (auto/manual), MVR
Link Aggregation
LACP (IEEE 802.3ad) link aggregation
Redundant Network
Link Aggregation, STP/RSTP/MSTP/ERPSv2, Auto Edge Port, BPDU Filtering, Self Loop Detection
VLAN
Support IEEE 802.1Q 4K VLAN, QINQ, Double VLAN, Voice LAN, Surveillance VLAN (Auto/Manual), Multicast VLAN Registration (MVR)
Link Aggregation
LACP (IEEE 802.3ad) link aggregation
Spanning Tree Protocol
STP/RSTP/MSTP, auto edge port, BPDU filtering, self-loop detection
Multicast
IGMP Snooping v1/v2/v3, IGMP Querier v2/v3, 4096 IGMP groups, Multicast VLAN Registration (MVR)
Rate Limitation
Rate limitation (per port)
Ring
ITU-T G.8032 ERPS, Recovery time<20ms
QoS
8 priority queues/port; scheduling: WRR, WFQ, strict priority, hybrid (WRR+SP or WFQ+SP); CoS: port-based, 802.1p, IP TOS precedence, IP DSCP; trusted QoS; rate limitation
ACL
L2/L3/L4, MAC-based, IPv4-based, IPv6-based
Security
Broadcast storm control, HTTPS/SSLv2v3, TLSv1, RADIUS, TACACS+, AAA, SSHv1/v2, DHCP Snooping Option 43/82, 802.1X, DoS protection, port-based MAC filtering/binding, MAC whitelist, hierarchical user management, ACL
Basic Management Interface
CLI (Console/Telnet RFC854), WebUI (HTTPS), SNMPv1/v2c/v3
Secure Management Interface
HTTPS/SSL, SSHv1/v2, TLSv1, management VLAN, management ACL (256)
System Management
Time: local, SNTP, NTP; Syslog, RMON, LLDP/LLDP-MED, UDLD, ping; firmware upgrade/backup, dual images, multiple configurations, config download/backup (TFTP, HTTP, UART); MIB-I/II, Bridge MIB, RMON MIB, Entity MIB, Interface Group MIB
Safety
EN60950-1, UL60950-1, CSA C22.2 No.60950-1, UL508
EMI
FCC Part 15 Class A, CE-EMC/LVD
EMS
EN61000-4-2 (ESD): Level 4
IEC61000-4-4 (EFT): Level 4
IEC61000-4-5 (Surge): Level 4
IEC61000-4-6 (CS): Level 3
IEC61000-4-8 (PFMF): Level 5
EN61000-4-3 (RS): Level 4
