FR-5T4424BT

L3 Managed 24-port 10/100/1000Base-TX (PoE++) + 4-port 1000M/10GBase-SFP Ethernet Switch with AC Power Input, 1U Rack-mount

This model is also available in other configurations:

Non-PoE: FR-5T4424
PoE+ (802.3at): FR-5T4424P

Protected by hardware warranty

Advance replacement. Global coverage.

Protected by hardware warranty

Advance replacement. Global coverage.

  • Layer 2+ Features:

    • Jumbo frame support
    • 802.1Q / Q‑in‑Q VLAN (4K groups)
    • STP/RSTP/MSTP for loop prevention
    • LACP link aggregation + ERPS ring redundancy
  • Layer 3 & Management:

    • OSPFv2, RIPv2, Static IPv4/IPv6 routing
    • QoS with 8 priority queues + rate limiting
    • CLI / Telnet / WebGUI / SNMPv3
    • LLDP / LLDP‑MED, RMON, Dual Images
    • DHCP Server/Client, NTP, Syslog
  • Security:

    • 802.1X / RADIUS / TACACS+ AAA
    • ACL (L2/L3/L4, MAC/IPv4/IPv6‑based)
    • DHCP Snooping + Option 82/43
    • SSHv2, HTTPS/TLS, storm control
  • PoE Functions:

    • PoE++ (90W per port)
    • Long reach PoE (250m, data rate at 10Mbps)
    • PoE scheduling, port priority, Smart PoE
    • Real‑time status monitoring + power budget control
  • Hardware:

    • 0°C~50°C operating temperature
    • AC power input
    • NDAA & RoHS compliant
Interface
RJ45 Ports
24 x 10/100/1000Base-TX
SFP Ports
4 x 1000M/10GBase SFP/SFP+
Console
1x RJ45-to-RS232 Serial Port(115200)
Electrical and Mechanical
Input Voltage
100-240VAC, 50-60Hz, internal power adapter (1 input, 3-pin AC socket)
Power Consumption
24 Watts Max (without PoE load)
PoE Ports
Port 1-24
PoE Power Supply Type
IEEE 802.3af/at/bt (PoE++)
Power Supply Pin
4/5(+), 7/8(-)
Max Power Per Port
90W
Max. PoE Power Budget
720W
Surge Protection
Overload Current Protection, Reverse Polarity Protection
Enclosure
IP30 Metal
Dimension
440 x 300 x 45 mm (1U rack-mount), 4kg
Standards
IEEE 802.3
10Base-T
IEEE 802.3u
100Base-T(X) and 100Base-FX
IEEE 802.3ab
1000Base-T(X)
IEEE 802.3z
1000Base-SX/LX/LHX/ZX
IEEE 802.3ae
10GBaseSR/LR/ER/ZR
IEEE 802.3x
Flow control
IEEE 802.3ad
Port trunk with LACP
IEEE 802.1D-2004
Spanning Tree Protocol
IEEE 802.1w
Rapid Spanning Tree Protocol
IEEE 802.1s
Multiple Spanning Tree Protocol
IEEE 802.1p
Class of Service
IEEE 802.1Q
VLAN tagging
IEEE 802.1X
Authentication
IEEE 802.1ad
Q-in-Q tunneling
IEEE 802.1ab
Link Layer Discovery Protocol (LLDP, LLDP-MED)
Switching
Switch Architecture
Store and forward (full/half duplex), latency <7μs
Switch Fabric
128Gbps backplane bandwidth
Forwarding Rate
96Mpps
Packet Buffer Size
12Mbits
Maximum Packet Length
Up to 10K bytes
MAC Address Table
16K
Flow Control
IEEE 802.3x flow control
Software Features
Port Configuration
Auto-negotiation, full/half duplex, auto MDI/MDI-X
Port Status
Link/ACT, port speed, DDM, UDLD
Port Mirroring
Supported
Management Access
Management VLAN, Management ACL (256)
VLAN
IEEE 802.1Q 4K VLAN (up to 256 VLANs, VID 1-4094), GVRP, GMRP, QinQ, double VLAN, Voice VLAN, Surveillance VLAN (auto/manual), MVR
Link Aggregation
LACP (IEEE 802.3ad) link aggregation
Spanning Tree Protocol
STP/RSTP/MSTP, auto edge port, BPDU filtering, self-loop detection
Multicast
IGMP Snooping v1/v2/v3, IGMP Querier v2/v3, 4096 IGMP groups, Multicast VLAN Registration (MVR)
Rate Limitation
Rate limitation (per port)
Ring
ITU-T G.8032 ERPS, Recovery time<20ms
QoS
8 priority queues/port; scheduling: WRR, WFQ, strict priority, hybrid (WRR+SP or WFQ+SP); CoS: port-based, 802.1p, IP TOS precedence, IP DSCP; trusted QoS; rate limitation
ACL
L2/L3/L4, MAC-based, IPv4-based, IPv6-based
Security
Broadcast storm control, HTTPS/SSLv2v3, TLSv1, RADIUS, TACACS+, AAA, SSHv1/v2, DHCP Snooping Option 43/82, 802.1X, DoS protection, port-based MAC filtering/binding, MAC whitelist, hierarchical user management, ACL
PoE Management Functions (PoE Model)
PoE System Management
PoE working status, PoE operation management (PoE output setting, Smart PoE, port priority, PoE budget management)
PoE Schedule
PoE operation scheduling
Layer 3 Functions
IP Interfaces
IPv4 / IPv6
IP Services
ARP, DHCP Server/Client
Routing
OSPFv2, RIPv1/v2, static route
Management
Basic Management Interface
CLI (Console/Telnet RFC854), WebUI (HTTPS), SNMPv1/v2c/v3
Secure Management Interface
HTTPS/SSL, SSHv1/v2, TLSv1, management VLAN, management ACL (256)
System Management
Time: local, SNTP, NTP; Syslog, RMON, LLDP/LLDP-MED, UDLD, ping; firmware upgrade/backup, dual images, multiple configurations, config download/backup (TFTP, HTTP, UART); MIB-I/II, Bridge MIB, RMON MIB, Entity MIB, Interface Group MI
Environmental
Operating Temperature
0℃ ~ 50℃ (32 to 122 ℉)
Storage Temperature
-20℃ ~ 70℃ (-4 to 158 ℉)
Operating Humidity
5%~90% (non-condensing)
MTBF
100,819 hours (Telcordia SR-332, GB, 25°C)
Cooling
Passive
Noise Level
0 dBA
Regulatory
ISO
ISO-9001
Safety
EN60950-1, UL60950-1, CSA C22.2 No.60950-1, UL508
EMI
FCC Part 15 Class A, CE-EMC/LVD
EMS
EN61000-4-2 (ESD): Level 4
IEC61000-4-4 (EFT): Level 4
IEC61000-4-5 (Surge): Level 4
IEC61000-4-6 (CS): Level 3
IEC61000-4-8 (PFMF): Level 5
EN61000-4-3 (RS): Level 4
Shock
IEC60068-2-27
Vibration
IEC60068-2-6
Free Fall
IEC60068-2-31
Environmental
RoHS

AVAILABLE MODELS

Model Number Description Input Voltage Op. Temp.
FR-5T4424BT L3 Managed 24-port 10/100/1000Base-TX (PoE++) + 4-port 1000M/10GBase-SFP Ethernet Switch with AC Power Input, 1U Rack-mount 110-240VAC 0 to +50°C
TypeVersionRelease Date
Datasheet
FR-5T4424P_BT Datasheet
Datasheet
v4.1
22/06/2026
Manual
L3 Managed Ethernet Switch WebGUI Management Interface User Manual
Manual
Manual
Layer 3 CLI User Manual
Manual

Dimensions (W×D×H)

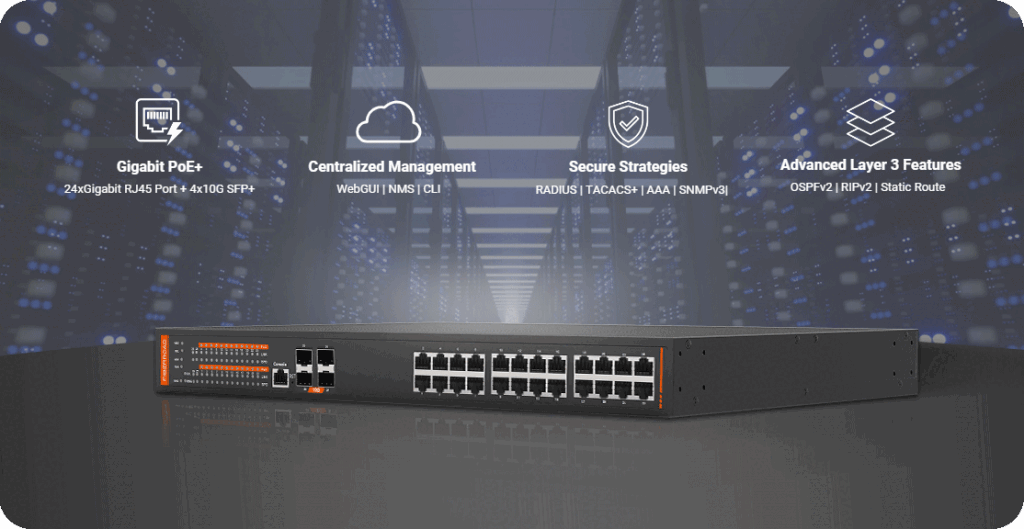

FR-5T4424BT 10G PoE Switch application diagram

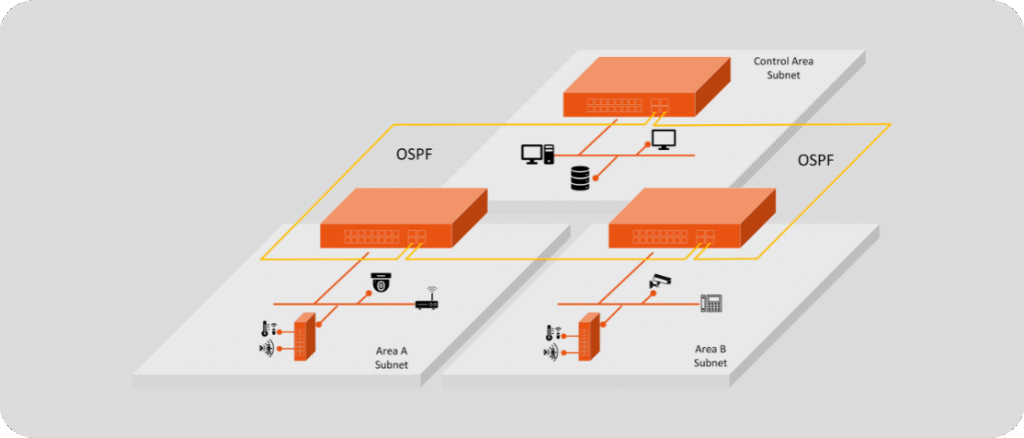

FR-5T4424BT OSPF routing diagram
