FR-IPM2002I-1PG-D-30

Industrial Mid-span Gigabit PoE+ Injector, with Wide Range DC Power Input

Injector
PoE+
Single DC
-30 to 70°C

Enquire Now

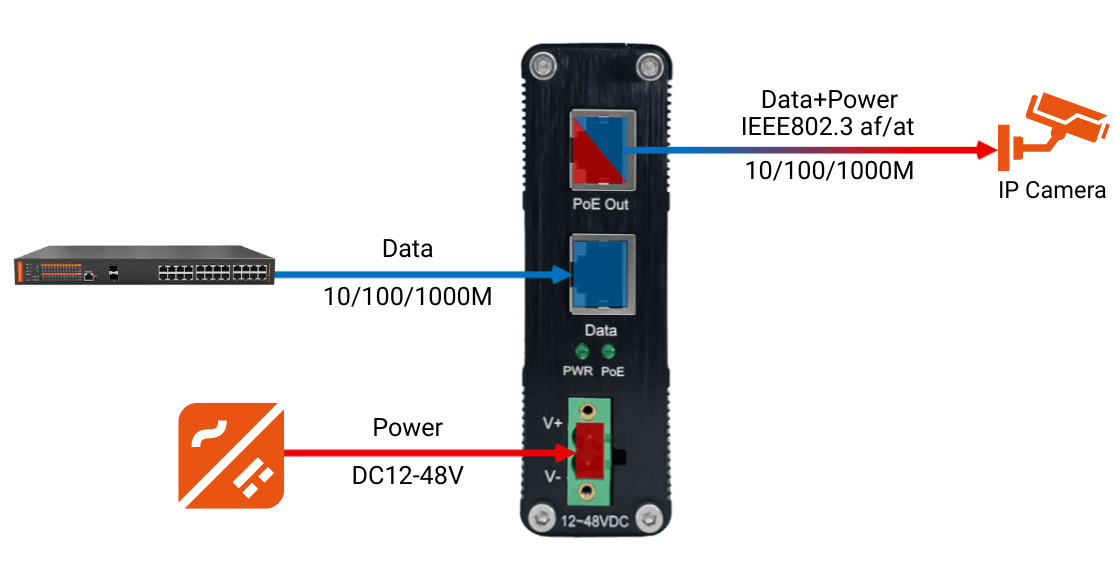

Mid‑span PoE+ injection
Gigabit Data & VDC-In, Data plus PoE‑Out
12–48V DC wide‑range power input
IEEE 802.3af/at PoE+ (up to 30W) output
IP40 aluminum industrial enclosure
DIN‑rail or wall‑mount installation
‑30°C to +70°C operating temperature
Passive cooling, fanless design
High EMC immunity (ESD, surge, vibration)

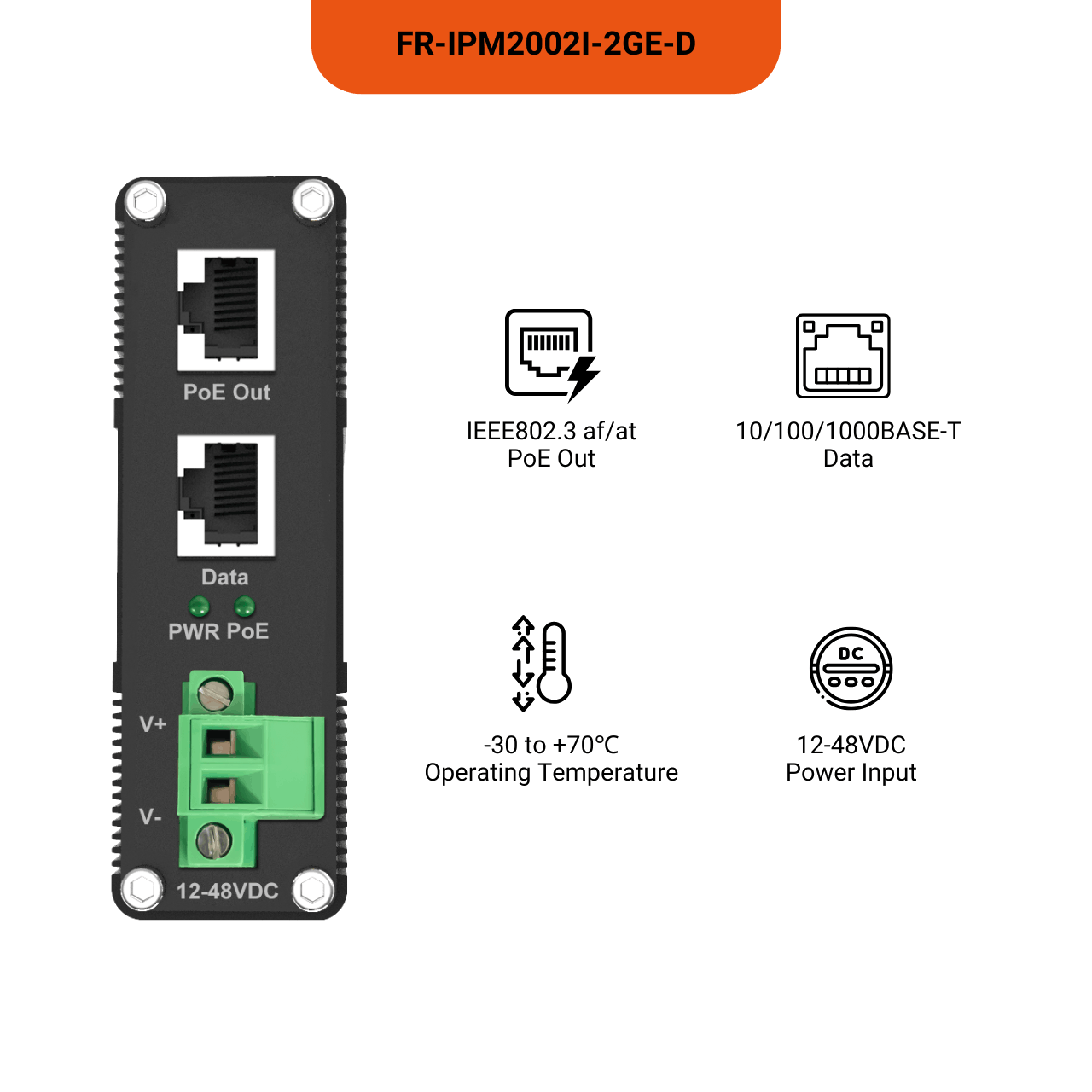

Interface

Input Port

1 x 10/100/1000Base-T RJ45 (Data)

Output Port

1 x 10/100/1000Base-T RJ45 (Data + PoE)

Power Terminal

1 x removable 2-pin terminal block

Network Cable

10BASE-T: UTP Cat 3/4/5 (max 100 m)
100BASE-TX: UTP Cat 5/5e (max 100 m)
1000BASE-T: UTP Cat 5e or above (max 100 m)

Electrical and Mechanical

Input Voltage

1 x 12-48V DC (terminal block)

Power Consumption

30W max

PoE Standard

IEEE 802.3af/at (PoE+)

PoE Power Supply Type

Mid-span

Power Supply Pin

1/2(+), 3/6(-)

Max Power Per Port

30W

Enclosure

IP40 aluminum case

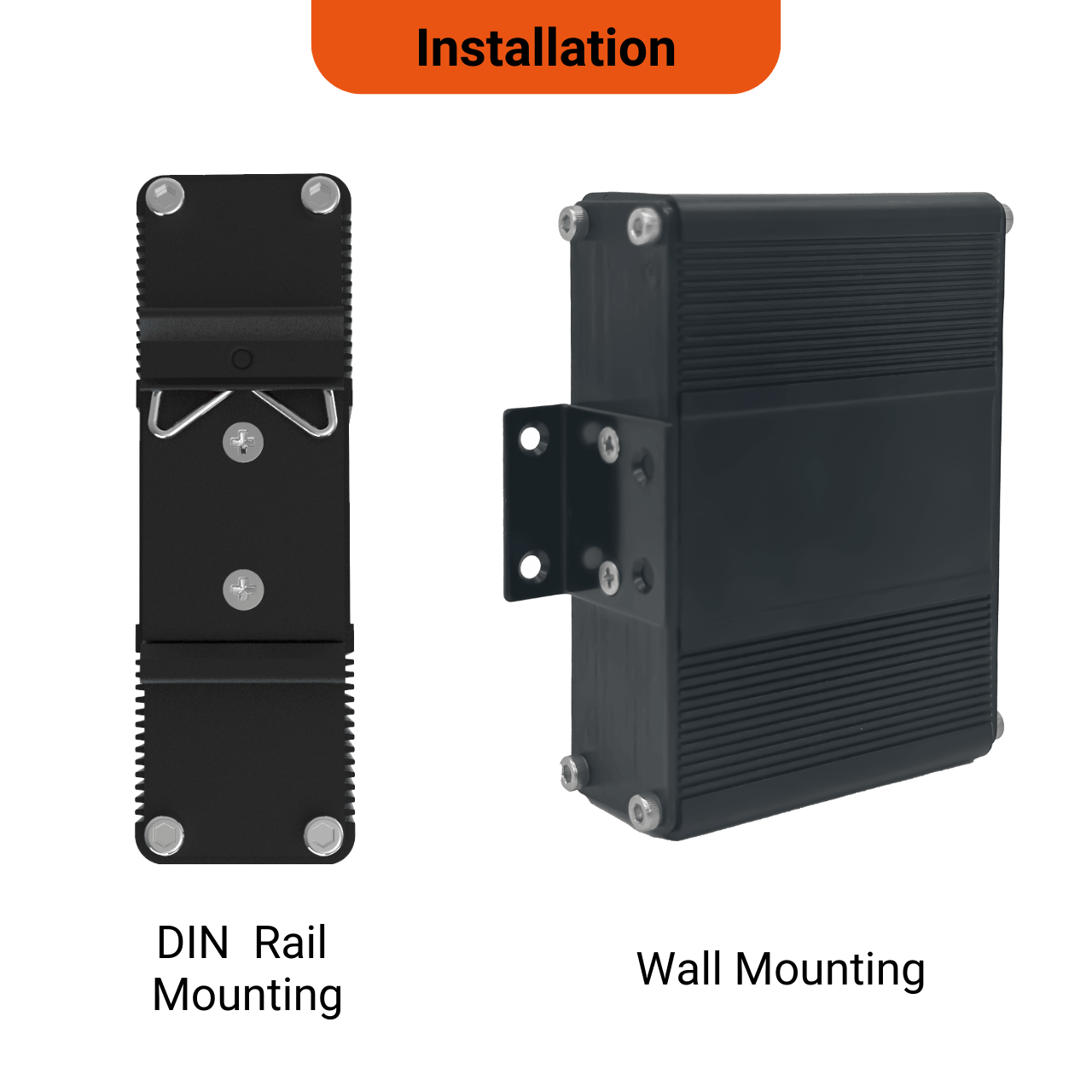

Installation

DIN-rail and wall-mount

Dimension

95 x 70 x 30 mm (L x W x H)

Standards

IEEE 802.3

10BaseT

IEEE 802.3u

100BaseT(X) and 100BaseFX

IEEE 802.3x

Flow Control

IEEE 802.3az

Energy Efficient Ethernet

Environmental

Operating Temperature

-30℃ to +70℃ (-22 to 158 ℉)

Storage Temperature

-40℃ to +85℃ (-40 to 185 ℉)

Operating Humidity

5%~90% (non-condensing)

MTBF

＞500,000 hours @MIL-HDBK-217F GF 25℃

Cooling

Passive Cooling

Regulatory

ISO

Safety

IEC 62368-1:2020+A11:2020

EMI

FCC Part 15B Class A, IEC 61000-3-2

EMS

IEC61000-4-2 ESD: contact ±8kV, air ±15kV
IEC61000-4-5 Surge: power ±6kV; RJ45 ±4kV (±6kV PoE)

Shock

IEC60068-2-27

Vibration

IEC60068-2-6

Free fall

IEC60068-2-32

Environmental

RoHS 2011/65/EU Annex II (EU)

AVAILABLE MODELS

Model Number	Description	Input Voltage	Op. Temp.
FR-IPM2002I-1PG-D-30	Industrial Mid-span Gigabit PoE+ Injector, with Wide Range DC Power Input	DC12-48V	-30 to +70℃

TypeVersionRelease Date

Datasheet

Single Port PoE Injector

Datasheet

Download

Dimensions (W×D×H)

Send Enquiry

Our team typically responds within 1 business day.

Your data is handled in accordance with our Privacy Policy.

POE SOLUTIONS

FR-IPS2008I-4PG-A-90

Gigabit 4-port PoE+ Injector with AC Power Input

POE SOLUTIONS

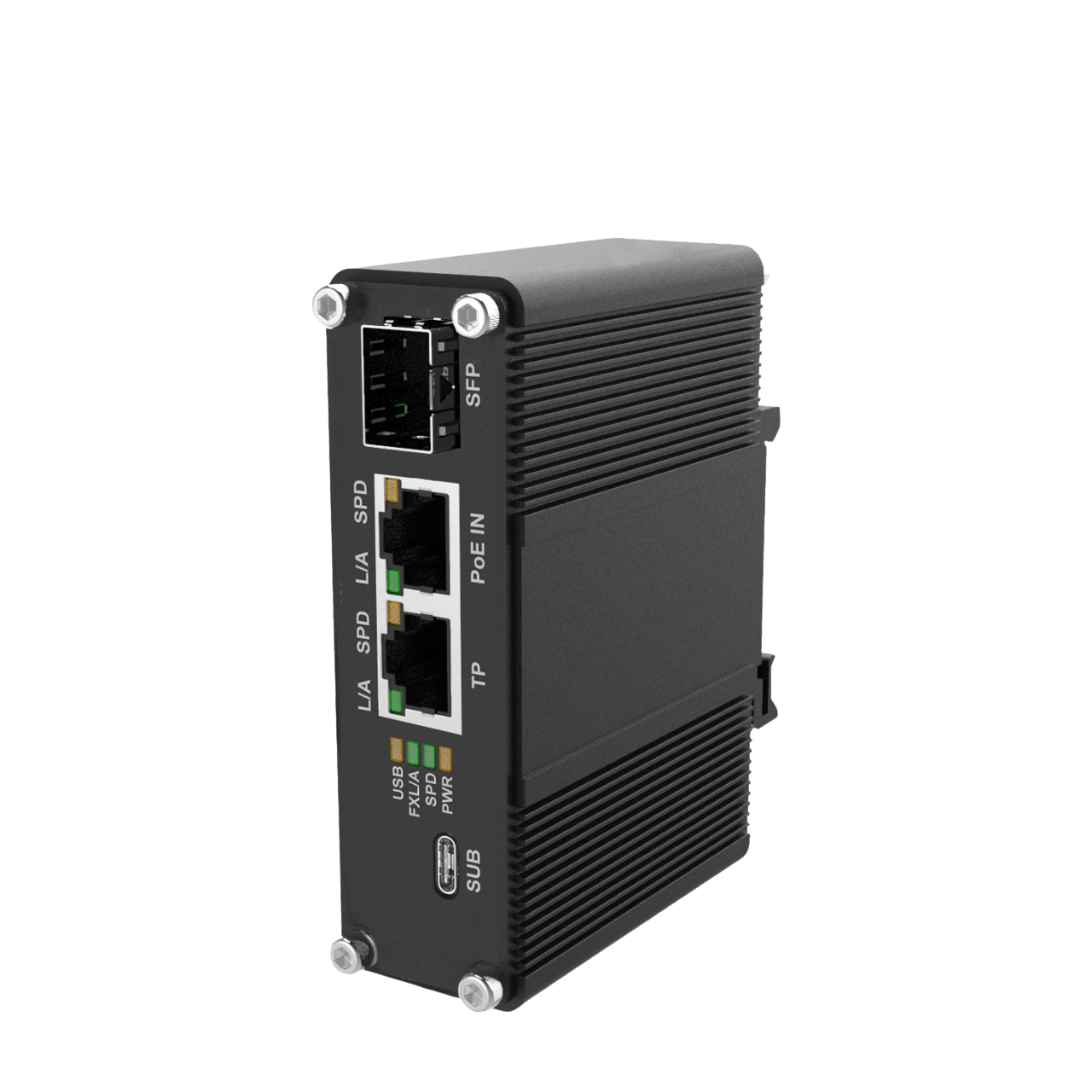

FR-IPM2003MT-1GF1GE-P-60
