FR-IPM2003MT-1GF1GE-P-60

Industrial Gigabit Media Converter (Powered Device) and PoE++ Splitter, with USB Power Output

Eliminate cable clutter and streamline your connectivity with our all-in-one Fibre PoE Media Converter. Designed for modern workspaces, this powerful device does more than just convert fibre to Ethernet. It accepts a standard PoE++ (bt) input to receive data and up to 60W of power, which is then delivered through a versatile USB-C port. This allows you to power and connect a laptop, simplifying your setup. Furthermore, with a 1000M SFP slot that supports fibre links up to 120km, it provides the long-distance backbone you need to reliably reach a remote data centre or ISP network, all from a compact, desktop device.

Splitter
PoE++
Single DC
-30℃ to 70℃

Enquire Now

Angled view of FR-IPM2003MT-1GF1GE-P-60 PoE media converter, showing the front and side panels of the unit

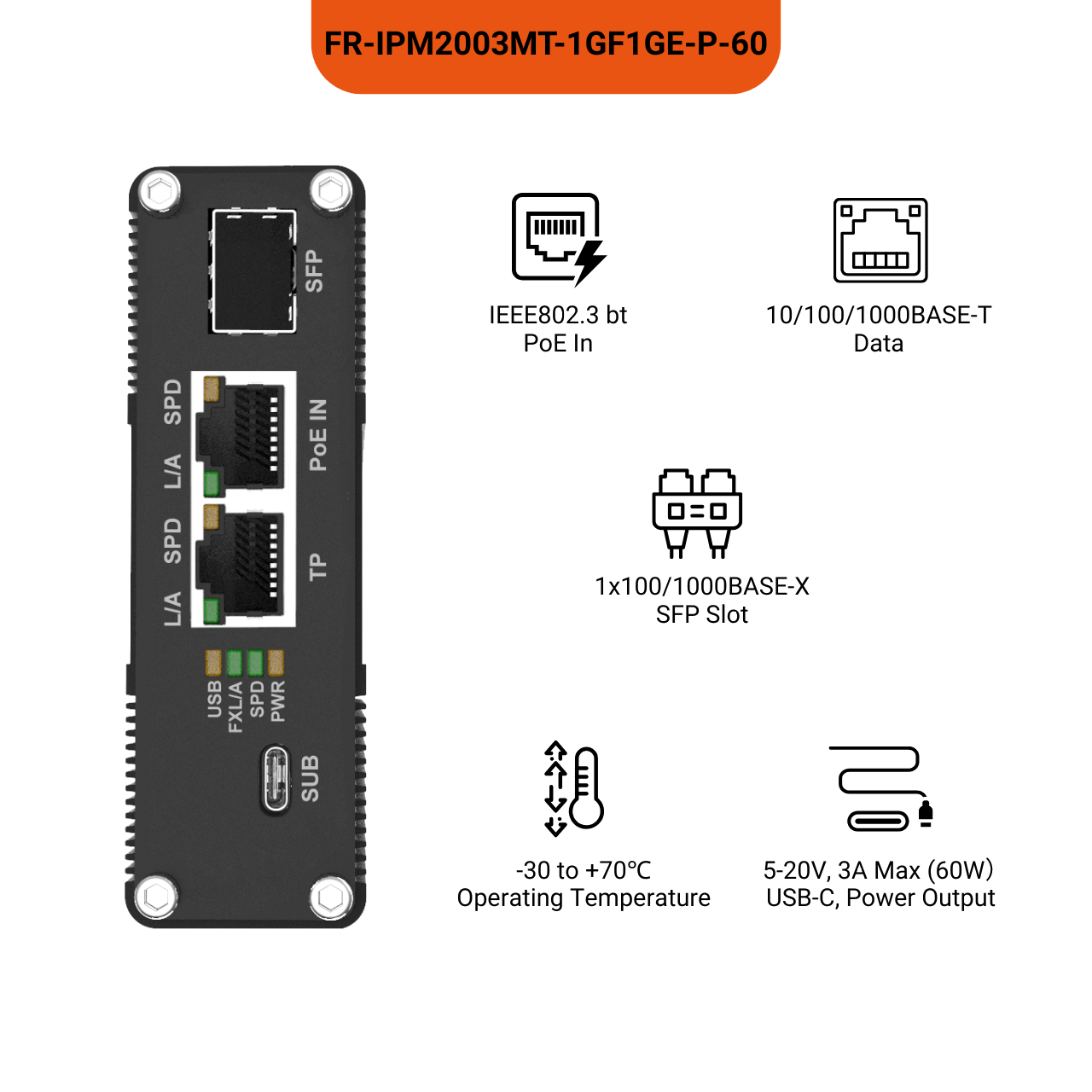

FR-IPM2003MT-1GF1GE-P-60 PoE media converter, product overview with labeled features

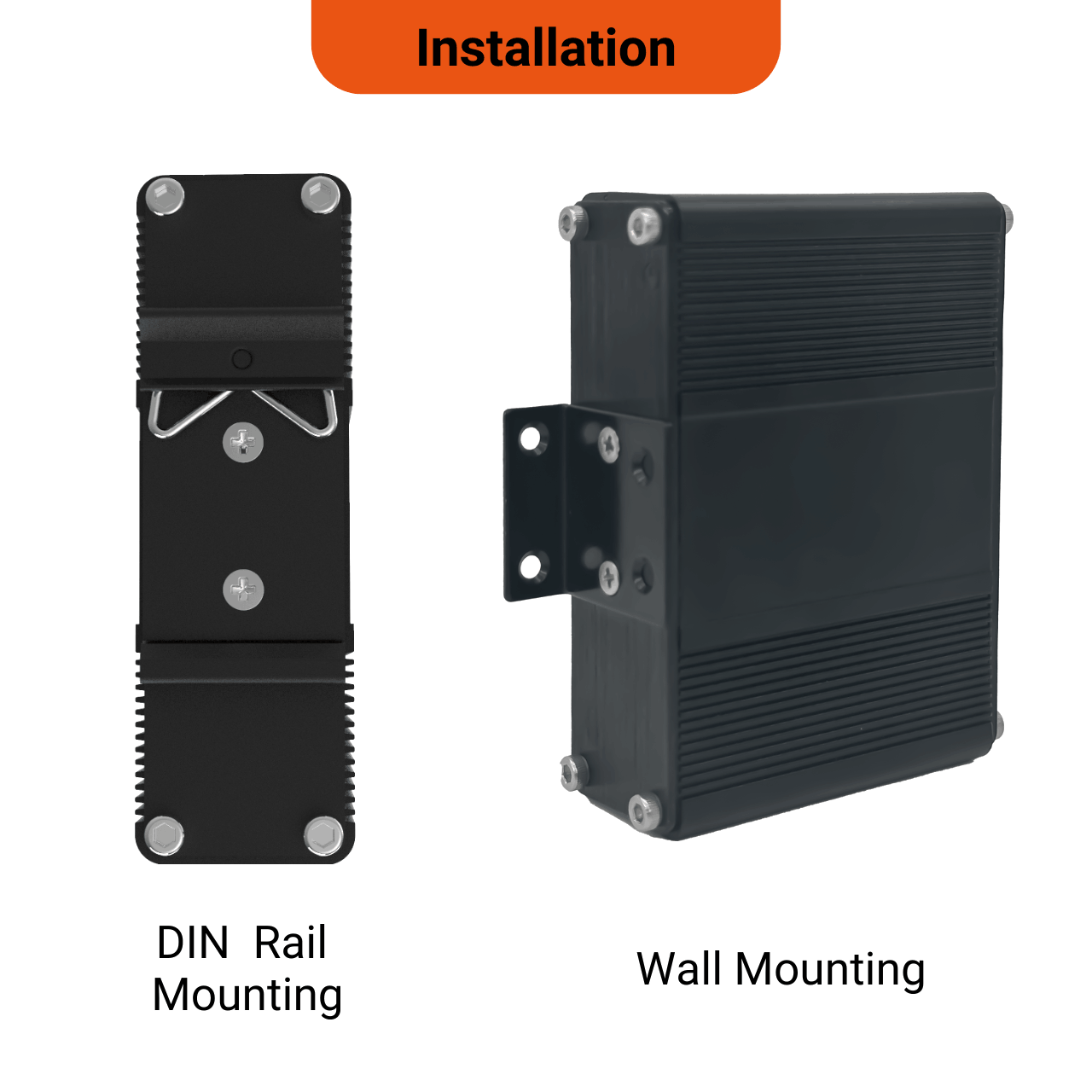

FR-IPM2003MT-1GF1GE-P-60 PoE media converter, DIN rail and wall-mount installation options

1 x 1000BASE-X SFP Slot
1 x 10/100/1000BASE-T RJ45 with IEEE 802.3 at/bt PoE Power Input
1 x 10/100/1000BASE-T RJ45
5-20V 3A max USB-C 60W Power Output
SFP port accommodates Multi or Single Mode fiber modules
Operating temperature range of -30° – 70°C (-22° – 158°F)

Hardware Specifications

Copper Ports

2×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (TP1 and PoE IN), Auto-Negotiation

Fiber Ports

1×100/1000BASE-X SFP Slots

Enclosure

IP40 aluminum case

Installation

DIN-Rail and Wall-mount

Dimension

95mm x 70mm x 30mm (L x W x H)

Weight

250g(Bare weight)

Network Cable

10/100/1000BASE-T: 2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters), EIA/TIA-568 100-ohm STP (maximum 100 meters) | 100BASE-FX/1000BASE-SX/LX: Multi-mode 50/125um or 62.5/125um optical fiber, Single-mode 9/125um optical fiber

Power Supply and PoE

Power Input (PD Port/DC Terminal)

PoE Input(TP2), IEEE802.3 at/bt

Input Voltage

PoE Input: DC48-57V

Power Output (Connector)

USB-C

Output Voltage

5-20V, 3A Max (60W)

Power Consumption

5 Watts Max (without PoE load)

Total Power Budget

60W Maximum (Depending on power input)

Environmental

Operating Temperature

-30℃ to +70℃ (-22 to 158 ℉)

Storage Temperature

-40℃ to +85℃ (-40 to 185 ℉)

Operating Humidity

5%~90% (non-condensing)

Cooling

Passive Cooling

MTBF

＞500,000 hours @MIL-HDBK-217F GF 25℃

LED Indicators

PWR

ON: Power is being supplied, OFF: Power is not being supplied

RJ45 Port Green LEDs(L/A)

ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active

RJ45 Port Amber LEDs(SPD)

ON: Port is operating at 1000 Mb/s, OFF: Port is operating at 10/100 Mb/s

USB

ON: Connected PD load

FX L/A

ON: Optical fiber cable is connected well, but no data transmission. Blinking: Receiving data

FX SPD

ON: FX 1000M running, OFF: FX 100M running

AVAILABLE MODELS

Industrial Gigabit Media Converter (Powered Device) and PoE (802.3at/bt) Splitter with USB Power Output

TypeVersionRelease Date

Datasheet

FR-IPM2003MT Series Datasheet

Datasheet

Download

Dimensions (W×D×H)

Diagram of a PoE splitter connected to a laptop, illustrating delivery of USB-C power and Ethernet data
