POE SOLUTIONS

PoE Periphearals

FR-IPM2002T-P-30

Industrial Gigabit PoE+ Splitter, with 24VDC Power Output

The Fiberroad Industrial PoE Splitter is an ideal solution for powering traditional network devices in demanding environments. It efficiently converts standard 48-56V PoE input (IEEE 802.3at) into a 24V DC output, delivering up to 25 watts to high-power devices. By leveraging existing Ethernet cabling for both data (10/100/1000Mbps) and power, it eliminates the need for costly electrical installations, providing a flexible and reliable power solution for growing industrial applications.

  • Splitter
  • PoE+
  • 24VDC
  • -30℃ to 70℃
Enquire Now
Download Datasheet

Protected by hardware warranty

Advance replacement. Global coverage.

View policy
Angled view of FR-IPM2002T-P-30 PoE splitter, showing the front and side panels of the unit
Angled view of FR-IPM2002T-P-30 PoE splitter, showing the front and side panels of the unit
FR-IPM2002T-P-30 PoE splitter feature overview with labeled callouts explaining the product functions shown

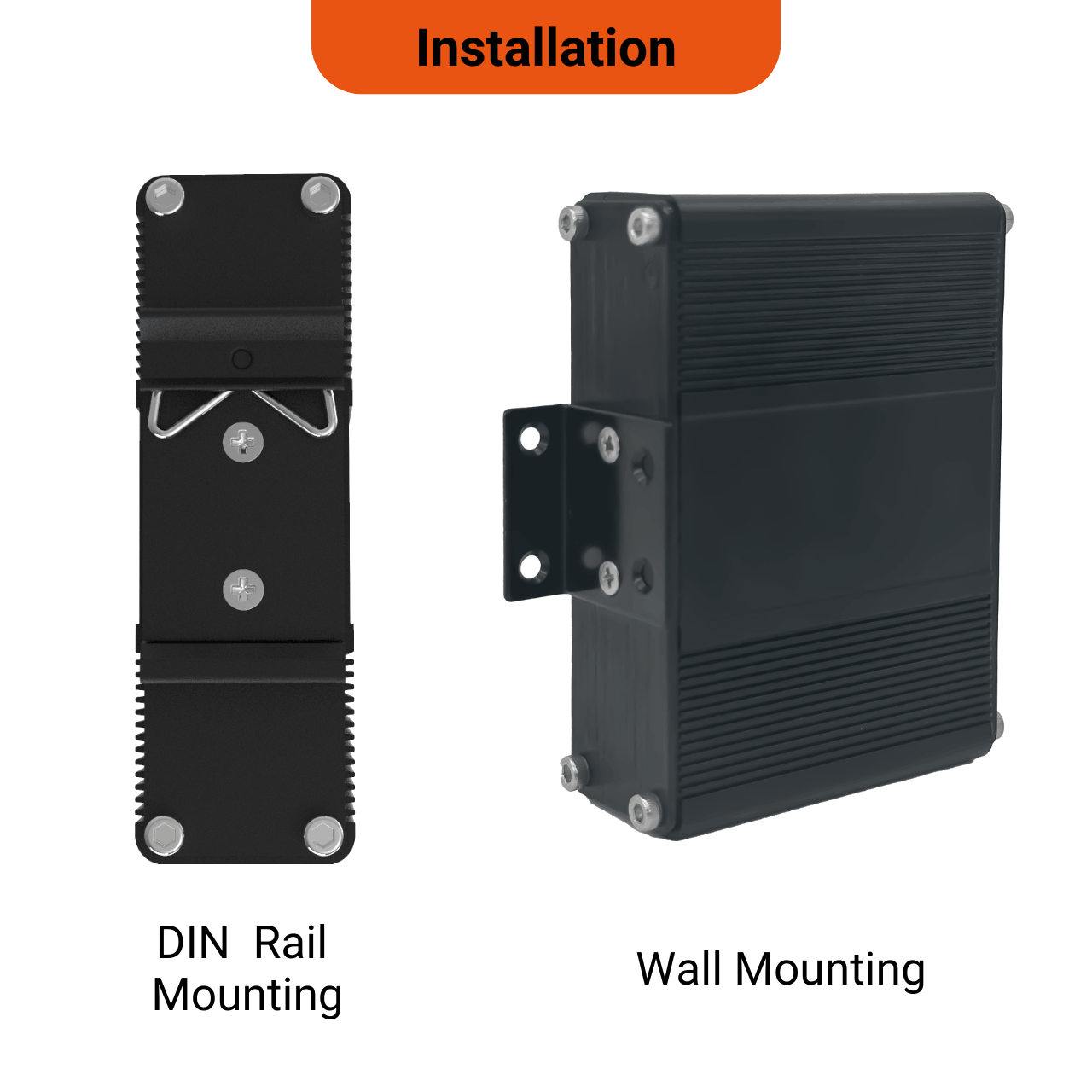

FR-IPM2002T-P-30 PoE splitter shown with DIN rail and wall mounting options for different installation arrangements

Protected by hardware warranty

Advance replacement. Global coverage.

View policy
  • Splits power and data from the PoE Input
  • Supports PoE IEEE802.3af/at A mode (1, 2, 3, 6) or B mode (4, 5, 7, 8)
  • Supports output power upto 12VDC/1.4A, or 24VDC/0.85A
  • Compliant with 10/100/1000Base-T(X)
  • Wide operating temperature -30 ~ +70°C
  • IP40 rugged metal housing and fanless
Hardware Specifications
Interface
Input Port：1 x 10/100/1000BASE-T RJ45, PoE (Data + Power) In | Output Port：1 x 10/100/1000BASE-T RJ45, Data Out | Output power terminal block: 1 removable 2-Pin terminal block
Network Cable
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) | 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) | 1000BASE-T: UTP category 5e cable or above (maximum 100 m)
Enclosure
IP40 aluminum case
Installation
DIN-Rail and Wall-mount
Dimension
95mm x 70mm x 30mm (L x W x H)
Power Supply and PoE
Power Input
802.3at PoE 48-56V DC
Power Output
24V DC, max 2A
PoE Standard
IEEE 802.3at PoE+
Environmental
Operating Temperature
-30℃ to +70℃ (-22 to 158 ℉)
Storage Temperature
-40℃ to +85℃ (-40 to 185 ℉)
Operating Humidity
5%~90% (non-condensing)
Cooling
Passive Cooling
MTBF
＞500,000 hours @MIL-HDBK-217F GF 25℃
LED Indicators
VO(Green)
ON: Output power is being supplied, OFF: Output power is not being supplied
PoE(Green)
ON: PoE in Use, OFF: PoE not in Use

AVAILABLE MODELS

Industrial Gigabit PoE (802.3at) Splitter with 24VDC Power Output

TypeVersionRelease Date
Datasheet
Industrial PoE Splitter Datasheet
Datasheet

Dimensions (W×D×H)

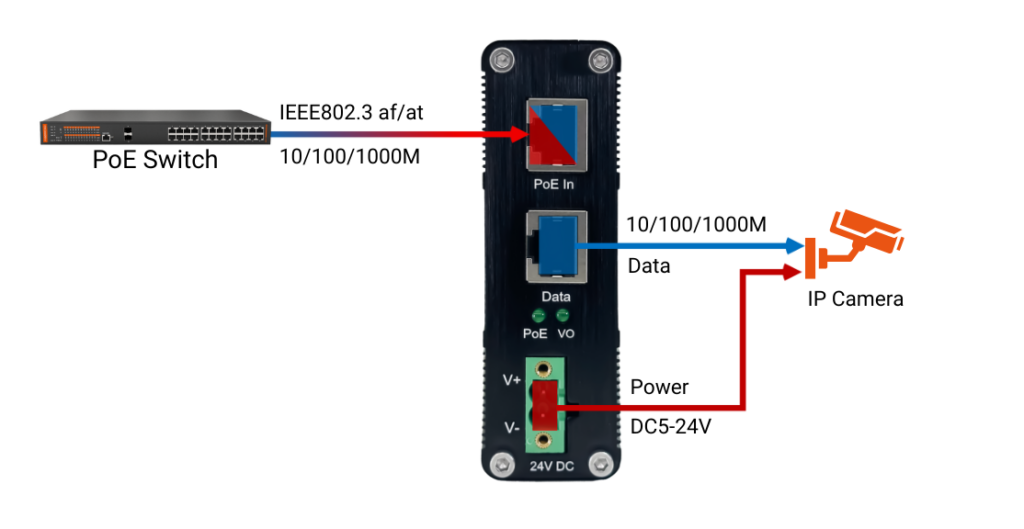

IP camera connection diagram showing a PoE splitter separating incoming power from the Ethernet data connection
