POE SOLUTIONS

PoE Unmanaged Switches

FR-5A3208P

It is a new generation PoE switch with 8-Port 10/100/1000Base-TX and 2 Gigabit uplink ports that provide stable and reliable Ethernet transmission offered by Fiberroad, with high-quality design and reliability. It can supply power to PD terminal equipment such as wireless AP, webcam, VoIP, and visual intelligent building intercom through network cable and meet the network environment that needs a high-density PoE power supply.

Protected by hardware warranty

Advance replacement. Global coverage.

Protected by hardware warranty

Advance replacement. Global coverage.

  • 8x10/100/1000Base-TX RJ45 ports, 2xGigabit SFP/ RJ45
  • Support full-duplex based on IEEE802.3x and half-duplex based on backpressure
  • IEEE802.3af/at PoE standard, without damaging non-PoE devices.
  • Support 9K bytes giant frame, compatible with various extension protocol
  • Support IEEE802.3az Energy Efficient Ethernet technology
  • Electric 4kV surge protection
  • Fanless and noiseless design, IP30 rated protection
  • LED indicator of PWR, Link, PoE
Ethernet Interface
Model
FR-5A3208P
RJ45 Port
8×10/100/1000Base-TX
Optical Fiber Port
2×1000Base-X (SFP)
SFP Slot Port
Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP (≤100 meter); 100BASE-TX: Cat5 or later UTP (≤100 meter); 1000BASE-T: Cat5e or later UTP (≤100 meter)
Port Mode (Tx)
Auto-Negotiation; Full/Half Duplex Mode; Auto MDI/MDI-X Connection
Standards
IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X) and 100BaseFX; IEEE 802.3ab for 1000BaseT(X); IEEE 802.3z for 1000BaseSX/LX/LHX/ZX; IEEE 802.3x for flow control; IEEE 802.1p for Class of Service; IEEE802.3az Energy Efficient Ethernet
Packet Buffer Size
2Mbits
Maximum Packet Length
Up to 9K
MAC Address Table
4K
Transmission Mode
Store and Forward (Full Wire Speed)
Exchange Property
Delay time: < 7μs; Backplane bandwidth: 20Gbps
PoE & Power Supply
PoE Port
Port 1 to 8 IEEE802.3af/at @PoE
Power Supply Pin
Default: 1/2(+), 3/6(-), Optional: 4/5, 7/8(-)
Max Power Per Port
30W; IEEE802.3af/at
Total PWR / Input Voltage
125W (DC52V) @ 15.4W; 240W (DC52V) @ 30W
Power Consumption
Standby <4W
Power Inputs
1
Power Supply
External power adapter with AC100 – 240V 50-60Hz input; 52VDC 5A output@30W per port; 52VDC 2A output@15.4W per port
Protection
Overload Current Protection

AVAILABLE MODELS

Unmanaged 8-port 10/100/1000Base-TX (PoE+) + 2-port 100/1000Base-SFP Ethernet Switch with AC Power Input; Desktop type

TypeVersionRelease Date
Datasheet
Product Data Sheet
Datasheet
2
11/11/2026
Manual
Quick Start Guide-Unmanged PoE Switch
Manual
2D Drawing
2D drawing
2D Drawing

Dimensions (W×D×H)

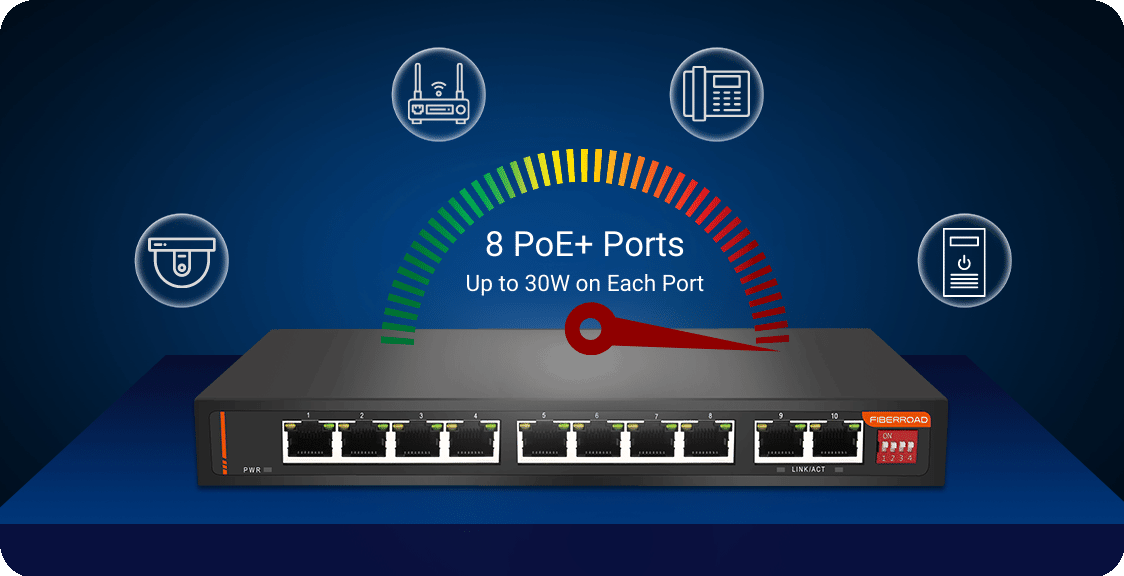

PoE switch feature illustration with port labels and callouts explaining the power capability of each port

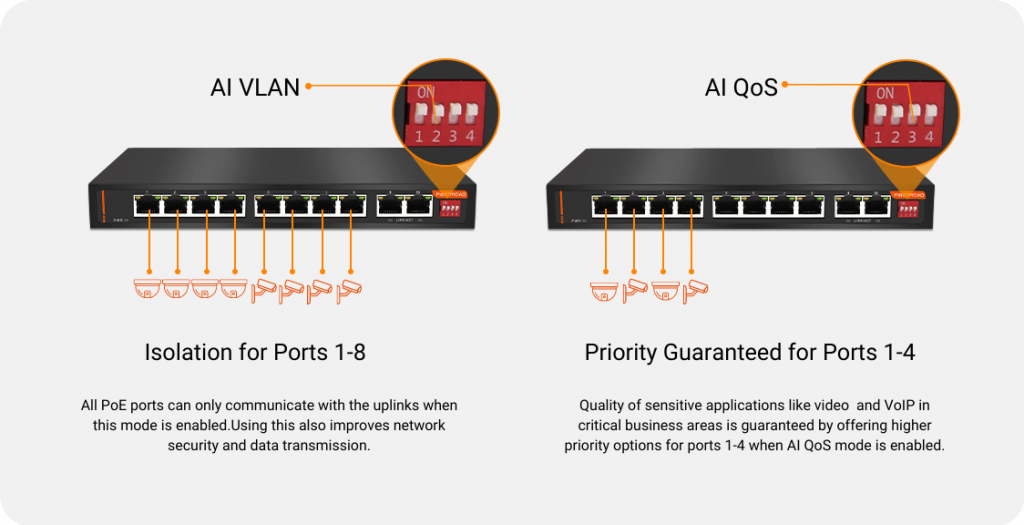

DIP-switch settings for port isolation and traffic prioritization on a PoE switch

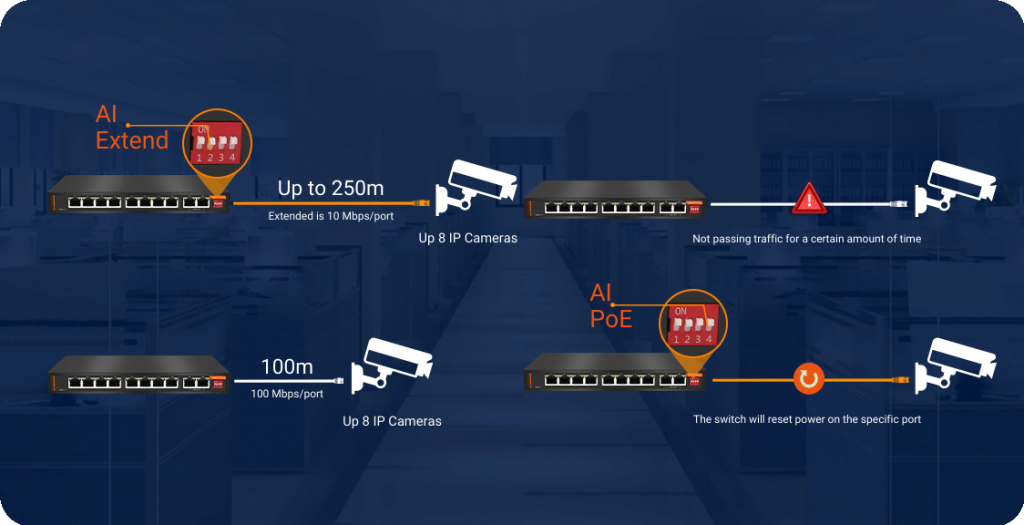

PoE extension and watchdog functions connecting switches to surveillance cameras

Send Enquiry

Our team typically responds within 1 business day.

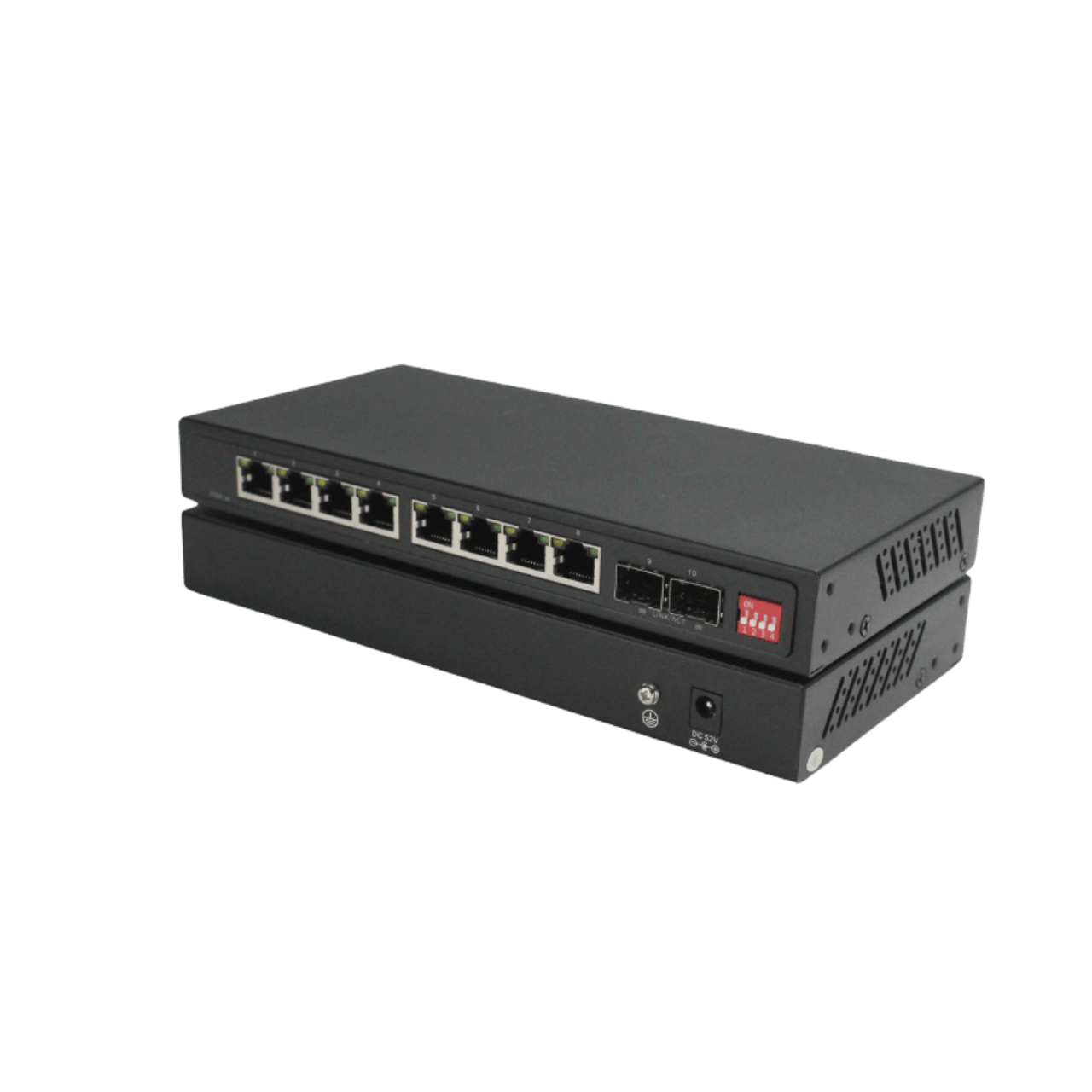

FR-5A3208P Ethernet switch viewed from the front, showing the connection panel and overall product enclosure

FR-5A3208P


Your data is handled in accordance with our Privacy Policy.

INDUSTRIAL ETHERNET SWITCHES

L2+ Managed 24-port 10/100/1000Base-TX + 4-port 10/100/1000Base-TX or 100/1000Base-SFP Combo Ethernet Switch with AC Power Input, 1U Rack-mount

POE SOLUTIONS

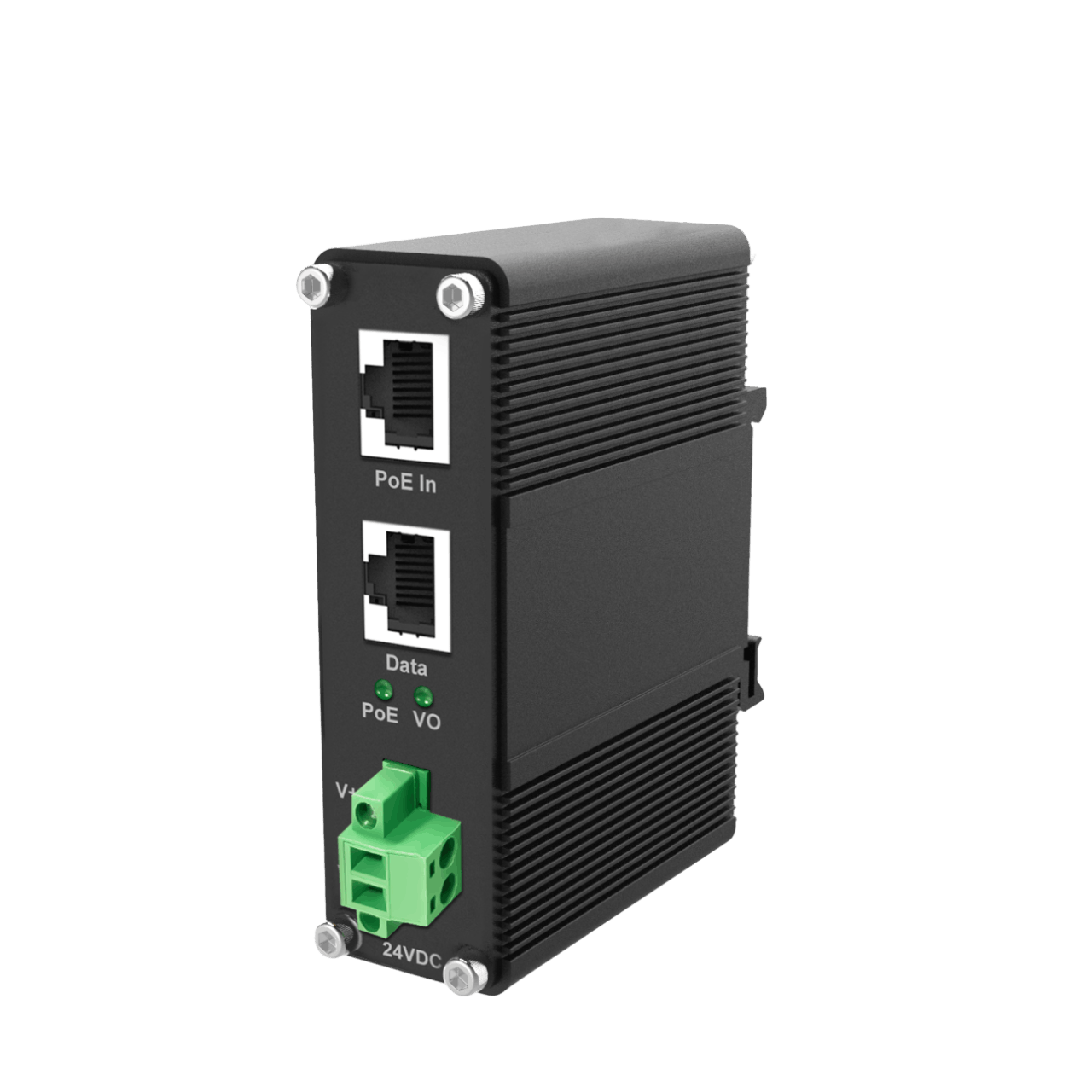

Industrial Gigabit PoE+ Splitter, with 24VDC Power Output
