FR-WIST series is an Industrial Ethernet Switch independently developed by our company to meet the specific requirements of power automation in industrial settings. This product utilizes advanced Ethernet technology and adheres to open network standards, ensuring compatibility and reliability. Designed to withstand high and low temperature extremes, as well as harsh environments with strong electromagnetic interference or corrosive salt spray, It offers superior performance in challenging conditions. With a redundant dual DC power input backup design and support for AC/DC universal power supply scenarios, this switch can adapt to various power supply access requirements with efficiency and reliability. The large backplane bandwidth design enables fast data transmission speeds, while the loop-breaking function ensures network redundancy in ring networks for seamless operation. Additionally, the FR-WIST series Industrial Switches can serve as a convergence network node for quick service forwarding using star network configurations. Meeting EMC level 4 protection standards, this industrial Ethernet switch boasts exceptional anti-interference capabilities for dependable performance in demanding environments.
Product Highlights
EMC (Electromagnetic Compatibility) Anti-interference Degree
| ESD | Level 4 ( ±8kV Contact Dischargeļ¼ ±15kV Discharge in air) |
|---|---|
| Radiation | Level 3 (80MHZ – 1GHZ) |
| Electric fast instantaneous pulse group | Level 4 (Power Port: ±4kV, other ports:±2kV) |
| Surge Impact | Level 4 (Common Mode:±4kV, Differential Mode:±2kV) |
| Power Frequency Magnetic Field | Level 5 (Stable magnetic field: 100A/m, Short-time magnetic field: 1000A/m) |
| Damped Oscillating Field | Level 5 (100A/m) |
| Damped Oscillating Wave | Level 3 (Common Mode:±2.5kV, Differential Mode:±1kV) |
| Voltage Dip | 100ms |
Featured Products

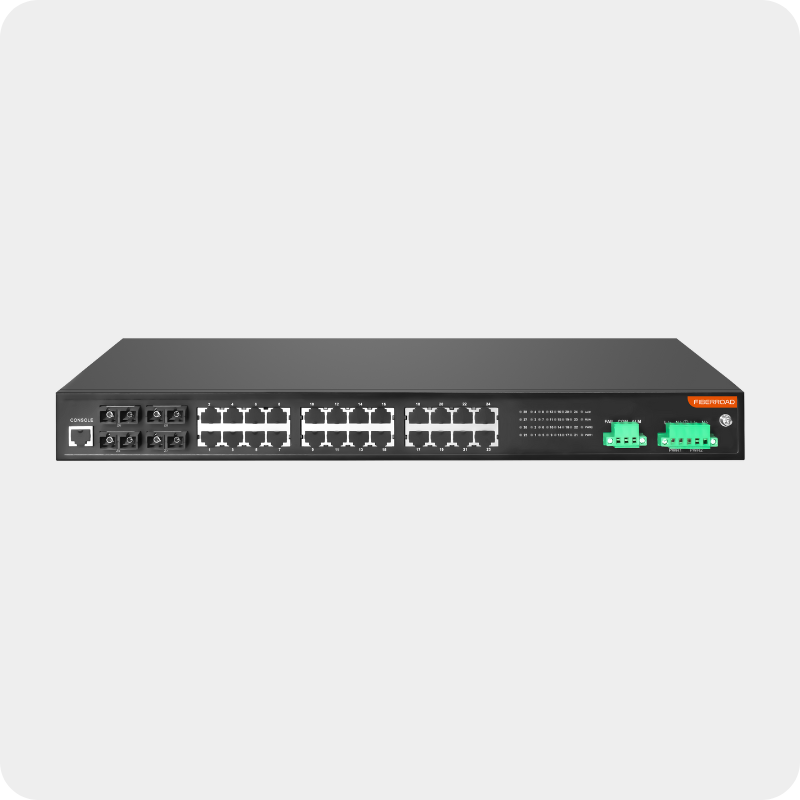

FR-WIST6000
24×10/100/1000BASE-T RJ45
4×1000BASE-X 1×9 Module / Slots
56Gbps Switching Capacity
9-56VDC/110-370VDC, Redundant dual power inputs
Layer 2+ Network Management

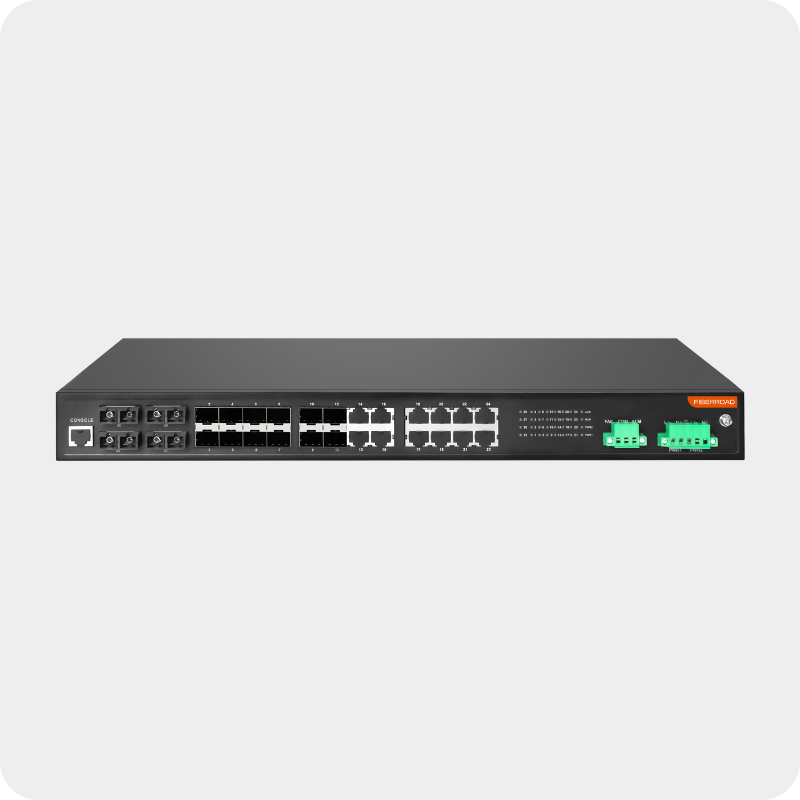

FR-WIST6412F12
12×10/100Base-TX RJ45 and 100BASE-X SFP Slot
4×1000BASE-X 1×9 Module / Slots
12.8Gbps Switching Capacity
9-56VDC/110-370VDC, Redundant dual power inputs
Layer 2+ Network Management

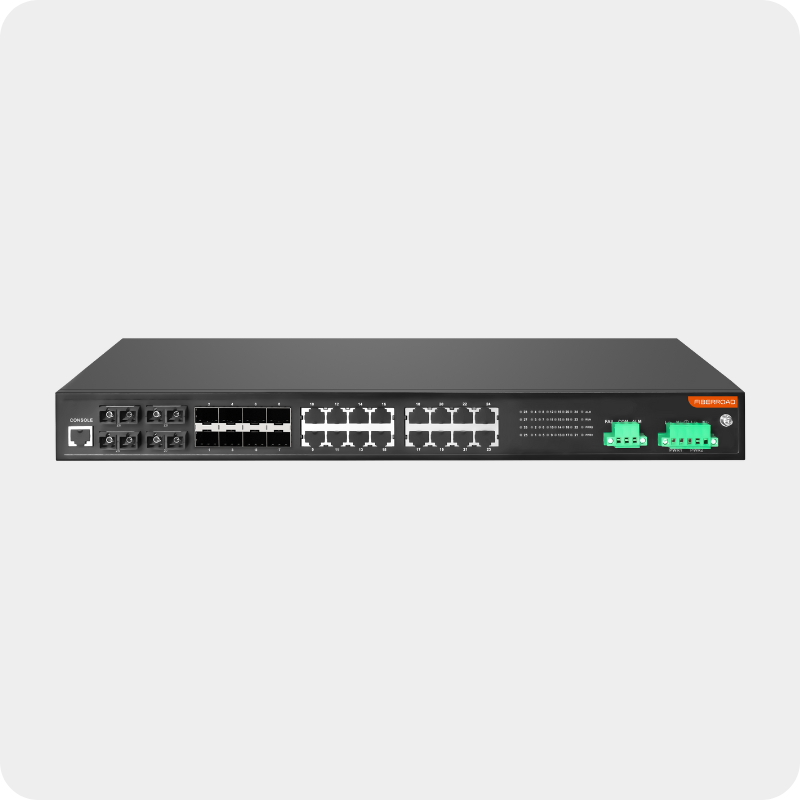

FR-WIST648F16
16×10/100BASE-T RJ45 and 8 x 100BASE-X SFP Slots
4×1000BASE-X 1×9 Module / Slots
12.8Gbps Switching Capacity
9-56VDC/110-370VDC, Redundant dual power inputs
Layer 2+ Network Management

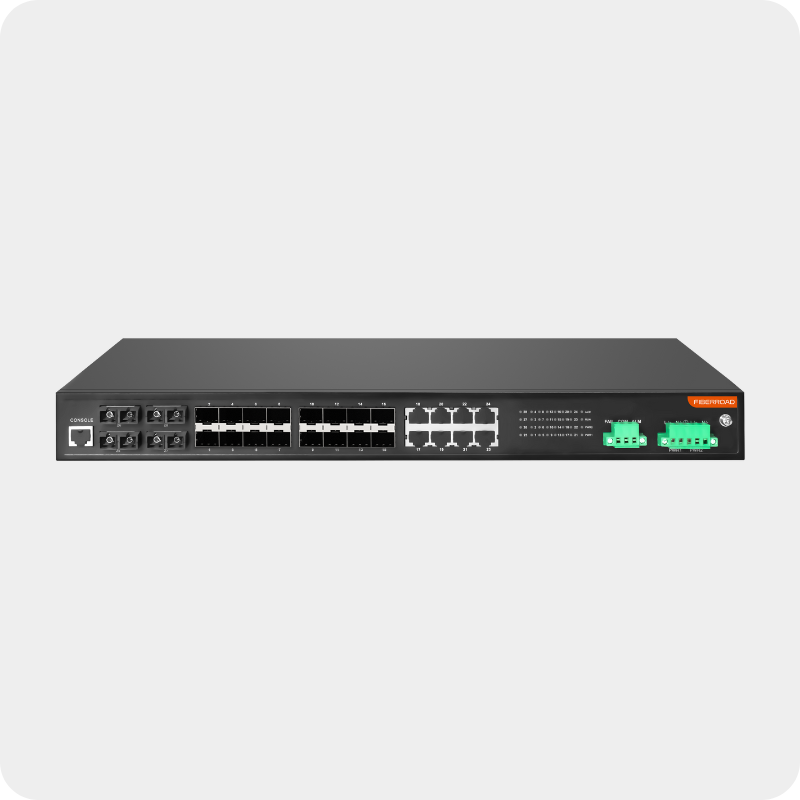

FR-WIST6416F8
8×10/100BASE-T RJ45 and 16 x 100BASE-X SFP Slots
4×1000BASE-X 1×9 Module/ SFP Slots
12.8Gbps Switching Capacity
9-56VDC/110-370VDC, Redundant dual power inputs
Layer 2+ Network Management
