Industrial-Grade Temperature Resilience
Designed for harsh environments, this fiber media converter operates reliably in extreme temperatures ranging from -10°C to +60°C. Its rugged construction ensures uninterrupted performance in industrial settings, outdoor installations, or climate-controlled data centers, making it ideal for demanding applications.
Compact and Robust Design

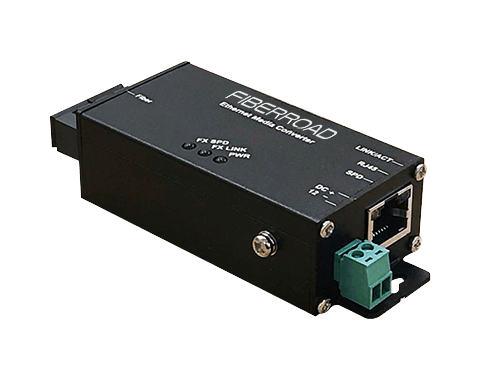

Featuring a mini industrial form factor, this media converter combines space-saving efficiency with durable metal housing. Its compact design is optimized for tight spaces in control cabinets, network racks, or field deployments and resists vibration, dust, and moisture.
Plug-and-Play Simplicity
As an unmanaged device, this media converter offers effortless deployment with zero configuration required. Simply connect fiber and copper cables for instant 100Mbps data conversion, making it a cost-effective, user-friendly solution for expanding network reach without complex setup or maintenance.
| Hardware Specifications | ||
| Model | FR-2701-XX | |
| Ports | 1×10/100Base-TX RJ45
1x100Base-FX |
|
| Port Mode(Tx) | Auto Negotiation Speed
Full/Half Duplex Mode Auto MDI/MDI-X Connection |
|
| Maximum Packet Length | Up to 10K | |
| Forward Filter Rate | 14,880pps(10Mbps)
148,800pps(100Mbps) 1,488,000pps(1000Mbps) |
|
| Transmission Mode | Store and Forward (full/half duplex mode) | |
| Optical | ||
| Cabling | 62.5/125μm (Multimode); 9/125μm (Singlemode) | |
| Maximum Distance | 2Km (Multimode); 20Km (Singlemode) | |
| Wavelength | 1310nm; 1310/1550nm | |
| Connector | SC (ST as an option) | |
| Power | ||
| Input Power | DC12V; DC24V; AC24V (Terminal Block) | |
| Power Consumption | 2.4W Max. 0.2A@12VDC | |
| Physical Characteristics | ||
| Housing | Aluminum case | |
| IP Rating | IP40 | |
| Dimensions | 36.2mm*117mm*24.5mm | |
| Weight | 100g(Bare weight), 250g(With package) | |
| Installation | Wall Mount and Desktop | |
| Environmental | ||
| Operating Temperature | -10℃ to +60℃ | |
| Operating Humidity | 5%~90% (non-condensing) | |
| Storage Temperature | -40℃ to +85℃ (-30 to 185 ℉) | |
| MTBF | ＞500,000 hours @MIL-HDBK-217F GF 25°C | |
| Heat Dissipation | 7 BTU/h | |
| Cooling | Passive Cooling | |
| Noise Level | 0 dBA | |
| Package Contents | ||
| Device | 1x Industrial Media Converter | |
| Installation Kit | 1.25A 12VDC power adapter with open wire for terminal block | |
| Documentation | 1x Quick installation guide,1x Warranty card,1x Product notice | |
