10G Transponder 2 Channels is a 2-channel 10G service access card. Its main function is to finish the 3R regeneration of any 2-channel signals under any protocol within the access rate of 1.25 Gbit/s~11.3 Gbit/s, and then convert them into optical signals of the standard DWDM or CWDM wavelength, so that the MUX unit can multiplex the optical signals with different wavelengths and also achieve the reverse process. It’s applicable to the wavelength division transmission solution for any access of services with the rate of 10G or below. 10G Transponder 2 Channels is a cost-effective high-quality management system when plugged in FR-8000 series chassis to implement device configuration, control and maintenance easily.

10G Transponder 2 Channels Application

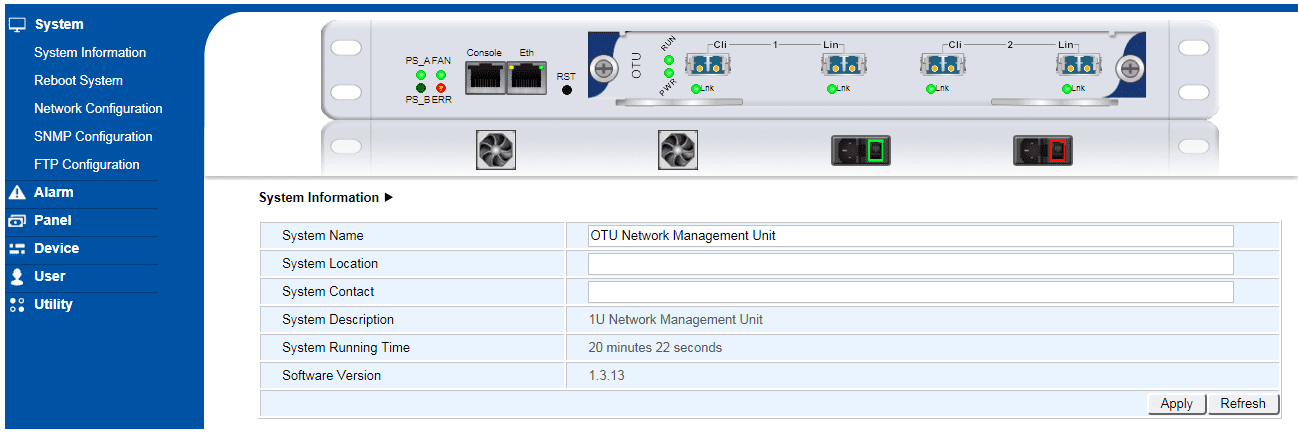

Web management

OTN Systems chassis compatibility

Part No.	FR-8010	FR-8015	FR-8025	FR-8060
Client Interface	1U Access, 1-slot	1.25U Access, 4-slots	2.5U Access, 7-slots	6U Access, 15-slots
Power Interface	2-Slots in back panel for power supply modules			4-Slots in back panel
Mgmt Interface	Built-in	1-slot in back panel	1-slot in front panel
Unit LEDs	Power & In-Use LED’s for each power supply(with use of optional LED module)
Dimensions(mm)	430(D)x315(W)x45(H)	430(D)x365(W)x55(H)	430(D)x350(W)x114(H)	430(D)x355(W)x265(H)
Power	Two open bays for Chassis power modules, supporting Universal Input 100-240V VAC, or -48V VDC The dual power supplies can function in instant Fail-Ocer Mode or Load Share Mode
Environment	0~50CHumidity: 5%~95% non-condensing;0-10,000 ft.altitude
Net Weight	4.2kg	4.6kg	5.2kg	15.0kg
