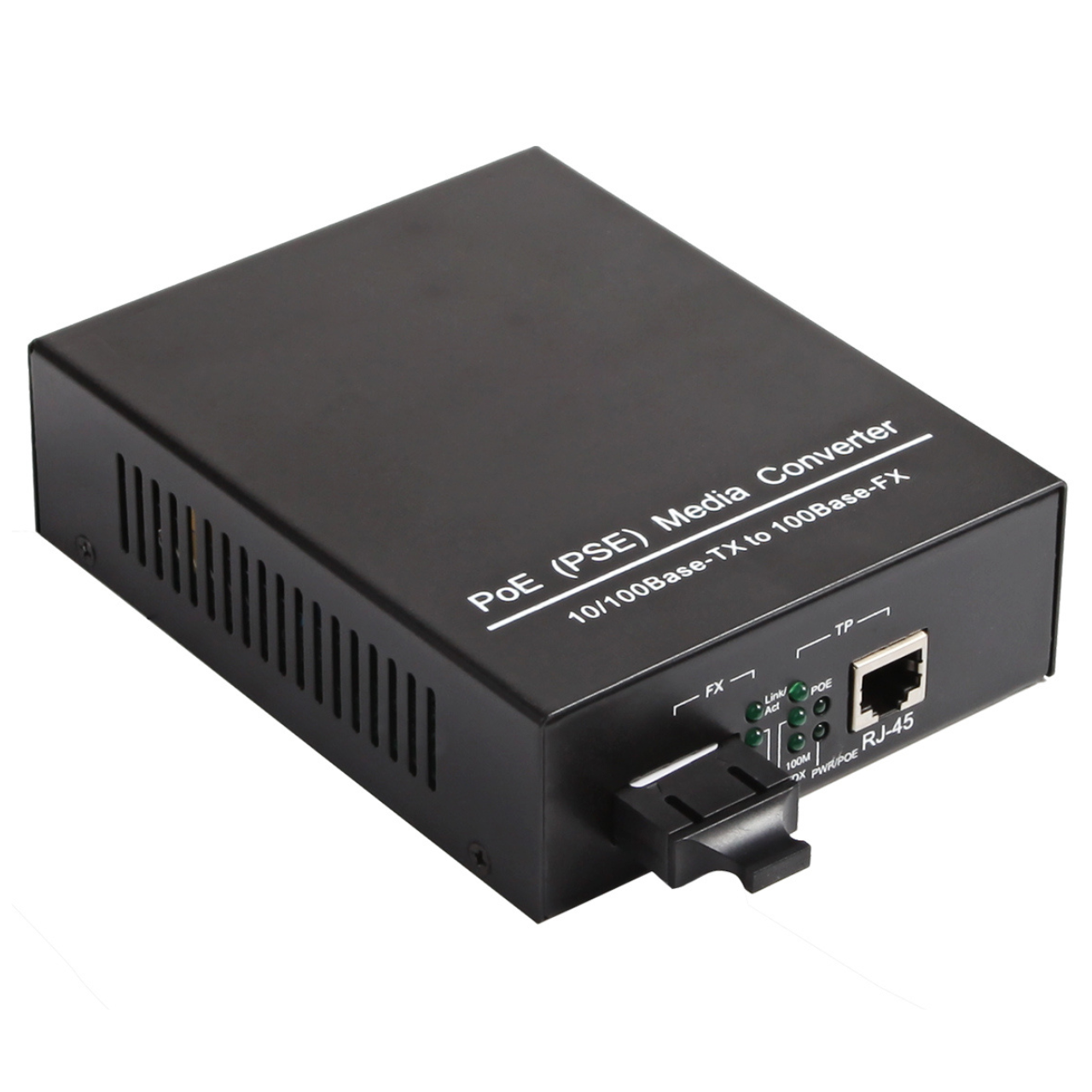

Fast Ethernet Fiber to PoE Media Converter

The PoE Fiber Media Converter with Internal Power Supply is a versatile networking solution designed to bridge copper and fiber networks while delivering seamless Power over Ethernet (PoE) support. Compliant with IEEE 802.3af/at standards, it powers devices such as IP cameras, wireless APs, and VoIP phones with up to 30W of PoE output, eliminating the need for external power sources. This converter supports both Fast Ethernet (10/100Mbps) and Gigabit Ethernet (1000Mbps) speeds, ensuring compatibility with diverse network infrastructures. Key features include Link Fault Pass-Through (LFP) to maintain network integrity by mirroring link statuses and a PD remote reset function via DIP switch for effortless troubleshooting of connected devices. Built with an integrated power supply (100–240V AC) to reduce installation clutter, it operates reliably in 0–50°C environments, making it ideal for demanding commercial applications like surveillance systems, industrial IoT deployments, and enterprise networks.



Product Features

  • Ethernet Support: Compatible with both Fast Ethernet (10/100 Mbps) and Gigabit Ethernet (10/100/1000 Mbps)
  • Power over Ethernet (PoE) Compliance: Supports IEEE 802.3af/at PoE standards, delivering up to 30W of power to connected PD (Powered Device) equipment such as IP cameras, wireless access points, and VoIP phones.
  • Internal Power Supply: Integrated power design eliminates the need for an external adapter, simplifying installation and reducing cable clutter.
  • Link Fault Pass-Through (LFP): Automatically detects and mirrors link failures between fiber and copper ports, ensuring seamless network troubleshooting and redundancy.
  • PD Remote Reset via DIP Switch: Allows remote power cycling of connected PoE devices without physical access, improving maintenance efficiency.
  • Plug-and-Play Installation: No software configuration required, ensuring quick and hassle-free deployment.
  • Commercial-Grade Reliability: Designed for enterprise, surveillance, and industrial networks, ensuring stable connectivity in mission-critical applications.

Video Gallery

Quality Certifications
Guarantee
Share This Product

Fiber to PoE Media Converter: The Ultimate Solution for IoT Connectivity

Fiber to PoE Media Converter enables enterprises to provide power to network devices over the existing data connection. This PoE Ethernet to Fiber Converter provides an economical path to extend the distance of an existing network with fibre cabling. Fiberroad’s original internal power adapter design provides users easy-to-install and troubleshooting.

Fiber to PoE Media Converter
Product Attributes
Ports 1×10/100Base-Tx RJ45
1x 100Base-X SFP/1×9 Port
Port Mode(Tx) Auto Negotiation
Full/Half Duplex
Auto MDI/MDIX
PoE Power Capacity IEEE802.3 af:15.4W
IEEE802.3 at: 30W
Frame Size 9K
DIP Switch FX Reset / FX100M / POE Shutdown / LFP / ALS / AI POE
Input Power AC 100~240V, 47 to 63Hz or DC9-56V Power Consumption af mode: 20W / at mode: 35W
Housing Metal Installation Mode Desktop or Wall Mount
Operating Temperature Operating: 0 to 50℃ (32 to 122℉) Storage Temperature Storage: -20 to +70℃ (-4 to +158℉)

Improving Network Performance with Fiber to PoE Media Converter and Standard PoE Negotiation

The Fiber to PoE Media Converter includes a PSE controller, which offers PD signature sensing and PoE negotiation features. Which designs specifically to satisfy the growing demand for higher power required network equipment such as network cameras, VoIP telephones, multi-channel IEEE 802.11a/b/g/n wireless LAN access points and other network devices that need the power to function normally.

Gigabit Media Converter PoE

PoE Media Converter With AI Operation

Upgrade your network with Fiber to PoE Media Converter today! Our converters feature built-in DIP switch technology, allowing you to easily enable or disable LFPT, AI PoE function and other features with just one click. With enhanced application abilities, our media converters offer versatility and usefulness for a variety of applications. Trust in the power of Fiber to PoE Media Converters for all your networking needs!

Fiber to PoE Media Covnerter with AI PoE
No. Name Status Function
SW1 ENROM OFF FX Reset Disable
ON FX Reset Enable
SW3 POE Shutdown OFF POE Shutdown Disable
ON POE Shutdown Enable
SW4 LFP OFF LFP Disable
ON LFP Enable
SW5 ALS OFF ALS Disable
ON ALS Enable
SW6 AI POE OFF AI POE Disable
ON AI POE Enable
Hardware Specifications
Product FR-POE331 FR-POE332
Copper Port 1 x 10/100BASE-TX RJ45 1 x 10/100/1000BASE-T RJ45
Auto-negotiation, auto MDI/MDI-X with PoE injector function
Fiber Port 1x 100BASE-X 1x 1000BASE-X
Form Factor 1X9 1X9 SFP
Data Rate 155M 1.25G 1.25G
Fiber Port Type SC SC LC
Transmission Distance 20km 10km 10km
Wavelength 1310nm 1310nm 1310nm
Transmitter Power -14 to -3 dBm -9 to -3 dBm -9 to -3 dBm
Receiver Sensitivity < -34 dBm <-22 dBm <-22 dBm
Transmission mode Store-and-Forward
Flow Control Back pressure for half duplex mode

IEEE 802.3x pause frame for full duplex mode

Maximum Frame Size 9K
Dimension 140x110x40mm
Installation Desktop
Power over Ethernet & Power Supply
Standard IEEE 802.3af PoE Standard

IEEE 802.3at PoE+ Standard

Power Output 52V DC, 30 watts, max
PoE Power Supply Type Mid-span
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 30 watts
Power Supply 100 – 240V AC 50/60Hz
Environmental
Operating Temperature 0 to +50℃ (32 to +122℉)
Storage Temperature -20 to +70℃ (-4 to +158℉)
Humidity 5% to 90% (non-condensing)
MTBF >100,000 Hours @Telcordia SR-332 GB 25℃
Heat Dissipation 113 BTU/h (with 30W PoE)
Cooling Passive Cooling
Noise Level 0 dBA

Support Documents

Item Type Version Release Date
FR-POE331&FR-POE331 Datasheet
593 KB
Datasheet 2.0 16/04/2014
FR-POE331 & 332 User Manual
592 KB
Manual 2.0 19/04/2014
2D Drawing- 140x110x40mm
51 KB
2D Drawing
