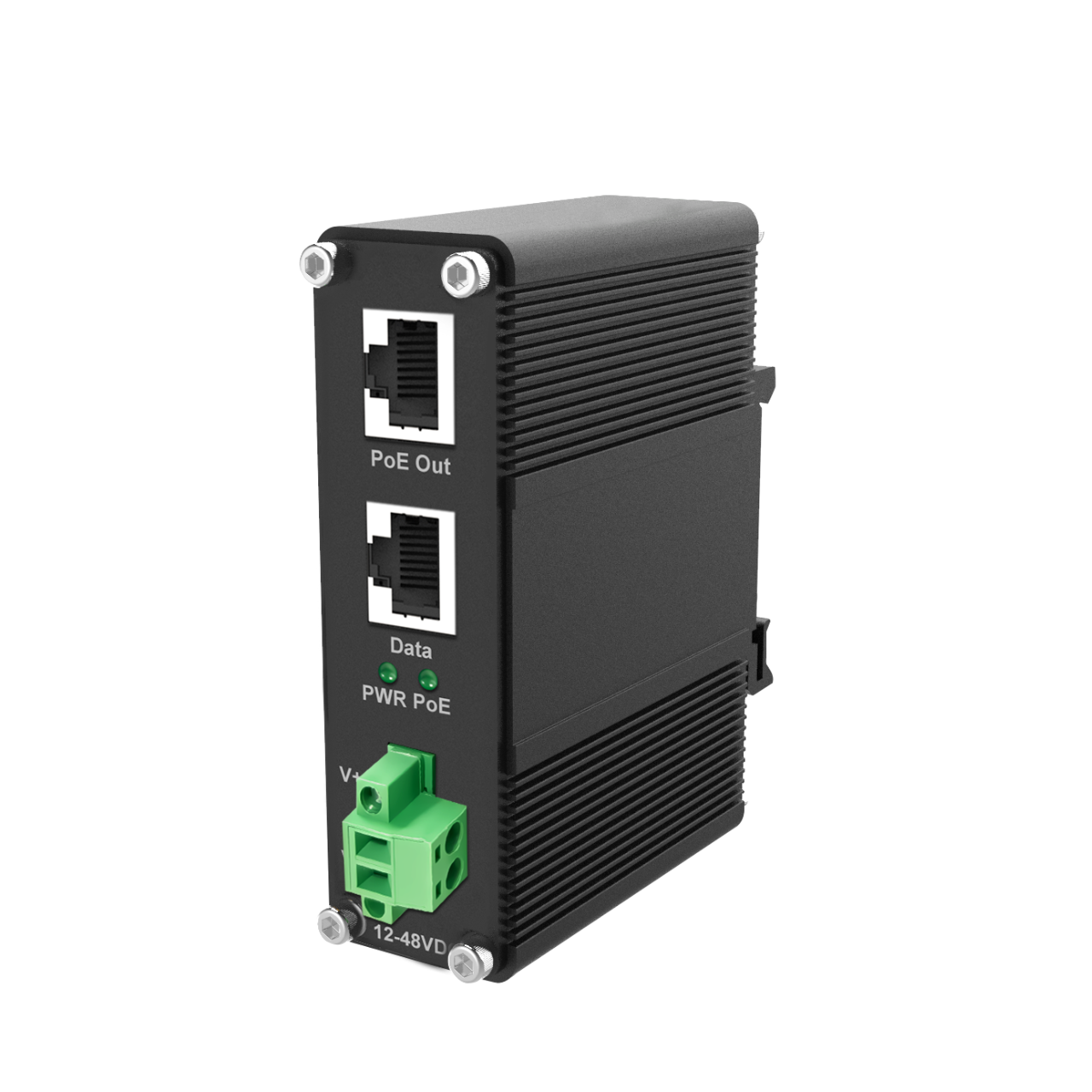

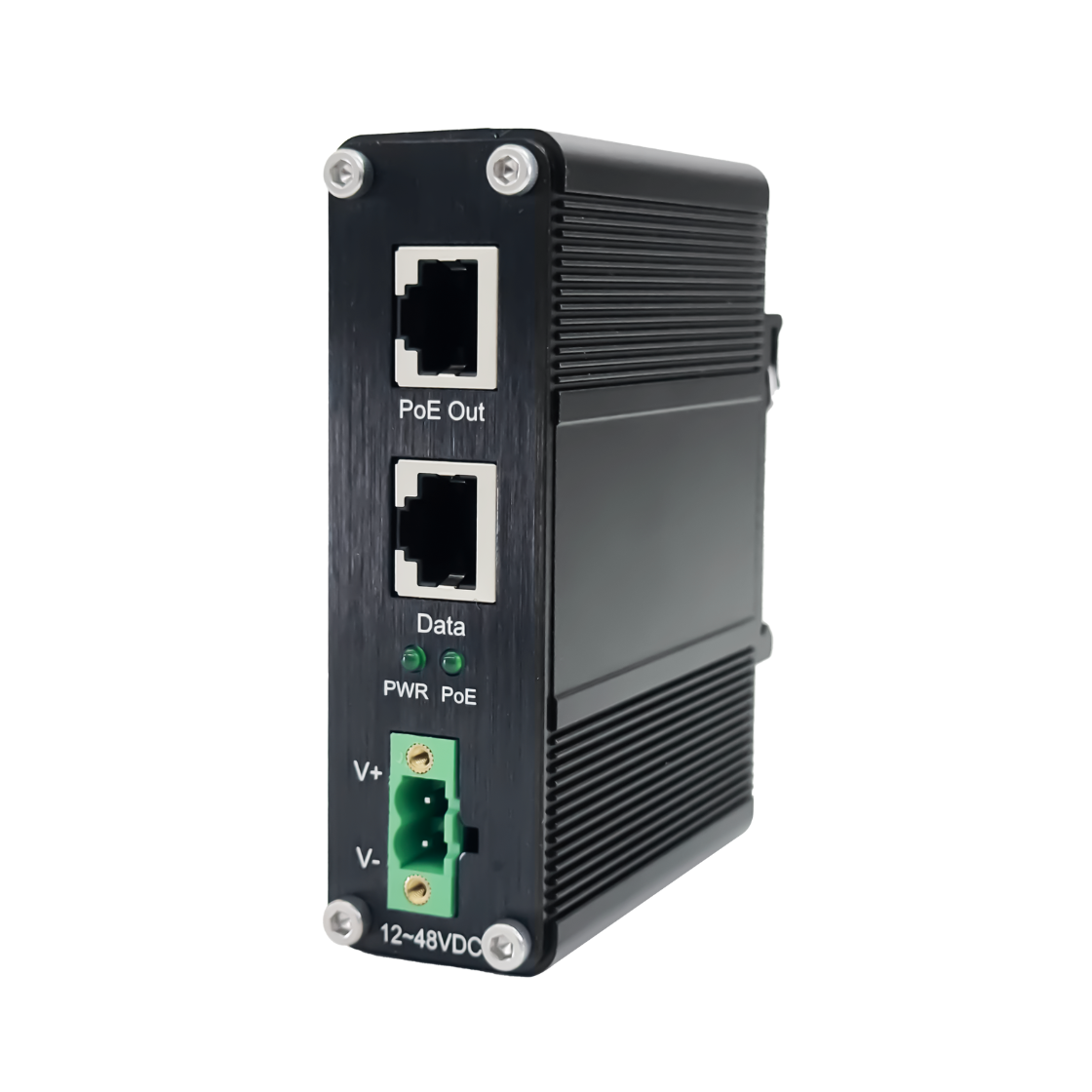

Industrial IEEE 802.3at Gigabit Power over Ethernet Plus Injector

Power and connect your high-performance devices seamlessly with the Fiberroad Industrial Single Port PoE Injector. Engineered for reliability in demanding environments, it delivers robust IEEE 802.3at/af compliant power, supplying up to 30 watts to equipment like wireless access points, IP cameras, and VoIP phones. Its integrated gigabit data ports ensure full-speed, uninterrupted data transfer for bandwidth-intensive applications. By converging power and data onto a single standard network cable, this injector simplifies installation, reduces clutter, and enables flexible device placement up to 100 meters away, making your network deployment both more efficient and more reliable.

Video Gallery

Share This Product

Industrial PoE Injector for Harsh Environments

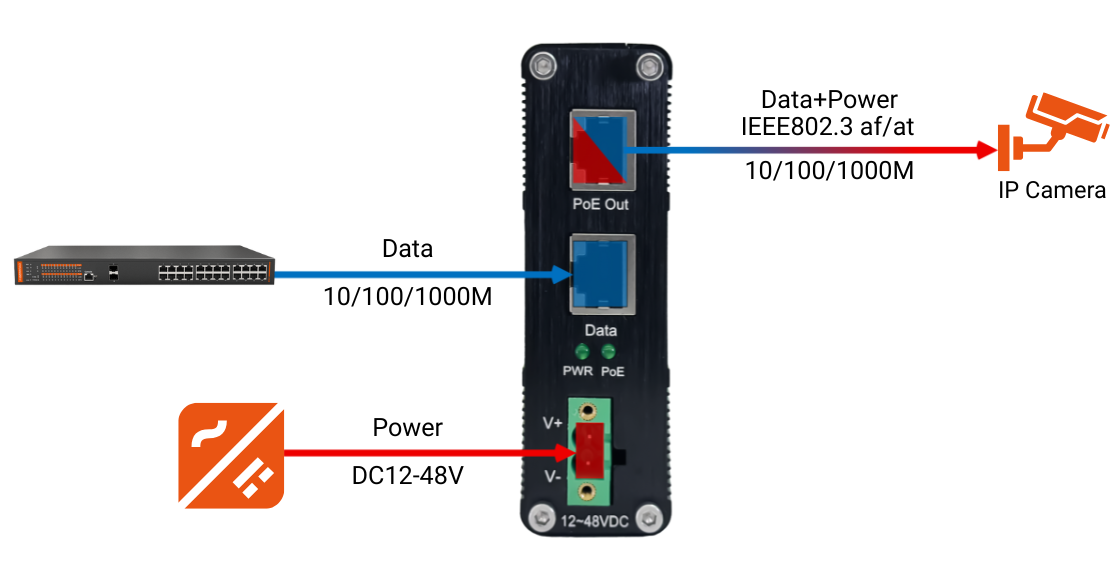

The Industrial PoE Injector delivers 30 watts of 56V DC power over standard Cat.5/5e/6 Ethernet cables, enabling simultaneous data and power transmission to a PoE-powered device (PD) or PoE Splitter. It supports a maximum distance of 100 meters between the injector and the connected device.

Compatible with IEEE 802.3af PoE PDs or Splitters, the injector can supply up to 15.4 watts of power. When used with IEEE 802.3at (PoE+) equipment, it allows both power and data to be carried over a single RJ45 cable, simplifying network deployment and improving reliability for system administrators.



12-48V DC to 56V DC PoE Power Boost

Designed for transportation and industrial applications, the Fiberroad Industrial PoE Injector features a wide 12-48V DC input range. Its built-in power boost technology converts this input to the standard 56V required for IEEE 802.3at (PoE+) operation, eliminating the need for specialised power supplies. This design ensures worldwide operability and supports high-availability systems with dual or backup power inputs.

Hardware Specifications

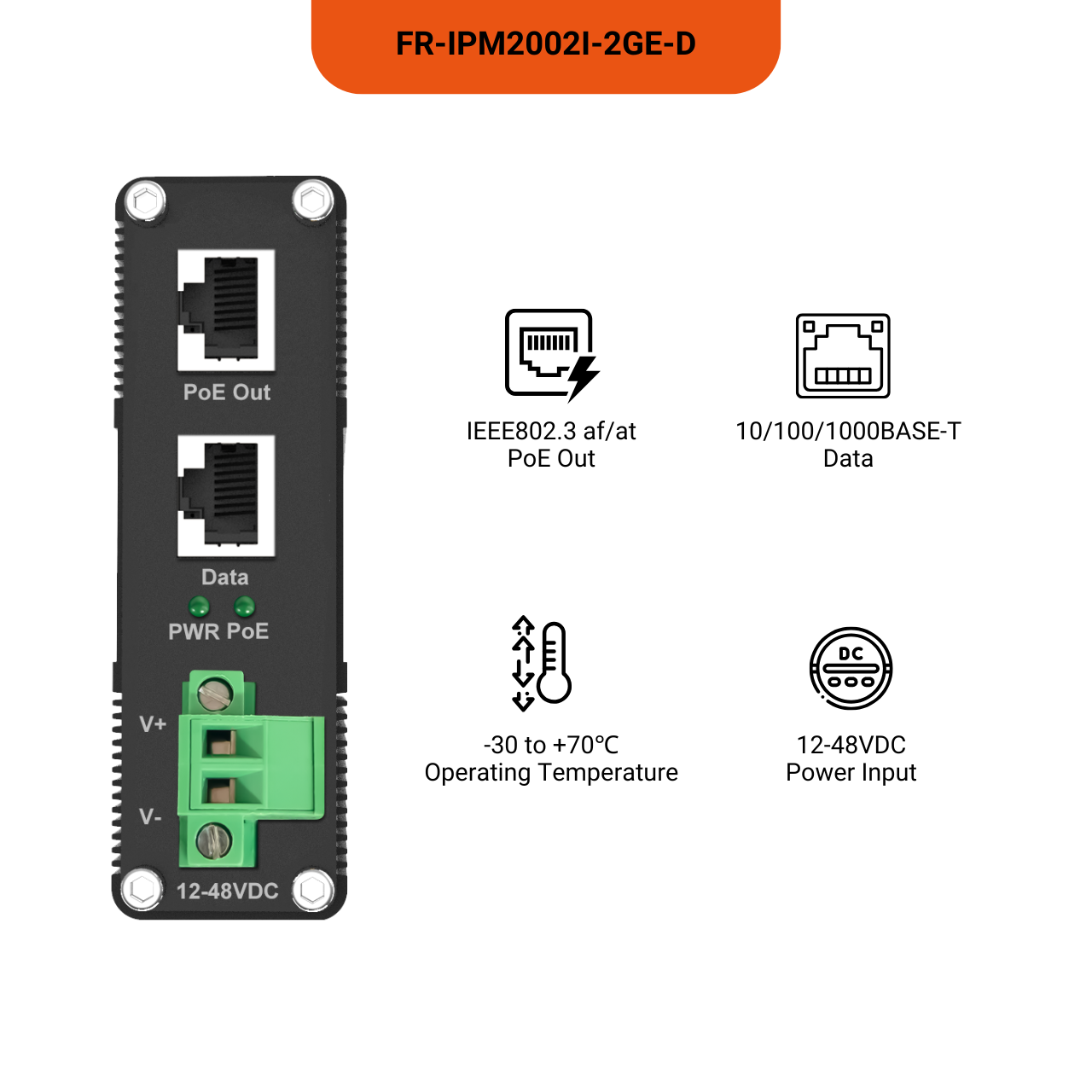

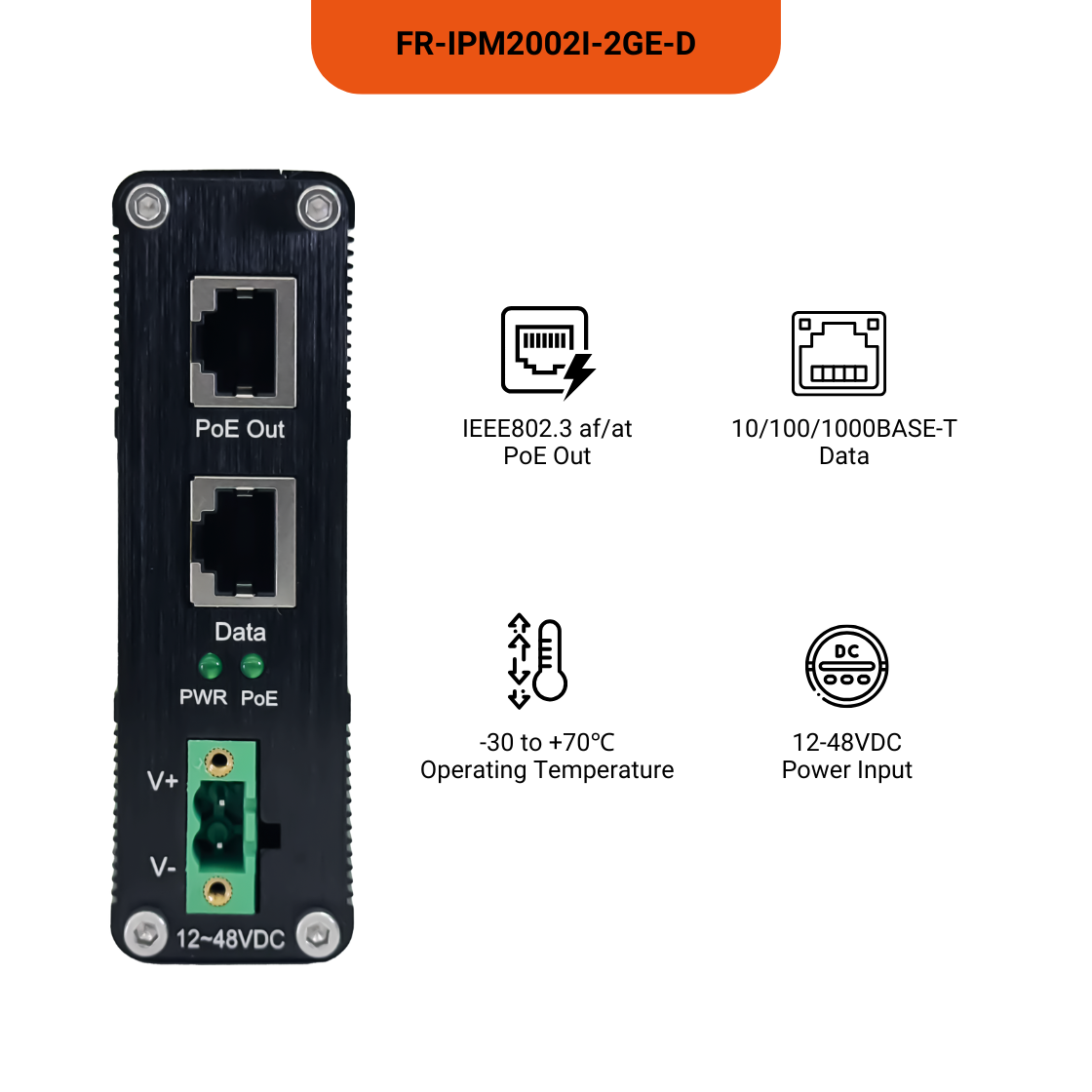

Product FR-IPM2002I-2GE-D
Interface Input Port:1 x 10/100/1000BASE-T RJ45, Data In
Output Port:1 x 10/100/1000BASE-T RJ45, PoE (Data + Power) Out
Input power terminal block: 1 removable 2-Pin terminal block
Network Cable 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m);

100BASE-TX: UTP category 5, 5e cable (maximum 100 m);

1000BASE-T: UTP category 5e cable or above (maximum 100 m)

Enclosure IP40 aluminum case
Installation DIN-Rail and Wall-mount
Dimension 95mm x 70mm x 30mm (L x W x H)
Weight
Power Supply and PoE
Power Input 1×12-48V DC
Power Consumption 30W Max
PoE Standard IEEE 802.3af/at PoE+
PoE Power Supply Type Mid-span
Power Supply Pin 1/2(+), 3/6(-)
Max Power Per Port 30W
Environmental
Operating Temperature -30℃ to +70℃ (-22 to 158 ℉)
Storage Temperature -40℃ to +85℃ (-40 to 185 ℉)
Operating Humidity 5%~90% (non-condensing)
Cooling Passive Cooling
MTBF >500,000 hours @MIL-HDBK-217F GF 25℃
LED Indicators
PWR(Green) ON:  Power is being supplied ,OFF: Power is not being supplied
PoE(Green) ON: PoE in Use, OFF: PoE not in Use
