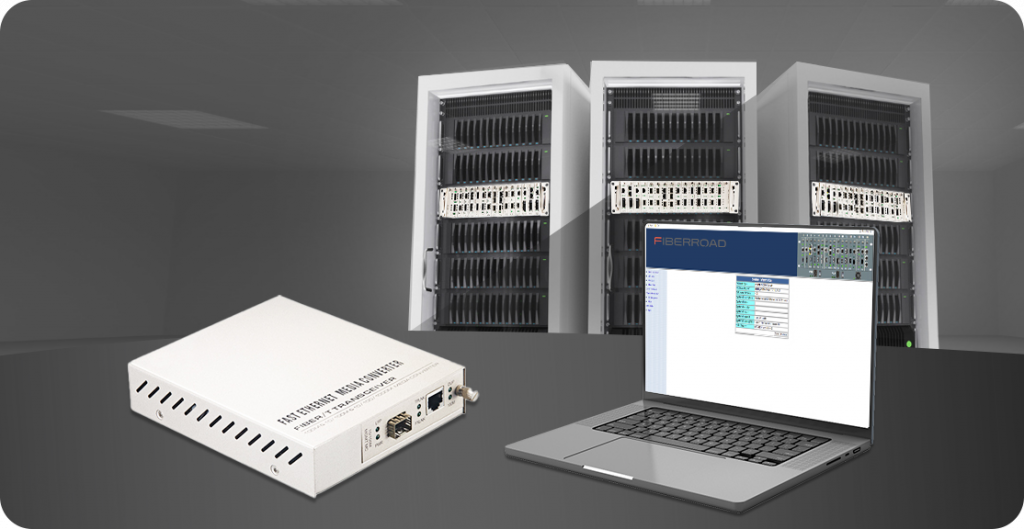

Upgrade Your Network with a Fast Ethernet Managed Media Converter
If you’re looking to upgrade your network, a Fast Ethernet Managed Media Converter is an excellent option. This device is designed to convert between different types of media, such as fiber optic and copper cables, which can greatly expand the range of your network. With its fast data transfer rates and advanced management features, it’s ideal for businesses that rely on high-speed internet connections or need to support multiple devices at once. The managed aspect means that you have complete control over how the converter operates. Additionally, these converters are typically more reliable than unmanaged ones since they feature built-in diagnostics that can detect issues early on before they become major problems. Overall, if you want a fast and efficient way to upgrade your network infrastructure with minimal downtime or disruption, a Fast Ethernet Managed Media Converter is definitely worth considering!
Maximize Performance and Efficiency with a Fast Ethernet Managed Media Converter
The Fast Ethernet Managed Media Converter is an innovative solution to maximize performance and efficiency in your network. With its support for IEEE802.3 ah in-band management, this converter enables you to easily monitor and manage the network traffic in real time, ensuring that your infrastructure runs optimally at all times. The inclusion of Dying Gasp ensures that you are notified immediately when a link failure occurs, allowing for swift resolution of any issues that may arise. Additionally, LFPT (Link Fault Pass Through) allows the converter to detect faults on both sides of the link and inform management software accordingly. Finally, with its ability to handle high bandwidths over long distances without degrading signal quality or speed, this media converter is essential for businesses seeking reliable networking solutions that won’t let them down when they need it most.
| Physical Port | |
| Copper Port | 10/100Base-T RJ45 |
| SFP Port | 100BASE-X SFP interfaces |
| Fiber Mode | 100BASE-X, 2km-160km, SC/ST/FC |
| Parameters | |
| Ethernet Standards | IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3x flow control and back pressure TS-1000
|
| Packet Length | 1600bytes |
| Transmission Mode | Store and Forward/Cut through |
| Exchange Property | Delay time: < 7ps
Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps |
| DIP Switches | LFP function:Disable/Enable
Fowrward mode:Store and forward/Cut through Copper Forced mode:10Mbps/100Mbps
|
| Managed Features | Supports LFT (Link Fault Pass Through)
Supports Digital Diagnostic Monitor Interface (DDM) for SFP Supports OAM/IP in-band management Ingress/Egress Bandwidth control per port Supports 16 IEEE 802.1Q Tag VLAN Group SNMP alarm trap for power loss and port link down Remote loop back test Dying gasp (remote power failure detection) |
| LED Indicator | Power, FEF, FX-Link, TX-SPD, TX-Duplex, TX-Link, LFP |
| Power Information | |
| Power Input | DC 5V |
| Power Consumption | Full-load<4W |
| Physical Property | |
| Dimensions | 120mm×90mm×22mm |
| Installation Mode | wall-mountable |
| Weight | 100g |
| Working Environment | |
| Operating Temperature | 0°C~50°C |
| Operating Humidity | 10%~90% non-condensing |
| Storage Temperature | -10°C~70°C |
| Warranty | |
| MTBF | 50,000 hours |
| Defects Liability Period | 1 year warranty, lifetime technical support |
| Certification Standard | |
| EMC | FCC Part15 Class A
CE-EMC/LVD RoHS EN61000-4-2 (ESD), EN61000-4-3 (RS) EN6100044 (EFT), EN6100045 (Surge) EN61000^1-6 (CS), EN61000-4-8 EN61000-4-11 |
