Managed Gigabit 10 Port Industrial Ethernet Switch

FR-7M3208L is an L2+ Managed Industrial Network switch with 8-Port 10/100/1000Base-TX and 2 Gigabit uplink ports that provide stable and reliable industrial network transmission. With a high-standard industrial grade design, such as IP40 housing, Fanless, -40℃ to +75℃ operating temperature. The Industrial Network switches are perfect for harsh environments, for instance, intelligent transportation systems (ITS). They are also suitable for many militaries and utility market applications where environmental conditions exceed commercial product specifications.



Product Features

  • All-aluminum Case, Compact and Fanless Design
  • -40 to 75℃ temperature maintains performance in extreme conditions
  • DIN Rail and wall-mountable – quick to install and remove for maintenance
  • Full gigabit L2+ management, easy to manage the industrial network by CLI/WebGUI/NMS.
  • Build up a redundant network with STP/RSTP/MSTP/ERPSv2.
  • RADIUS, IEEE 802.1X, SNMPv3, HTTPs and SSH to enhance network security.
  • Bandwidth management prevents unpredictable network status with ”Lock Port” to restrict access to authorized MAC addresses.
  • QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR&SP+WRR

Video Gallery

Quality Certifications
Guarantee
Share This Product

Get Connected with the Robust and Reliable 10 Port Industrial Ethernet Switch

Fiberroad FR-7M3208L is a managed 10 Port industrial ethernet switch , designed for the industrial network. It provides user-friendly advanced IPv6/IPv4 management interfaces, comprehensive layer 2 switching functions and Layer 3 static routing capability within such a rugged enclosure. The 10 Port Industrial Ethernet Switch can operate stably under the temperature range from -40 to 75 degrees and allows either DIN-rail or wall mounting for efficient use of cabinet space. With 2x Gigabit SFP fibre slots, it can be flexibly applied to extend the connection distance.

10 Port Industrial Ethernet Switch

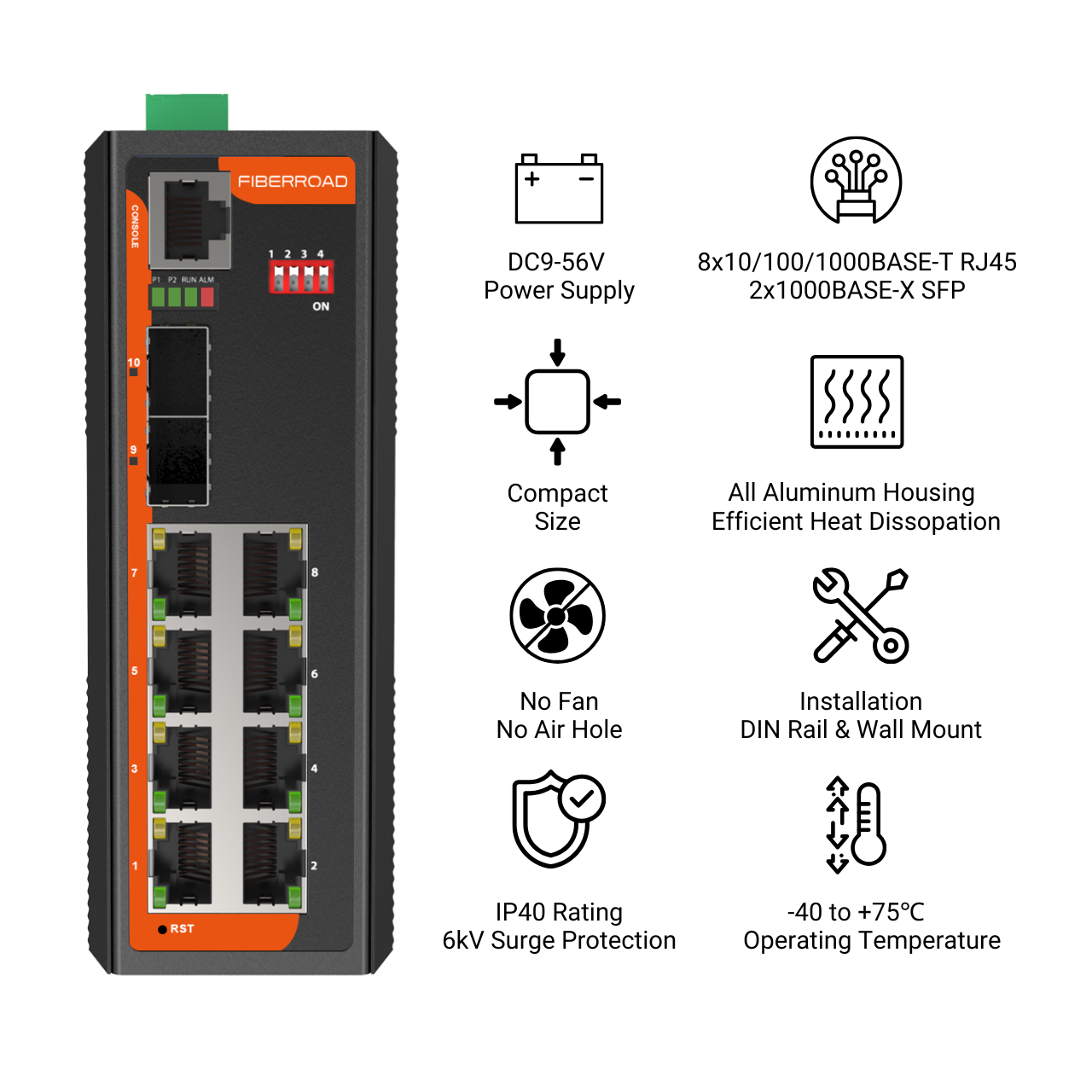

Surviving the Toughest Conditions: 10 Port Industrial Ethernet Switch for Harsh Environments

With IP40 Durable Aluminum housing and fanless design also provide efficient heat dissipation. The 10 Port Industrial Ethernet Switch provides a high level of immunity against electromagnetic interference and heavy electrical surges, usually found on plant floors or curb-side traffic control cabinets. It also possesses an integrated power supply source with a wide range of voltages (9 to 56V DC) for worldwide high-availability applications requiring dual or backup power inputs. Indeed, The design of the switch ensures operates in a Harsh Environment.

10 Port Industrial Ethernet Switch

Streamline Industrial Network with the Advanced Features of a 10 Port Industrial Ethernet Switch

FR-7M3208L provides robust Layer 2+ Gigabit networks connectivity, including but not limited to Static route, LAN network security, ACL/QoS policy… Moreover, By configuring ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power systems in industrial automation networks to enhance system reliability and uptime in harsh environments. As can be seen, the 10 Port Industria Ethernet Switch is easy to manage and maintain.

Manage the Industrial Network Anytime, Anywhere

Managed Industrial Ethernet Switch allows various network management methods, such as the WebGUI, CLI and NMS. The notion of easy to use, particularly with no additional hardware investment and installation. Industrial Network Switch can deploy centralised management, Layer 2 to Layer 4 QoS, Bandwidth allocation, real-time monitoring, etc.

Network Management

FAQ


What kind of network is the 10 Port Industrial Ethernet Switch designed for?

The 10 Port Industrial Ethernet Switch is designed for industrial network use. It offers advanced IPv6/IPv4 management interfaces, comprehensive layer 2 switching functions and Layer 3 static routing capabilities within a robust enclosure that can operate in temperatures ranging from -40 to 75 degrees. Thanks to its versatile design, it can be mounted on either walls or DIN-rails, allowing efficient use of space in the cabinet.

Is the enclosure of the switch rugged enough to withstand harsh industrial environments?

Absolutely! The 10 Port Industrial Ethernet Switch is designed to withstand even the harshest of industrial environments. Its IP40 durable aluminum housing and fanless design ensures efficient heat dissipation as well as provides a high level of immunity against electromagnetic interference and heavy electrical surges. With its integrated power supply source that has a wide range of voltages (9-56V DC), you can be sure it will stand up to whatever your network needs.

Where are 10 Port Industrial Ethernet Switch used for?

Industrial and factory automation systems.
Outdoor electrical application.
Rail and intelligent transportation system(ITS).
Oil and gas platforms.
Clean Energy System

What is the difference between industrial switches and normal switches?

Industrial Ethernet switches have a wide operating voltage range, while regular switches require higher voltages. Regular switches are basically single power supply, while industrial switch power supplies are generally dual power supply backup. Industrial Ethernet switches can be installed in DIN rails and racks.

Hardware Specifications
Model FR-7M3208L FR-7M3408
Ports 8×10/100/1000Base-T(X)RJ45 Ports

2x1000Base-FX (SFP Slots)

8×10/100/1000Base-T(X)RJ45 Ports

4x1000Base-FX (SFP Slots)

Port Mode(Tx) Auto-Negotiation Speed

Full/Half Duplex Mode

Auto MDI/MDI-X Connection

Standards IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X) and 100BaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

IEEE 802.3x for flow control

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1p for Class of Service

IEEE 802.1Q for VLAN Tagging

IEEE 802.1X for authentication

IEEE 802.3ad for Port Trunk with LACP

Console 1x RJ45-to-RS232 Serial Port(115200)
Packet Buffer Size 4 Mbits
Maximum Packet Length Up to 10K
MAC Address Table 8K
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property Delay time: < 7μs

Backplane bandwidth: 24Gbps

IGMP GroupS 2048
Max. No. of VLAN 64
VLAN ID Range VID 1 to 4094
Power Supply
Power Consumption 10 Watts Max
Power Inputs 2
Input Voltage 9-56VDC, Redundant dual inputs
Connector One removable 6-contact terminal blocks

Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

Protection Overload Current Protection, Reverse Polarity Protection
Software Features
Redundancy Protocols Support STP/RSTP/MSTP/ERPSv2, Link Aggregation
Multicast Support Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q
VLAN Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,
Time Management SNTP
QOS Flow-based redirection

Flow-based rate limiting

Flow-based packet filtering

8*Output queues of each port 802.1p/DSCP priority mapping

Diff-Serv QoS, Priority Mark/Remark

Queue Scheduling Algorithm (SP, WRR, SP+WRR)

ACL Port-based Issuing ACL

ACL based on port and VLAN

L2 to L4 packet filtering, matching first 80 bytes message.

Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc

Diagnostic Maintenance Support port mirroring, Syslog, Ping
Management Function Support CLI、WEB、SNMPv1/v2/v3,Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT
Alarm Management Support 1 way relay alarm output, RMON, TRAP
Security Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0

Support DHCP Snooping, Option 82,802.1X security access,

Support user hierarchical management, ACL access control list,

Support DDOS,port-based MAC filtering /binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit

Advanced Layer 2+ Features IPv4/IPv6 Management

Static Route
