Exploring the Benefits of Using a Industrial Switch in Your Network

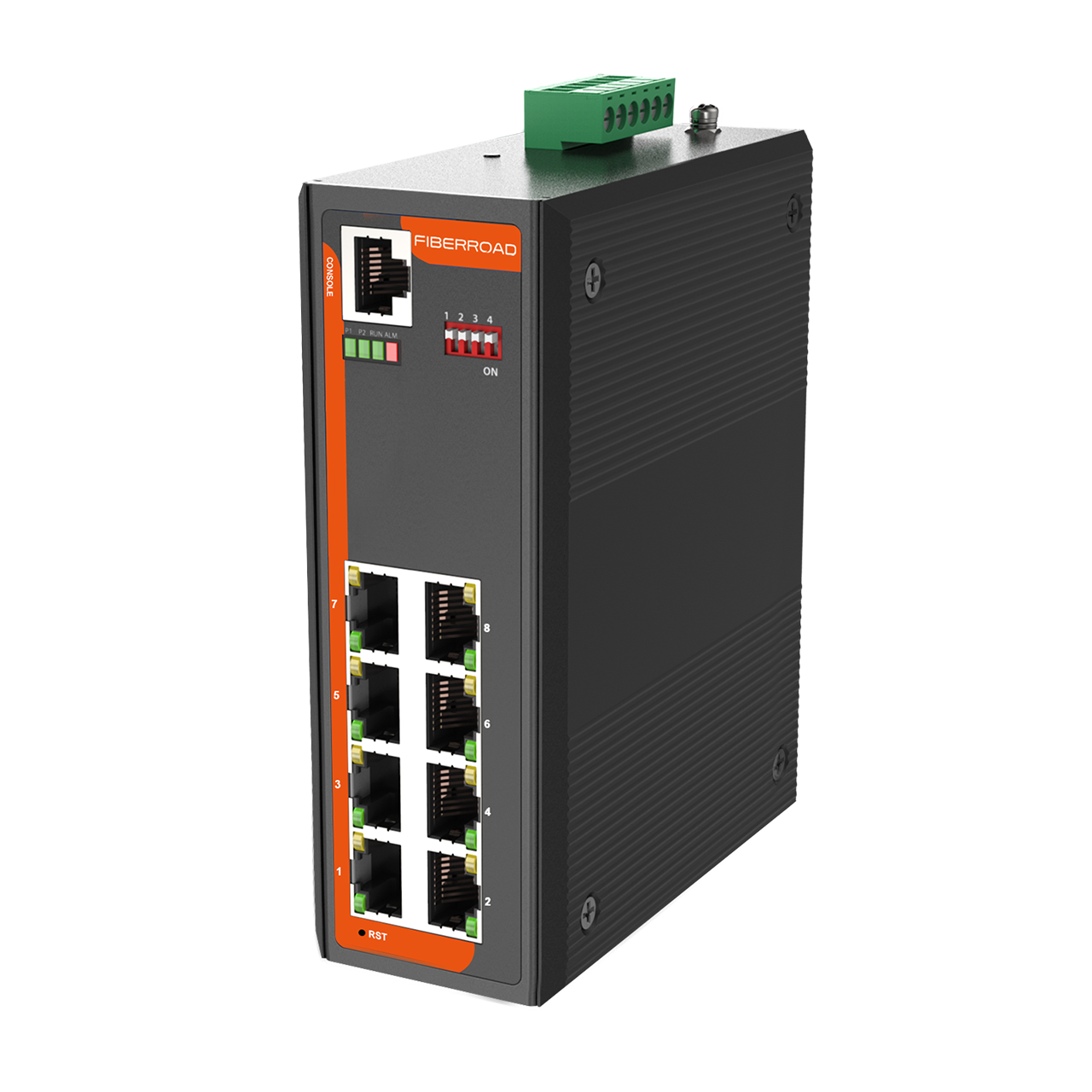

If you’re looking for a top-of-the-line industrial switch, you’ll want to check out the 8 port managed industrial switch. This industrial switch is designed for optimal performance and features eight 10/100/1000Mbps Ethernet ports. It also has a rugged casing that can withstand harsh environments, making it ideal for industrial applications. Plus, the web-based management interface makes it easy to configure and monitor your network.
Surviving the Toughest Conditions: Industrial-Grade Design for Harsh Applications
In the world of industrial applications, durability is key. The equipment used must be able to withstand harsh environments and tough conditions. That’s why an industrial-grade design is necessary for these types of settings.
The 8 Port Managed Industrial Switch is specifically designed to handle even the toughest conditions with its rugged metal casing and IP40-rated housing. It’s equipped with surge protection to prevent damage from power surges, making it ideal for use in areas prone to electrical fluctuations.
But that’s not all – this switch also features a wide operating temperature range (-40°C to 75°C), ensuring it can function properly in extreme temperatures without overheating or malfunctioning.
FAQ
Our FR-7M3008-24V industrial PoE switch uses advanced power-boosting technologies to convert 9-24VDC input into a steady and reliable 48-56VDC output. This is done by boosting the voltage with a high-power efficiency integrated circuit. The integrated circuit included in our switch also ensures a long lifespan of the switch, so you can trust your setup to keep running smoothly for years to come.
This 24v Industrial PoE Switch uses a unique IEEE 802.3at compliant DC-DC converter technology which provides the necessary power conversion from 9-24VDC input to steady and reliable 48-56VDC output. This technology also enables the device to be used for both indoor and outdoor applications. With this feature, you can power various IP devices such as VoIP phones, Wi-Fi Access Points, security cameras and more using a single Ethernet cable.
The 8 Port Managed Industrial 24v PoE Switch is designed with a rugged metal casing and IP40-rated housing to ensure it can withstand the toughest of conditions. It also comes equipped with surge protection technology, so you can be sure that your data will stay safe even in extreme temperatures or humidity levels. We have designed this switch to handle whatever conditions come its way.
| Hardware Specifications | |
| Product | FR-7M3008L |
| Copper Ports | 8×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (Port 1-8) |
| Fiber Ports | \ |
| Console | 1x RJ45-to-RS232 Serial Port(115200) |
| Connector | 1 removable 6-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm |
| Alarm | One relay output for power failure, Alarm relay current carry ability: 1A@24V DC |
| RAM | 128Mbyte |
| FLASH | 32MByte |
| Reset Button | ＜5 sec: System Reboot; ＞10 sec: Factory Default |
| Surge Protection | ±6kV DC, ±6kV RJ45 |
| Enclosure | IP40 aluminum case |
| Installation | DIN-Rail and Wall-mount |
| Dimension | 138 x 108 x 49mm |
| Weight | 700g(Bare weight), 800g(With package) |
| Switching | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 16Gbps/non-blocking |
| Forwarding Rate | 11.9Mpps(64-byte packet size) |
| Packet Buffer Size | 4 Mbits |
| Maximum Packet Length | 10K bytes |
| MAC Address Table | 8K entries, automatic source address learning and aging |
| Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
| Power Supply | |
| Number of Input | 2 |
| Input Voltage | DC9-56V |
| Power Consumption | 8 Watts Max. |
| Environmental | |
| Operating Temperature | -40℃~75℃ (-40 to 167 ℉) |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) |
| Operating Humidity | 5%~95% (non-condensing) |
| MTBF | 907,476 hours @ Telcordia SR-332 Standard |
| Cooling | Passive Cooling, Fanless Design |
| Noise Level | 0 dBA |
