10G 1R XFP to XFP Transponder

Supporting XFP to XFP
Supporting SONET OC192,SDH STM-64,10G WAN,10G LAN, ONT OUT-2,10G LAN with 255/237 FEC coding, 10G Fiber Channel,10G POS
Supporting 10Gbase-SR/LR to 10Gbase-SR/LR
Supporting 9.95Gbps~11.32Gbps
Short delay time when transparent transmission
Supporting Jumbo frame
Supporting DMI(Diagnostic Monitoring Interface) function of optical transceivers
Supporting 850nm, 1310nm, 1550nm and DWDM/CWDM wavelength ruled by ITUT
With powerful network management function, supporting WEB and SNMP
Supporting hot plug
Easy installation with complete LED indicators for working situation
Supporting 2U chassis (16 slots) and standalone chassis. Standalone chassis with internal special communication power supply, chassis support dual redundant power supply(support OLP function)

Share This Product

10G 1R XFP to XFP Transponder with XFP to XFP Slot, which uses Optical-Electricity-Optical conversion principle to realize optical signal regeneration, and wavelength conversion, with coarse / dense wavelength division multiplexing together to realized WDM transmission. It is now possible to quickly improve communication capacity, expand the bandwidth on present network, while using low-cost, high cost-effective solutions to manage and run the system, easy operation.

Managed Conversion Platform – 2U 16 Slots Managed Converter Rack

The 2U 16 Slots Converter Rack is an Ethernet and SDH transmission equipment,support mutiple services including managed media converter card, OEO Converter card, 1+1 protection switching card, CWDM/DWDM MUX/DEMUX Card, etc., support protocols like SNMP, WEB, CONSOLE and TELNET , with strong management function, and operate easily to meet different customer’s requirement.

Cards can insert in 2U 16 Slots Managed Converter Rack:

Advantages of 10G 1R XFP to XFP Transponder

Excellent Transponder Supporting Wavelength Conversion for WDM Networks

The optical transponder can convert 1G~11.3 Gbps Ethernet signals into a corresponding wavelength in CWDM and DWDM network infrastructures. It enables network operators to implement a wide range of media conversions in a compact and flexible design.

Optical Transponder for Fiber-Type Conversion and Optical Repeating

The optical transponder can be deployed in the seamless integration of different fiber types by converting multimode fiber to single-mode fiber, dual fiber to single fiber, and it can also be used as a repeater to convert the weak optical signals into the strong optical signal for continuous

Application of the 40G Data Rate Transmission

Transponder (OEO) can convert incoming optical signals into precise ITU-standard wavelengths. With MPO/MTP harness cable, one 40G optical signal can be broken out into 4x10G signals, and then the OEO will convert them into the corresponding CWDM/DWDM wavelengths that can be multiplexed.

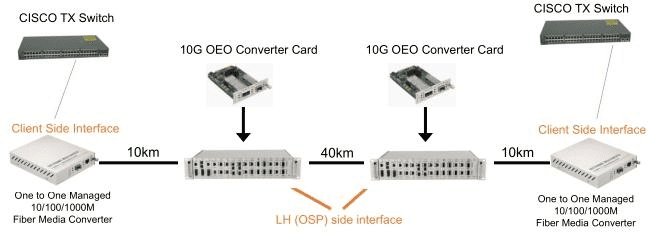

Available for All-in-One Multi-Service Transport System

As a part of multi-service transport system, hot-swappable pluggable 10G 1R XFP to XFP Transponder Card only occupies 1 slot in the 2U chassis, and it allows the backbone of the network to be flexible and easier to be managed and maintained. Our transponders are available in two form factors, chassis-based slide-in cards and stand-alone converters, allowing you the most flexibility for your network. Our transponders also utilize both fixed optics and Small Form-Factor Pluggable (SFP) transceivers allowing you to customize each converter for the cable type you are using. View the different form factors asbelow:


Chassis-based slide-in (Local Side)	Remote Standalone (Remote Side)

Comprehensive Management System Built to Reduce Complexity

Our Monitor Online based on SNMP is a user-friendly and remote network management system. It monitors network performance, and provisioning, provides fault notification status, etc. The management system simplifies provisioning of complex networks and services that address today’s and tomorrow’s network management challenges.

SNMP Management

Web Management

Physical Port
Optical Interface	XFP interface×2
Data rate	1Gbps～10Gbps
Parameters
Protocol	OC -3, OC -6, OC -12, STM-1, STM-4, STM-16, FC -1, FC -2, FC -4
LED Indicator	Power, System, Mode, Test, FX1 Link, FX2 Link, FX3 Link, FX4 Link
Power Information
Power Input	Card: DC 5V Standalone: AC 220V/DC -48V
Power Consumption	Full-load<12W
Physical Property
Dimensions	Card:120mm×90mm×22mm Standalone:160mm×130mm×32mm
Installation Mode	wall-mountable
Weight	Card:100g Standalone:800g
Working Environment
Operating Temperature	0°C~50°C
Operating Humidity	10%~90% non-condensing
Storage Temperature	-10°C~70°C
Warranty
MTBF	50,000 hours
Defects Liability Period	1 year warranty, lifetime technical support
Certification Standard
EMC	FCC Part15 Class A CE-EMC/LVD RoHS EN61000-4-2 (ESD), EN61000-4-3 (RS) EN6100044 (EFT), EN6100045 (Surge) EN61000^1-6 (CS), EN61000-4-8 EN61000-4-11
