10G Muxponder with Trunk Redundant

  • 10 Gbps trunk port rate
  • It provides 8 standard SFP slots and 2 XFP slot
  • The trunk port can provide double XFP interfaces, which can Achieve 1 +1 protective,Enhance the security of the system
  • 8 GE ports at the client side are isolated from each other
  • Point-to-Point interconnection of up to 8 LANs
  • 8 Independent 1GE services over one DWDM wavelength
  • It supports loopback setting of the client side and the line side
  • Advanced network management features
  • support for SNMP-based network management, while supporting CLI, WEB, TELNET and other network management approach, Full graphical managemen

Video Gallery

10G Muxponder
10G Muxponder
10G Muxponder
10G Muxponder
Share This Product

10G Muxponder with Trunk redundant Optical muxponders combine and separate lower‐rate optical signals to share a common higher‐rate optical fiber path. Supported data rates and number of ports are the most significant distinguishing feature between muxponder modules. The 10G Muxponder with Trunk redundant provides two trunk ports using XFP between a pair of modulesfor a highly‐reliable point‐to‐point link. The eight module access portssupportseveral Ethernet and SONET protocol options. Other protocols and applications may be added in future updates. The 10G trunk (line) interfaces can be used independently,together as an aggregated 20G link, or to carry mission‐critical data over separate optical links. Client signals are delivered to a remote module over dedicated fibers using OTN2 with FEC options for extended range and signal integrity. The multiplexes and de‐multiplexes access traffic from eight SFP ports through a 10G XFP trunk line.In the 10G Muxponder application example below, two modules are connected by a trunk line in a “bookend” configuration. This trunk could be a direct fiber link or an aggregated signal route through intermediate DWDM devices. The second trunk on each module may be connected as a redundant link.

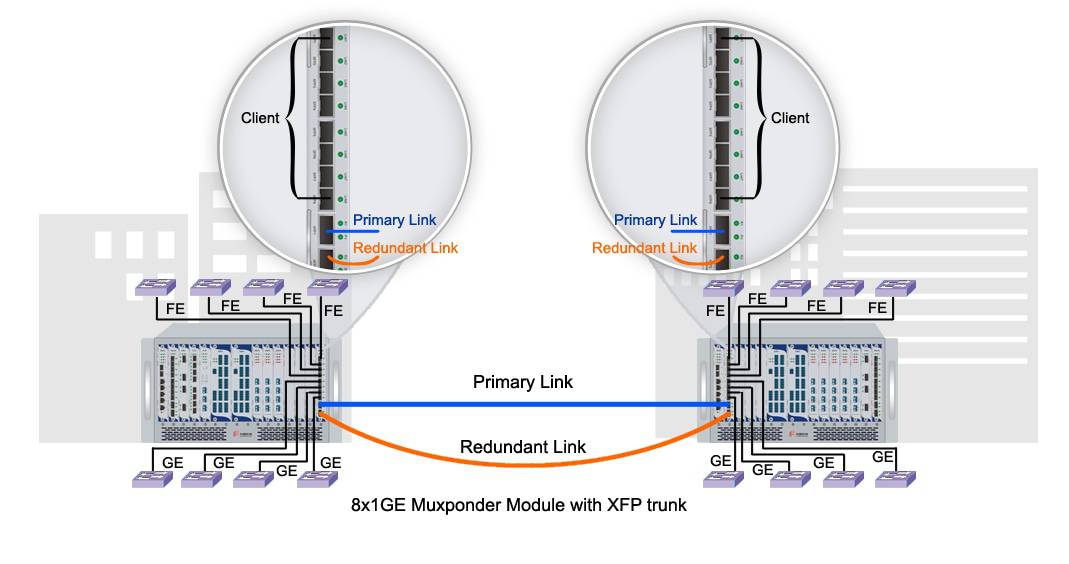

10G Muxponder with Trunk redundant Applications

10G Muxponder with Trunk Link

OTN Systems chassis compatibility

Part No. FR-8010 FR-8015 FR-8025 FR-8060
Picture 10G Muxponder with Trunk Link 10G Muxponder with Trunk Link 10G Muxponder with Trunk Link 10G Muxponder with Trunk Link
Client Interface 1U Access, 1-slot 1.25U Access, 4-slots 2.5U Access, 7-slots 6U Access, 15-slots
Power Interface 2-Slots in back panel for power supply modules 4-Slots in back panel
Mgmt Interface Built-in 1-slot in back panel 1-slot in front panel
Unit LEDs Power & In-Use LED’s for each power supply(with use of optional LED module)
Dimensions(mm) 430(D)x315(W)x45(H) 430(D)x365(W)x55(H) 430(D)x350(W)x114(H) 430(D)x355(W)x265(H)

Two open bays for Chassis power modules, supporting Universal Input 100-240V VAC, or -48V VDC

The dual power supplies can function in instant Fail-Ocer Mode or Load Share Mode

Environment 0~50CHumidity: 5%~95% non-condensing;0-10,000 ft.altitude
Net Weight 4.2kg 4.6kg 5.2kg 15.0kg
System parameters Technical indicators
Center wavelength Compliance with ITU-I standard
Data Rate (Gbps) Client Side: 100M/1000BaseFX, 100/1000BaseTX   Line Side:10.3Gbps
Optical interface type Client Side:8×SFP   Line Side:2×XFP
Size OTU Module 26.5(W)× 195(H)× 252(D)
Environment Operating Temperature -10℃ ~ 50℃
Storage Temperature -40℃ ~ 85℃
Relative humidity 5% ~ 95% Non-condensing
Power Consumption ≤15W
