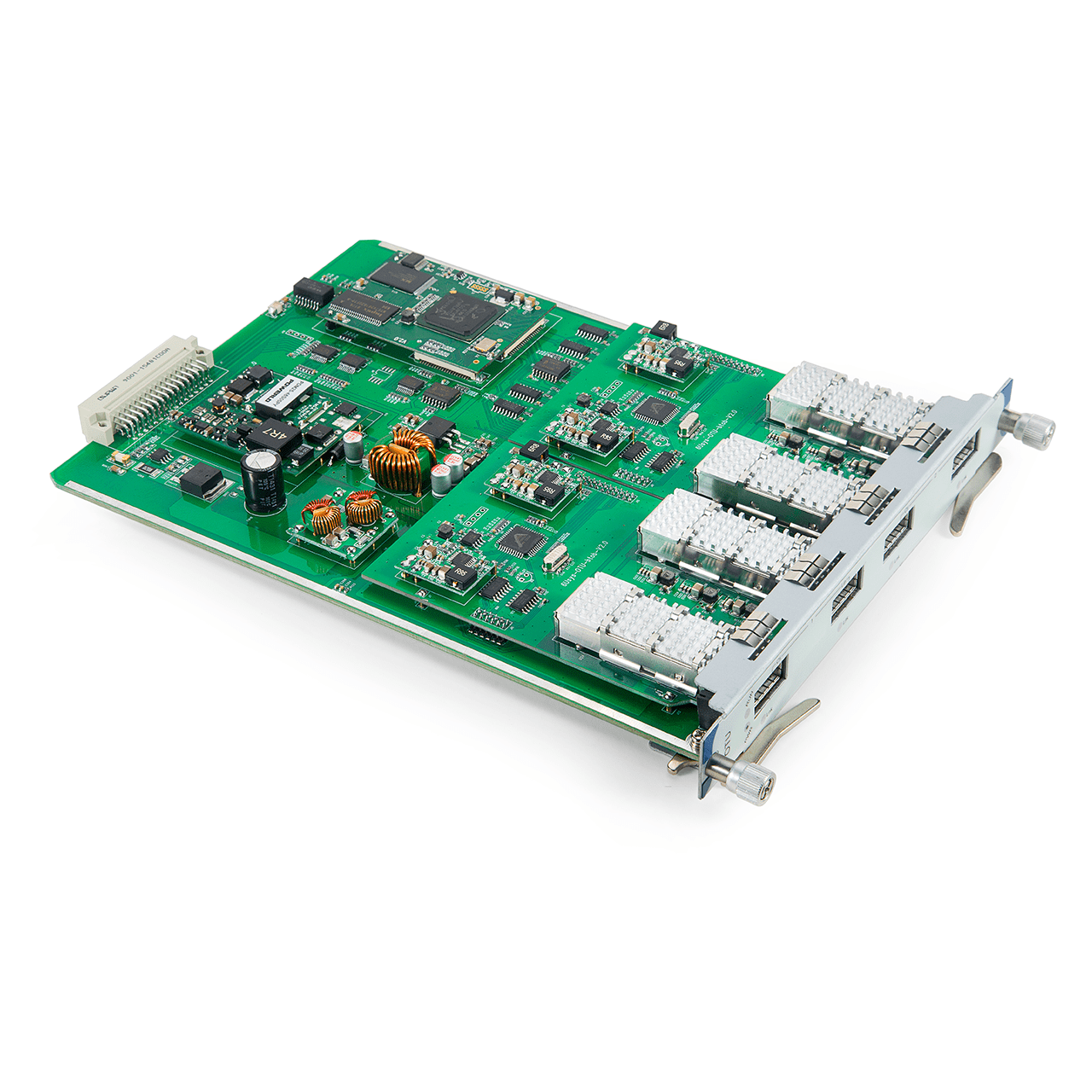

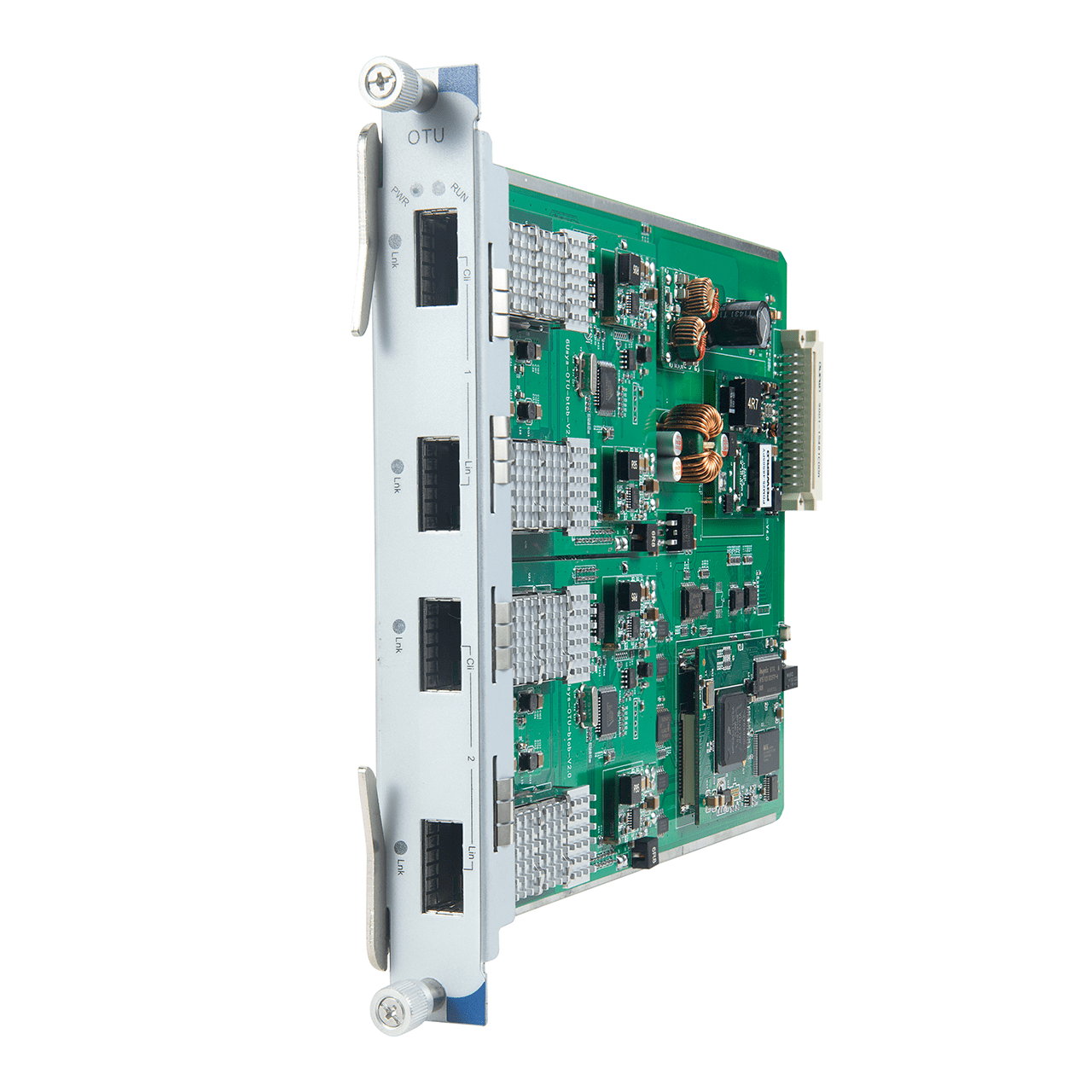

10G Transponder 2 Channels

  • Wide range of applications:
    Signal repeating
    Wavelength Conversion
  • Wide data rate of 8.5G~11.3Gbps support:
    8/10Gbps Fiber Channel
  • Up to 2 data channels (with 4 XFP fiber modules)
  • Support wavelength tunable optical module
  • Support LFP(link fault pass through)
  • Support SNMP-based network management
  • Support CLI, web, telnet and NMS(network management system)
  • Graded management mode (common user, super user or administrator)

Video Gallery

Share This Product

10G Transponder 2 Channels is a 2-channel 10G service access card. Its main function is to finish the 3R regeneration of any 2-channel signals under any protocol within the access rate of 1.25 Gbit/s~11.3 Gbit/s, and then convert them into optical signals of the standard DWDM or CWDM wavelength, so that the MUX unit can multiplex the optical signals with different wavelengths and also achieve the reverse process. It’s applicable to the wavelength division transmission solution for any access of services with the rate of 10G or below. 10G Transponder 2 Channels is a cost-effective high-quality management system when plugged in FR-8000 series chassis to implement device configuration, control and maintenance easily.

10G Transponder 2 Channels Application

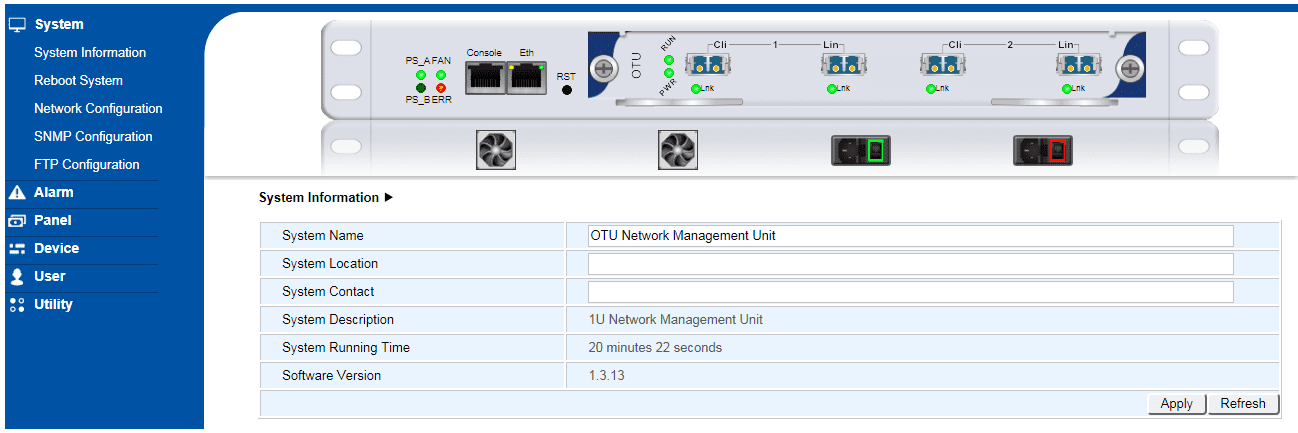

10G Transponder 4 Channels Web management 10G Transponder 4 Channels

OTN Systems chassis compatibility

Part No. FR-8010 FR-8015 FR-8025 FR-8060
Picture 10G Transponder 4 Channels 10G Transponder 4 Channels 10G Transponder 4 Channels 10G Transponder 4 Channels
Client Interface 1U Access, 1-slot 1.25U Access, 4-slots 2.5U Access, 7-slots 6U Access, 15-slots
Power Interface 2-Slots in back panel for power supply modules 4-Slots in back panel
Mgmt Interface Built-in 1-slot in back panel 1-slot in front panel
Unit LEDs Power & In-Use LED’s for each power supply(with use of optional LED module)
Dimensions(mm) 430(D)x315(W)x45(H) 430(D)x365(W)x55(H) 430(D)x350(W)x114(H) 430(D)x355(W)x265(H)

Two open bays for Chassis power modules, supporting Universal Input 100-240V VAC, or -48V VDC

The dual power supplies can function in instant Fail-Ocer Mode or Load Share Mode

Environment 0~50CHumidity: 5%~95% non-condensing;0-10,000 ft.altitude
Net Weight 4.2kg 4.6kg 5.2kg 15.0kg
System parameters Technical indicators
Center wavelength Compliance with ITU-I standard
Data Rate (Gbps) FC:8.5Gbps /10G   SONET OC-192, STM-64 (9.953Gbps)   10G WAN (10Gbps)10G LAN (10.31Gbps)   10G POS
Optical interface type XFP to XFP
Size OTU Module 26.5(W)× 195(H)× 252(D)
Environment Operating Temperature -10℃ ~ 60℃
Storage Temperature -40℃ ~ 80℃
Relative humidity 5% ~ 95% Non-condensing
Power Consumption ≤15W
