Understanding Intrinsically Safe Industrial Ethernet Switches
Power Management & Surge Prevention

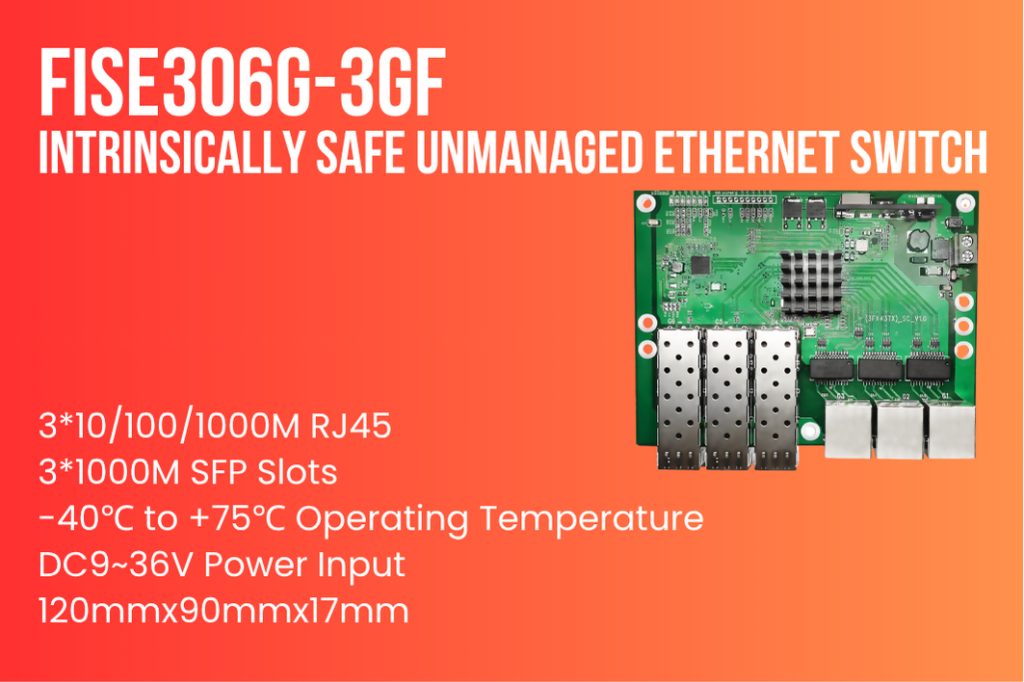

- Ultra-Low Power Design: Minimizes spark potential via high-efficiency chips and optimized software. (e.g., Fiberroad FISE306G-3GF@ 3.5W total, DC12V/300mA, compliant with GB3836.4).
- Pre-Charge Circuit: Eliminates startup current surges through controlled, gradual power ramp-up.
- Front-End RC Filtering: A resistor-capacitor network and low-capacitance power IC suppress initial spark generation.
Multi-Redundant Circuit Protection
- Enhanced Components: Critical parts (e.g., anti-reverse diodes, SCRs) rated at 2.55x operational current to ensure temperatures stay <130°C.
- Layered Safeguards: Integrated anti-reverse, over-current, and over-voltage protection with redundancy to maintain safety if one system fails (meets ia/ib levels).
- Serial Interface Safety Gates: For RS485/CAN, dedicated circuits with Zener diodes, fast-blow fuses, and current-limiting resistors block hazardous current/voltage transients.
Physical & Thermal Safety Architecture
- Signal Isolation: 1.5 kVAC isolation modules prevent hazardous cross-talk/interference between systems.
- Strict Component Spacing: ≥2mm clearance (per GB3836.4) between interfaces, especially signal/ground lines, to prevent arcing.
- Guaranteed Thermal Limits: All components maintain <130°C even under fault conditions (short circuits, cross-connects), critical for spark test compliance.
Operational Resilience
- Backup Battery: 4-hour runtime during primary power failure, ensuring uninterrupted critical communications (e.g., in mining operations).

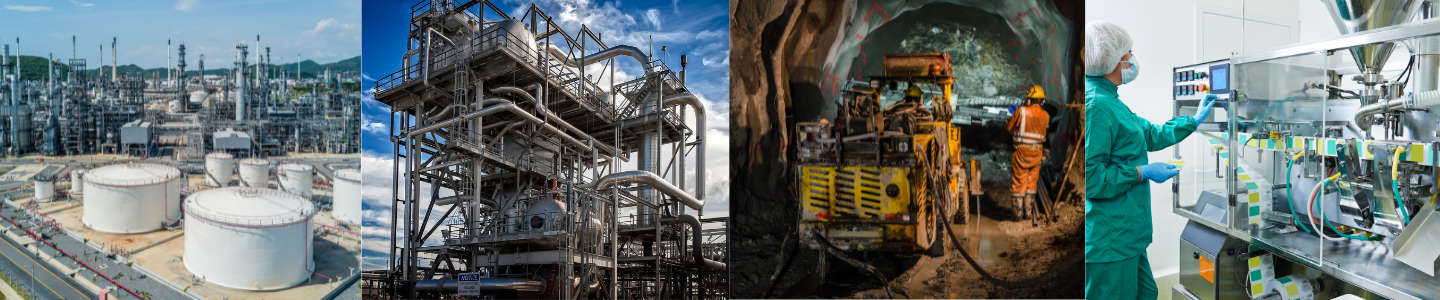

Applications and Industries that Use Intrinsically Safe Industrial Switches
Intrinsically safe Ethernet switches are essential in various industries where hazardous conditions exist. These devices find their place in oil and gas, ensuring seamless communication even amidst flammable environments.
In chemical processing plants, safety is paramount. Here, these switches protect sensitive data transmission while minimising explosion risks. Their robust design allows for reliable performance under extreme temperatures and pressure.
Mining operations also benefit from intrinsically safe Ethernet switches. They facilitate real-time monitoring of equipment and personnel without compromising safety standards.
Additionally, the pharmaceutical sector relies on these switches to maintain stringent safety protocols during production processes. The integrity of data transfer is crucial when handling volatile substances or compounds.
Even renewable energy sectors leverage this technology to optimize efficiency in potentially explosive atmospheres, such as biogas facilities or wind turbine installations located near flammable materials. Each application showcases the versatility and necessity of intrinsically safe Ethernet switches across diverse fields.
