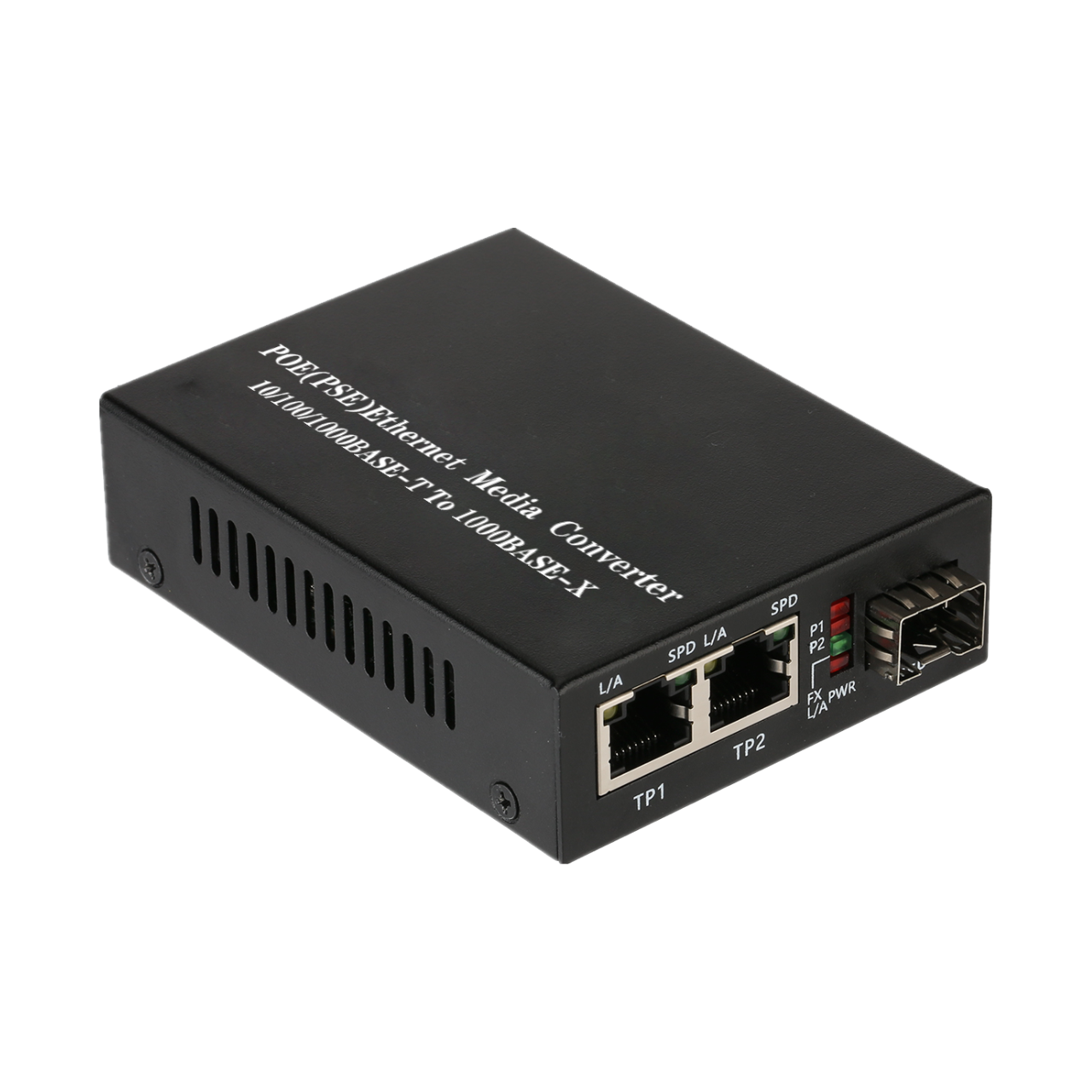

2 Port PoE Fiber Media Converter
Fiberroad POE230 Series commercial-grade PoE fibre media provides an option for single or dual PoE ports with 100Mbps or Gigabit Ethernet, which communicates across optical fibre via SFP port or 1×9 optical transceiver.
The PoE feature complied with IEEE802.3 af/at standard, including a PSE controller, which offers PD signature sensing and PoE negotiation features. Other intelligent features include over-current protection, LFP function, etc.
Product Features
- Ideal for confined spaces, and provides highly cost-effective solutions
- Auto-Negotiation – automatically determines the best connection speed
- Wall mountable using the integrated mounting holes
- Single or Dual IEEE 802.3at 30W PoE+ port
- Fast or Gigabit ethernet, SFP or 1X9 transceiver supports single-mode and multimode, single or dual fiber options up to 120km
- Supports Jumbo Frames up to 9.6K bytes
- Intelligent features(DIP Switch/Media Converter) supported including link fault pass-through, automatic laser shutdown, SFP reset and SFP speed selection
Video Gallery
Quality Certifications
Guarantee
Share This Product
Streamline Your Power and Data Transmission with the Versatile 2 Port PoE Media Converter
If you’re looking for a top-of-the-line 2 Port PoE fiber media converter with standard PoE negotiation, you’ve come to the right place. Our selection of PoE fiber media converters are designed to provide your devices with reliable power and data transmission, and they come with a variety of features to make installation and use easy. With standard PoE negotiation, our PoE fiber media converters are compatible with a wide range of devices, and they support 2×10/100/1000Base-T and 100/1000Base-X data rates. So whether you need a dependable power source for your devices or want to ensure high-speed data transfer, our PoE fiber media converters have you covered.
| Product Attributes | |||
|---|---|---|---|
| Ports | 2×10/100/1000Base-Tx RJ45 1x1000Base-x SFP/1×9 Port |
Port Mode(Tx) | Auto Negotiation Full/Half Duplex Auto MDI/MDIX |
| PoE Power Capacity | IEEE 802.3 af: 15.4W IEEE 802.3 at: 30W |
Frame Size | 9K |
| DIP Switch | AI PoE/Jumbo Frame/VLAN/FX 100M | Input Power | 48-56VDC/1.25A |
| Installation Mode | Desktop or Wall Mount | Power Consumption | af mode:35W at mode:70W |
| Housing | Metal | IP Rating | IP30 |
| Operating Temperature | 0 to 50℃ （32 to 122℉） | MTBF | 100,819 Hours |
Maximizing Your IP Surveillance System with a 2 Port PoE Media Converter
2 Port PoE Fiber Media Converter complies with the 802.3af/at PoE+ standard and supports up to 30 W on each PoE port. The total 60W PoE power budget for the 2× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Not OEffortlessly Control VLAN and PoE Settings with User-Friendly DIP Switches
2 Port PoE media converters with built-in DIP switch offer an easy way to disable or enable AI VLAN, AI PoE function, and other features with just a single click. This enhances the application ability of PoE media converters and makes them more versatile and useful for a variety of applications.
2 Port PoE Media Converter FAQs
Our 2 Port PoE Fiber Media Converter is specifically designed to support devices compliant with the 802.3af/at PoE+ standard and can provide up to 30W on each port for a total 60W PoE power budget. This provides tremendous versatility for powering various types of devices, including IP cameras, access points, IP phones, computers, printers, and more.
The 2 Port PoE Fiber Media Converter can be used in a variety of different applications, particularly for networking and surveillance purposes. You can use it to connect IP cameras, access points, IP phones, computers, printers and more. It is also useful for setting up local area networks (LANs), as well as providing power over Ethernet (PoE) solutions for small businesses and dormitories. In addition, the media converter is great for powering WiFi access points in high-power applications.
Absolutely! Our PoE fiber media converters are designed to offer both power and data transfer simultaneously. With the support of 2×10/100/1000Base-T and 100/1000Base-X data rates, you can ensure consistent power delivery and high-speed data transfer all in one package. So whether you’re dealing with personal or enterprise networks, our PoE fiber media converters are your best option.
| Physical Port | |||
| Model | FR-POE231 | FR-POE232 | FR-POE233 |
| Copper Port | 1x 10/100Base-TX RJ45 | 1x 10/100/1000Base-TX RJ45 | 2x 10/100/1000Base-TX RJ45 |
| SFP Slot | 1x 100Base-X (SFP or 1×9 Transceiver SC,ST,FC connector） | 1x 1000Base-X (SFP or 1×9 Transceiver SC,ST,FC connector） | 1x 1000Base-X (SFP or 1×9 Transceiver SC,ST,FC connector） |
| LED Indicators | Power
SFP/1×9 Link/Activity RJ45 Link/Activity RJ45 Speed RJ45 Duplex PoE |
Power
SFP/1×9 Link/Activity RJ45 Link/Activity RJ45 Speed RJ45 Duplex PoE1 PoE2 |
|
| Cables | |||
| UTP | UTP Cables: CAT5 or above
UTP Cable Limitations: Max. length up to 330 ft. (100 m) |
||
| Fiber Optic | 1000BASE-SX: 50/125, 62.5/125, or 100/140-µm Multimode 550m 1000BASE-LX: 8.3/125, 8.7/125, 9/125, or 10/125-µm Single-mode 10km | ||
| Ethernet Standards | |
| Standards | IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX & 100Base-FX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3x Flow Control IEEE802.3af 15W PoE IEEE802.3at 30W PoE+ |
| Switching Capacity | 200Mbps(FR-POE231) 2 Gbps(FR-POE232) 6Gbps(FR-POE233) |
| Jumbo Frames | 9K |
| Power | |
| Power Input | 1 |
| Operating Voltage | 48-56VDC |
| PoE Power Capacity | IEEE802.3 af : 15.4W (x2 FR-POE233)
IEEE802.3 at : 30W (x2 FR-POE233) |
| Power Consumption | af mode: 20W (x2 FR-POE233)
at mode: 35W (x2 FR-POE233) |
| Protection | Over Currency |
| Mechanical | |
| Housing | Metal |
| Dimensions | 94mm×71mm×26mm(W x D x H) 3.70 x 2.80 x 1.02in |
| IP Rating | IP30 |
| Weight | 0.2kg/0.44lb(Bare Hardware) |
| Installation | Desktop or Wall Mount |
| Environmental | |
| Temperature | Operating: 0 to 50℃ （32 to 122℉）
Storage: -20 to +70℃ （-4 to +158℉） |
| Humidity | 5 to 95% noncondensing |
| Altitude | ＜3000m(＜10000 ft.) |
| MTBF | 100,819 Hours |
| MTBF Standard | Telcordia SR-332 GB 25℃ |
| Heat Dissipation | 113 BTU/h （With 30W PoE） |
| Cooling | Passive Cooling |
| Noise Level | 0 dBA |
