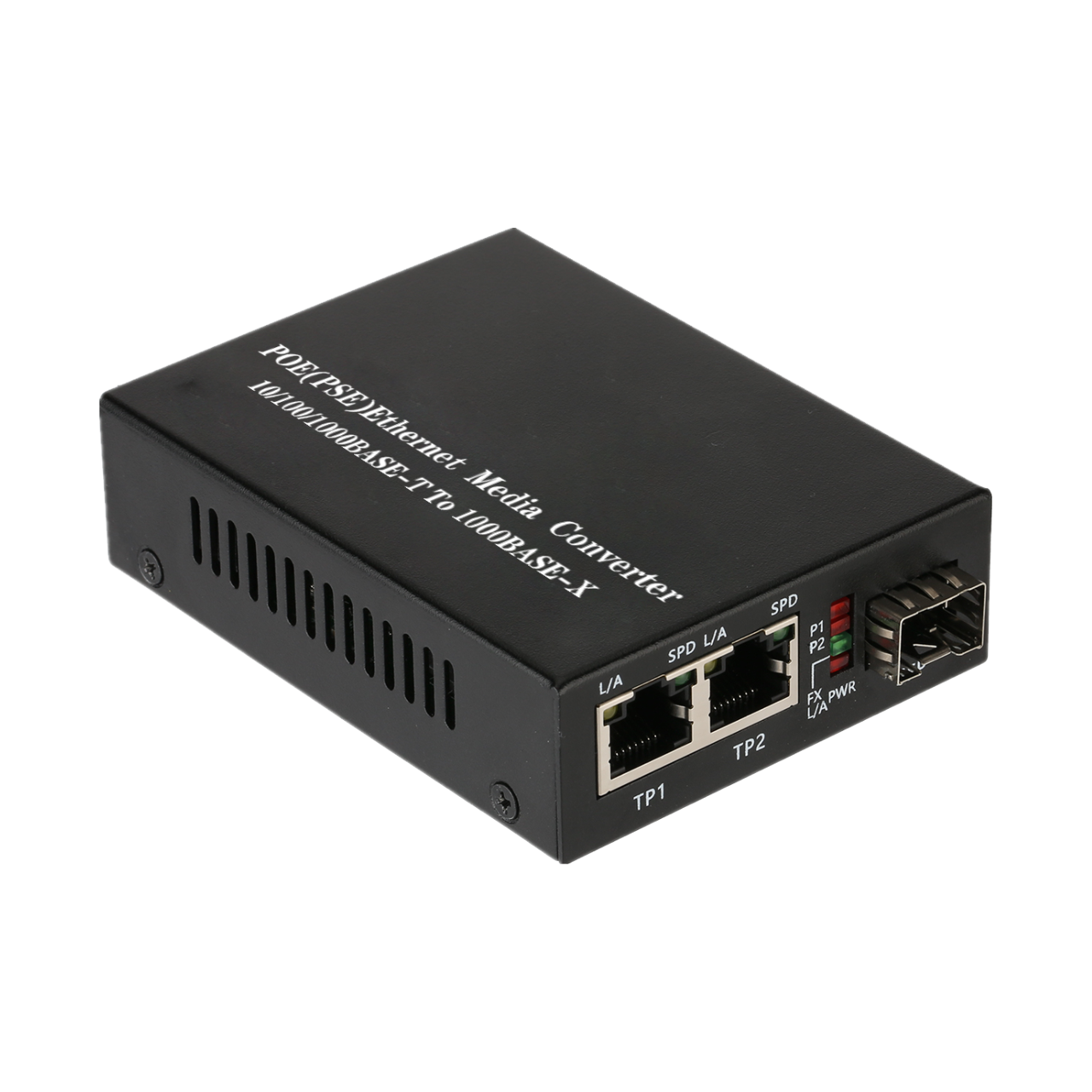

2 Port PoE Fiber Media Converter

The Gigabit PoE Fiber Media Converter Series is a versatile solution that caters to the increasing demand for higher power network equipment, such as PTZ cameras, VoIP telephones, and wireless access points. With both Single-port and Dual-port options, it supports Mid-span IEEE 802.3at power over Ethernet plus conversion. This allows for direct data and power delivery to devices like PTZ speed dome cameras and color touch-screen phones via RJ45 interfaces without the need for extra power outlets or cables. The integrated fibre interface also extends the deployment range up to 120km, making it suitable for various network applications. Additionally, by converting 10/100/1000BASE-T signal to 1000base-X, it provides diverse fiber connection types to enhance flexibility further. With a maximum distance of 100 meters between the PoE PSE and PD, this series is an efficient solution for powering network devices.



Product Features

  • 802.3af/at PoE+ Compliance: Deliver up to 30W of power per port to connected devices such as IP cameras, wireless access points, VoIP phones, and IoT devices—eliminating the need for separate power sources.
  • Fiber Flexibility: Supports both SFP modules (hot-swappable, for modern LC fiber connectivity) and traditional 1×9 optical fiber modules (SC/ST connectors), accommodating single-mode or multi-mode fiber for distances up to 120km.
  • Gigabit Performance: Achieve lightning-fast data transfer rates up to 1000Mbps, ensuring smooth, lag-free communication between network segments.
  • External Power Supply: Includes a stable, high-efficiency external power adapter for consistent performance, with optional redundancy support to minimize downtime.
  • Plug-and-Play Simplicity: No configuration required—deploy instantly in existing networks for seamless copper-to-fiber conversion.

Video Gallery

Quality Certifications
Guarantee
Share This Product

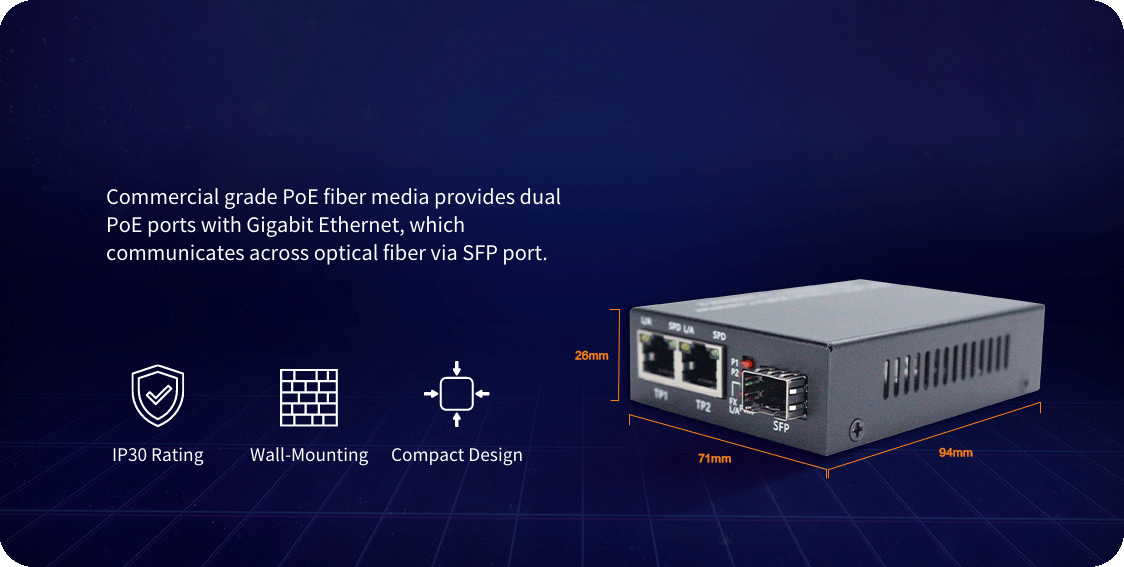

Streamline Your Power and Data Transmission with the Versatile 2 Port PoE Media Converter

If you’re looking for a top-of-the-line 2 Port PoE fiber media converter with standard PoE negotiation, you’ve come to the right place. Our selection of PoE fiber media converters are designed to provide your devices with reliable power and data transmission, and they come with a variety of features to make installation and use easy. With standard PoE negotiation, our PoE fiber media converters are compatible with a wide range of devices, and they support 2×10/100/1000Base-T and 100/1000Base-X data rates. So whether you need a dependable power source for your devices or want to ensure high-speed data transfer, our PoE fiber media converters have you covered.

2 Port PoE Media Converter

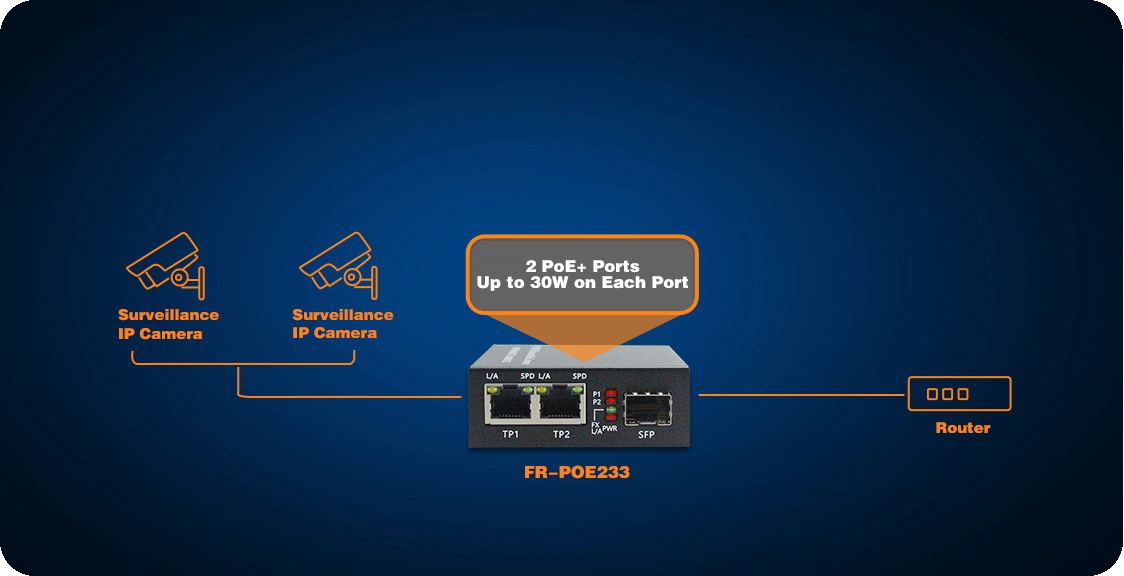

Maximizing Your IP Surveillance System with a 2 Port PoE Media Converter

2 Port PoE Fiber Media Converter complies with the 802.3af/at PoE+ standard and supports up to 30 W on each PoE port. The total 60W PoE power budget for the 2× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

2 Port PoE Media Converter

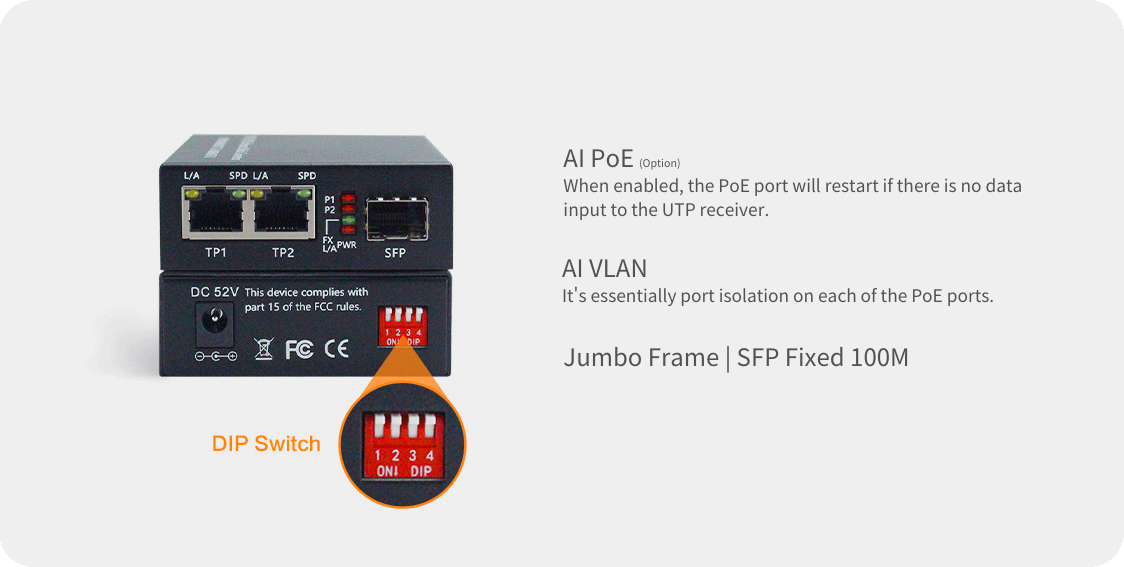

Not OEffortlessly Control VLAN and PoE Settings with User-Friendly DIP Switches

2 Port PoE media converters with built-in DIP switch offer an easy way to disable or enable AI VLAN, AI PoE function, and other features with just a single click. This enhances the application ability of PoE media converters and makes them more versatile and useful for a variety of applications.

2 Port PoE Media Converter

2 Port PoE Media Converter FAQs

What types of devices are compatible with your media converter, and can it support up to 30W on each port?

Our 2 Port PoE Fiber Media Converter is specifically designed to support devices compliant with the 802.3af/at PoE+ standard and can provide up to 30W on each port for a total 60W PoE power budget. This provides tremendous versatility for powering various types of devices, including IP cameras, access points, IP phones, computers, printers, and more.

What are some common applications for your media converter, specifically in terms of networking and surveillance?

The 2 Port PoE Fiber Media Converter can be used in a variety of different applications, particularly for networking and surveillance purposes. You can use it to connect IP cameras, access points, IP phones, computers, printers and more. It is also useful for setting up local area networks (LANs), as well as providing power over Ethernet (PoE) solutions for small businesses and dormitories. In addition, the media converter is great for powering WiFi access points in high-power applications.

Can your PoE fiber media converters support both power and data transfer simultaneously?

Absolutely! Our PoE fiber media converters are designed to offer both power and data transfer simultaneously. With the support of 2×10/100/1000Base-T and 100/1000Base-X data rates, you can ensure consistent power delivery and high-speed data transfer all in one package. So whether you’re dealing with personal or enterprise networks, our PoE fiber media converters are your best option.

Hardware Specifications
Product FR-POE232 FR-POE233
Copper Port 1 x 10/100/1000BASE-T Ethernet TP interface 2 x 10/100/1000BASE-T Ethernet TP interface
Auto-negotiation, auto MDI/MDI-X with PoE injector function
Fiber Port 1x 1000BASE-X
Form Factor 1X9 1X9 SFP
Data Rate 1.25G 1.25G 1.25G
Fiber Port Type SC SC LC
Transmission Distance 550m 10km 10km
Wavelength 850nm 1310nm 1310nm
Transmitter Power -9 to -3 dBm -9 to -3 dBm -9 to -3 dBm
Receiver Sensitivity < -18 dBm <-22 dBm <-22 dBm
Transmission mode Store-and-Forward
Flow Control Back pressure for half duplex mode

IEEE 802.3x pause frame for full duplex mode

Maximum Frame Size 9K
Dimension 94x71x26mm
Installation Desktop or Wall Mount
Power over Ethernet & Power Supply
Standard IEEE 802.3af PoE Standard

IEEE 802.3at PoE+ Standard

Power Output 52V DC, 30 watts, max
PoE Power Supply Type Mid-span
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 30 watts 60 watts
Power Supply DC52V Input, external AC to DC adapter
Environmental
Operating Temperature 0 to +50℃ (32 to +122℉)
Storage Temperature -20 to +70℃ (-4 to +158℉)
Humidity 5% to 90% (non-condensing)
MTBF >100,000 Hours @Telcordia SR-332 GB 25℃
Heat Dissipation 113 BTU/h (with 30W PoE)
Cooling Passive Cooling
Noise Level 0 dBA
