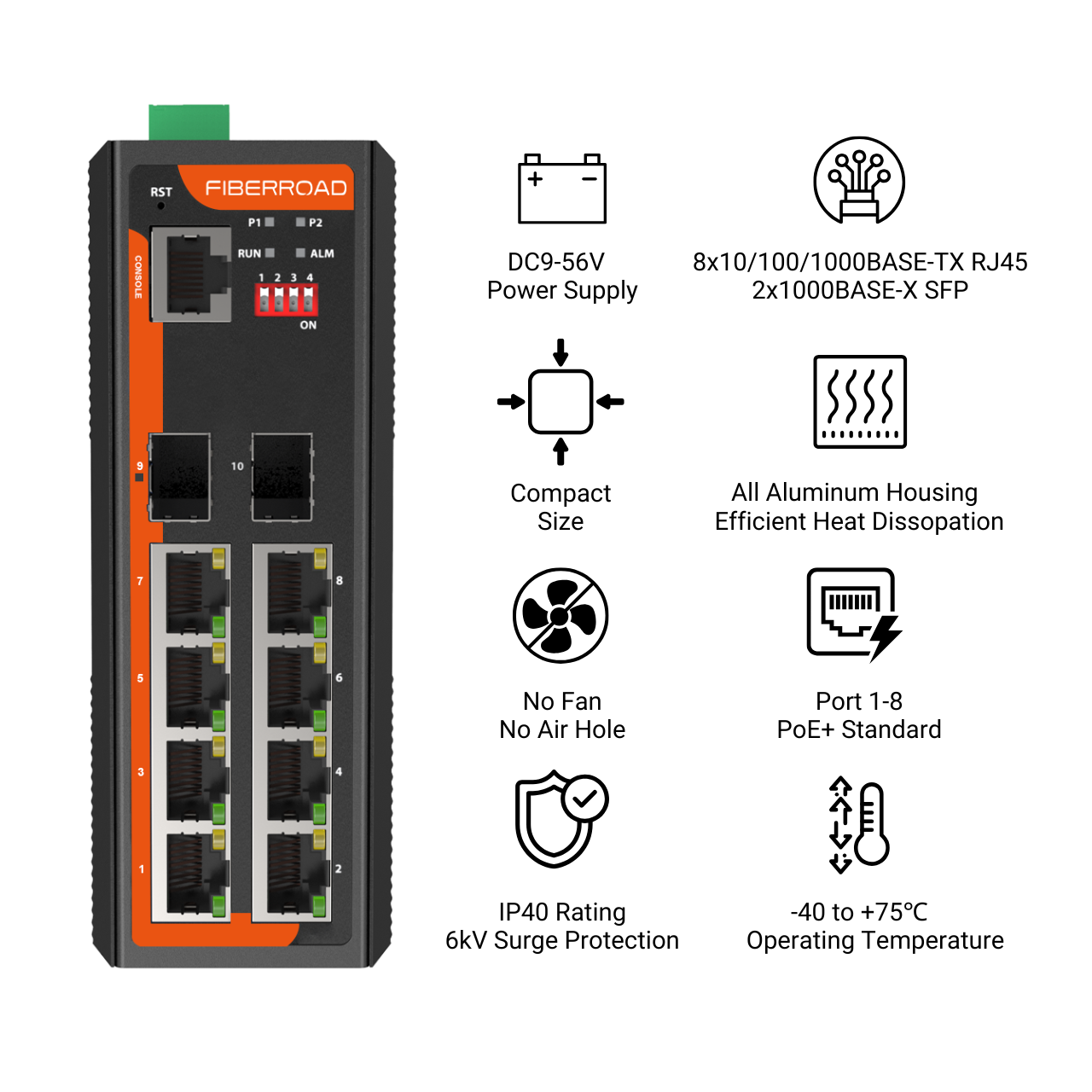

10-Port(with 8 Port PoE+) Full Gigabit Managed Industrial PoE Switch

Experience unparalleled performance with the Layer 2+ Plus Managed Industrial Ethernet Switch, designed specifically for demanding industrial environments. Engineered for exceptional stability and reliability, this switch ensures seamless Ethernet transmission in factories, outdoor settings, and harsh conditions. Its robust construction withstands the rigors of industrial applications while delivering advanced management features that facilitate optimal network control. Elevate your operational efficiency and safeguard your critical data communications with a solution that has consistently proven its mettle across various sectors. Invest in enduring quality—choose the Layer 2+ Plus Managed Industrial Ethernet Switch for your networking needs.



Product Features

  • 8×10/100/1000BASE-T Gigabit Ethernet RJ45
  • 2×100/1000BASE-X SFP ports for SFP Type auto detection
  • Optionally support IEEE 802.3 af/at/bt Power Over Ethernet Standard
  • Full gigabit L2+ management, easy to manage the network by CLI/WebGUI/NMS.
  • Build up a redundant industrial network with STP/RSTP/MSTP/ERPSv2
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • Traffic Classification Based on IEEE 802.1p, CoS, WRR, and Strict Mode
  • SNMPv1/v2c/v3 for different levels of network management
  • Wide operating temperature range -40 to 75℃(-40 to 167℉)

Video Gallery

Quality Certifications
Guarantee
Share This Product

Streamlining Industrial Network with the 10 Port Industrial PoE Switch

The 10 Port Industrial PoE Switch is revolutionizing the way industrial networks operate. With its cutting-edge technology, this powerhouse of a switch allows for seamless connectivity and unparalleled efficiency. The 10 Port Industrial PoE Switch provide ample space for multiple devices to be connected simultaneously without any lag or delay in data transfer. And with Power over Ethernet capability, it eliminates the need for separate power sources, reducing clutter and simplifying installation processes. Whether you’re working in a factory or an oil rig, this switch can handle even the toughest environments with its rugged design and durable construction. It’s time to say goodbye to tangled wires and unreliable connections – streamline your industrial network with the 10-Port Industrial PoE Switch today!

10 Port Industrial PoE Switch

Smart PoE Features

1. IEEE802.3af/at standard automatically identifies power devices without damaging non-PoE devices.
2. Up to 30W per port.
3. PoE+ Switch port will supply power to the high priority level port when the power budget is insufficient.
4. PoE output power allocation, Scheduling of PoE operation.

Advance Layer2+ Features

1. Build a redundant network with STP/RSTRP/MSTP/ERPSv2.
2. IPv4/IPv6 Management and Static Route
3. ACL Based on MAC, IP address.
4. Retagging and complicated flow classification based on VLAN, MAC/IP.
5. Flexible bandwidth control policies.

Top Features of Industrial Grade Design Suits for Extreme Conditions

Ladies and gentlemen, have you heard about the mighty 10 Port Industrial PoE Switch? Let me tell you, this device is not only powerful but also incredibly efficient. Thanks to its housing and fanless design, it provides top-notch heat dissipation that keeps your equipment safe at all times. The Switch is a true survivor too! With a wide temperature range of -40 to +75℃, it can withstand even the harshest conditions. And if that’s not enough for you thrill-seekers out there, brace yourself because this industrial PoE switch supports Energy-Efficient Ethernet(EEE) which reduces power consumption by 50%. That’s right folks- saving energy while keeping compatibility with existing equipment! The possibilities are endless with this bad boy in your arsenal. So don’t wait any longer to experience the full potential of modern technology with the 10 Port Industrial PoE Switch by your side

10 Port Industrial PoE Switch

Future-Proof Your Network with a 10 Port Industrial PoE Switch

The 10 Port Industrial PoE Switch is a true powerhouse when it comes to providing power and connectivity for your network. With IEEE802.3af/at standard applied to ports 1-8, you can rest assured that all power devices meeting the standard will be automatically identified and recognized. This means no more guesswork or manual configuration is needed! The switch supplies the necessary power seamlessly through the network cable, saving you time and effort while ensuring maximum efficiency in your operations. Whether you’re setting up a new network or upgrading an existing one, the 10 Port Industrial PoE Switch is an essential tool that will help take your business to new heights of success.

10 Port Industrial PoE Switch PoE Management

10 Port Industrial PoE Switch: The Ultimate Solution for Building a Secure Network

The 10 Port Industrial PoE Switch is not just any ordinary switch, it’s a powerhouse of features that can protect your network from cyber-attacks and ensure reliability at all times. With its advanced network security measures like ACL/QoS policy, you can have peace of mind knowing that sensitive data is always protected. Additionally, with the option to configure STP/RSTP/MSTP/ERPSv2, this switch guarantees redundancy in case of link failure or downtime. And let’s not forget about its easy-to-use management system which simplifies the entire process for maintaining this industrial-grade switch. All these impressive features make the 10 Port Industrial PoE Switch stand out from conventional switches on the market and truly worth investing in for businesses looking for uncompromising performance and security.

Simplify Your Workload: Managing Industrial PoE Networks on the Go

The 10 Port Industrial PoE Switch brings a new level of excitement to network management methods. With its innovative WebGUI, CLI and NMS, managing your network has never been easier! The user-friendly interface allows for easy navigation and quick access to all the features you need. And what’s more? You don’t even need any additional hardware investment or installation – it’s an all-in-one solution that saves time and money. This switch is not only powerful but also efficient in monitoring real-time usage and scheduling PoE operations according to your specific needs. Now you can have centralized control over every aspect of your network with just one device: the 10 Port Industrial PoE Switch! Experience a revolutionized way of networking that will take your business to new heights.

10 Port Industrial PoE Switch Network Management

FAQ


What is the maximum power output of your 10 Port Industrial PoE Switch?

Our 10 Port Industrial PoE Switch offers a maximum power output of up to 90W per port. This ensures that you have enough power to run your network devices at full capacity without any issues. Additionally, the switch is also compatible with IEEE802.3af/at/bt standards, ensuring reliable performance every time.

Can this switch be used in harsh environments, such as extreme temperatures or outdoor settings?

Absolutely. This switch is designed to be used in harsh environments and can withstand extreme temperatures, from -40 to + 75℃. It also has a housing and fanless design that ensures top-notch heat dissipation to keep your equipment safe at all times. You don’t have to worry about it not surviving the outdoors either!

Does your switch support VLAN and QoS to prioritize traffic on the network?

Absolutely! Our 10 Port Industrial PoE Switch does support VLAN and QoS to prioritize the traffic on the network. This way, you can manage your network more efficiently and keep it secure from potential cyber threats. Plus, with ACL/QoS policy, you can be sure that all of your sensitive data is always protected and safe.

Hardware Specifications
Product FR-7M3208L FR-7M3208P FR-7M3208BT
Copper Ports 8×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (Port 1-8)
Fiber Ports Default: 2×100/1000BASE-X SFP Slots (Port 9 and Port 10)
Console 1x RJ45-to-RS232 Serial Port(115200)
Connector 1 removable 6-contact terminal block

Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

Alarm One relay output for power failure, Alarm relay current carry ability: 1A@24V DC
RAM 128Mbyte
FLASH 32MByte
Reset Button <5 sec: System Reboot; >10 sec: Factory Default
Surge Protection ±6kV DC, ±4kV RJ45 ±6kV DC, ±6kV RJ45
Enclosure IP40 aluminum case
Installation DIN-Rail and Wall-mount
Dimension 138 x 108 x 49mm
Weight 660g(Bare weight), 860g(With package)
Switching
Switch Architecture Store-and-Forward
Switch Fabric 36Gbps/non-blocking
Forwarding Rate 11.9Mpps(64-byte packet size)
Packet Buffer Size 4 Mbits
Maximum Packet Length 10K bytes
MAC Address Table 8K entries, automatic source address learning and aging
Flow Control IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
PoE & Power Supply
PoE Ports \ Port 1 to 8 IEEE802.3 af/at Port 1 to 8 IEEE802.3 af/at/bt
PoE Power Supply Type \ End-span End-span
Power Supply Pin \ 1/2(+), 3/6(-) 1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Max Power Per Port \ 30W 90W
Input Voltage DC9-56V DC48-56V DC52-56V
PoE Power Budget \ 240W maximum

(Depending on power input)

240W maximum

(Depending on power input)

Environmental
Operating Temperature -40℃~75℃ (-40 to 167 ℉)
Storage Temperature -40℃~85℃ (-40 to 185 ℉)
Operating Humidity 5%~95% (non-condensing)
MTBF 907,476 hours @ Telcordia SR-332 Standard
Heat Dissipation 34 BTU/h (non-PoE mode)

853 BTU/h (with 240W PoE load)

Cooling Passive Cooling, Fanless Design
Noise Level 0 dBA
