24 Port Managed Rugged PoE Switch

L2+ Managed Industrial PoE Switch is a multi-port, high-standard Industrial Managed Ethernet Switch independently developed by Fiberroad for industrial ethernet networks. This product adopts industry-leading technical standards and can provide stable and reliable Ethernet transmission with high-quality design and reliability. They are designed in a DIN rail / Wall to mount aluminium housing and have 16 Gigabit Ethernet ports (depending on model). Plus an additional 12 Gigabit SFP provides for data uplink and backbone connectivity. It can supply power to PD terminal equipment at harsh environments, such as video and process monitoring, ITS, and Smart manufacturing.



  • IEEE 802.3af/at/bt PoE++ Standard, without damaging not-PoE devices.
  • Advanced PoE management functions : PoE output setting, Smart PoE, PoE scheduling and PoE Budget Management.
  • Priority system for PoE Port, it will supply power to the high priority level port first when the power budget is insufficient.
  • Full gigabit L2+ management, easy to manage the PoE network by CLI/WebGUI/NMS.
  • Build up a redundant PoE network with STP/RSTP/ERPSv2.
  • RADIUS, IEEE 802.1X, SNMPv3, HTTPs and SSH to enhance network security.
  • Bandwidth management prevents unpredictable network status with ”Lock Port” to restrict access to authorized MAC addresses.
  • QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR&SP+WRR
  • All-aluminum Case, Compact and Fanless Design

Video Gallery

Product Brief Introduction

Layer 2+ Web Network Management

Quality Certifications
Share This Product

Maximizing Power and Performance with a 24 Port Managed Rugged PoE Switch

Fiberroad FR-7M3424P is a 24-port managed Industrial PoE Switch designed for the industrial Are you tired of dealing with unreliable network switches that can’t handle the demands of your organization? Look no further than the 24 Port Managed Rugged PoE Switch! This powerhouse device is equipped to handle even the most demanding networking environments. With its robust design and advanced management capabilities, this switch provides unparalleled stability and performance. Its 24 ports offer plenty of connectivity options for all your devices while also delivering power over Ethernet (PoE) to compatible devices, reducing clutter and streamlining your setup. And thanks to its rugged construction, it’s built tough enough to withstand harsh conditions – whether it’s in a factory environment or out in the field. Don’t settle for anything less than optimal performance when it comes to your network infrastructure – upgrade to the 24 Port Managed Rugged PoE Switch today!

24 Port Managed Rugged PoE Switch

Efficient and Reliable: Why Rugged PoE Switches are a Must-Have for Any Industry

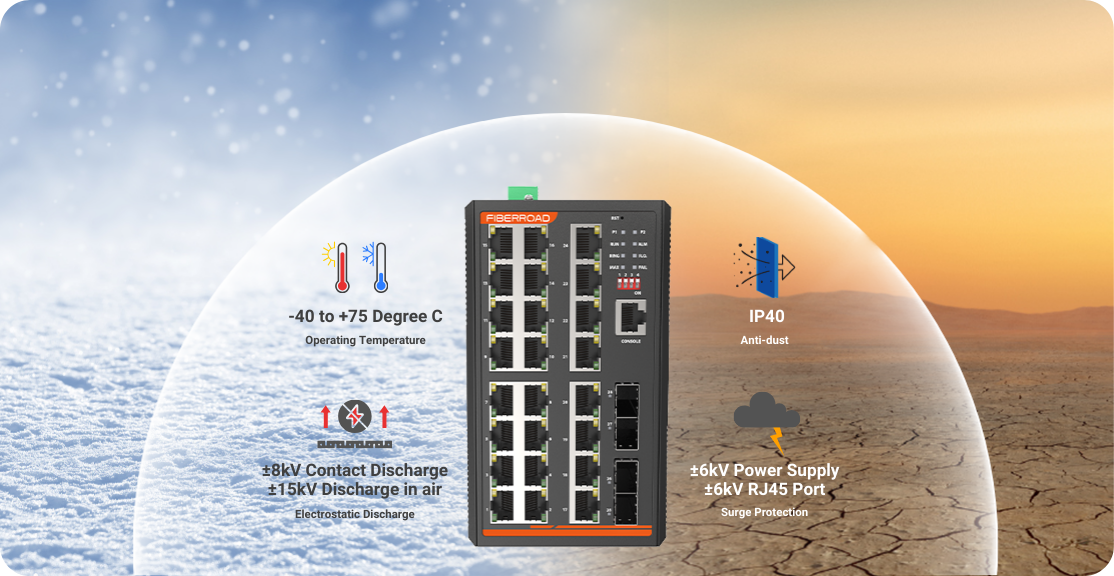

With IP40 Durable Aluminum housing and fanless design also provide efficient heat dissipation. The 24 Port Managed Industrial PoE Switch provides a high level of immunity against electromagnetic interference and heavy electrical surges, usually found on plant floors or curb-side traffic control cabinets. It also possesses an integrated power supply source with a wide range of voltages (9 to 56V DC) for worldwide high-availability applications requiring dual or backup power inputs. Indeed, The design of the switch ensures operates in Harsh Environment.

24 Port Managed Rugged PoE Switch

Maximizing Network Performance and Reliability with Managed Rugged PoE Switch

With 4x100M/1000M SFP uplink, the 28-Port Industrial PoE Switch can handle extremely large amounts of data in a secure topology linking to an industrial backbone or high-capacity servers. The FR-7M3424P is capable of providing non-blocking switch fabric and wire-speed throughput.

The 24 Port Managed Industrial PoE Switch series allows the administrator to conveniently boost network efficiency by manually configuring Layer 3 IPv4/IPv6 VLAN static routing. FR-7M3424P supports redundant ring technology and features a strong, rapid self-recovery capability to prevent interruptions and external intrusions. In addition to using advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching), Spanning Tree Protocol, and redundant power input systems, it enhances system reliability and uptime in harsh factory environments.

24 Port Managed Rugged PoE Switch

Managed Rugged PoE Switch Compliant with IEEE802.3af/at PoE+ Standards

Port 1-24 complies with IEEE802.3af/at standard. Another critical point is it can automatically detect and recognise the power devices that meet the standard and supply power through the network cable. Being the PoE management for CCTV surveillance, wireless and VoIP Networks, FR-7M3424P features the following special PoE management functions: PoE PD-alive check, Schedule power rebooting, PoE operation schedule, PoE usage monitoring, PoE port power feeding priority…

24 Port Managed Rugged PoE Switch

Streamlining Network Management with a 24 Port Managed Rugged PoE Switch

24 Port Industrial PoE Switch allows various network management methods, such as the Are you looking for a rugged, reliable and powerful network switch to manage your industrial operations? Look no further than the 24 Port Managed Industrial PoE Switch! With this innovative device, you will be able to enjoy various network management methods such as Cloud (MQTT), WebGUI, CLI and NMS. This means that you can easily monitor and control your network in real-time without any additional hardware investment or installation. And with its centralised management capabilities, Layer 2 to Layer 4 QoS, Bandwidth allocation and other advanced features, managing your complex industrial networks has never been easier or more efficient! So why settle for an ordinary switch when you can have the rugged reliability of the 24 Port Managed Rugged PoE Switch? Get yours today and experience the power of true industrial-grade networking technology!

24 Port Managed Rugged PoE Switch
Ethernet Interface

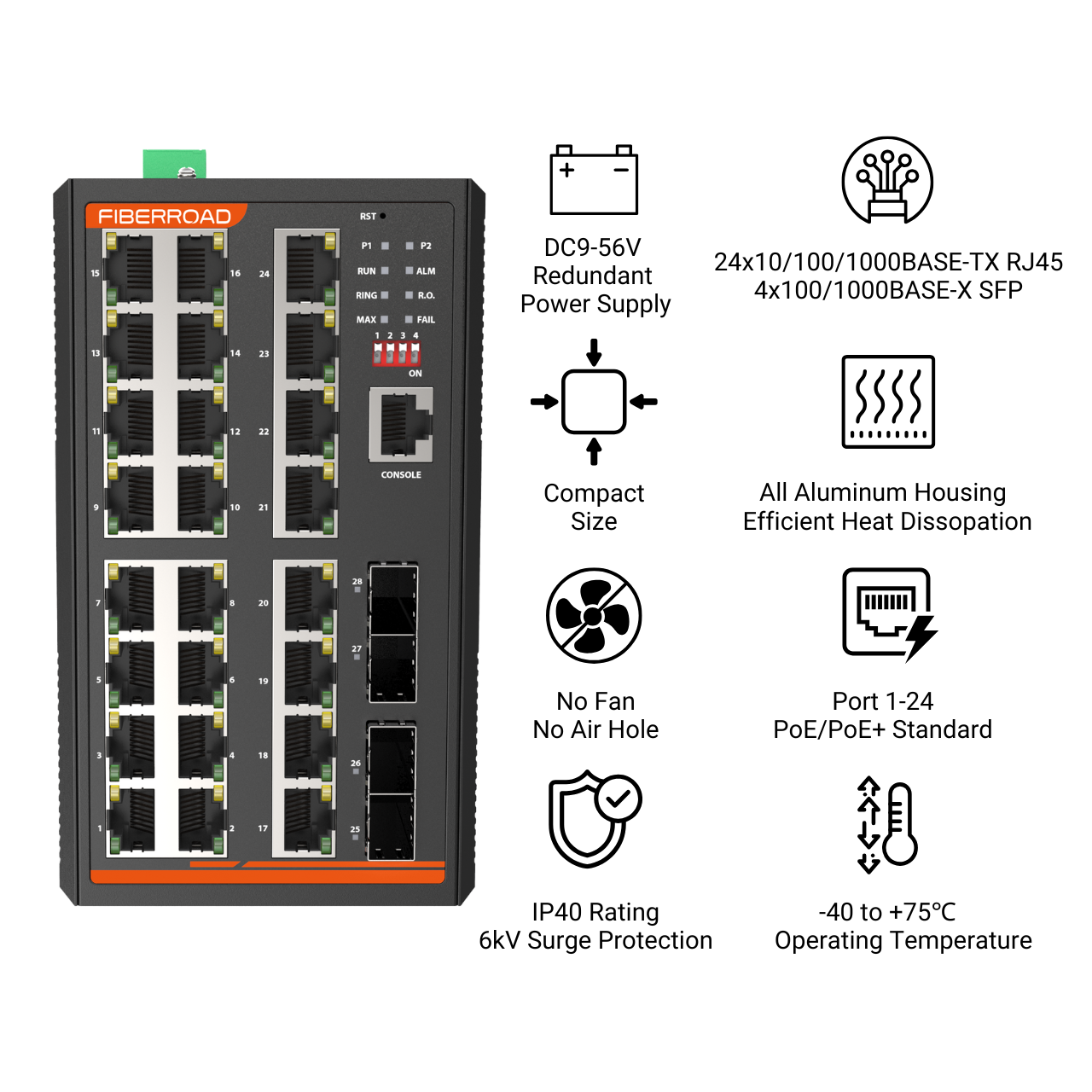

Model FR-7M3424P FR-7M348FP

24×10/100/1000M Base-TX RJ45

4X100/1000M Base-X SFP Uplink

16×10/100/1000M Base-TX RJ45

12×100/1000M Base-X SFP

Port Mode(Tx)


Full/Half Duplex Mode

Auto MDI/MDI-X Connection


IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X) and 100BaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

IEEE 802.3x for flow control

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1p for Class of Service

IEEE 802.1Q for VLAN Tagging

IEEE 802.1X for authentication

IEEE 802.3ad for Port Trunk with LACP

Packet Buffer Size 4Mbits
Maximum Packet Length Up to 10K
MAC Address Table 8K
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property

Delay time: < 7μs

Backplane bandwidth: 56Gbps

IGMP Group 4096
Max. No. of VLAN 256
VLAN ID Range VID 1 to 4094
Physical Characteristics
Housing Aluminium case
IP Rating IP40
Dimensions 155mmx128mmx88mm

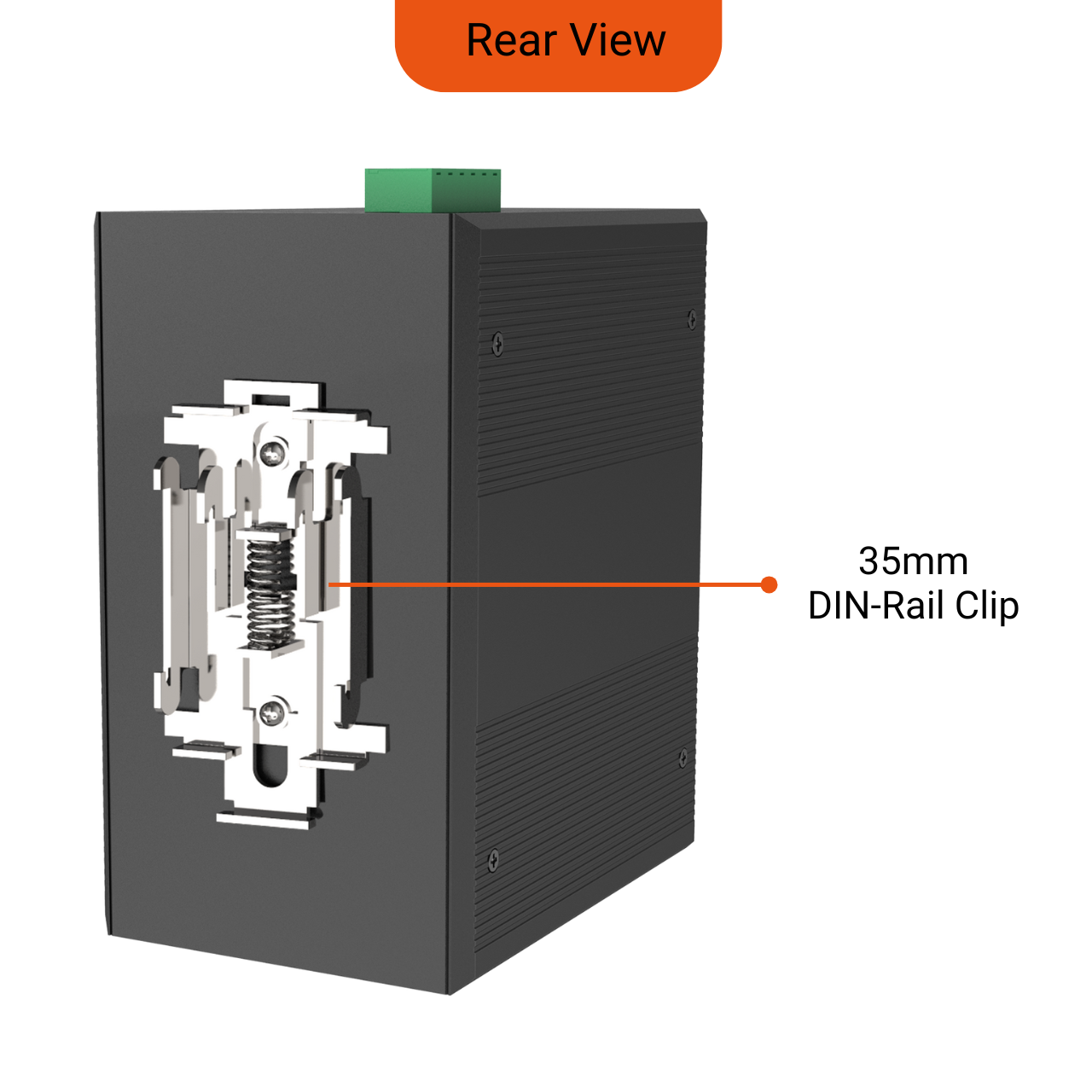

Installation DIN Rail/Wall Mount
Weight 1.35kg
Operating Temperature -40℃~75℃ (-40 to 167 ℉)
Operating Humidity 5%~95% (non-condensing)
Storage Temperature -40℃~85℃ (-40 to 185 ℉)
MTBF 907,476 hours @ Telcordia SR-332 Standard
Heat Dissipation 65 BTU/h (non-PoE mode)
Cooling Passive Cooling, Fanless Design
Noise Level 0 dBA
Ethernet Software Features
Redundancy Protocols Support STP/RSTP/ERPSv2, Link Aggregation
Multicast Support Support IGMP Snooping V1/V2/V3, support GMRP, GVMP,802.1Q
VLAN Support IEEE 802.1Q 4K VLAN, support QINQ, Double VLAN
Time Management SNTP

Flow-based redirection

Flow-based rate limiting

Flow-based packet filtering

8*Output queues of each port 802.1p/DSCP priority mapping

Diff-Serv QoS, Priority Mark/Remark

Queue Scheduling Algorithm (SP, WRR, SP+WRR)


Port-based Issuing ACL

ACL based on port and VLAN

L2 to L4 packet filtering, matching first 80 bytes message.

Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, VLAN, etc

POE Management (Depending on model)

Total power limit of PoE power supply

PoE output power allocation

PoE output priority configuration

PoE working status

Scheduling of PoE operation

Diagnostic Maintenance Support port mirroring, Syslog, Ping
Management Function Support CLI、WEB、SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT
Alarm Management Support 1 way relay alarm output, RMON, TRAP

Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0

Support DHCP Snooping, Option 82,802.1X security access,

Support user hierarchical management, ACL access control list,

Support DDOS,port-based MAC filtering/binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit

Advance Layer 2+ Features

IPv4/IPv6 Management

Static Route

PoE & Power Supply
Model FR-7M3424P FR-7M348FP FR-7M3424BT FR-7M348FBT
PoE Ports Port 1 to 16/24 IEEE802.3af/at @PoE+ Port 1 to 16/24 IEEE802.3af/at/bt @PoE++
Power Supply Pin Default: 1/2(+), 3/6(-) Default: 1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Max Power Per Port 30W 90W
Total PWR /Input Voltage 480W(DC48-56V) (Model dependent) 720W(DC48-56V) (Model dependent)
Power Consumption 24 Watts Max(without PoE load)
Power Inputs 2
Input Voltage 9-56VDC, Redundant dual inputs
Operating Voltage

Non-PoE Mode: 9-56VDC

30W PoE Mode: 48-56VDC

90W PoE Mode: 52-56VDC(IEEE802.3bt model)


1 removable 6-contact terminal blocks

Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

Protection Overload Current Protection, Reverse Polarity Protection
