Industrial PoE Network Switch with Optical Fiber Bypass
The New Generation Managed Industrial PoE Network Switch with 8-Port 10/100/1000Base-TX provide reliable Ethernet transmission. To prevent fibre network communication during power loss, The Industrial Switch has built-in 2-channel SC/FC/ST connectors for optical bypass. A managed industrial PoE network switch with optical fiber bypass supports various management functions, including Rapid Spanning Tree, Multiple Spanning Tree and Ethernet Ring Protection Switching (ERPS) protocols for network redundancy. The IGMP facility can handle the multicast traffic commonly used in Video Surveillance deployments.

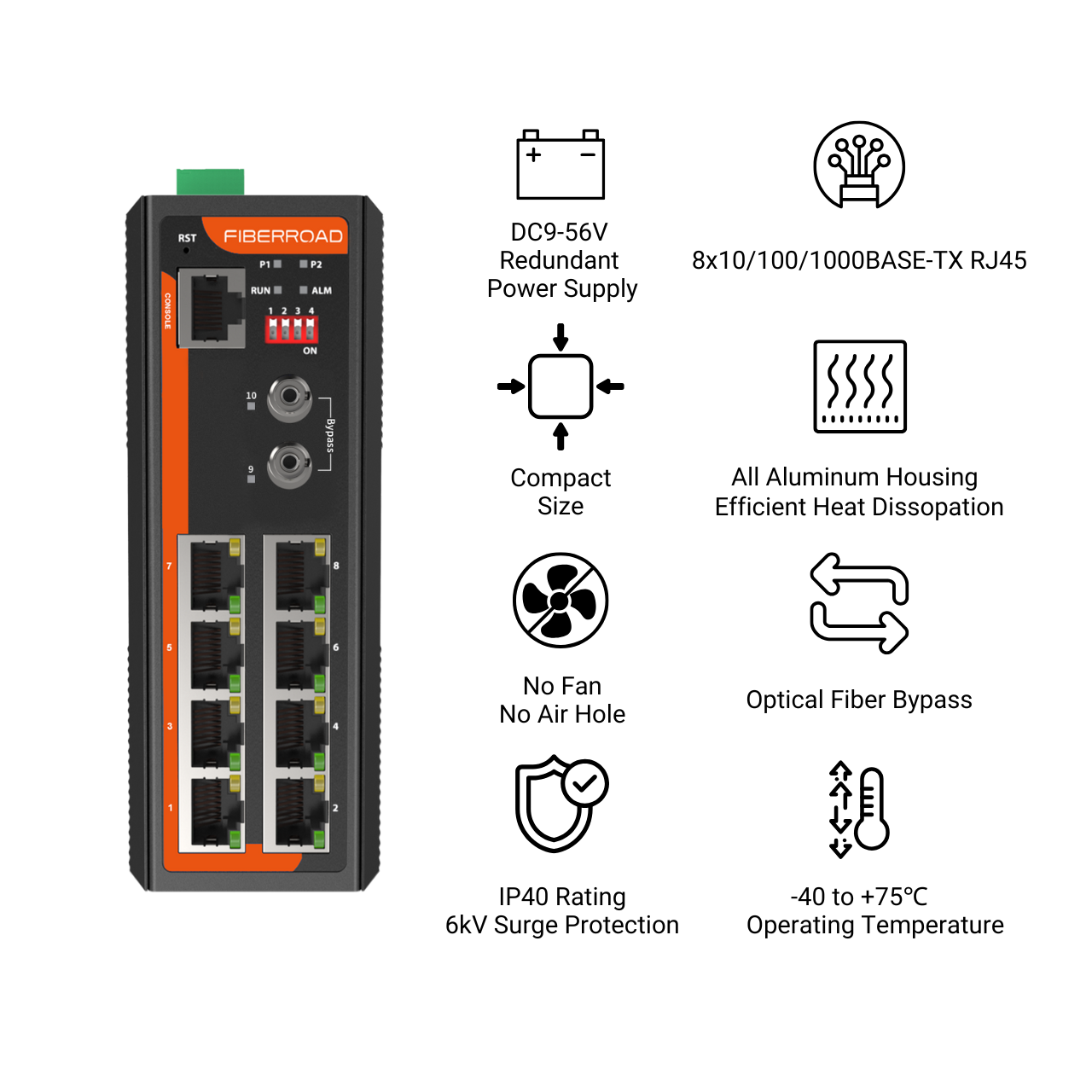

All-aluminum Case, Compact and Fanless Design
-40 to 75℃ temperature maintains performance in extreme conditions
DIN Rail and wall-mountable – quick to install and remove for maintenance
Full gigabit L2+ management, easy to manage the industrial network by CLI/WebGUI/NMS.
Build up a redundant network with STP/RSTP/MSTP/ERPSv2.
RADIUS, IEEE 802.1X, SNMPv3, HTTPS and SSH to enhance network security.
Bandwidth management prevents unpredictable network status with ”Lock Port” to restrict access to authorized MAC addresses.
QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR&SP+WRR
Optical Fiber Bypass Layer 2 Switch for Industrial Networks
Fiberroad L2+ Managed Industrial PoE Network Switch, was designed for industrial Power over Ethernet networks. It offers Layer 2 switching functions and Layer 3 static routing features in such a rugged enclosure. Industrial Ethernet switches operate consistently at temperatures between -40 and 75 degrees, allowing DIN rail mounting or wall mounting to utilize cabinet space efficiently.
Smart PoE Features
1. IEEE802.3af/at/bt standard automatically identifies power devices without damaging non-PoE devices.
2. Up to 90W for a PoE Port
3. PoE++ Switch port will supply power to
4. PoE output power allocation, Scheduling of PoE operation.
Advanced Layer 2+ Features
1. Build a redundant network with STP/RSTP/MSTP/ERPSv2.
2. IPv4/IPv6 Management and Static Route.
3. ACL Based on MAC, IP address,MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port
4. Retagging and complicated flow classification based
2. Support user hierarchical management, ACL control list
3. Port isolation within the same VLAN, DHCP-Snooping
4. DDOS, port-based MAC filtering/binding, MAC black holes, IP
COMPLETE SECURITY MECHANISMS
1. Web-based CloudMQTT to monitor the Industrial Network anytime, anywhere.
2. Command-line interface(CLI) and Firo WebGUI
3. SNMPv1/v2C/v3 for different levels of network management.
4. Web-based NMS support

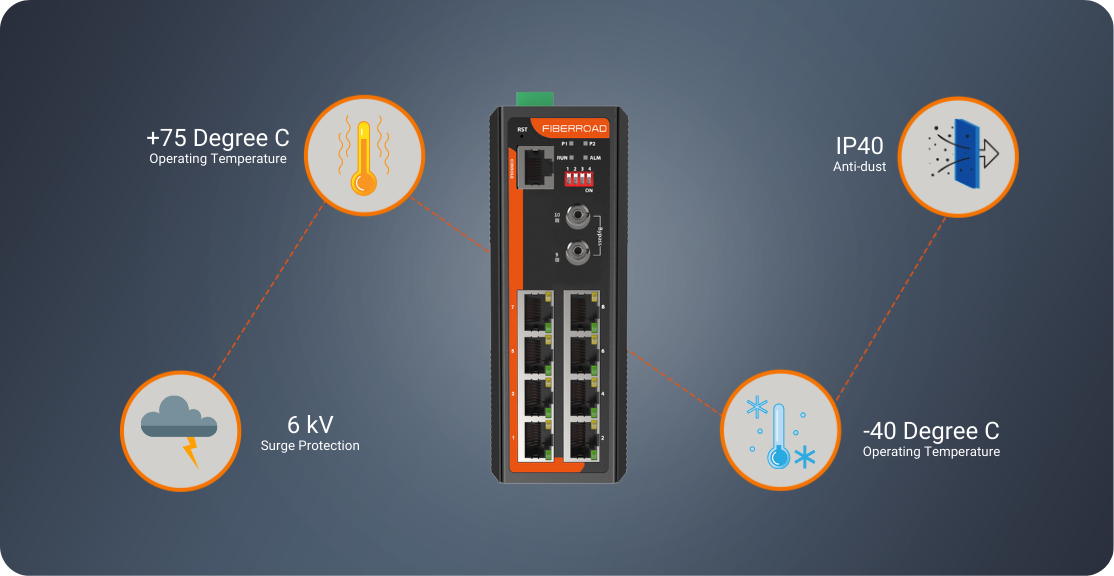

Extreme PoE Networks Switches are Useful in Harsh Environments
Despite its IP40 Durable Aluminum housing, no fan design can provide efficient heat dissipation. Industrial Power over Ethernet switches are commonly found on plant floors or curb-side traffic control cabinets, where electromagnetic interference and heavy electrical surges are protected. It is also equipped with an integrated power supply source (9–56V DC) for worldwide high availability applications requiring dual or backup voltage inputs. Indeed, The design of the switch ensures operates in Harsh Environment.
Maintaining PoE over Fiber Networks is Simple and Fast
Integrated 2 simplex ST/SC/FC connectors with 2-channel optical bypass. Fiber connections are supported in the optical fiber ports with speeds of 1Gbps. It automatically switches optic network traffic to prevent link failure during power loss. Additionally, it allows the local network switch to be replaced or removed without any downtime.
Establish a Secure Network with L2+ Industrial Gigabit Switches
FR-7M3208F provides robust Layer 2+ Gigabit networks connectivity, including but not limited to Static route, LAN network security, ACL/QoS policy… Moreover, By configuring ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power system in industrial automation networks to enhance system reliability and uptime in harsh environments. As can be seen, the Managed Industrial Switch is easy to manage and maintain.
Stay Connected to the Industrial Network any time, anywhere
Managed Industrial PoE Network Switch allows various network management methods, such as the WebGUI, CLI and NMS. Easy to use, especially without additional hardware investment and installation. An industrial PoE network switch can manage a network on a central level, manage the bandwidth allocation, monitor the bandwidth, and monitor performance in real-time.
SSH2.0 and HTTPS/TLS protocols are used to provide powerful protection against network threats. In addition to DHCP Snooping, IP Source Guard, ARP Inspection Protection, 802.1x port-based and MAC-based network access control, user hierarchical management, SNMPv3 authentication, and so The Industrial Network Switch administrator can now construct highly-secure corporate networks with considerably less time and effort than before.
2x1000Base-X Optical Fiber Bypass
2x1000Base-X (SFP Slots)
2x1000Base-X Optical Fiber Bypass
Full/Half Duplex Mode
Auto MDI/MDI-X Connection
2 x Simplex SC/FC/ST
Bypass Optic Mode,
Port 10: T1310/R1550nm 20km
Port 12: T1550/R1310nm 20km
Bypass Return Loss
Multimode: ＞50dB;Singlemode: ＞35dB
Bypass Insertion Loss
Typical: 1.0dB; Max: 1.5dB
Bypass Switching Time
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP
1x RJ45-to-RS232 Serial Port(115200)
Packet Buffer Size
Maximum Packet Length
Up to 9K
MAC Address Table
Store and Forward (full/half duplex mode)
Delay time: < 7μs
Backplane bandwidth: 20Gbps
Max. No. of VLAN
VLAN ID Range
VID 1 to 4094
PoE & Power Supply
Port 1 to 8 IEEE802.3af/at @PoE+
Port 1 to 8 IEEE802.3af/at/bt @PoE++
Power Supply Pin
Default: 1/2(+), 3/6(-)
Default: 1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Max Power Per Port
Total PWR /Input Voltage
240W(DC48-56V) (Model dependent)
480W(DC48-56V) (Model dependent)
10 Watts Max(without PoE load)
9-56VDC, Redundant dual inputs
Non-PoE Mode: 9-56VDC
30W PoE Mode: 48-56VDC
90W PoE Mode: 52-56VDC(IEEE802.3bt model)
1 removable 6-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm
Overload Current Protection, Reverse Polarity Protection
Optical Bypass Industrial PoE Switch_Product Data Sheet
