IIoT: A strong foundation for a Smart Lamppost

The smart lamppost is an essential element of the smart city. With IIoT installed, smart lampposts can provide more than just light and other integrated smart functions that benefit people nearby. A smart lamppost can provide wireless access, environmental monitoring, surveillance, lighting, and charging for electric vehicles. Smart Street Lighting offer benefits such as public safety, wireless network coverage, and reduced energy consumption.

Network redundancy
Data Security
Network Scalability

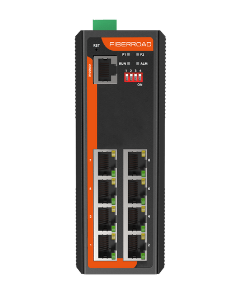

Fiberroad All-in-One Industrial Network Switch

  • Each PoE++ port can deliver up to 90 watts of power. It is compatible with wireless access points, IP cameras, and IP monitors.
  • 2xRS485/422/232 Serial Port with 2400-115200bps Baud Rate, which available to connect with IIoT Sensors
  • This optical SFP fiber has a bandwidth of 20G, which extends the network connection and increases bandwidth for higher performance.
  • MSTP/ERPSv2 enables you to build a redundant industrial Ethernet network. QoS allows you to prioritize specific high-performance applications, ensuring that overall data traffic flows smoothly.
  • Configure, Manage and Monitor each of the lamppost’s PoE switches via Fiberroad WebGUI, NMS and Cloud/MQTT. Standardized network management protocol provides conditions to manage smart lamp posts anytime, anywhere.
  • Comprehensive Security and Authentication strategy are utilized to provide powerful protection against network threats.


Ethernet Interface
Model FR-7M3208SBT FR-7M3008P
Ports 8X10/100/1000M Base-TX RJ452X100/1000M Base-X SFP Uplink

2XRS485/422/232(5-pin Serial Terminal

8×10/100/1000M Base-TX RJ45
Port Mode(Tx) Auto-Negotiation, Full/Half Duplex Mode, Auto MDI/MDI-X connection
Standards IEEE 802.3 for 10BaseT , IEEE 802.3u for100BaseT(X)100BaseFX, IEEE 802.3ab for 1000BaseT(X)IEEE 802.3z for 1000BaseSX/LX/LHX/ZX , IEEE802.3x for flowcontrol , IEEE 802.1D-2004 for Spanning Tree Protocol ,IEEE 802.1w for Rapid Spanning Tree Protocol , IEEE 802.1p for Class of Service ,IEEE 802.1Q for VLAN TaggingIEEE 802.1X for authentication , IEEE 802.3ad for Port Trunk with LACP
Packet Buffer Size 4Mbits
Maximum Packet Length Up to 10K
MAC Address Table 8K
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property Delay time: < 7μs , Backplane bandwidth: 56Gbps
IGMP Group 4096
Max. No. of VLAN 256
VLAN ID Range VID 1 to 4094
Physical Characteristics
Housing Aluminium case
IP Rating IP40
Dimensions 138mmx108mmx49mm
Dimensions DIN Rail/Wall Mount DIN Rail/Wall Mount
Weight 680g 680g
Operating Temperature -40℃~75℃ (-40 to 167 ℉) -40℃~75℃ (-40 to 167 ℉)
Operating Humidity 5%~90% (non-condensing)
Storage Temperature -40℃~85℃ (-40 to 185 ℉)
MTBF 907,476 hours @ Telcordia SR-332 Standard
Heat Dissipation 65 BTU/h (non-PoE mode)
Cooling Passive Cooling, Fanless Design
Noise Level 0 dBA
Ethernet Software Features
Redundancy Protocols Support STP/RSTP/ERPSv2 , Link Aggregation
Multicast Support Support IGMP Snooping V1/V2/V3 , support GMRP, GVMP,802.1Q
VLAN Support IEEE 802.1Q 4K VLAN , support QINQ, Double VLAN
Time Management SNTP
QOS Flow-based redirection , Flow-based rate limiting, Flow-based packet filtering8*Output queues of each port 802.1p/DSCP priority mapping , Diff-Serv QoS, Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR,SP+WRR)
ACL Port-based Issuing ACL , ACL based on port and VLAN ,L2 to L4 packet filtering, matching first 80bytes message. , Diff-Serv QoS, Priority Mark/RemarkQueue Scheduling Algorithm (SP, WRR, SP+WRR)Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, VLAN, etc
Diagnostic Maintenance Support port mirroring, Syslog, Ping
Management Function Support CLI , WEB , SNMPv1/v2/v3 , Telnet server for management ,
EEE, LLDP , DHCP Server/Client(IPv4/IPv6) , Cloud/MQTT
Alarm Management Support 1-way relay alarm output, RMON, TRAP
Security Broadcast Storm Protection, HTTPS/SSLv3, AAA &
RADIUS , SSH2.0 Support DHCP Snooping, Option 82,802.1X
security access , Support user hierarchical management,ACL access control list, Support DDOS , port-based MAC filtering/binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit

Your Guide to IIoT Applications


With the IIoT installed, monitoring sensors and cameras replace the work performed by human eyes, allowing critical data to be collected and transmitted to the cloud for remote management.

Tech Note

Power over Ethernet (PoE) is an emerging technology that allows networked devices to receive power via Ethernet connections. Its flexibility makes it an attractive choice for any smart IoT solution.

Application Note

Power over Ethernet (PoE) is an emerging technology that allows networked devices to receive power via Ethernet connections. Its flexibility makes it an attractive choice for any smart IoT solution.

Solution Conclusion

<p>Smart lamp posts are the foundation of a smart city. They integrate with IIoT Industrial Network devices, preventing recurrence, saving investment, reducing maintenance, and effectively using resources. Therefore, equipment such as charging piles, data acquisition, and forwarding equipment needs to be monitored to ensure the safety of road lighting and other operating conditions.</p>
