24 Port Managed PoE Switch with 2 Gigabit SFP Port

FR-5M3224P/BT is a new generation Power over Ethernet switch with 24-Port 10/100/1000Base-TX and 2xGigabit uplink ports that provide stable and reliable Ethernet transmission. With high-quality design and reliability. It can supply power to PD terminal equipment such as wireless AP, webcam, VoIP, and visual intelligent building intercom through network cable and meet the network environment that needs a high-density PoE/PoE+/PoE++ power supply. It is suitable for hotels, campuses, factory dormitories and small and medium-sized enterprises.



Feature

  • IEEE 802.3af/at/bt PoE Standard, without damaging not-PoE devices.

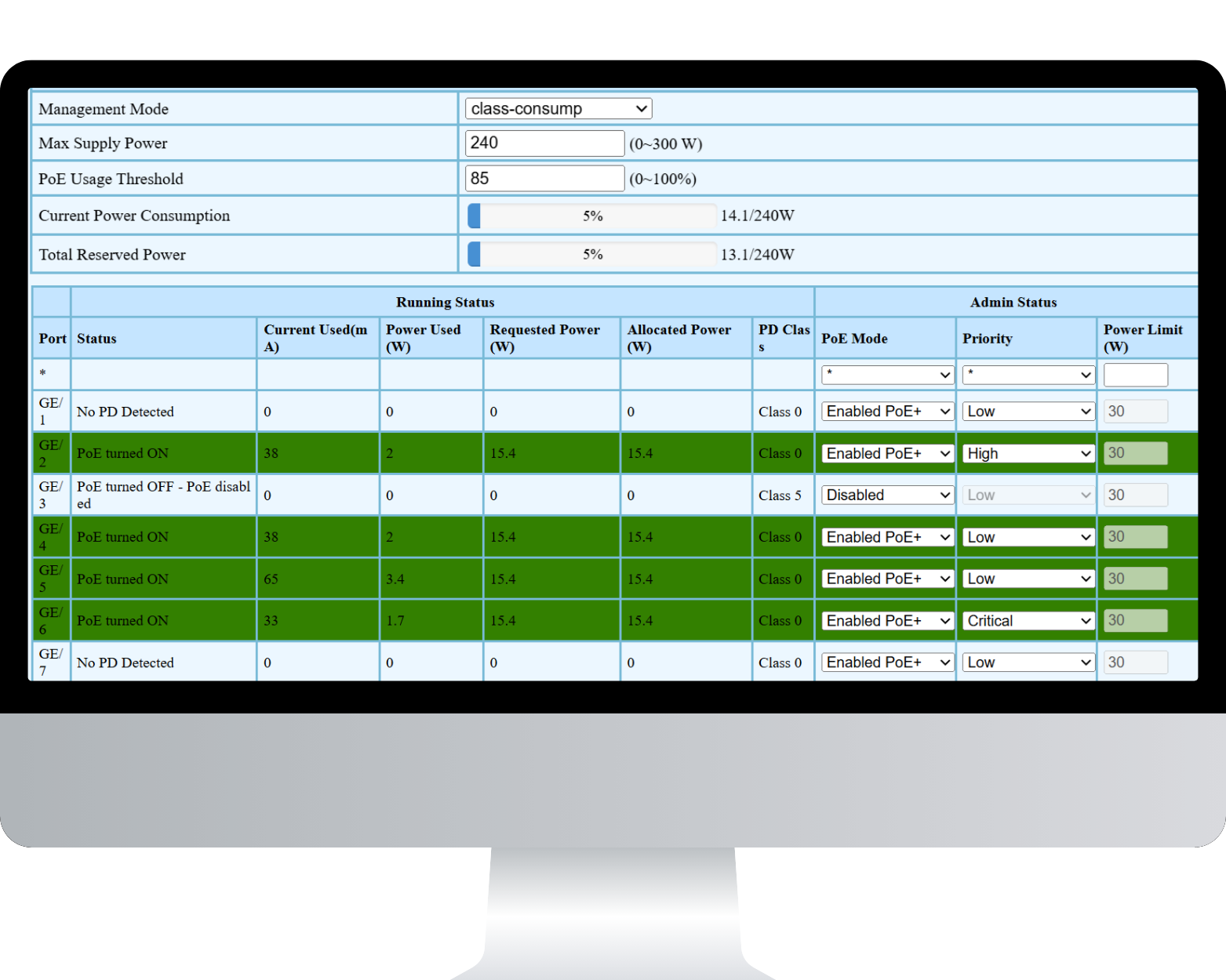

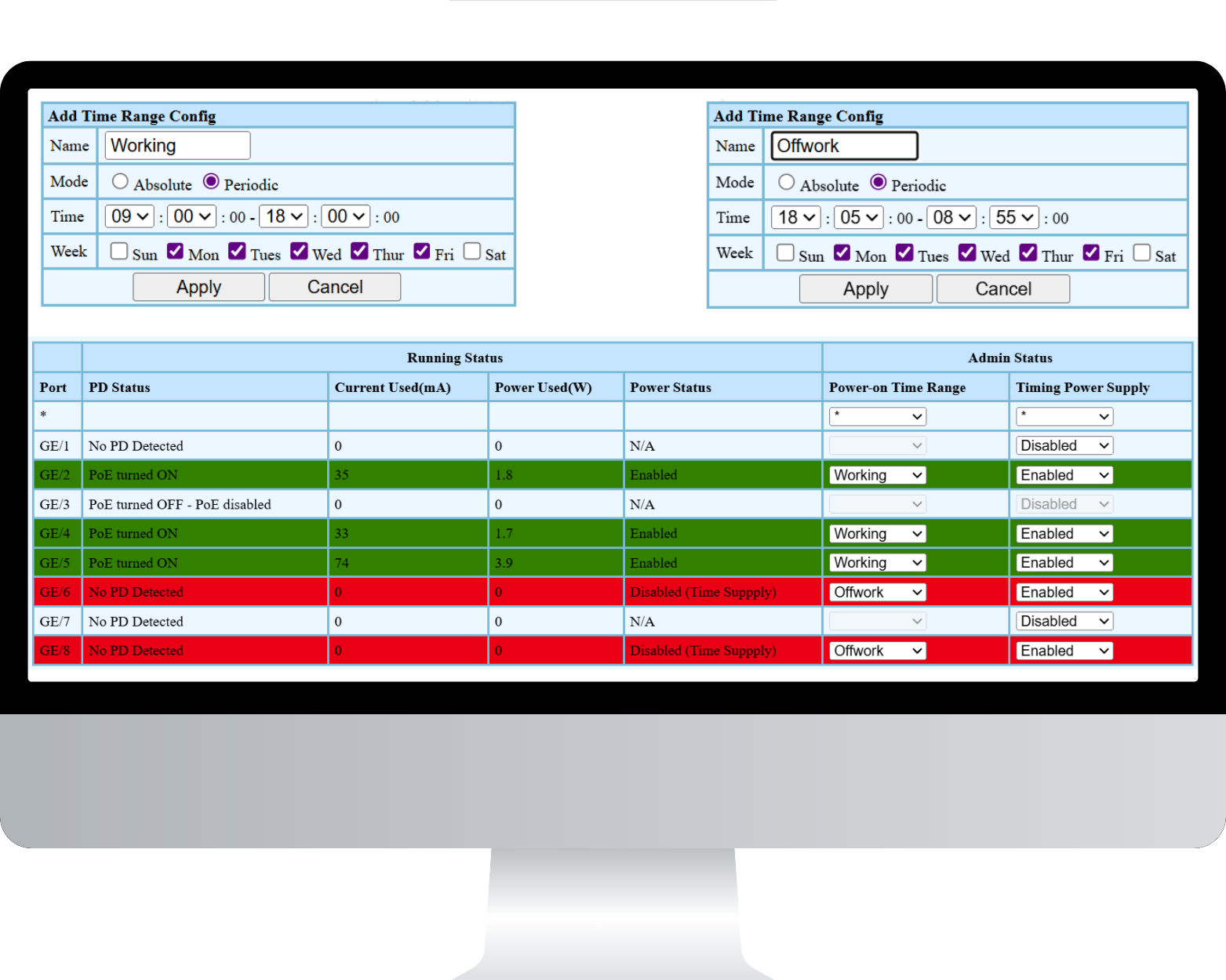

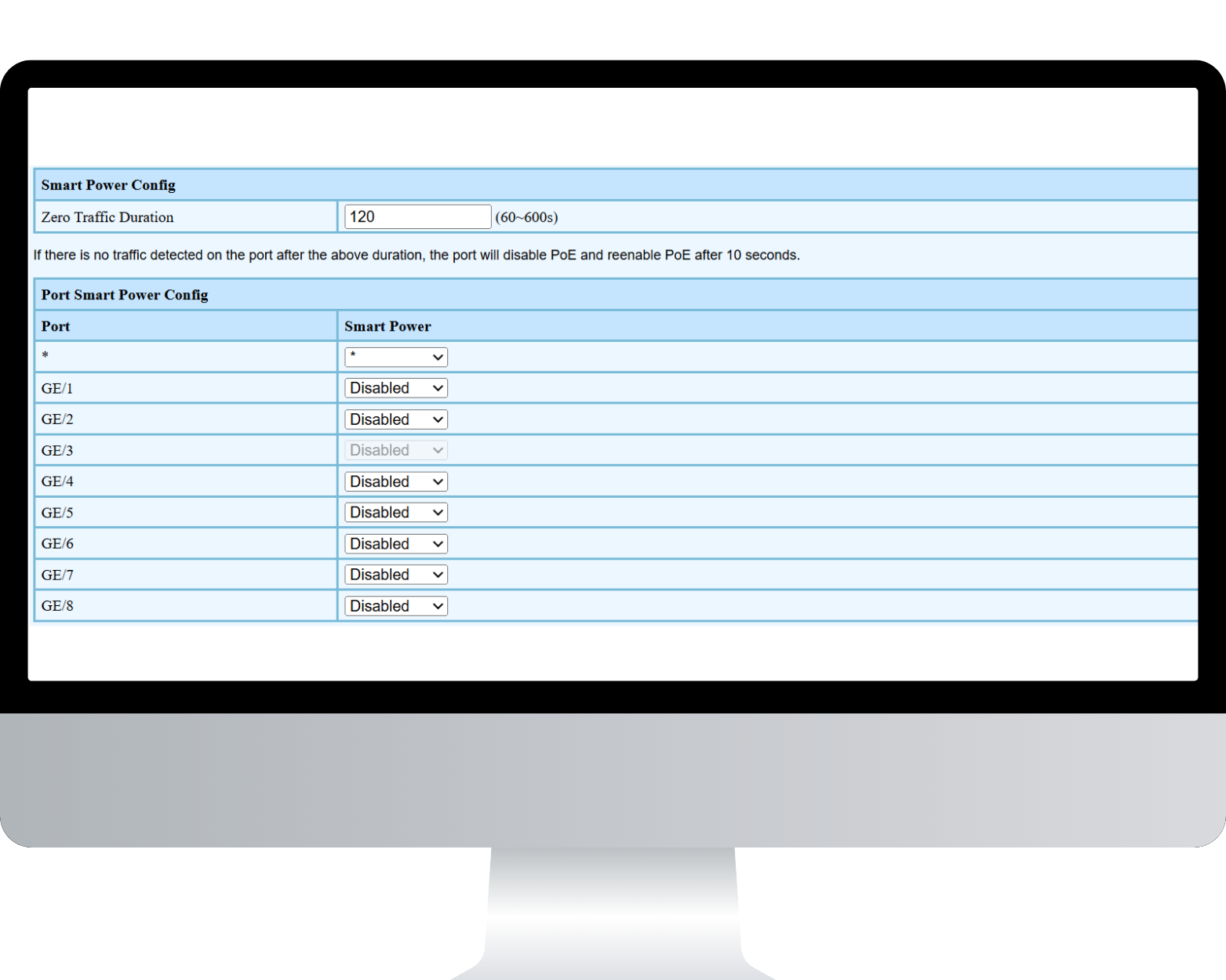

  • Advanced PoE management functions : PoE output setting, Smart PoE, PoE scheduling and PoE Budget Management.
  • Priority system for PoE Port, it will supply power to the high priority level port first when the power budget is insufficient.
  • Full gigabit L2+ management, easy to manage the PoE network by CLI/Cloud/WebGUI/NMS.
  • Build up an redundant PoE network with STP/RSTP/MSTP/ERPSv2.
  • RADIUS, IEEE 802.1X, SNMPv3, HTTPs and SSH to enhance network security.
  • Bandwidth management prevents unpredictable network status with ”Lock Port” to restrict access to authorized MAC addresses.
  • QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR&SP+WRR

Video Gallery

Quality Certifications
Guarantee
Share This Product

Why a 24 Port Managed PoE Switch is Ideal for Small to Medium-Sized Businesses

The 24 Port Managed PoE Switch is a powerful tool that any business looking to improve their network infrastructure should consider. With its ability to provide stable and reliable Ethernet connections, this switch ensures smooth data transmission throughout the entire office. In addition, the switch has enough capacity to power multiple PoE-compatible devices such as wireless APs, IP cameras, VoIP phones or visual intercoms. This means you can easily set up and maintain your network without having to worry about extra cords or bulky adapters cluttering up your workspace. Whether you’re running a small startup or managing a large corporation, this PoE switch provides all the features you need for efficient connectivity in one convenient package. So if you want to ensure that your business runs smoothly with minimal downtime due to poor network performance – look no further than the 24 Port Managed PoE Switch!

24 Port Managed PoE Switch

Exploring the Features and Capabilities of a High-Quality 24 Port Managed PoE Switch

The 24 Port Managed PoE Switch is an essential tool for network engineers who need to power their devices automatically. With its advanced technology and cutting-edge equipment, the 24 Port Managed PoE Switch ensures that your day runs smoothly and efficiently. This product is perfect for businesses looking to streamline their operations and improve productivity. Our team of experts has designed this switch with seamless integration in mind, making it easy to install and use right out of the box. The 24 Port Managed PoE Switch offers a host of features including VLAN support, QoS prioritization, and IGMP snooping that help ensure optimal performance across your entire network. Whether you are managing a small office or a large enterprise-level operation, this switch provides unmatched reliability, scalability, and flexibility to meet all your networking needs. At the 24 Port Managed PoE Switch we strive to provide our customers with only the best quality products backed by exceptional customer service – so why not upgrade today?

24 Port Managed PoE Switch

Make PoE Ethernet Network Manageable and Redundant

With Two 100M or 1000M fibre SFP uplinks and 24 Gigabit PoE Ethernet ports, the FR-5M3224P/BT has a non-blocking switch fabric and wire-speed forwarding for extremely large amounts of data.

The FR-5M3224P/BT Managed PoE switches bundle is a convenient and easy way to boost network efficiency, ensuring that there are no interruptions or external intrusions. This particular unit features an ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) feature. It also has redundant ring technology and a strong, rapid self-recovery capability with redundant power input systems to make the system more durable and reliable in complex network environments.

You can view the 24 Port Managed PoE Switch at anytime, anywhere

With the 24 Port Managed PoE Switch, you can have the convenience of viewing your switches anytime and anywhere. Whether you’re at home, in the office or on-the-go, this feature allows you to easily monitor and control your network devices with just a few clicks. No longer do you need to be physically present to check on any issues that may arise as everything is now accessible through an online interface. This means that even if there’s an emergency situation or a critical problem occurs within your network setup, you’ll be able to address it immediately without delay. With its advanced functionality and innovative design, the 24 Port Managed PoE Switch provides unparalleled flexibility and ease-of-use for all types of users.

24 Port Managed PoE Switch Network Management
Ethernet Interface
Model FR-5M3224P/FR-5M3224BT
Ports 2×Gigabit SFP Port

24×10/100/1000M Base-TX RJ45

Port Mode(Tx) Auto-Negotiation Speed

Full/Half Duplex Mode

Auto MDI/MDI-X Connection

SFP Port Transmission Multi-mode: 850nm/0-500M, Single-mode:1310nm/0-40km, 1550nm/up to 120km
RJ45 Port Transmission 100m(using standard CAT5/CAT5e cable )
Standards IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X) and 100BaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

IEEE 802.3x for flow control

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1p for Class of Service

IEEE 802.1Q for VLAN Tagging

IEEE 802.1X for authentication

IEEE 802.3ad for Port Trunk with LACP

Packet Buffer Size 4Mbits
Maximum Packet Length Up to 10K
MAC Address Table 8K
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property Delay time: < 7μs

Backplane bandwidth: 56Gbps; Packet Forwarding Rate:47.616Mpps

IGMP Group 4096
Max. No. of VLAN 256
VLAN ID Range VID 1 to 4094
Physical Characteristics
Housing Metal
IP Rating IP30
Dimensions 440mm*300mm*45mm
Installation Mode 1RU Chassis Rack-Mount Installation
Weight 4000g
Working Environment
Operating Temperature 0℃~50℃ (32to 122 ℉)
Operating Humidity 5%~90% (non-condensing)
Storage Temperature -20℃~70℃ (-4 to 158 ℉)
MTBF 100,819 Hours
MTBF Standard Telcordia SR-332 GB 25℃
Cooling Passive
Noise Level 0 dBA
Ethernet Software Features
Redundancy Protocols Support STP/RSTP/MSTP/ERPSv2, Link Aggregation
Multicast Support Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q
VLAN Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,
Time Management SNTP
QOS Flow-based redirection

Flow-based rate limiting

Flow-based packet filtering

8*Output queues of each port 802.1p/DSCP priority mapping

Diff-Serv QoS,Priority Mark/Remark

Queue Scheduling Algorithm (SP, WRR, SP+WRR)

ACL Port-based Issuing ACL

ACL based on port and VLAN

L2 to L4 packet filtering, matching first 80 bytes message.

Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc

POE Management Total power limit of PoE power supply

PoE output power allocation, on/off with at/af/bt

PoE output priority configuration

PoE working status

Scheduling of PoE operation

Diagnostic Maintenance Support port mirroring, Syslog, Ping
Management Function Support CLI、WEB、SNMPv1/v2/v3,Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT
Alarm Management Support 1 way relay alarm output, RMON, TRAP
Security Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0

Support DHCP Snooping, Option 82,802.1X security access,

Support user hierarchical management, ACL access control list,

Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit

Advance Layer 2+ Features IPv4/IPv6 Management

Static Route

PoE & Power Supply
Model FR-5M3224P FR-5M3224BT
PoE Ports Port 1 to 24 IEEE802.3af/at @PoE+ Port 1 to 24 IEEE802.3af/at/bt @PoE++
Power Supply Pin Default: 1/2(+), 3/6(-) Default: 1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Max Power Per Port 30W 90W
Total PWR 350W (Model dependent) 720W (Model dependent)
Power Consumption 24 Watts Max(without PoE load)
Power Inputs 1
Power Supply Internal power adapter with AC100 – 240V 50-60Hz input
Protection Overload Current Protection, Reverse Polarity Protection
