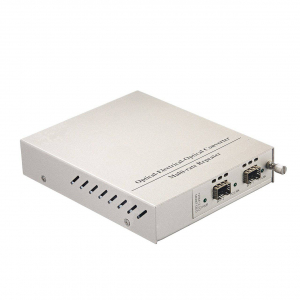

2.5G 1R SFP to SFP Transponder with SFP Slot to SFP Slot, which uses Optical-Electricity-Optical conversion principle to realize the optical optical signal amplification, and wavelength conversion, with coarse / dense wavelength division multiplexing together to realized WDM transmission. It is now possible to quickly improve communication capacity, expand the bandwidth on present network, while using low-cost, high cost-effective solutions to manage and run the system, easy operation.

Managed Conversion Platform – 2U 16 Slots Managed Converter Rack

The 2U 16 Slots Converter Rack is an Ethernet and SDH transmission equipment,support mutiple services including managed media converter card, OEO Converter card, 1+1 protection switching card, CWDM/DWDM MUX/DEMUX Card, etc., support protocols like SNMP, WEB, CONSOLE and TELNET , with strong management function, and operate easily to meet different customer’s requirement.

Cards can insert in 2U 16 Slots Managed Converter Rack:

• 10/100Base-TX to 100Base-FX Managed Media Converter Card
• 2-Port 10/100Base-TX to 100Base-FX Managed Media Converter Card
• 10/100/1000Base-TX to 1000Base-FX Managed Media Converter Card
• 2-Port 10/100/1000Base-TX to 1000Base-FX Managed Media Converter Card
• 125M~2.5G OEO Converter Card
• 125M~4.25G OEO Converter Card
• 10G Fiber Media Converter Card
• 10G OEO Converter Card
• 125M～11.7G OEO Converter Card
• 8.5G~11.7G OEO Converter Card (3R)
• 40G OEO Converter Card (3R)

Applications of 2.5G 1R SFP to SFP Transponder

Excellent Transponder Supporting Wavelength Conversion for WDM Networks

The optical transponder can convert 125M~2.5G Ethernet signals into a corresponding wavelength in CWDM and DWDM network infrastructures. It enables network operators to implement a wide range of media conversions in a compact and flexible design.

Optical Transponder for Fiber-Type Conversion and Optical Repeating

The optical transponder can be deployed in the seamless integration of different fiber types by converting multimode fiber to single-mode fiber, dual fiber to single fiber, and it can also be used as a repeater to convert the weak optical signals into the strong optical signal for continuous

Available for All-in-One Multi-Service Transport System

As a part of multi-service transport system, hot-swappable pluggable 2.5G 1R SFP to SFP Transponder Card only occupies 1 slot in the 2U chassis, and it allows the backbone of the network to be flexible and easier to be managed and maintained. Our transponders are available in two form factors, chassis-based slide-in cards and stand-alone converters, allowing you the most flexibility for your network. Our transponders also utilize both fixed optics and Small Form-Factor Pluggable (SFP) transceivers allowing you to customize each converter for the cable type you are using. View the different form factors as below:

Chassis-based slide-in (Local Side)	Remote Standalone (Remote Side)

Comprehensive Management System Built to Reduce Complexity

Our Monitor Online based on SNMP is a user-friendly and remote network management system. It monitors network performance, and provisioning, provides fault notification status, etc. The management system simplifies provisioning of complex networks and services that address today’s and tomorrow’s network management challenges.

SNMP Management

Web Management
