100G CFP/CFP2 Optical Transceivers

  • Hot-pluggable QSFP28 form factor
  • High capacity: up to 103.1 Gbps
  • QSFP28 MSA Compliant
  • Single 3.3V Power Supply
  • Power dissipation < 3.5 Watts
  • RoHS Compliant
  • Digital Diagnostic Monitoring
  • 100GBase-SR4: 4 x 25 Gbps, 850nm, Multimode, 100 m over OM4, MPO
  • 100GBase-LR4: 4 x 25 Gbps, WDM wavelength, Single Mode, 10 km, Duplex LC

Video Gallery

Share This Product

100G QSFP28 series includes SR4, CWDM4, LR4 and ER4 lite, using LC or MPO receptacle, with the features of QSFP28 MSA Compliant, IEEE802.3bm Compliant, low power consumption and high reliability, suitable for 100G data center network and OTN network. Cisco Compliant 100G QSFP28 The QSFP28 100GBase-X optical transceivers are hot-swappable pluggables that can be installed in any QSFP28 port for 100 Gigabit Ethernet connections. The new generation of 100G transceiver solutions, which are compliant with the IEEE 802.3bm standard, offer customers a wide selection of high-density, compact footprint and low-power 100G Ethernet connectivity options. Applications • 100G Data Center Connectivity • 100G Aggregation and Backplane Applications • 100Gbase-X Ethernet 100G QSFP MODULE FEATURES MSA Standard QSFP28 Form Factor Smallest form factor transceiver among those capable of handling 100Gig traffic, to maximize the density of optical transceiver ports on the switch to offer maximum channel count and lowest cost per bit traffic for customer IEEE 802.3bm Compliant Provides up to 103.1Gbps data rate, interoperable with other IEEE 802.3bm compliant 100Gbase interfaces Cisco Compatibility – Guaranteed The 100G QSFP28 complies with MSA standards, also fully complies with OEM (such as Cisco) equipment without requiring a workaround and is truly “plug-and-play”. 100GBase-SR4 Good fit for short-range multi-lane data communication and interconnection. Integrated four lanes which can operate at 25Gbps up to 70m over OM3 Multimode fiber or 100m over OM4 fiber terminated with MPO connectors. Provides reliable long life, high performance 100Gig optical links over 12-fiber parallel cable 100GBase-LR4 Uses standard Duplex LC connectors and utilizes existing structured single mode fiber to transmit 100Gig up to 10km. The module converts 4 input channels of 25Gbps data to 4 channels of LAN WDM optical signals and them multiplexes them into a single channel for 100Gbps optical transmission with the built in Mux/Demux function, the receiver side de-multiplexes a 100Gbps optical LAN WDM input into 4 optical signals. Low Power Consumption Less heat dissipation to meet the harshest external operating temperature conditions and provides cost savings and is environment friendly Digital Diagnostic Monitoring Allows access to real-time operating parameters, provides component level monitoring, fault isolation and failure prediction functions on their transceiver based applications

Part No. Description Wavelength Distance Rate Transmitter/Receiver

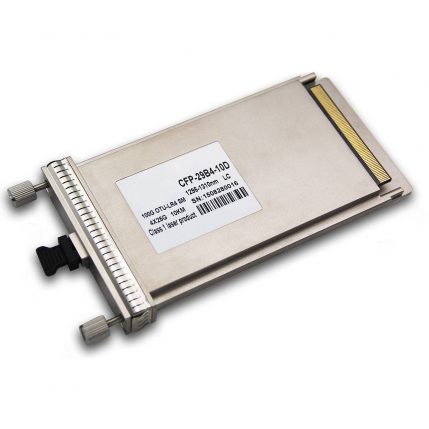

FRBX-CL311C CFP LR4 1310nm 10km 100Gb/s LAN WDM / PIN
FRCX-CL311C CFP2 LR4 1310nm 10km 100Gb/s LAN WDM / PIN

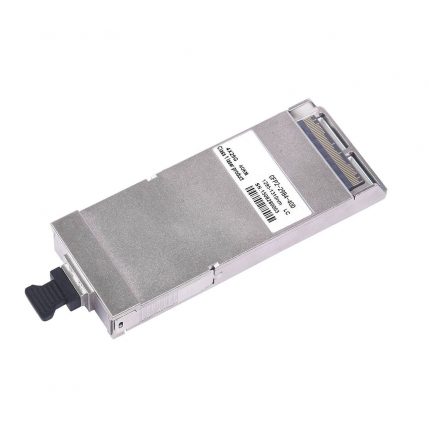

FRCX-CL341C CFP2 ER4 1310nm 40km 100Gb/S LAN WDM / PIN
FRAX-CL311C CFP4 LR4 1310nm 10km 100Gb/s LAN WDM / PIN
