40G QSFP+ Transceivers
40G QSFP+ series optical transceivers include 150m / 400m SR4, 2km/10km/30km LR4, using LC or MPO receptacle, with the features of IEEE802.3bm, SFF-8436 Compliant, low power consumption and and high reliability, suitable for 40G ethernet and data center.
 |
 |
 |
 |
 |
|---|---|---|---|---|
| SFP Transceivers | SFP+ Transceivers | XFP Transceivers | QSFP28 Transceivers | CFP/CFP2 Transceivers |
Video Gallery
Share This Product
- Electrically hot-pluggable
- Full Digital Diagnostics Monitor Interface
- Compliant with QSFP+ MSA
- Case operating temperature range:0°C to 70°C
| Part No. | Description | Wavelength | Distance | Rate | Transmitter/Receiver |
|---|---|---|---|---|---|

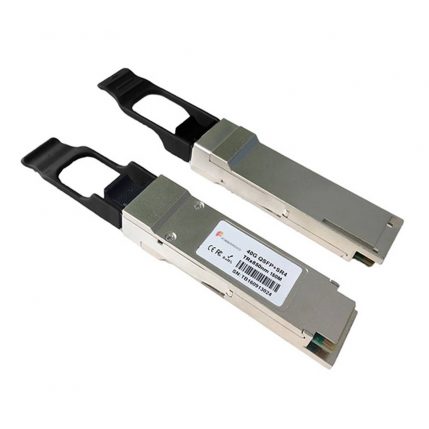

| FRQX-QL1R2x | QSFP+ SR4 | 850nm | 150m | 40Gb/s | VCSEL / PIN |

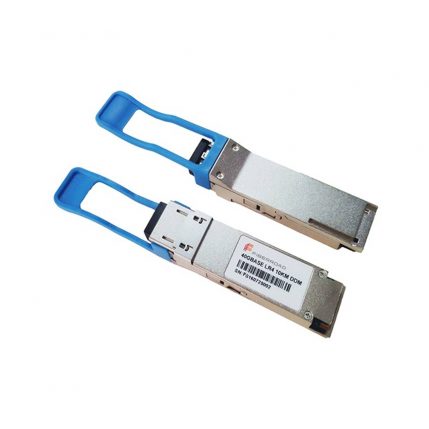

| FRQX-QLC11C | QSFP+ LR4 | 1310nm | 10km | 40Gb/s | EML / PIN |
| FRQX-QLC31C | QSFP+ ER4 | 1310nm | 30km | 40Gb/s | EML / PIN |
