• Advanced Optical Service Channel (OSC) protocol fast and reliable link failover protection Point-to-point (P2P) WDM ring SFP interfaces Single-span support 40dB loss Cluster Discovery Protocol – access every shelf in a WDM cluster from any shelf without the need for a static network map or address table
• Alarm Management The current alarm query and display Historical alarm information query and display Alarm reporting shield Alarm Display Filter Alarm acknowledgment Alarm Severity Table Management Voice alarms, e-mail alerts, SMS alerts Mobile Client Management
• Security Linux operating system, open source advanced management methods High security management environment Multiple users can concurrently access, without compromising overall security. Support online upgrade,Future module upgrades are installed easily through remote firmware and programmable logic microcode downloads.
• Multiple management modes SNMPv1,SNMPv2,Web,Telnet Etc. secure remote in-band management mode
• Out-of-band CLI management Graphical User Interface (GUI) management Complete Java-based embedded management GUI Fully graphical interface management Realistic simulation of the actual network topology of the whole network, real-time reflection of the whole network running, the whole network running at a glance Device panel view, the view interfaces, LED lights, and other information with the device actually consistent view of the panel, easy management, device status at a glance. Supports manual and automatic topology discovery topology rendering, and can be modified topology attribute

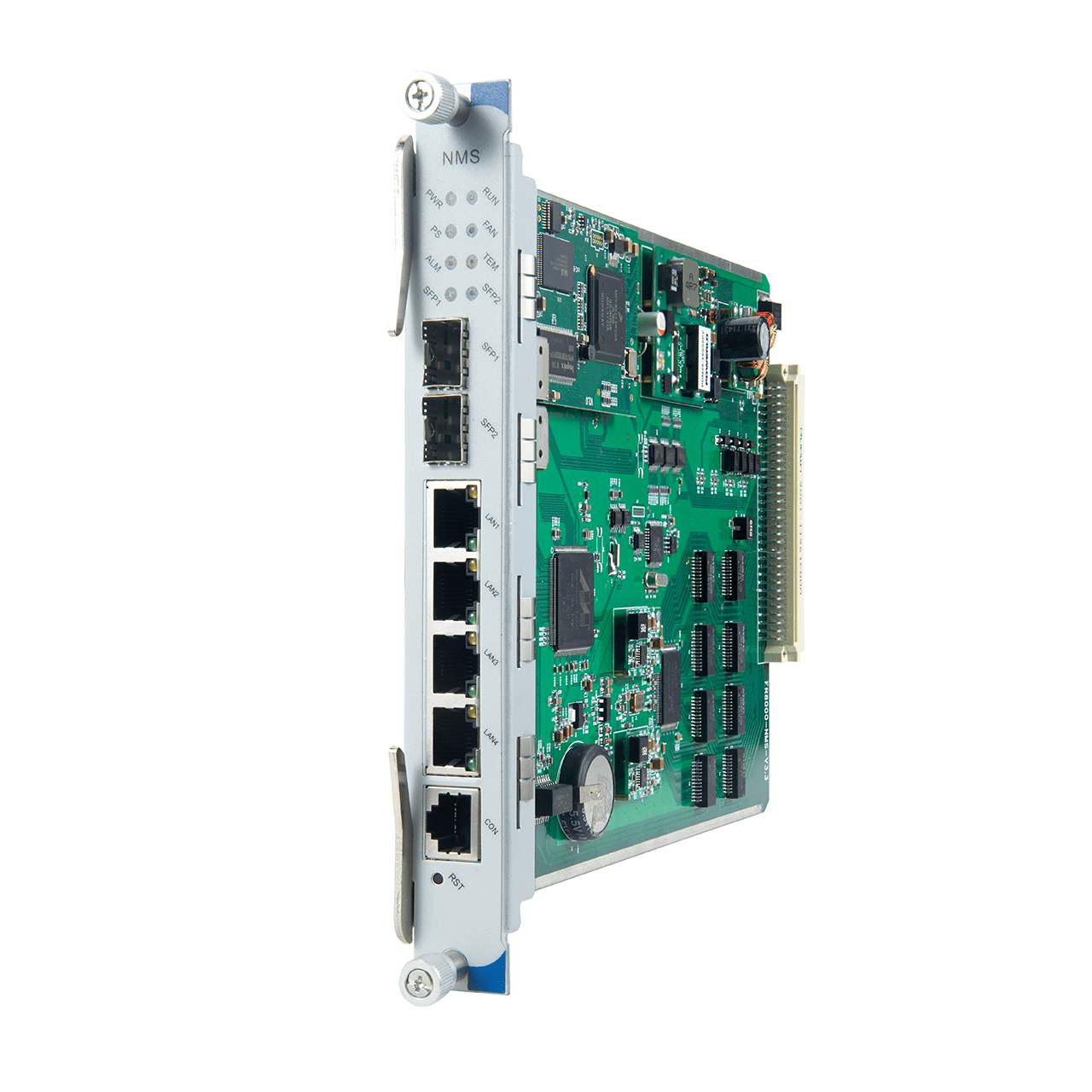

• Support electronic map downloads Multiple front panel ports for management access One RS-232 port provides local out-of-band serial access Four 10/100Base-TX management interface port with auto negotiation and auto MDI/MDIX – easy integration into existing Ethernet networks, provide in-band access remotely from any network workstation. Dual 100Base-FX SFP-based interfaces – easy integration into ‘gray’ or CWDM/DWDM optical networks, able to direct East-West WDM ring OSC , provide in-band access remotely from any network workstation.
• Extensive management features FR8000 chassis, module, and port management Secure end-to-end network management Installed module types ,Link status, Optical performance monitoring (including OSNR monitoring ) Fully supports Digital Diagnostics information Monitors the devices’ operating temperature, power supply status, fan status Remote laser shutoff and remote module reset Enables loop-back functionality for troubleshooting Configuration of data rate and wavelength selection as well as other module specific parameter settings. SNMP traps Settings Syslog – automatic logging of system events Editable ASCII configuration files – easily create, edit,and save configuration settings System configuration TFTP upload and download – save configurations on remote servers for easy retrieval and restoration Remote configuration and software maintenance – System configuration FTP upload/download with easy- to-use editable ASCII configuration files

OTN Systems chassis compatibility

Part No.	FR-8010	FR-8015	FR-8025	FR-8060
Client Interface	1U Access, 1-slot	1.25U Access, 4-slots	2.5U Access, 7-slots	6U Access, 15-slots
Power Interface	2-Slots in back panel for power supply modules			4-Slots in back panel
Mgmt Interface	Built-in	1-slot in back panel	1-slot in front panel
Unit LEDs	Power & In-Use LED’s for each power supply(with use of optional LED module)
Dimensions(mm)	430(D)x315(W)x45(H)	430(D)x365(W)x55(H)	430(D)x350(W)x114(H)	430(D)x355(W)x265(H)
Power	Two open bays for Chassis power modules, supporting Universal Input 100-240V VAC, or -48V VDC The dual power supplies can function in instant Fail-Ocer Mode or Load Share Mode
Environment	0~50CHumidity: 5%~95% non-condensing;0-10,000 ft.altitude
Net Weight	4.2kg	4.6kg	5.2kg	15.0kg
