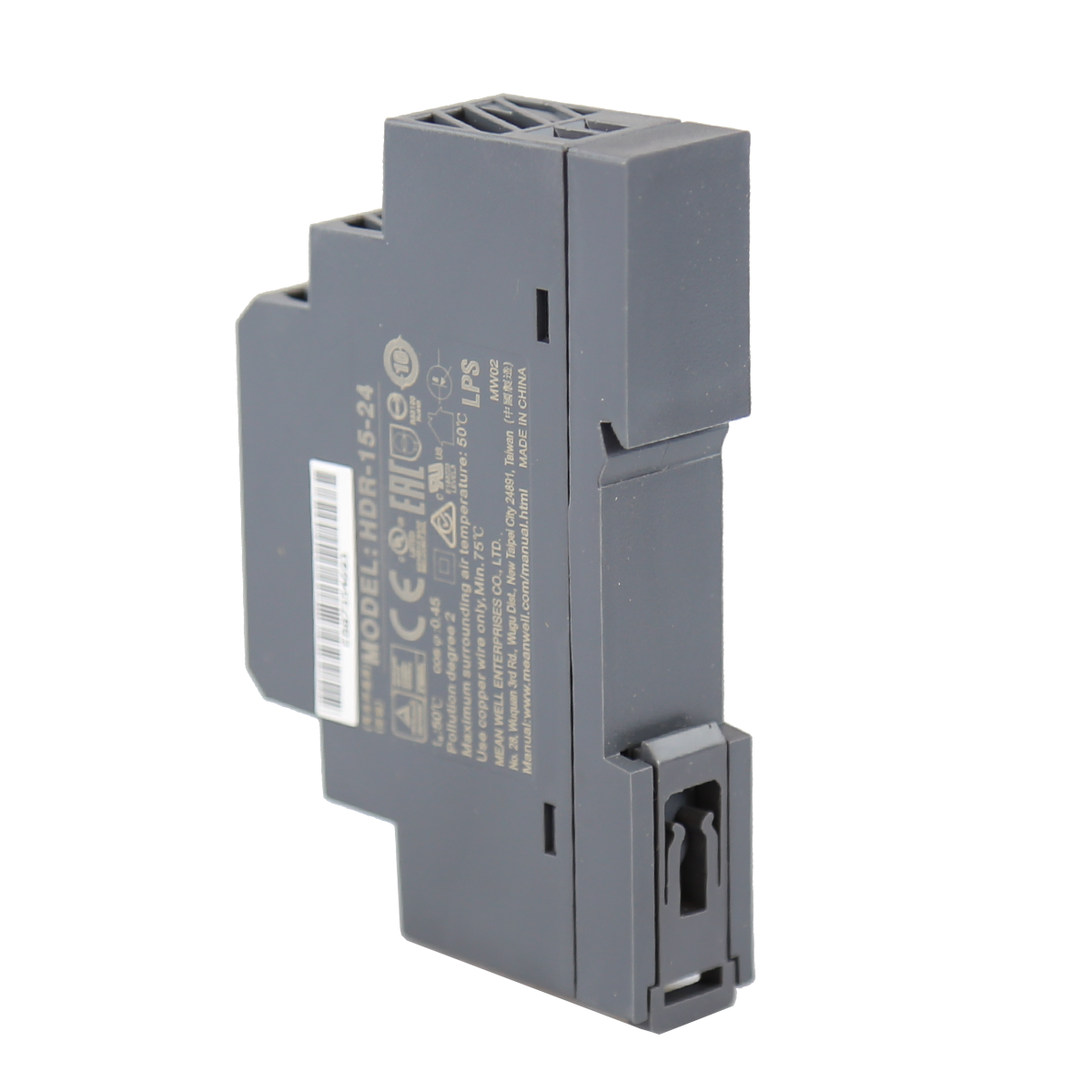

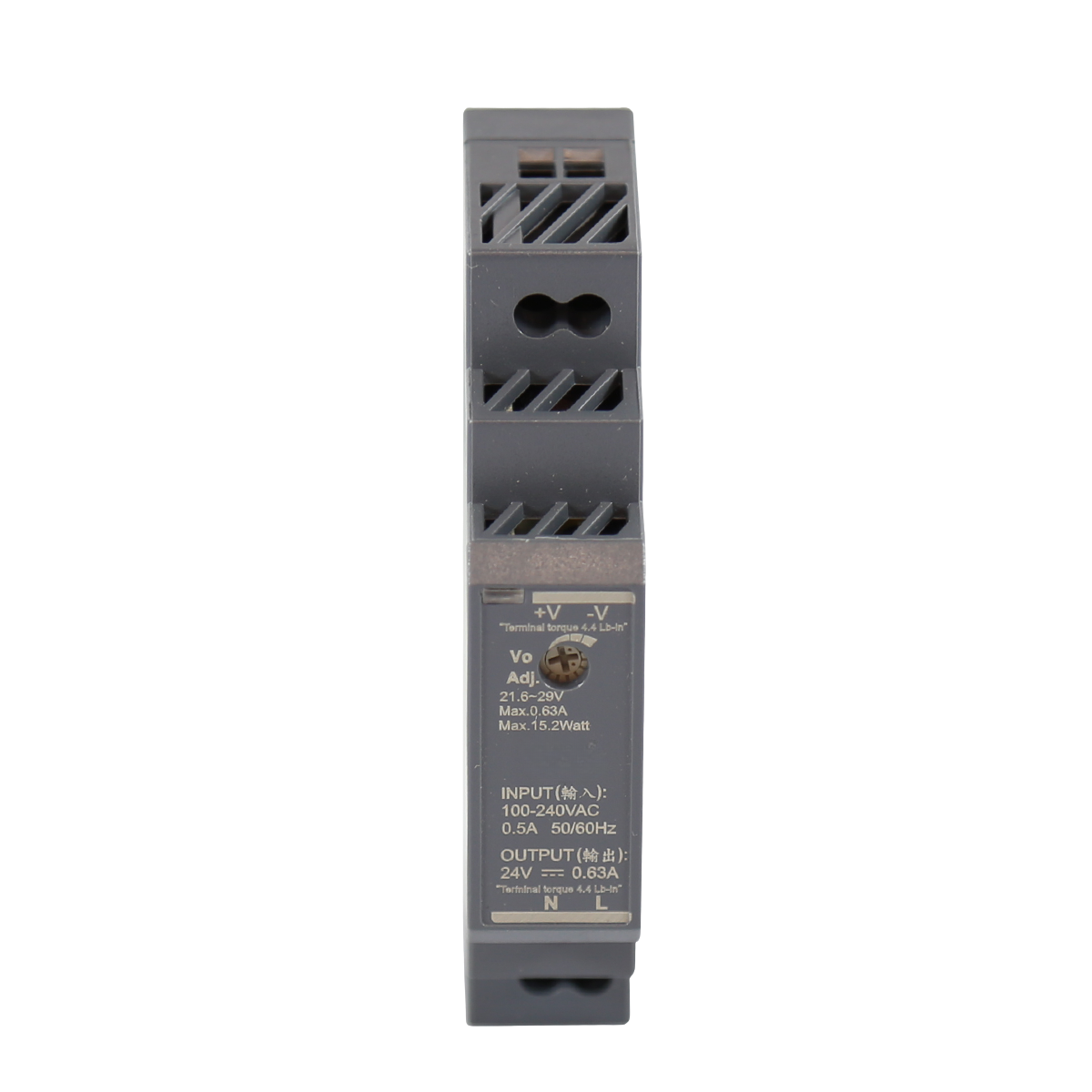

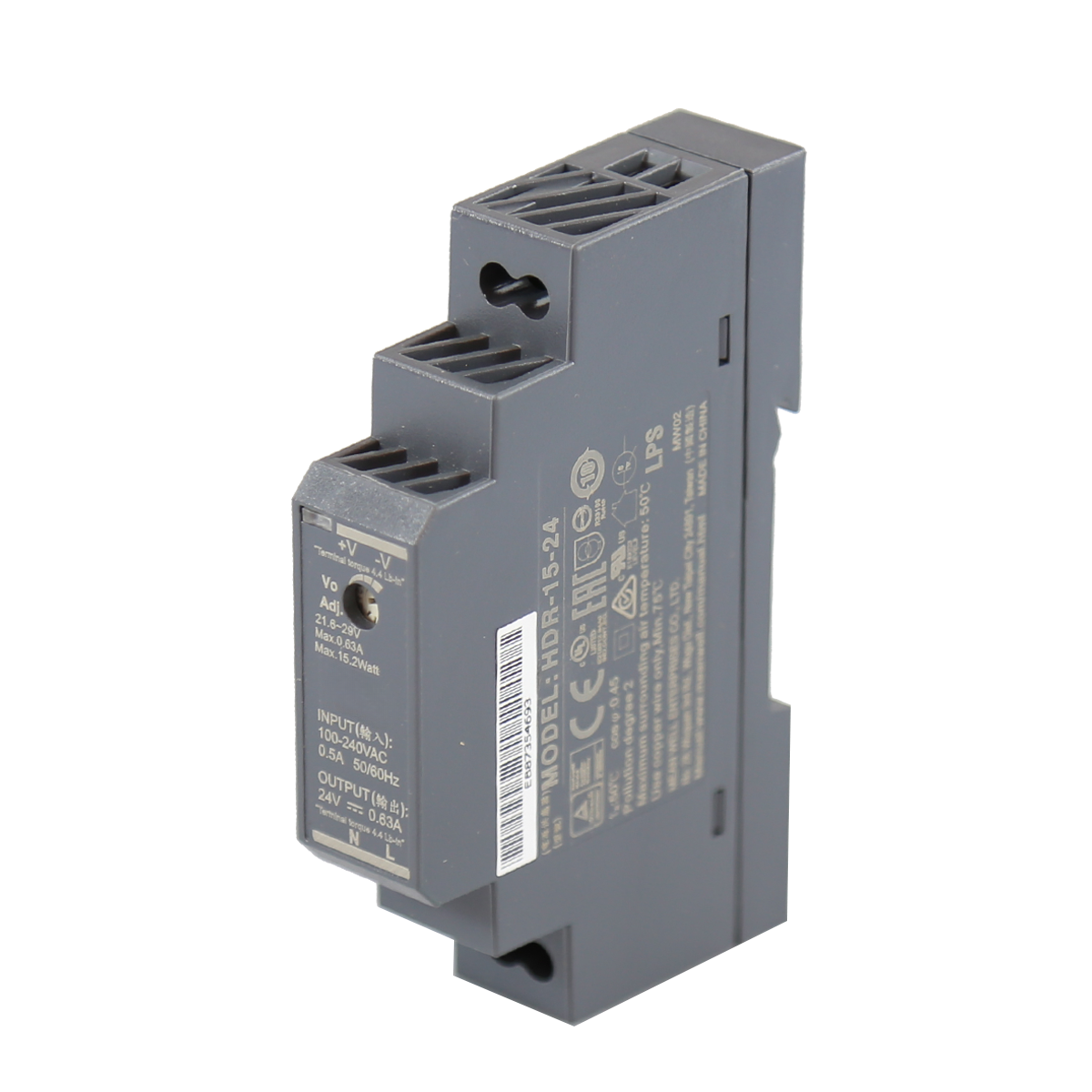

Specifications
| MODEL | HDR-15-5 | HDR-15-12 | HDR-15-15 | HDR-15-24 | HDR-15-48 | |
|---|---|---|---|---|---|---|
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 2.4A | 1.25A | 1A | 0.63A | 0.32A | |
| CURRENT RANGE | 0-2.4A | 0-1.25A | 0-1A | 0-0.63A | 0-0.32A | |
| RATED POWER | 12W | 15W | 15W | 15.2W | 15.4W | |
| RIPPLE & NOISE (max.) Note.2 | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | |
| VOLTAGE ADJ. RANGE | 4.5-5.5V | 10.8-13.8V | 13.5-18V | 21.6-29V | 43.2-55.2V | |
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 2000ms, 80ms/230VAC 20000ms, 80ms/115VAC at full load | |||||
| HOLD UP TIME (Typ.) | 30ms/230VAC 12ms/115VAC at full load | |||||
| INPUT | VOLTAGE RANGE | 85-264VAC (277VAC operational) 120-370VDC (390VDC Operational) | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| EFFICIENCY (Typ.) | 80% | 85% | 85.5% | 86% | 87% | |
| AC CURRENT (Typ.) | 0.5A/115VAC 0.25A/230VAC | |||||
| INRUSH CURRENT (Typ.) | COLD START 25A/115VAC 45A/230VAC | |||||
| PROTECTION | OVERLOAD | 110 ~ 145% rated output power Hiccup mode when output voltage ＜50%, revocers automatically after fault condition is removed Constant current limiting within 50%-100% rated output voltage, recovers automatically after fault condition is removed |
||||
| OVER VOLTAGE | 5.75-7.5V | 14.2-16.2V | 18.8-22.5V | 30-36V | 57.6-67.2V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to “Derating Curve”) | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%/±℃(0 ~ 50 )℃ | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X,Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |||||
| OPERATING ALTITUDE | 2000 meters | |||||
| OVER VOLTAGE CATEGORY | III; According to EN61558, EN50178, EN60664-1, EN62477-1; altitude up to 2000 meters | |||||
| SAFETY & EMC (Note 4) |
SAFETY STANDARDS | UL62368-1, U508,TUV EN61558-2-16 ,IEC62368-1, , BSMI CNS15598-1 a BS EN/ L , pproved; BS EN/EN61558-1 EACTPTC 004 Design refer to TUV BS EN62368-1 | ||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH | |||||
| EMC EMISSION | Parameter | Standard | Test Level / Note | |||
| Conducted | BS EN/EN55032(CISPR32), CNS15936 | Class B | ||||
| Radiated | BS EN/EN55032(CISPR32), CNS15936 | Class B | ||||
| Harmonic Current | BS EN/EN61000-3-2 | Class A | ||||
| Voltage Flicker | BS EN/EN61000-3-3 | —— | ||||
| EMC IMMUNITY | BS EN/ BS EN/ BS EN/ EN55035, EN61000-6-2, EN61204-3 | |||||
| Parameter | Standard | Test Level / Note | ||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact, criteriaA | ||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 3, criteriaA | ||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, criteriaA | ||||
| Surge | BS EN/EN61000-4-5 | Level 4,2KV/L-N, criteriaA | ||||
| Conducted | BS EN/EN61000-4-6 | Level 3, criteriaA | ||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4, criteriaA | ||||
| Voltage Dips and interruptions | BS EN/EN61000-4-11 | ＞.95% dip 0 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods |
||||
| OTHERS | MTBF | 3670.4K hrs min. Telcordia SR-332 (Bellcore) ; 1166.1K hrs min. MIL-HDBK-217F (25℃ ) | ||||
| DIMENSION | 17.5*90*54.5mm (W*H*D | |||||
| PACKING | 74g;160pcs/12.9Kg/1.09CUFT | |||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1 μ F & 47 μ F parallel capacitor. 3. Tolerance includes set up tolerance, line regulation and load regulation. 4. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf) 5. The ambient temperature derating of 3.5°C/1000m with fanless models and of 5°C/1000m with fan models for operating altitude higher than 2000m(6500ft). Product Liability Disclaimer: For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx |
|||||
