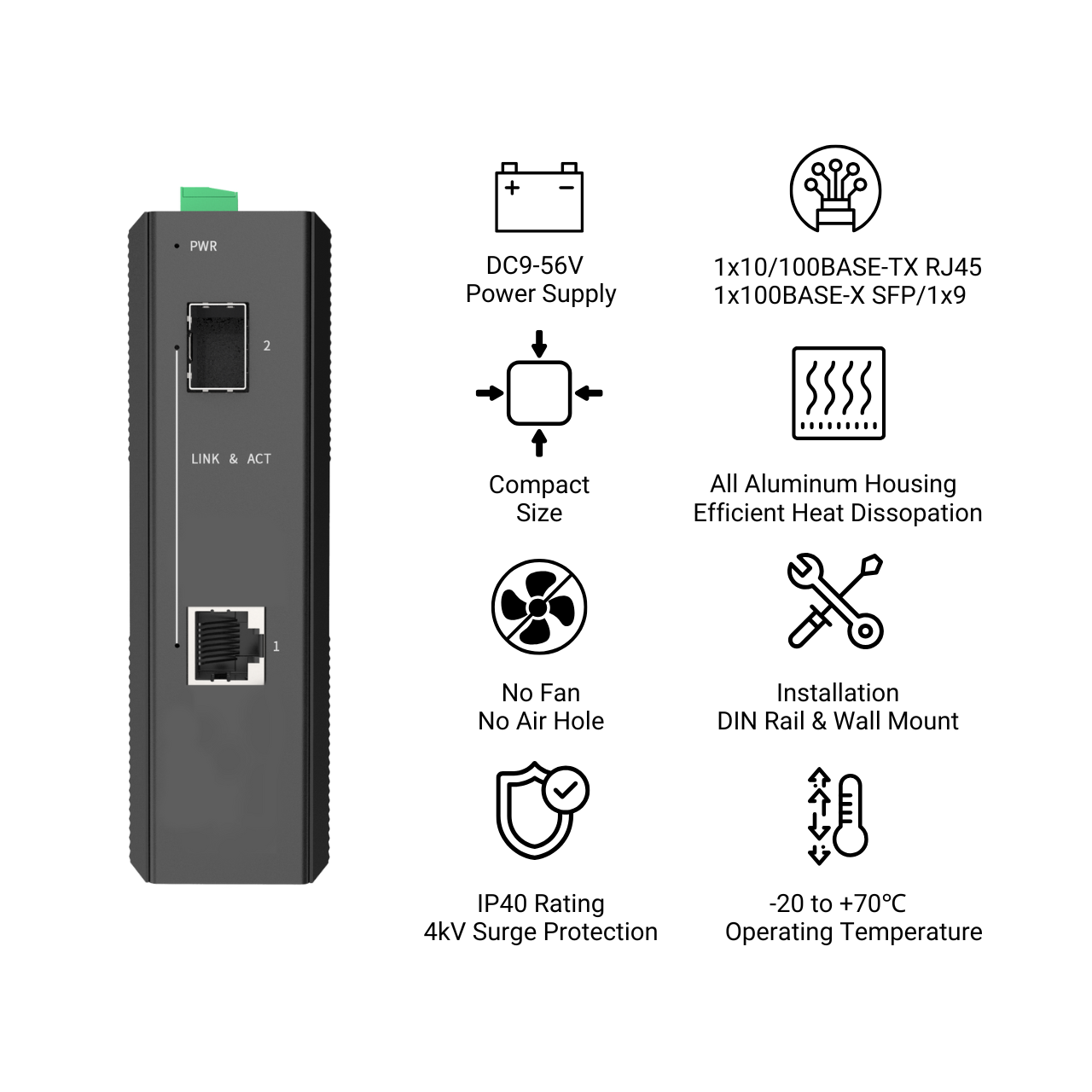

100Mb Industrial Fiber Media Converter with Robust Design for Harsh Industrial Environments
The 100Mb Industrial Fiber Media Converter is engineered to withstand extreme conditions, including temperature fluctuations (-20°C to 70°C), moisture, dust, and electromagnetic interference (EMI). Its rugged metal housing and IP40-rated protection ensure reliable operation in manufacturing plants, oil refineries, or outdoor installations. This durability minimizes downtime and maintenance costs, making it ideal for mission-critical industrial networks where stability is non-negotiable.
Seamless Copper-to-Fiber Network Integration
This media converter bridges the gap between traditional copper-based Ethernet (100Base-TX) and fiber optic (100Base-FX) networks, extending transmission distances up to 20–120 kilometers depending on fiber type. It supports single-mode or multi-mode fiber connectivity, enabling flexible deployment in large-scale industrial setups. Auto-negotiation and plug-and-play functionality ensure smooth integration into existing infrastructure without complex configurations.
Dual Power Inputs for Enhanced Redundancy
Equipped with dual DC power inputs (9- 56V), this media converter ensures continuous operation by supporting redundant power supplies. In critical applications like power grids or transportation systems, where downtime is unacceptable, this feature allows seamless switching between primary and backup power sources. Its wide voltage range compatibility also accommodates diverse industrial power systems, providing flexibility and resilience in mission-critical infrastructure.
Compact and DIN-Rail Mountable Design
Engineered for space-constrained industrial settings, the converter features a compact, DIN-rail mountable chassis that integrates effortlessly into control panels or junction boxes. Its tool-free installation saves time during deployment, while ruggedized connectors prevent accidental disconnections in high-vibration environments like railways or assembly lines. This space-efficient design optimizes rack or cabinet utilization, streamlining network architecture without compromising performance.
| Hardware Specifications | |
| Product | FR-6N1101 |
| Copper Ports | 1×10/100BASE-TX RJ45 Auto-MDI/MDI-X , Port 1 |
| Fiber Ports | 1x100BASE-X SFP Slot or 1×9 Optical Module, Port 2 |
| Enclosure | IP40 aluminum case |
| Installation | DIN-Rail and Wall-mount |
| Dimension | 120 x 90 x 35 mm |
| Weight | 370g(Bare weight), 470g(With package) |
| Surge Protection | ±4kV DC, ±2kV RJ45 |
| Switching | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 1.8Gbps/non-blocking |
| Forward Filter Rate | 14,880pps(10Mbps)
148,800pps(100Mbps) |
| Packet Buffer Size | 1 Mbits |
| Maximum Packet Length | 1536 bytes |
| MAC Address Table | 2K entries, automatic source address learning and aging |
| Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
| Power | |
| Power Input | 2 |
| Power Connector | 1 removable 5-contact terminal blocks
Pin 1/2 for Power 1, Pin 4/5 for Power 2 |
| Operating Voltage | 9-56V DC |
| Power Consumption | 3 Watts Max |
| Protection | Reverse Polarity
Overload Current |
| Environmental | |
| Operating Temperature | -20℃~70℃ (-4 to 158 ℉) |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) |
| Operating Humidity | 5%~90% (non-condensing) |
| Heat Dissipation | 7 BTU/h |
| Cooling | Passive Cooling |
| MTBF | ＞500,000 hours @MIL-HDBK-217F GF 25℃ |
| LED Indicators | |
| PWR | ON: Power is being supplied
OFF: Power is not being supplied |
| LINK & ACT (Port 1-2) | ON: Port connection is active
OFF: Port connection is not active |
| Regulatory & Warranty | |
| Standard Compliance | IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet |
| ISO | Manufactured in ISO-9001 facility |
| Safety | IEC62368-1:2020+A11:2020 |
| EMI | FCC Part 15B Class A, IEC 61000-3-2 |
| EMS | IEC61000-4-2 ESD: Contact:±8kV, Air:±15kV
IEC61000-4-5 Surge: Power: ±4kV; RJ45:±2kV |
| Shock | IEC 60068-2-27 |
| Free Fall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Environmental | RoHS 2011/65/EU Annex II(EU) |
| Warranty | 5 Years, Details See: https://fiberroad.com/warranty |
