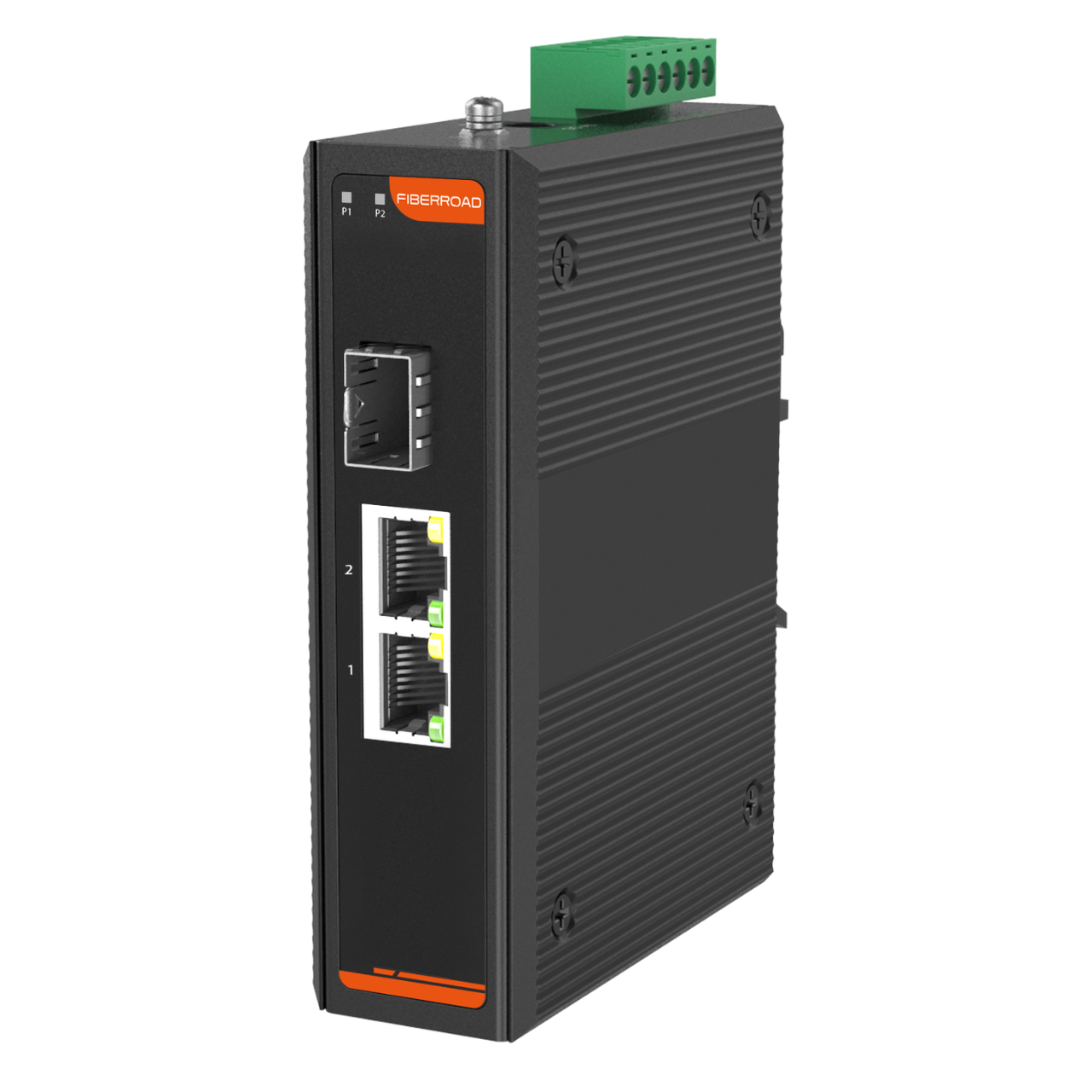

2-Port 10/100M Industrial PoE Media Converter – Reliable Network Extension for Harsh Environments
Fiberroad 2-Port 10/100M Industrial PoE Media Converter ensures stable network performance in extreme conditions. Built to withstand temperatures from -40°C to +75°C, this rugged converter delivers uninterrupted connectivity for industrial applications. Featuring ±6kV surge protection on PoE ports and an IP40 rating, it safeguards against electrical interference and dust, making it ideal for factories, outdoor surveillance, and automation systems. With Power over Ethernet (PoE) support, it simplifies installations by powering remote devices like IP cameras and access points while extending your network reach. Durable, efficient, and built for reliability—this converter keeps your operations running smoothly in the toughest environments.

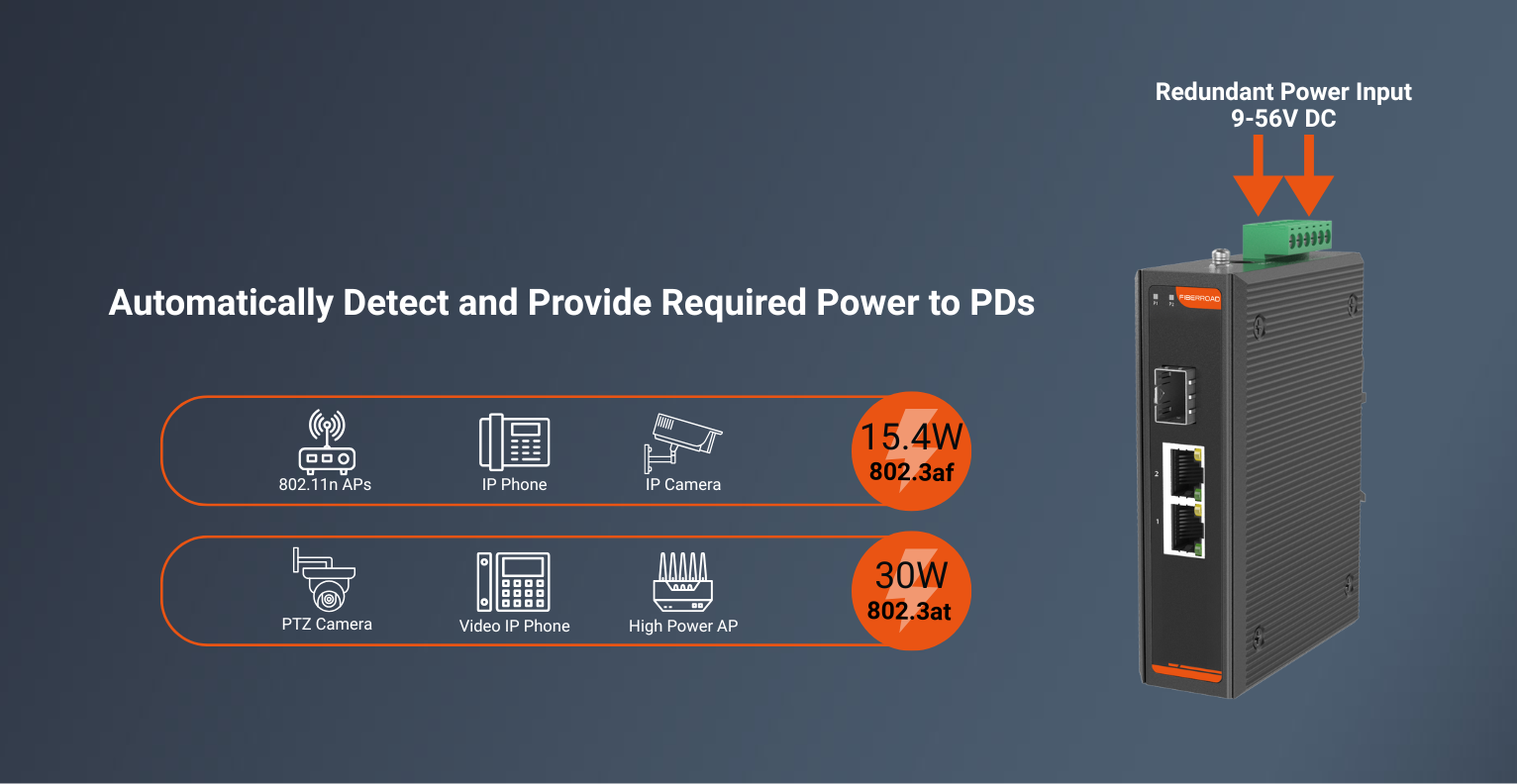

Compliant with IEEE802.3 af/at PoE+ Standard
This 2-Port Gigabit Industrial Media Converter delivers high-speed data and intelligent power distribution, supporting the latest IEEE 802.3af/at (PoE+) standards. It automatically detects connected devices—such as IP cameras, wireless APs, and VoIP phones—and delivers the precise power required (up to 30W) without manual configuration. Built for harsh industrial environments, its rugged design ensures reliable performance in extreme conditions while simplifying installations by eliminating the need for separate power supplies. Ideal for surveillance systems, factory automation, and outdoor networks, this converter provides a cost-effective, all-in-one solution for power and data transmission over long distances.
Industrial PoE Media Converter with Gigabit SFP – Extend & Stabilize Your Network
Boost your industrial network’s performance with our Industrial PoE Media Converter with Fast Ethernet SFP, designed to deliver high-speed, stable data transmission over extended distances. This rugged converter seamlessly integrates Power over Ethernet (PoE) and fiber-optic connectivity, allowing you to overcome copper cable limitations while powering remote devices like IP cameras and wireless access points. Its industrial-grade construction ensures reliable operation in harsh environments, while the hot-swappable SFP slot provides flexibility for various fiber types. Whether for factory automation, surveillance systems, or outdoor installations, this converter offers a future-proof solution for expanding your network with superior speed and reliability.
| Hardware Specifications | |||
| Product | FR-7N1102 | FR-7N1102P | FR-7N1102BT |
| Copper Ports | 2×10/100BASE-TX RJ45 Auto-MDI/MDI-X (Port 1-2) | ||
| Fiber Ports | 1x100BASE-X SFP Slot (Port 2) | ||
| Enclosure | IP40 aluminum case | ||
| Installation | DIN-Rail and Wall-mount | ||
| Dimension | 120 x 90 x 35 mm | ||
| Weight | 400g(Bare weight), 500g(With package) | ||
| Surge Protection | ±6kV DC, ±4kV RJ45 | ±6kV DC, ±6kV RJ45 | |
| Switching | |||
| Switch Architecture | Store-and-Forward | ||
| Switch Fabric | 1.8Gbps/non-blocking | ||
| Forward Filter Rate | 14,880pps(10Mbps)
148,800pps(100Mbps) |
||
| Packet Buffer Size | 1 Mbits | ||
| MAX. Packet Length | 1536 bytes | ||
| MAC Address Table | 2K entries, automatic source address learning and aging | ||
| Power Supply and PoE | |||
| Product | FR-7N1102 | FR-7N1102P | FR-7N1102BT |
| Power Input | 2 | ||

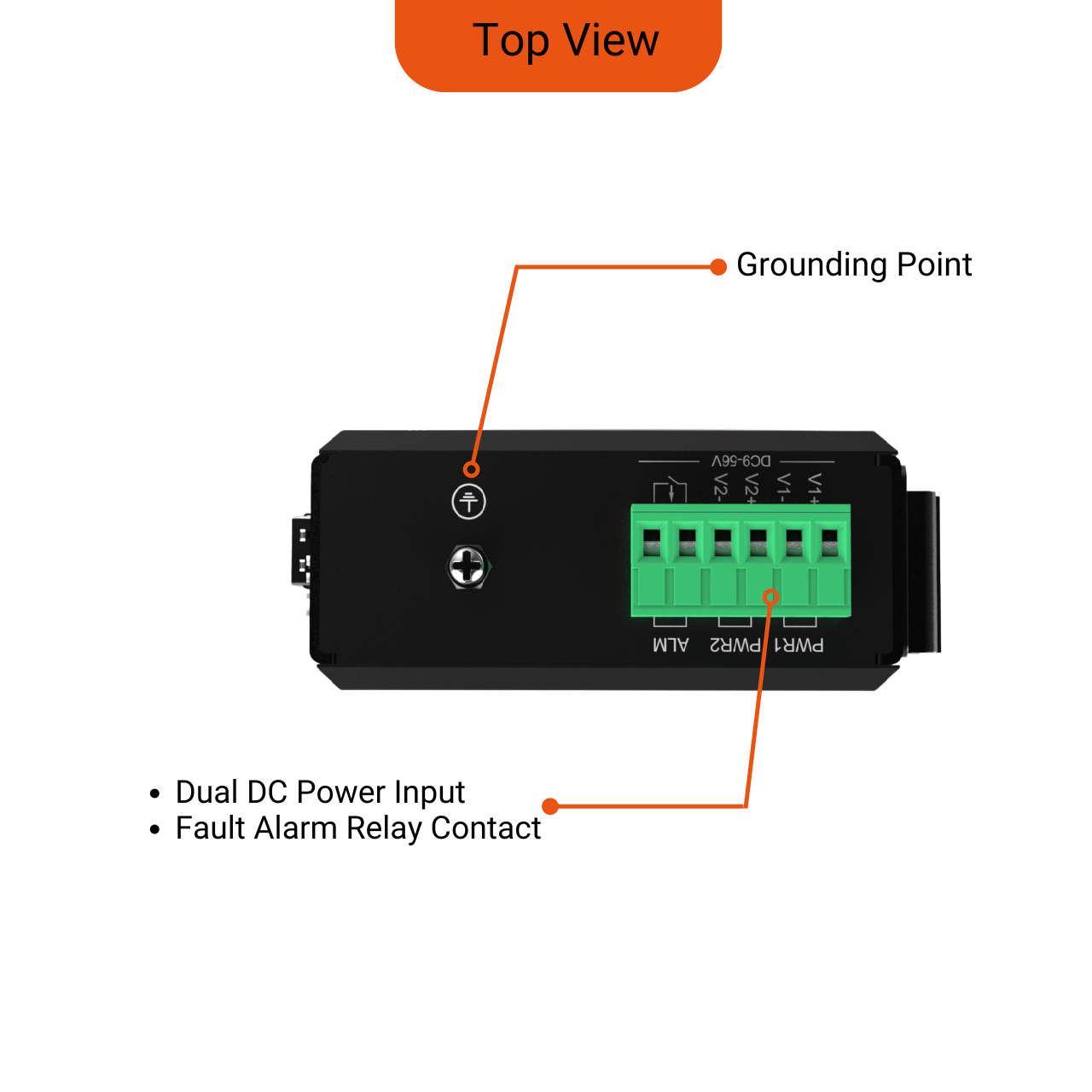

| Power Connector | 1 removable 6-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm(As required) |
||
| Operating Voltage | DC9-56V | DC48-56V | DC52-56V |
| Power Consumption | 4 Watts Max (without PoE load) | ||
| Protection | Reverse Polarity, Overload Current | ||
| PoE Ports | \ | Port 1-2 IEEE802.3 af/at | Port 1-2 IEEE802.3 af/at/bt |
| PoE Power Supply Type | \ | End-span | End-span |
| Power Supply Pin | \ | 1/2(+), 3/6(-) | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| Max Power Per Port | \ | 30W | 90W |
| PoE Power Budget | \ | 65W | 185W |
| Environmental | |||
| Operating Temperature | -40℃ to +75℃ (-40 to 167 ℉) | ||
| Storage Temperature | -40℃ to +85℃ (-40 to 185 ℉) | ||
| Operating Humidity | 5%~95% (non-condensing) | ||
| Heat Dissipation | 7 BTU/h (Non-PoE), 218 BTU/h (with 60W PoE load), 628 BTU/h (with 90W PoE load) | ||
| Cooling | Passive Cooling | ||
| MTBF | ＞500,000 hours @Telcordia SR-332 GF 30°C | ||
| LED Indicators | |||
| P1 & P2 | ON: Power is being supplied ,OFF: Power is not being supplied | ||
| Fiber Port | ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active | ||
| RJ45 Port Amber LEDs | ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active | ||
| RJ45 Port Green LEDs | ON: Port is operating at 100 Mb/s, OFF: Port is operating at 10 Mb/s | ||
