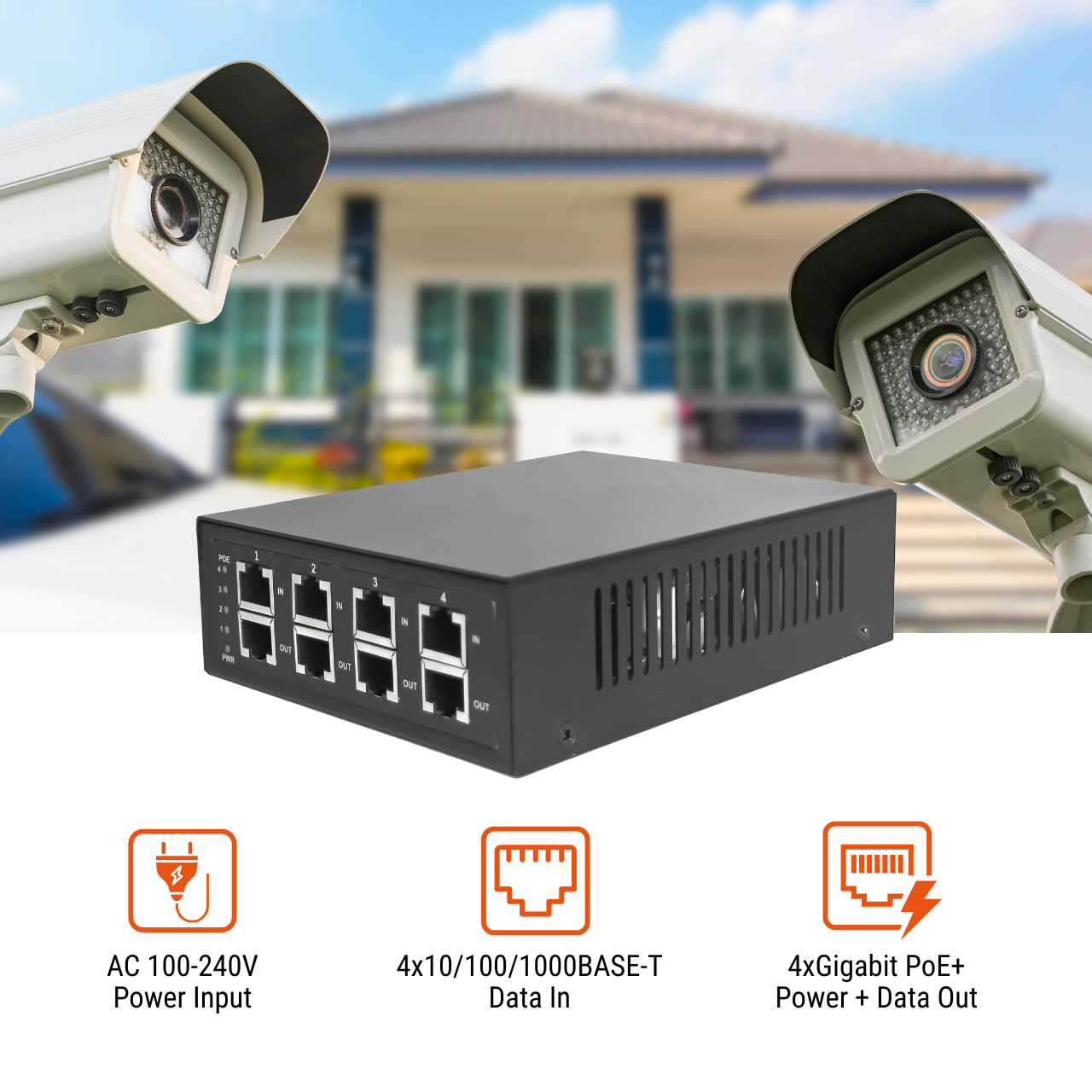

4 Port Gigabit PoE+Injector

The Fiberroad 4-Port Gigabit PoE+ Injector is a device that adds Power over Ethernet (PoE+) capability to an existing network that lacks it. It acts as a middleman, taking data from a standard network switch and adding electrical power to it, allowing you to connect and power multiple PoE devices directly through their Ethernet cables.



Product Features

  • Adds PoE+ to Non-PoE Networks: Its primary function is to upgrade a regular, non-PoE Gigabit switch, enabling it to power PoE devices without needing to replace the entire switch.
  • 4 PoE+ Output Ports: Can simultaneously power and connect four PoE or PoE+ devices (like IP cameras, wireless access points, VoIP phones, etc.).
  • High Power Output: Supplies up to 30 watts per port, which is the standard for PoE+ (IEEE 802.3at).
  • Gigabit Speed: Supports 10/100/1000 Mbps data rates, ensuring a high-speed network connection.
  • Long Distance Support: Provides power and data over the standard Ethernet cable limit of 100 meters (328 feet).
  • Fanless & Quiet Operation: The passive cooling design (no internal fan) makes it completely silent, ideal for offices, homes, or quiet environments.

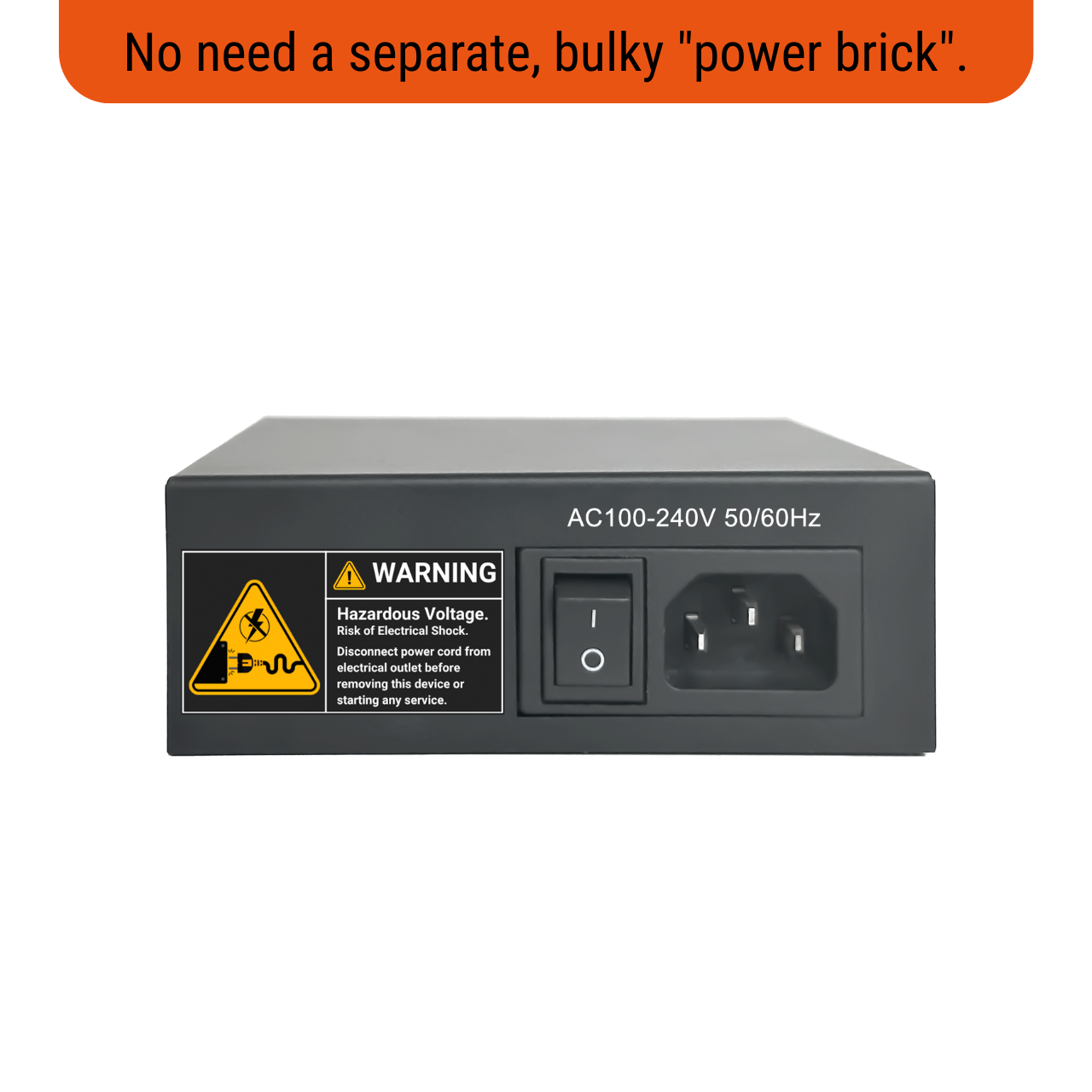

  • Internal Power Adapter: The power supply is built into the unit, so you don’t need a separate, bulky “power brick.” This reduces cable clutter and simplifies setup.

Video Gallery

Share This Product
4 Port PoE Injector

4-Port High-Power PoE+ Injector

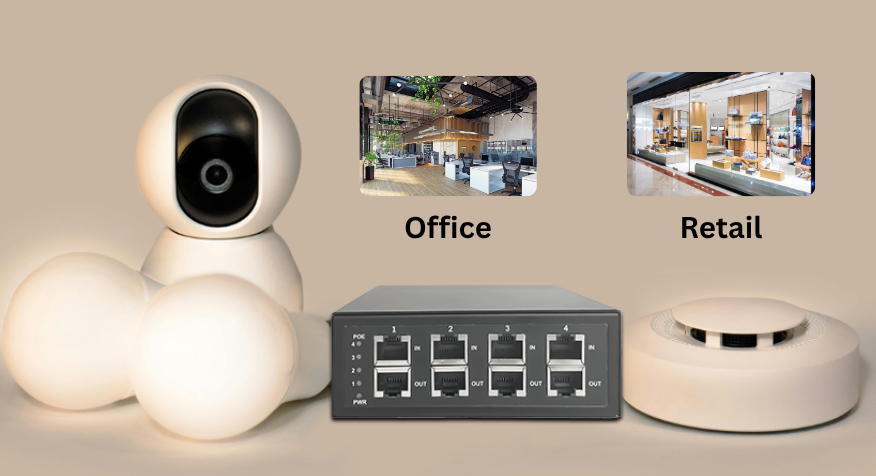

A 4-port PoE injector is an ideal, cost-effective solution for powering and connecting the essential networked devices in small to mid-sized offices and retail stores. It effortlessly eliminates the need for expensive electrical work by allowing you to place equipment in optimal locations, even where power outlets are scarce.

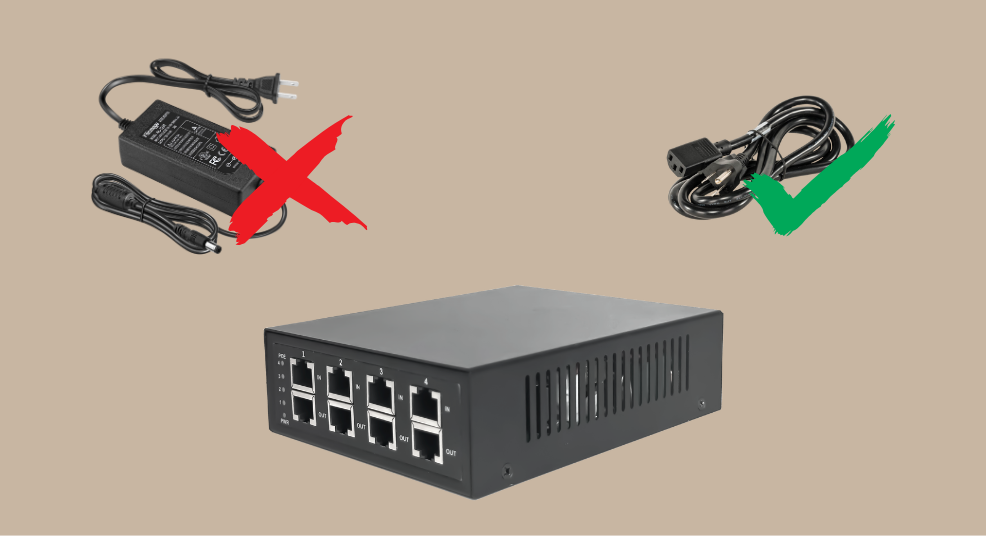

4-Port PoE+ Injector with Internal Power Adapter

You only have one power cord to manage (from the poe injector to the power devices), instead of a power cord plus a large brick. This makes your network cabinet, shelf, or installation area much tidier. If a device loses power, you know the single injector unit is the place to look. With an external brick setup, you have to check the injector, the brick, and the cable between them.

4 Port PoE Injector
4 Port PoE Injector

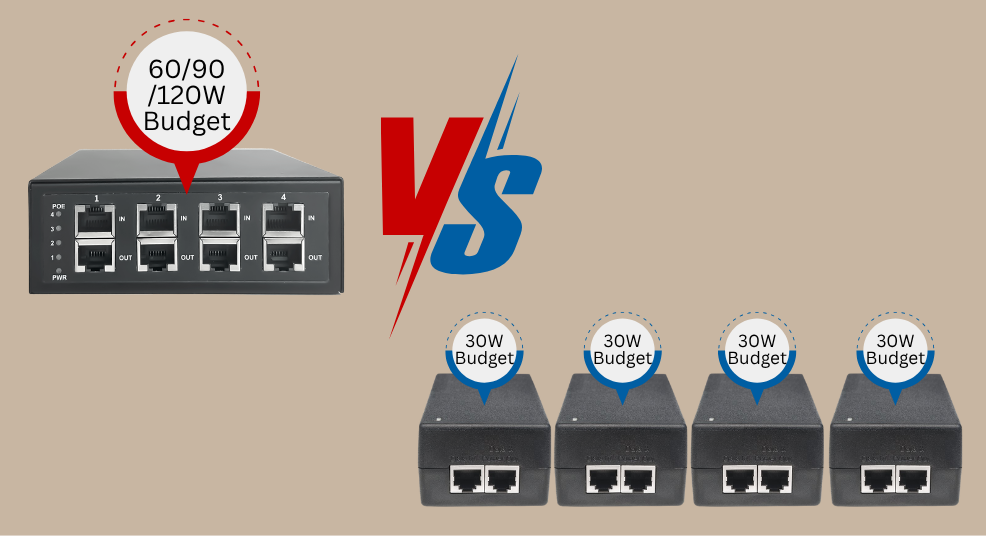

All-in-One 4-Port PoE Injector: Power and Connect from a Single Box

Instead of hunting for four different power outlets and managing four separate injectors, you have a single, centralised power hub. This makes it easy to power cycle devices if needed and keeps all your power connections in one accessible location.Ensuring stable performance for all connected devices like IP cameras, access points, and VoIP phones

Hardware Specifications
Product FR-IPS2008I-4PG-A-90
Port 4×10/100/1000BASE-T RJ45 (Data In)

4×10/100/1000BASE-T RJ45(PoE Out)

Fiber Ports \
Enclosure IP30 meta case
Installation Desktop or Wall Mount
Dimension 140 x 110 x 40mm
Weight 600g(Bare weight), 850g(With package)
Layer 2 Features
Switch Architecture Store-and-Forward
Forward Rate Non-blocking full wire-speed forwarding rate
MAX. Packet Length 9K bytes
Flow Control IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Power Supply and PoE
Power Input 1
Power Connector C14 Terminal
Power Input AC 100-240V, 50-60Hz, Internal AC-to-DC adapter
PoE Ports Out 1 to 4 IEEE802.3 af/at
PoE Power Supply Type End-span
Power Supply Pin 1/2(+), 3/6(-)
Max Power Per Port 30W
PoE Power Budget 90W
Environmental
Operating Temperature 0℃ to +50℃ (-40 to 167 ℉)
Storage Temperature -40℃ to +85℃ (-40 to 185 ℉)
Operating Humidity 5%~90% (non-condensing)
Heat Dissipation 322 BTU/h (with 120W PoE load)
Cooling Passive Cooling
MTBF 100,000 Hours

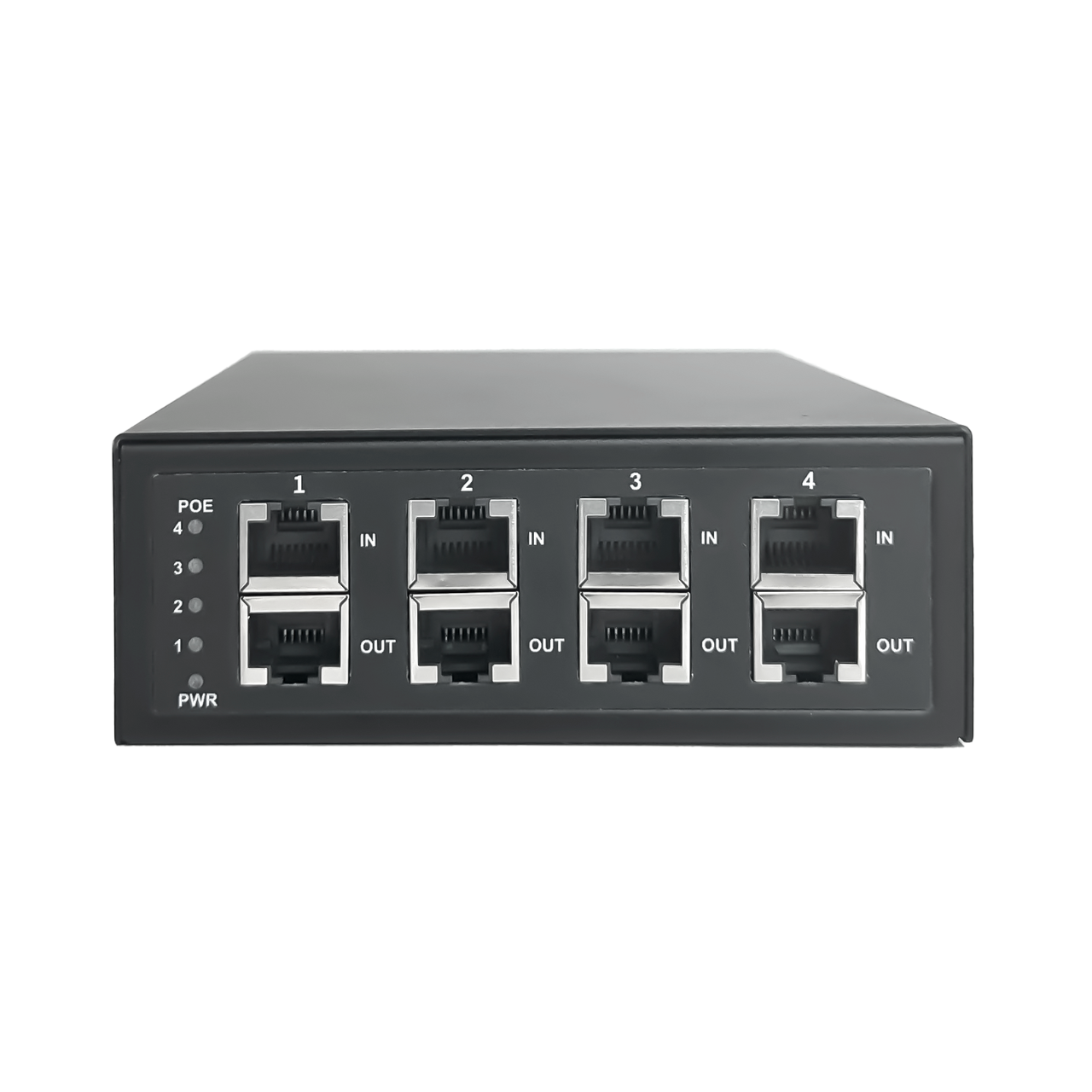

LED Indicators
PWR ON:  Power is being supplied ,OFF: Power is not being supplied
PoE 1-4 ON: Connected PD Load, OFF: No Connected PD Load

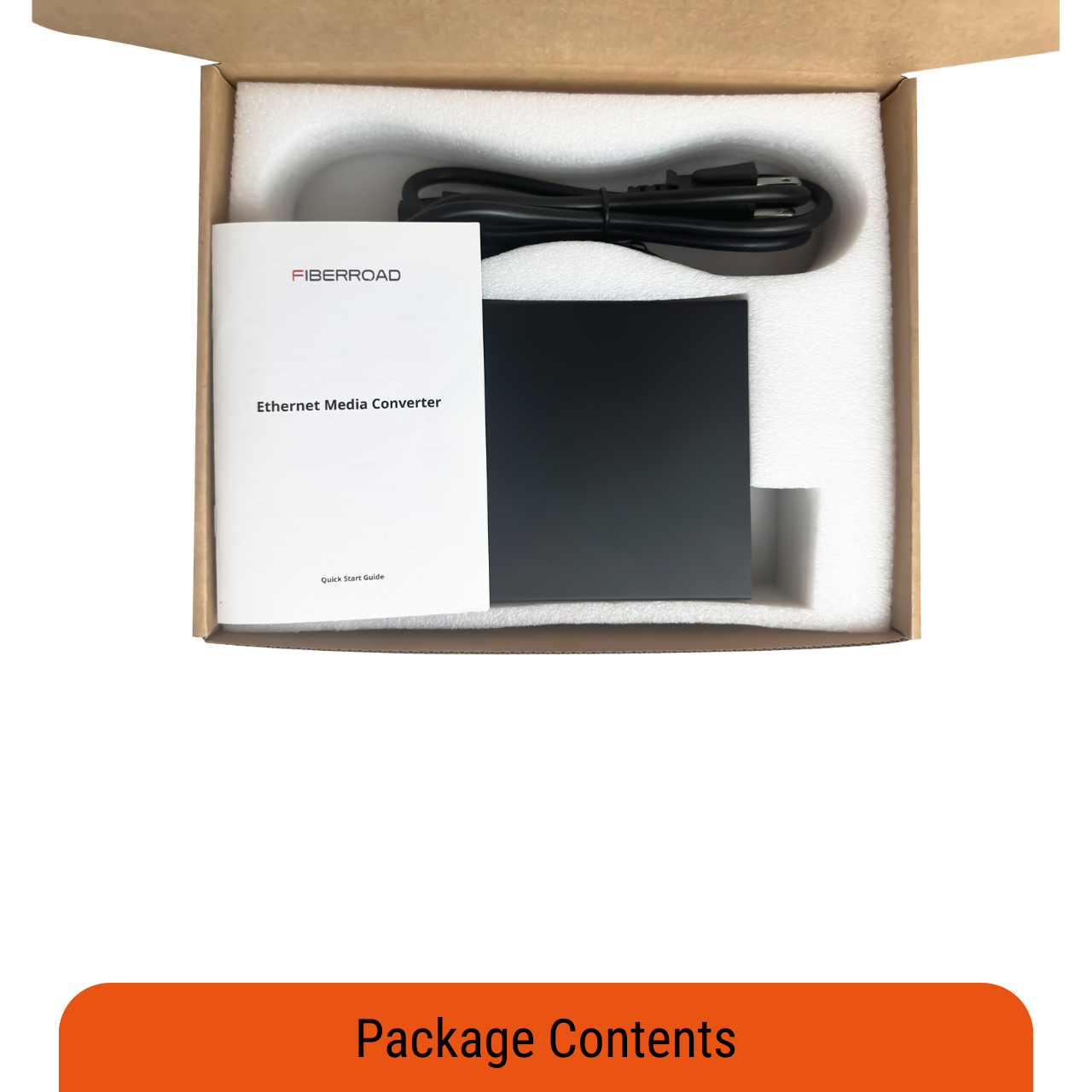

Package Contents
Device 1 x PoE Injector
Accessories 1 x Region Power Cord
Documentation 1 x Quick Installation Guide

1 x Warranty Card

Support Documents

Item Type Version Release Date
FR-IPS2008I-4PG-A Series Datasheet
281 KB
Datasheet
