Power Your Device and Your Network: Fibre PoE Converter with 60W USB-C

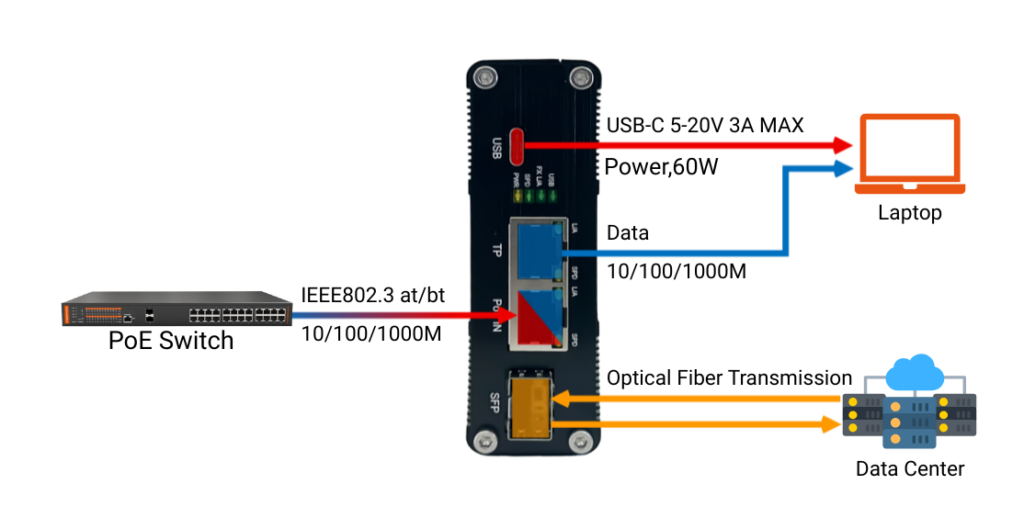

Eliminate cable clutter and streamline your connectivity with our all-in-one Fibre PoE Media Converter. Designed for modern workspaces, this powerful device does more than just convert fibre to Ethernet. It accepts a standard PoE++ (bt) input to receive data and up to 60W of power, which is then delivered through a versatile USB-C port. This allows you to power and connect a laptop, simplifying your setup. Furthermore, with a 1000M SFP slot that supports fibre links up to 120km, it provides the long-distance backbone you need to reliably reach a remote data centre or ISP network, all from a compact, desktop device.
| Hardware Specifications | |||
| Product | FR-IPM2003MI-1GF1GE-P-90 | ||
| Copper Ports | 2×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (TP1 and PoE IN), Auto-Negotiation | ||
| Fiber Ports | 1×100/1000BASE-X SFP Slots | ||
| Enclosure | IP40 aluminum case | ||
| Installation | DIN-Rail and Wall-mount | ||
| Dimension | 95mm x 70mm x 30mm (L x W x H) | ||
| Weight | 250g(Bare weight) | ||
| Network Cable | 10/100/1000BASE-T:
2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters) EIA/ TIA-568 100-ohm STP (maximum 100 meters) 100BASE-FX/1000BASE-SX/LX Multi-mode: 50/125um or 62.5/125um optical fiber Single-mode: 9/125um optical fiber |
||
| Power Supply and PoE | |||
| Power Input | PD Port/DC Terminal | PoE Input(TP2), IEEE802.3 at/bt | |
| Input Voltage | PoE Input: DC48-57V | ||
| Power Output | Connector | USB-C | |
| Output Voltage | 5-20V, 3A Max (60W） | ||
| Power Consumption | 5 Watts Max (without PoE load) | ||
| PoE Ports | / | ||
| PoE Power Supply Type | / | ||
| Power Supply Pin | / | ||
| Max Power Per Port | / | ||
| Total Power Budget | 60W Maximum
(Depending on power input) |
||
| Environmental | |
| Operating Temperature | -30℃ to +70℃ (-22 to 158 ℉) |
| Storage Temperature | -40℃ to +85℃ (-40 to 185 ℉) |
| Operating Humidity | 5%~90% (non-condensing) |
| Cooling | Passive Cooling |
| MTBF | ＞500,000 hours @MIL-HDBK-217F GF 25℃ |
| LED Indicators | |
| PWR | ON: Power is being supplied ,OFF: Power is not being supplied |
| RJ45 Port Green LEDs(L/A) | ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active |
| RJ45 Port Amber LEDs(SPD) | ON: Port is operating at 1000 Mb/s, OFF: Port is operating at 10/100 Mb/s |
| USB | ON: Connected PD load |
| FX L/A | ON: Opti fiber cable is connected well, but no data transmission. Blinking: Receiving data |
| FX SPD | ON: FX 1000M running, OFF: FX 100M running |
